X96 X6

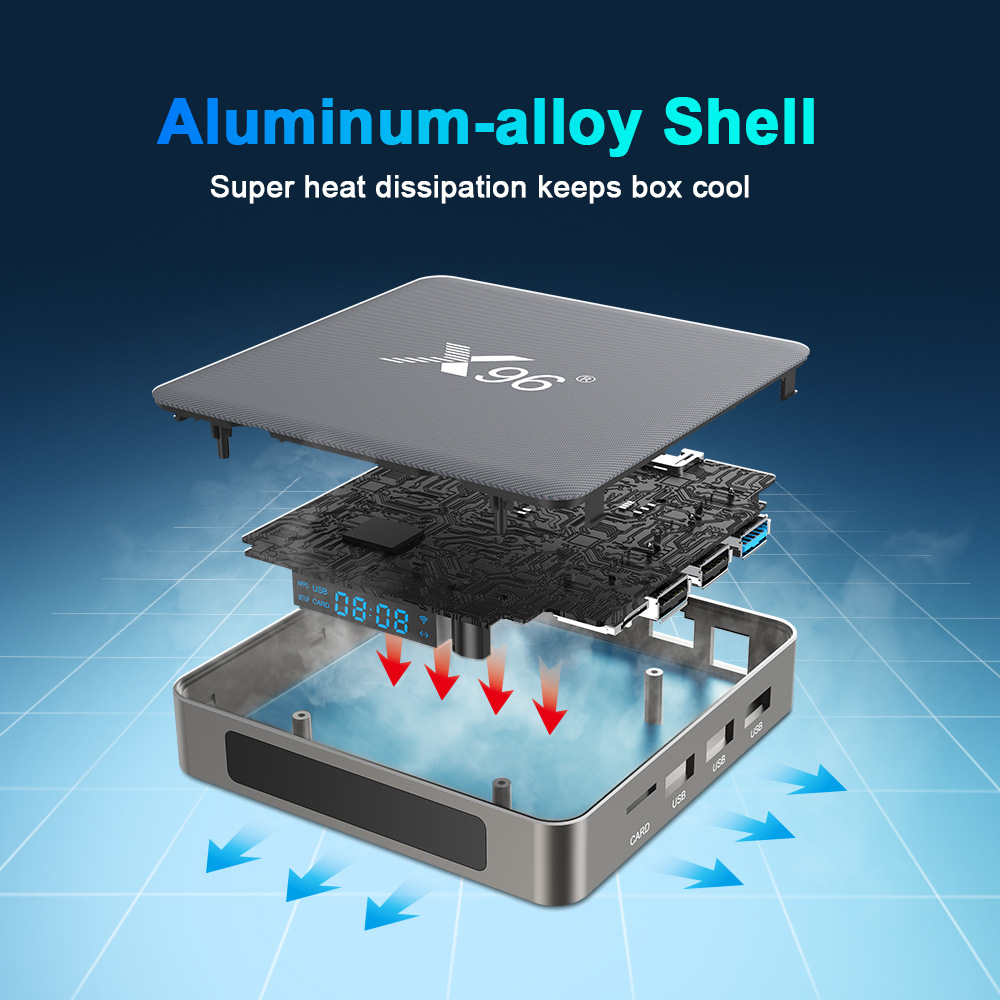

Aluminum alloy metal case X96 X6 RK3566 android TV box Quad core Rockchip 64bit CPU 4GB 8GB RAM 32GB 64GB 128GB ROM 2.4G 5G 2T2R WiFi USB3.0 BT4.X 1000M Ethernet 8K decoding external antenna android 11 os.































X96 X6 Product Specifications:





Basic parameters
CPU	Chipset	RK3566
	Architecture	Quad Core ARM Cortex A55
GPU	Chipset	Mali-G52 1-Core-2EE
	Architecture	OpenGL ES 1.1/2.0/3.2,OpenCL 2.0,Vulkan 1.1 support
NPU		Neural network acceleration engine with processing performance up to 0.8 TOPS
RAM	Capacity	8GB   (2/4/8GB Optional)
ROM	Capacity	64GB  (16/32/64/128GB Optional)
External storage	USB Storage Devices	Supported
	Micro SD card	Supported
Software
Operating system	OS Version	Android 11 OS
	Language	Multi-Language
Multimedia	Video	* Video Decoder
		H.265 HEVC/MVC Main10 Profile yuv420@ L5.1 up to 4096×2304@ 60fps
		H.264 AVC/MVC Main10 Profile yuv400/yuv420/yuv422/@ L5.1 up to 4096×2304@ 60fps
		VP9 Profile0/2 yuv420@ L5.1 up to 4096×2304@ 60fps
		VP8 verision2,up to 1920×1088@ 60fps
		VC1 Simple Profile@ low, medium, high levels, Main Profile@ low, medium, high levels, Advanced Profile@ level0~3,up to 1920×1088@ 60fps
		MPEG-4 Simple Profile@ L0~6,Advanced Simple Profile@ L0~5,up to 1920×1088@ 60fps
		MPEG-2 Main Profile, low, medium and high levels, up to 1920×1088@ 60fps
		MPEG-1 Main Profile, low, medium and high levels, up to 1920×1088@ 60fps
		H.263 Profile0,levels 10-70,up to 720×576@ 60fps
		* Video Encoder
		H.264/AVC BP/MP/HP@ level4.2,up to 1920×1080@ 100fps
		H.265/HEVC MP@ level4.1, up to 1920×1080@ 100fps (4096×4096@ 10fps with TILE)
		Support YUV/RGB video source with rotation and mirror
	Audio	Supports MP3, AAC, WMA,  FLAC, Ogg.
	Image	JPEG,BMP,GIF,PNG,TIF
Network service
Wi-Fi	Type	Support WiFi IEEE 802.11 b / g / n / ac
	Frequency	Support 2.4G and 5G
	Antenna Type	External antenna
Blue Tooth	Blue Tooth	Support BT4.X

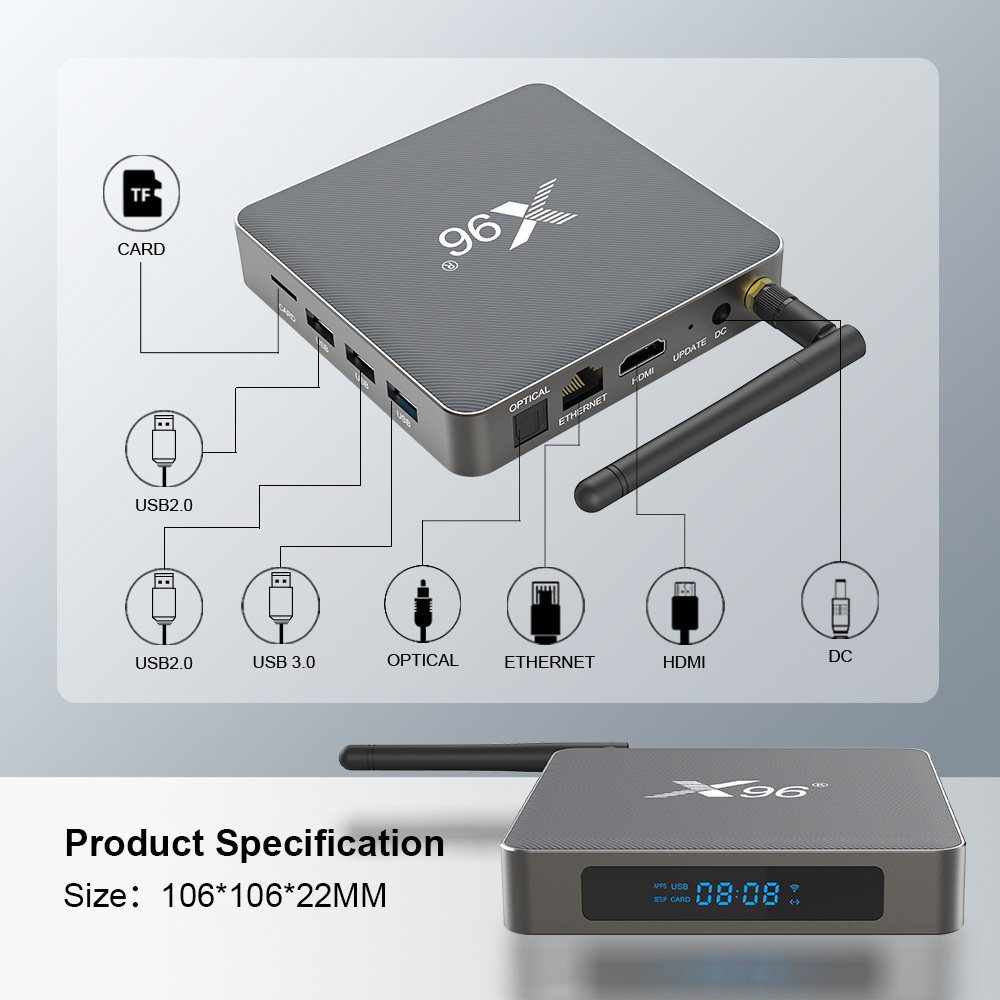

Interface
Charge	DC connector	DC IN(5V/2A)
Video output	HDTV	4K*2K UHD Output, HDTV 1.4/2.0
IR Reciver	3.5mm Earphone jack	Remote Reciver Connect
Micro SD	External memory	Support
USB port	USB host	1* USB3.0  2* USB2.0 normal type
Ethernet	Ethernet	1000M Ethernet
Appearance
Body Material	Metal
Color	Grey

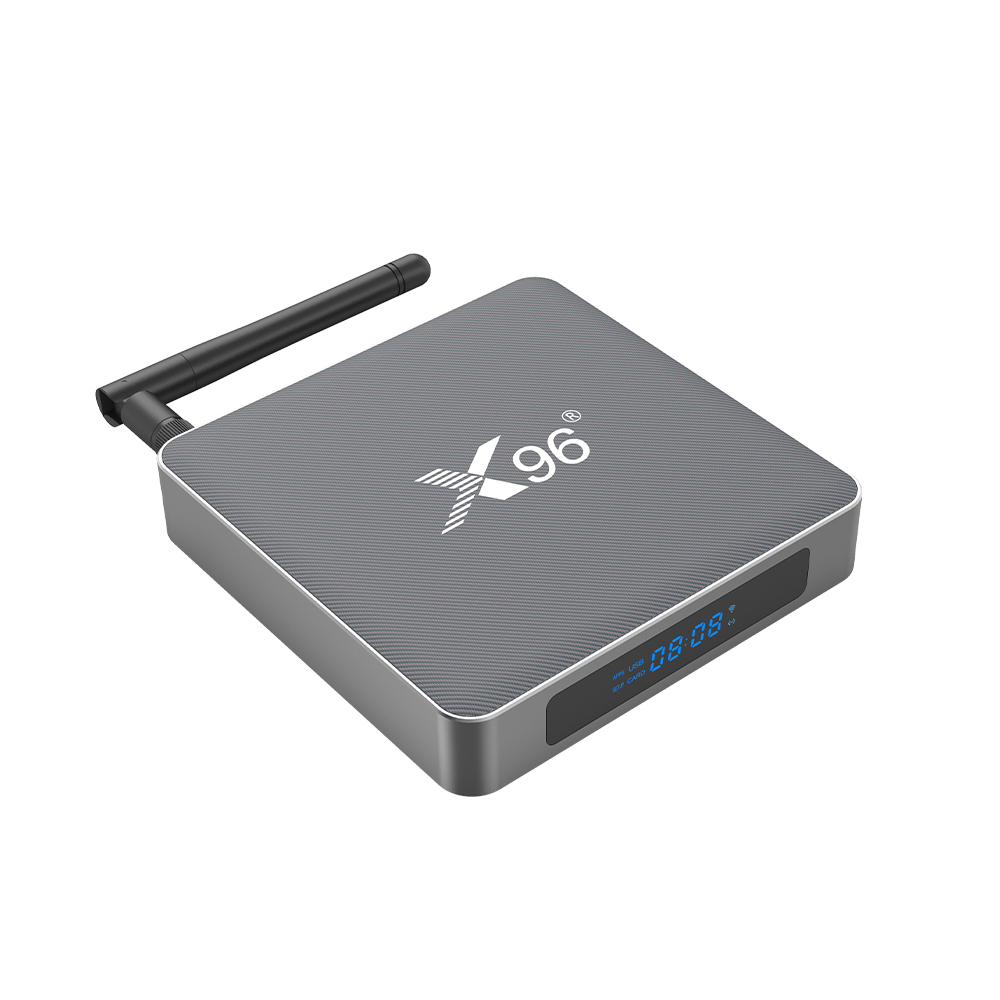

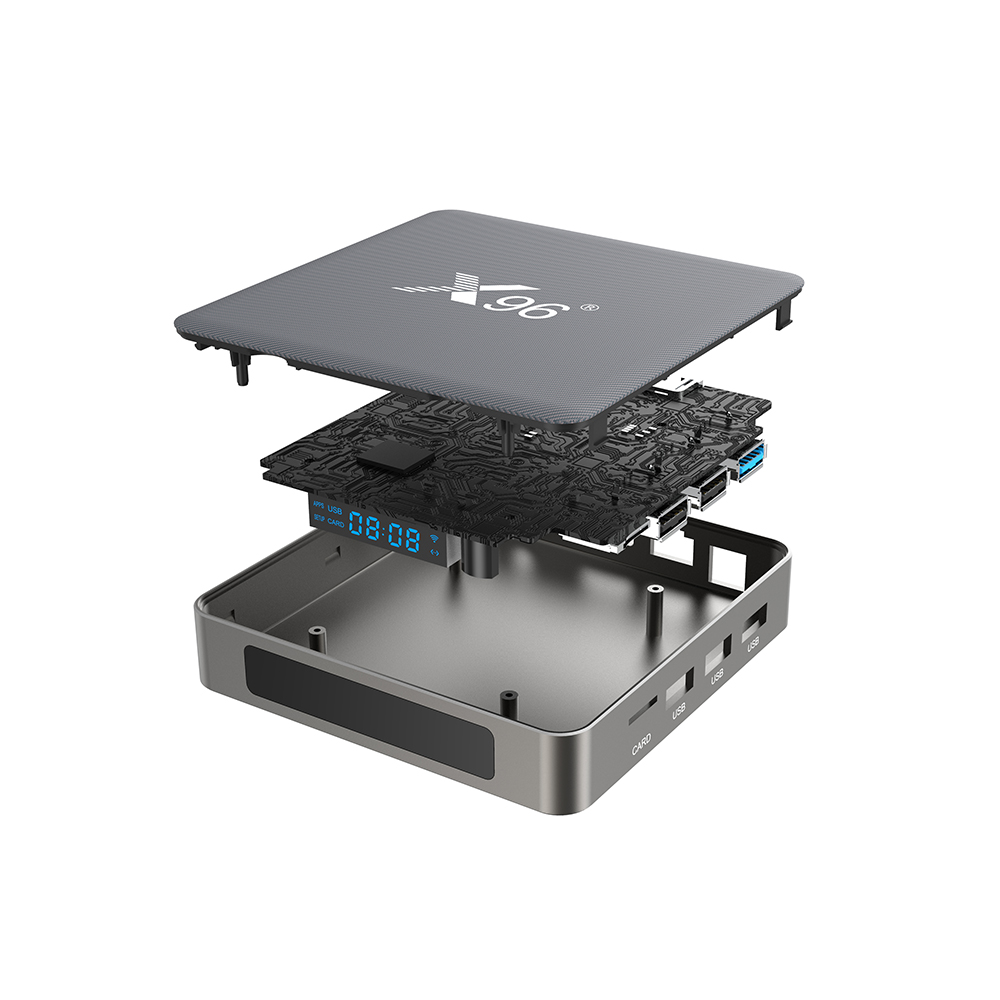

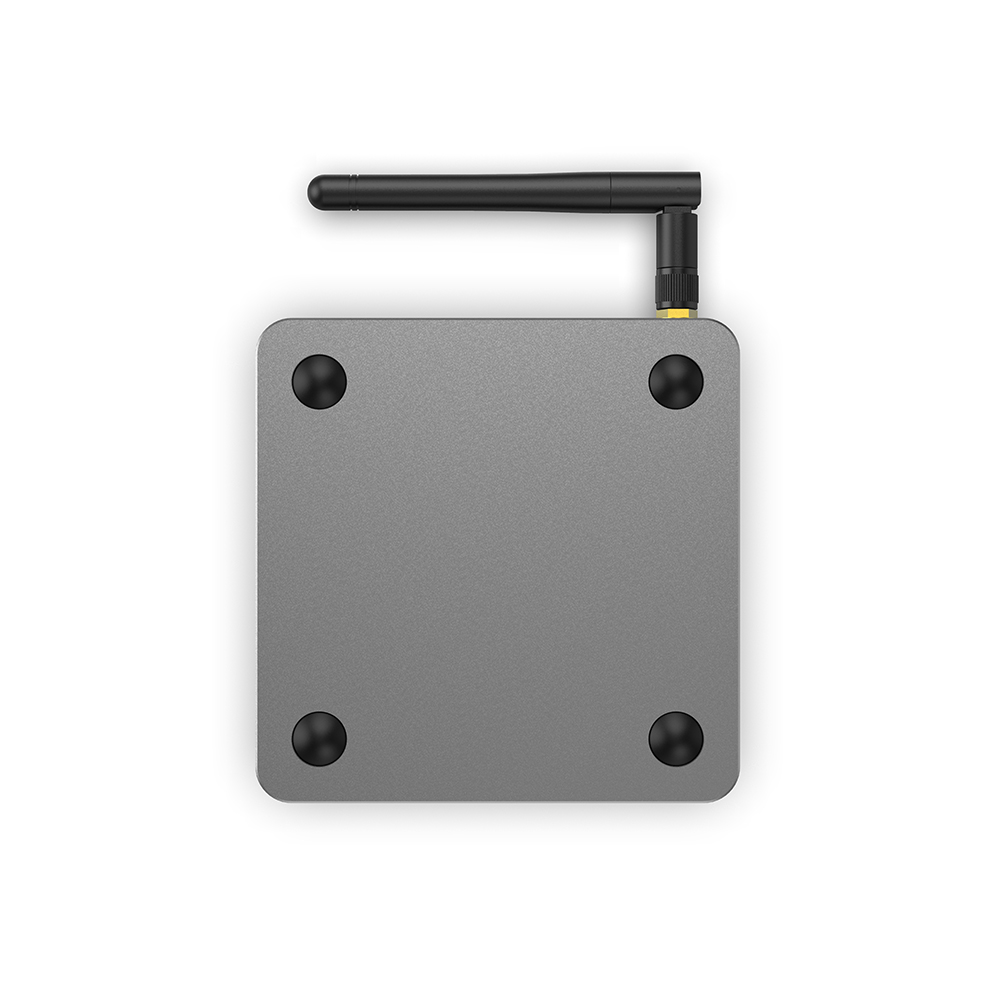

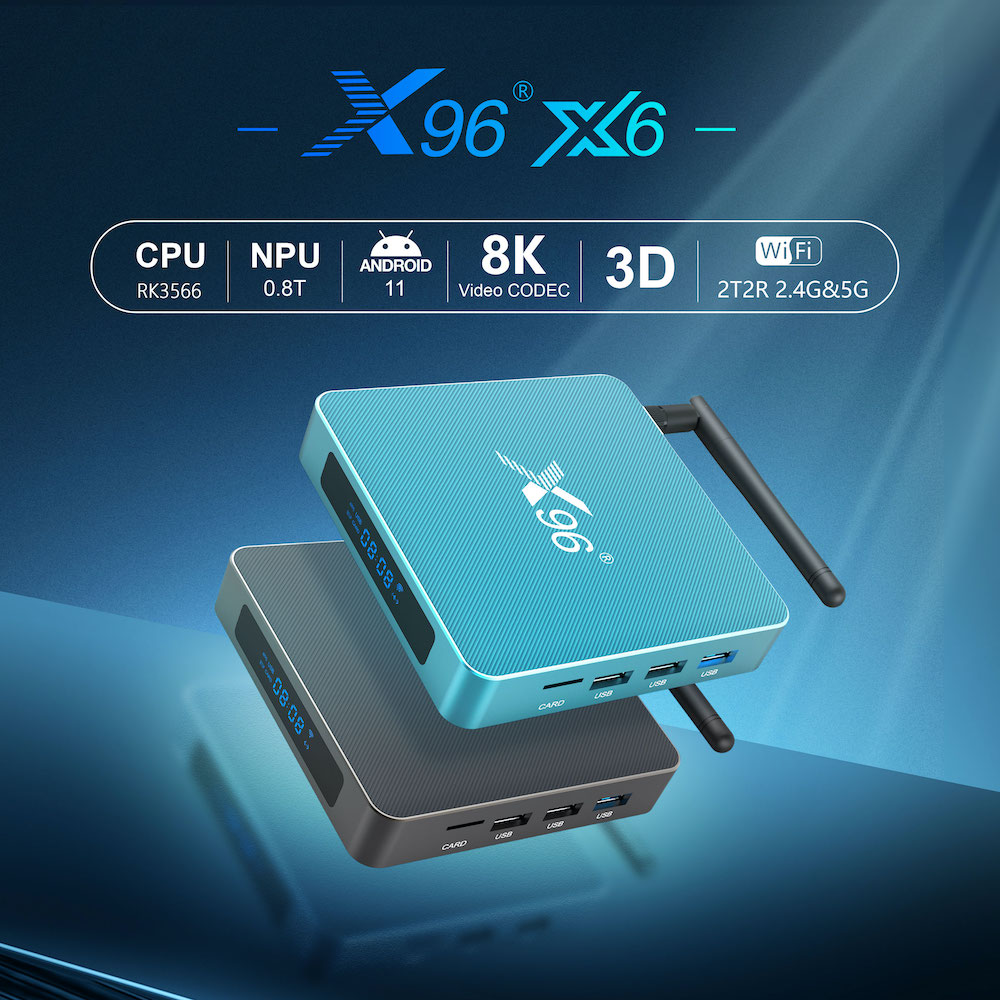

X96 X6 Android TV Box Picture:

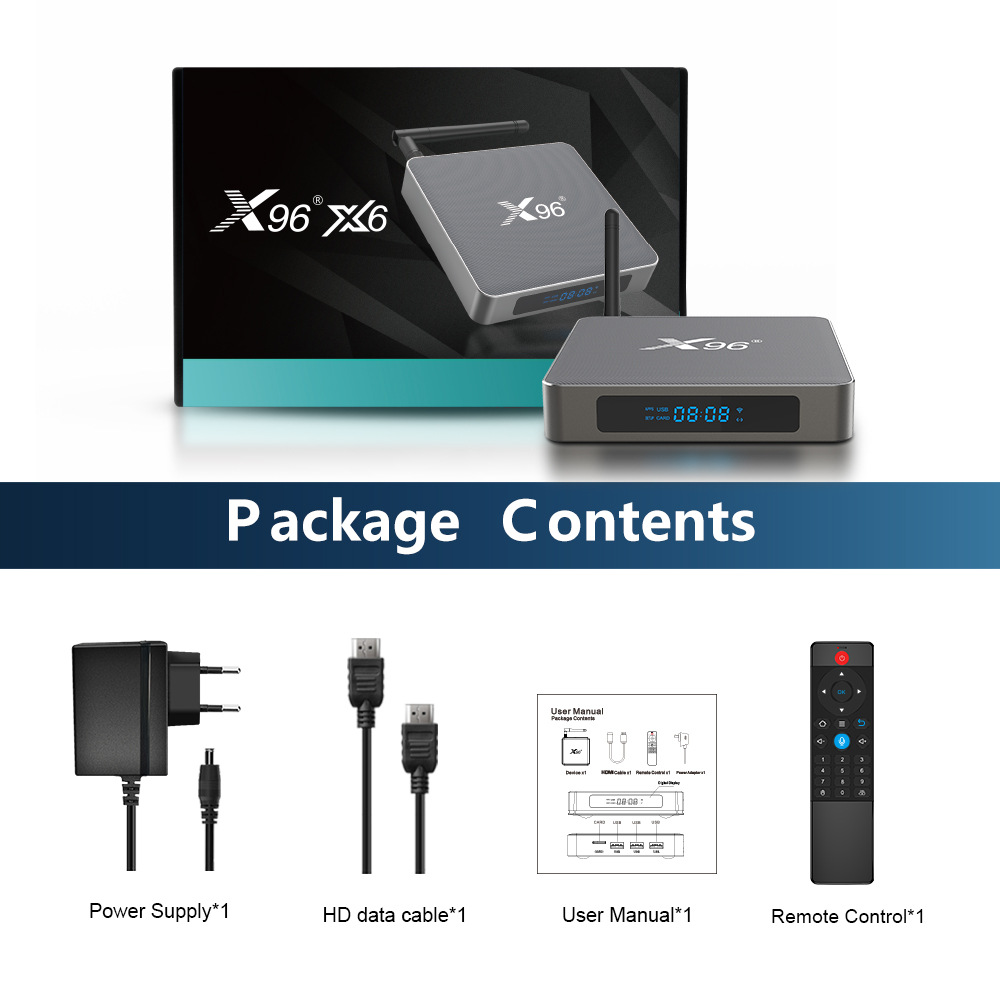

X96 X6 Product Packing Details:





RK3566 android TV box	*1	Shipping Info:
User manual	*1	Gift Box Dimension(mm)		205*140*50(mm)
Gift Box	*1	Carton Size(mm)		420*270*305 (mm)
Remote control	*1	Qty Per Carton(pcs)		20 pcs
HDMI cable	*1	Gift Box.G.W(gs)		Kg
Power adapter	*1	Export carton (G.W.)(kgs)		Kg
