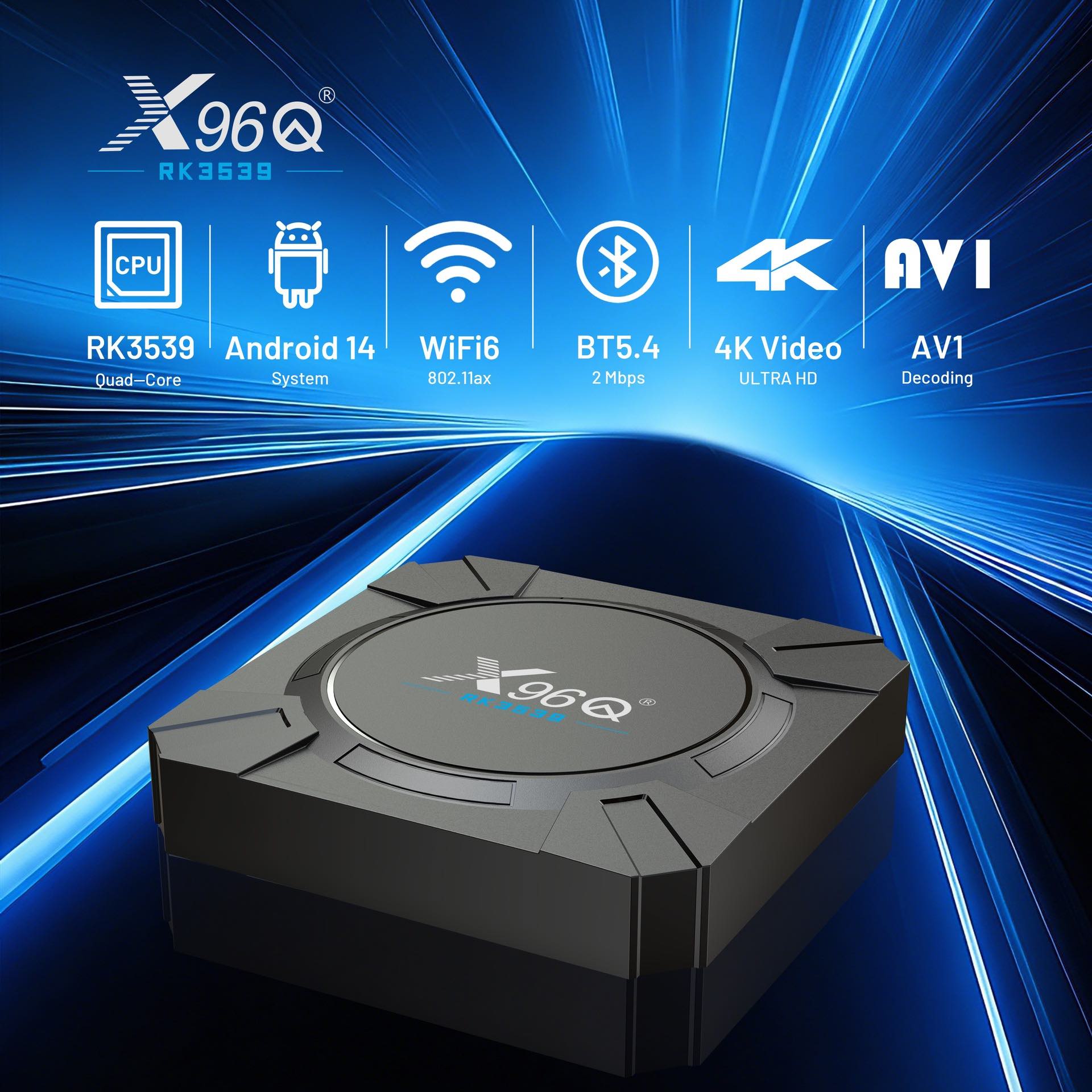

New X96Q RK3539 android TV box with Quad Core RK3539 Cortex A55 CPU Mali G310 GPU 2GB RAM 16GB ROM 2.4G 5G WiFi 6 BT 5.4 voice remote AV1 4K 60FPS decoding support Native Youtube android 14 OS TV box.
X96Q RK3539 Product Specifications:
| Product Model | X96Q RK3539 | |||
| Product Name | Android TV Box | |||
| Basic parameters | ||||
| CPU | Chipset | RK3539 | ||
| Architecture | Quad Core ARM Cortex A55 | |||
| GPU | Chipset | ARM Mali G310 | ||
| Architecture | OpenGL ES 1.1, 2.0, 3.2, Vulkan 1.2 and OpenCL 2.0 support | |||
| RAM | Capacity | Option: 1.5/2GB | ||
| ROM | Capacity | Option: 8/16GB | ||
| Software | ||||
| Operating system | OS Version | Android 14 | ||
| Language | Multi-Language | |||
| Video/Picture Decoding | AV1 MP-10@L5.1 up to 4Kx2K@60fps | |||
| VP9 Profile-2 up to 4Kx2K@60fps | ||||
| H.265 HEVC MP-10@L5.1 up to 4Kx2K@60fps | ||||
| H.264 AVC HP@L5.1 up to 4Kx2K@30fps | ||||
| MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496) | ||||
| WMV/VC-1 SP/MP/AP up to 1080P@60fps | ||||
| MPEG-2 MP/HL up to 1080P@60fps (ISO-13818) | ||||
| MPEG-1 MP/HL up to 1080P@60fps (ISO-11172) | ||||
| Multiple language and multiple format sub-title video support | ||||
| MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918) | ||||
| Supports JPEG thumbnail, scaling, rotation and transition effects | ||||
| Image Engine | Supports HDR10+, HDR10 processing | |||
| Audio | Supports MP3, AAC, WMA, FLAC, Ogg. | |||
| Image | HD JPEG, BMP, GIF, PNG, TIF | |||
| Network service | ||||
| Wi-Fi | Type | Support IEEE 802.11 b / g / n /ac /ax WIFI 6 | ||
| Frequency | Support 2.4G and 5G | |||
| Bluetooth | Bluetooth | Support BT5.X | ||
| Interface | ||||
| Micro SD | External memory | Support | ||
| Charge | Charging Port | 5V/2A, DC IN | ||
| Video output | HDMI OUT | 4K@60 Hz | ||
| AV output | CVBS OUT | Support | ||
| IR Reciver | On board | Support | ||
| Key | Key Function | Update | ||
| Ethernet | Ethernet | 100Mbps | ||
| USB port | Data | 1*USB2.0 Type-A | ||
| USB host | 1*USB2.0 Type-A | |||
| Appearance | ||||
| Body Material | ABS | |||
| Color | Black | |||

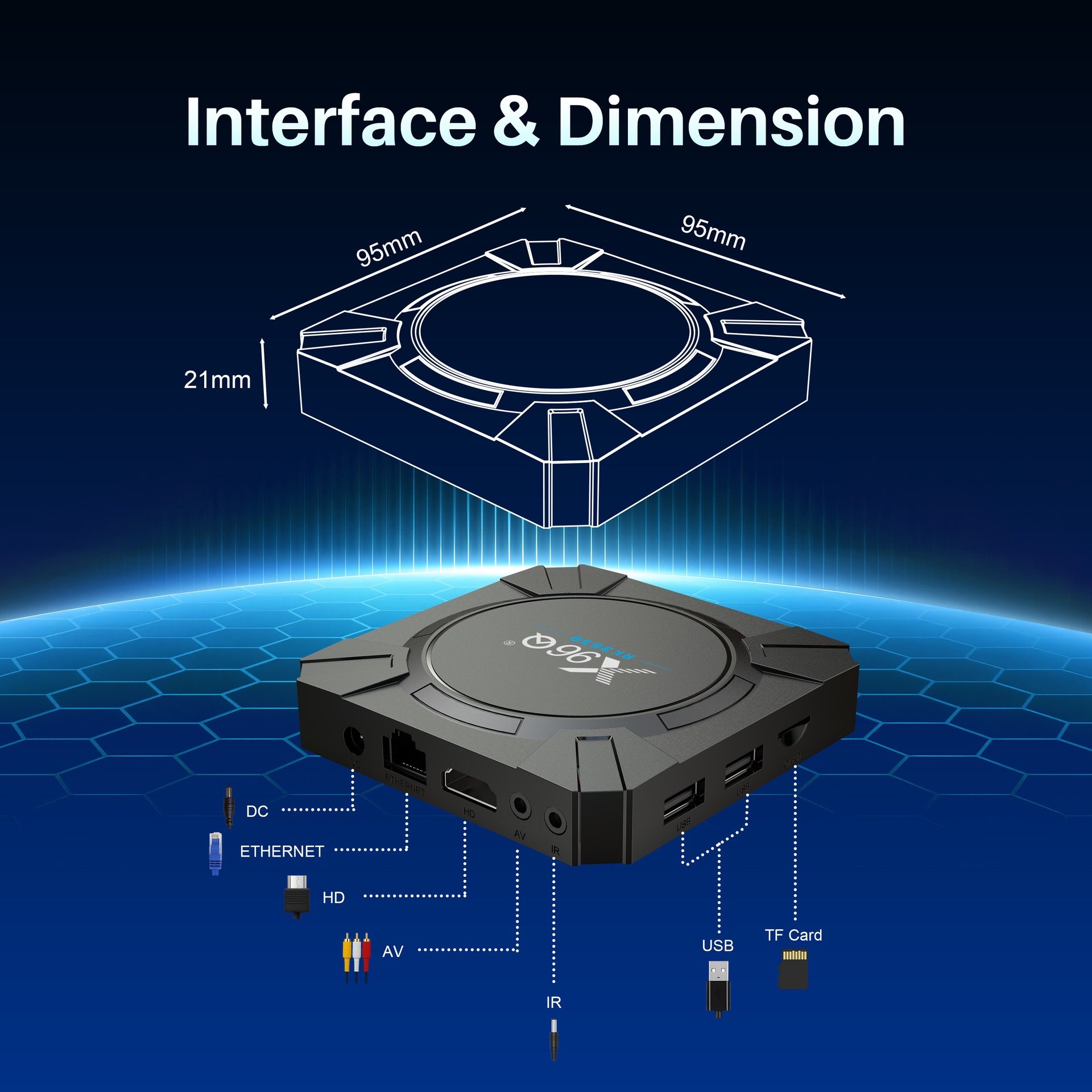

| Size | 88.4×88.4×18.6(mm) | |||
| Weight | 0.2Kg | |||
| Cerifications(For Unit) | ||||
| Standard | ||||
| Others | Optional | |||
| Package contents | Shipping Info | |||
| User manual | *1 | Gift Box Dimension(mm) | 170X115X55mm | |
| Gift Box | *1 | Carton Size(mm) | 370*290*240mm | |
| GamePad | *1 | Qty Per Carton(pcs) | 20pcs | |
| HDMI external cable | *1 | Gift Box.G.W(gs) | ||
| Power adapter | *1 | Export carton (G.W.)(kgs) | 7.24kg | |

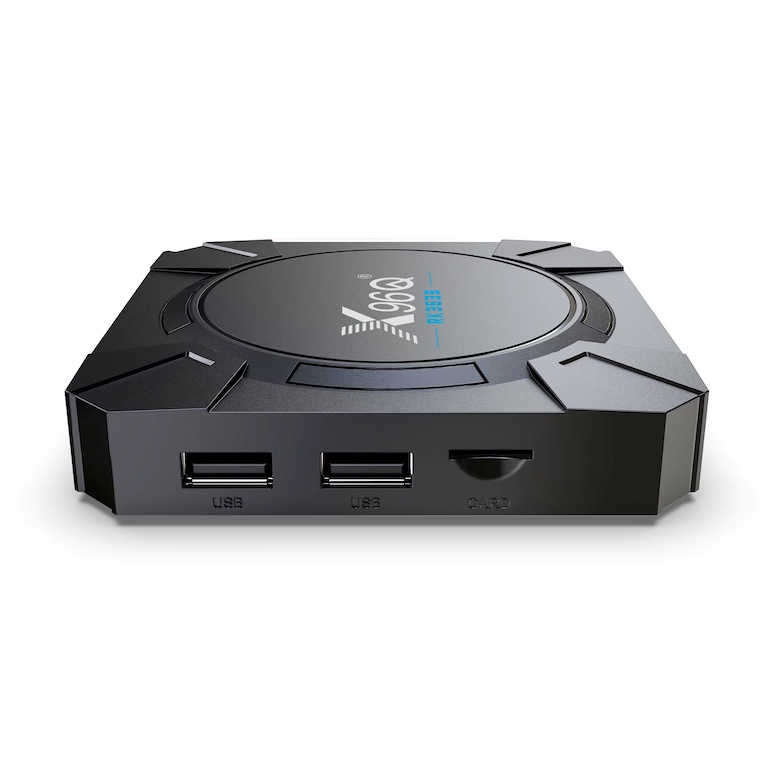

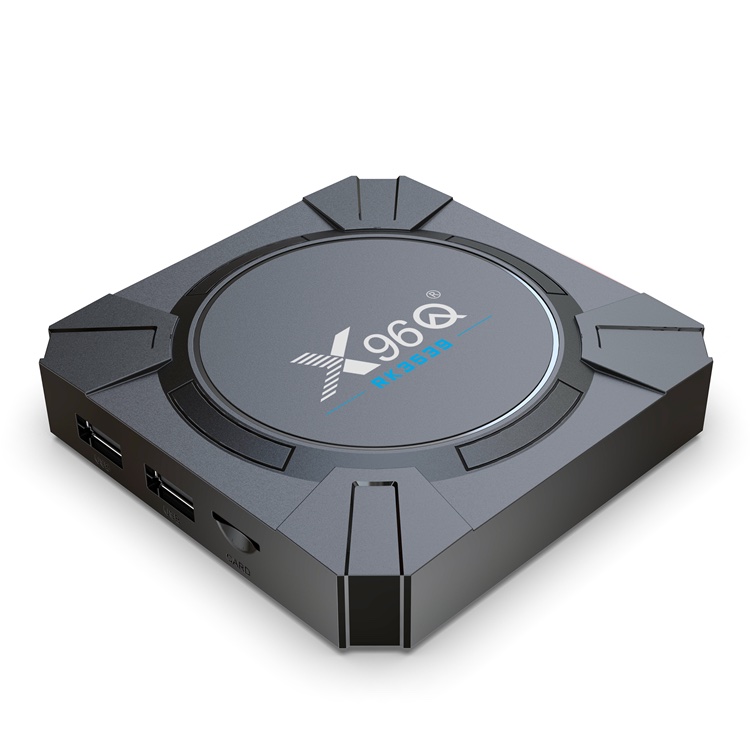

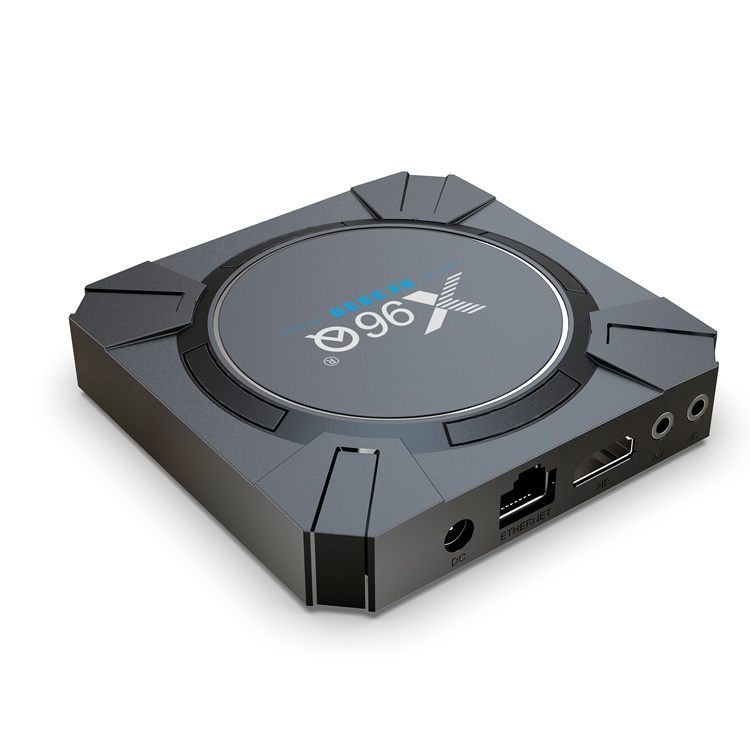

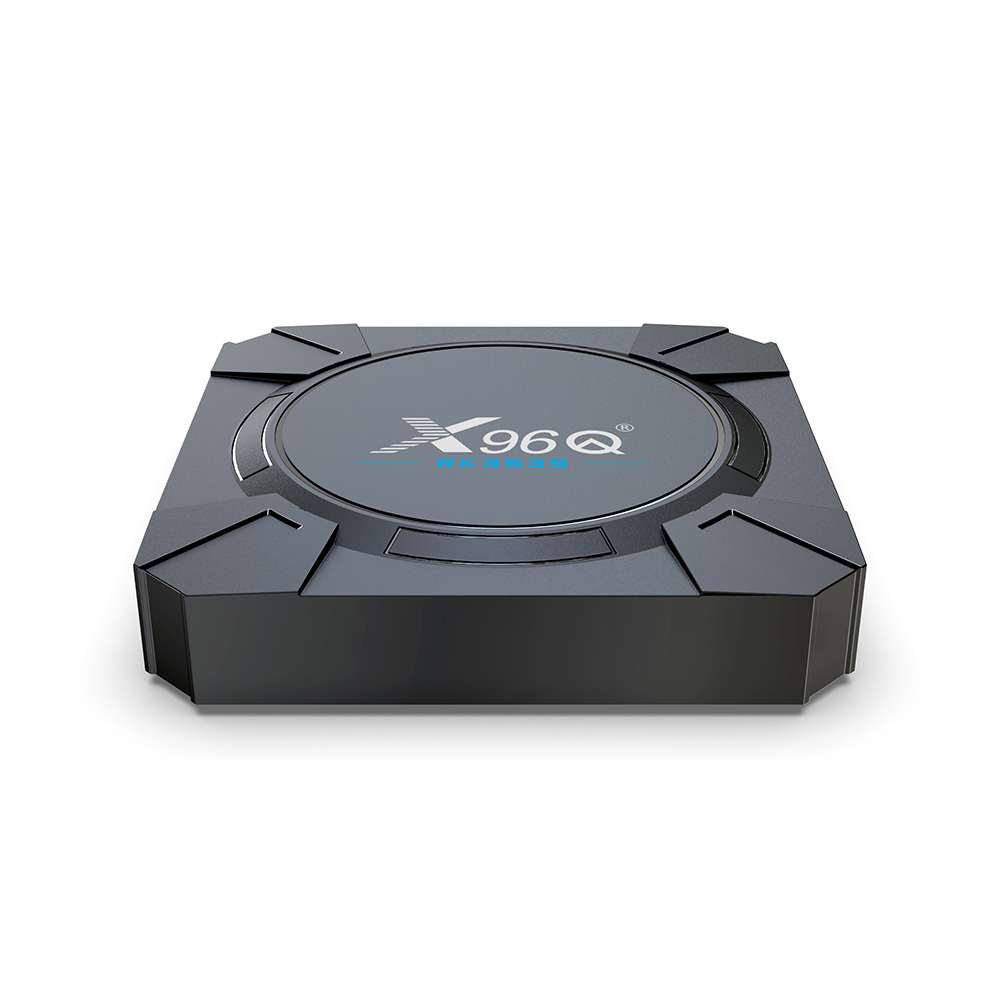

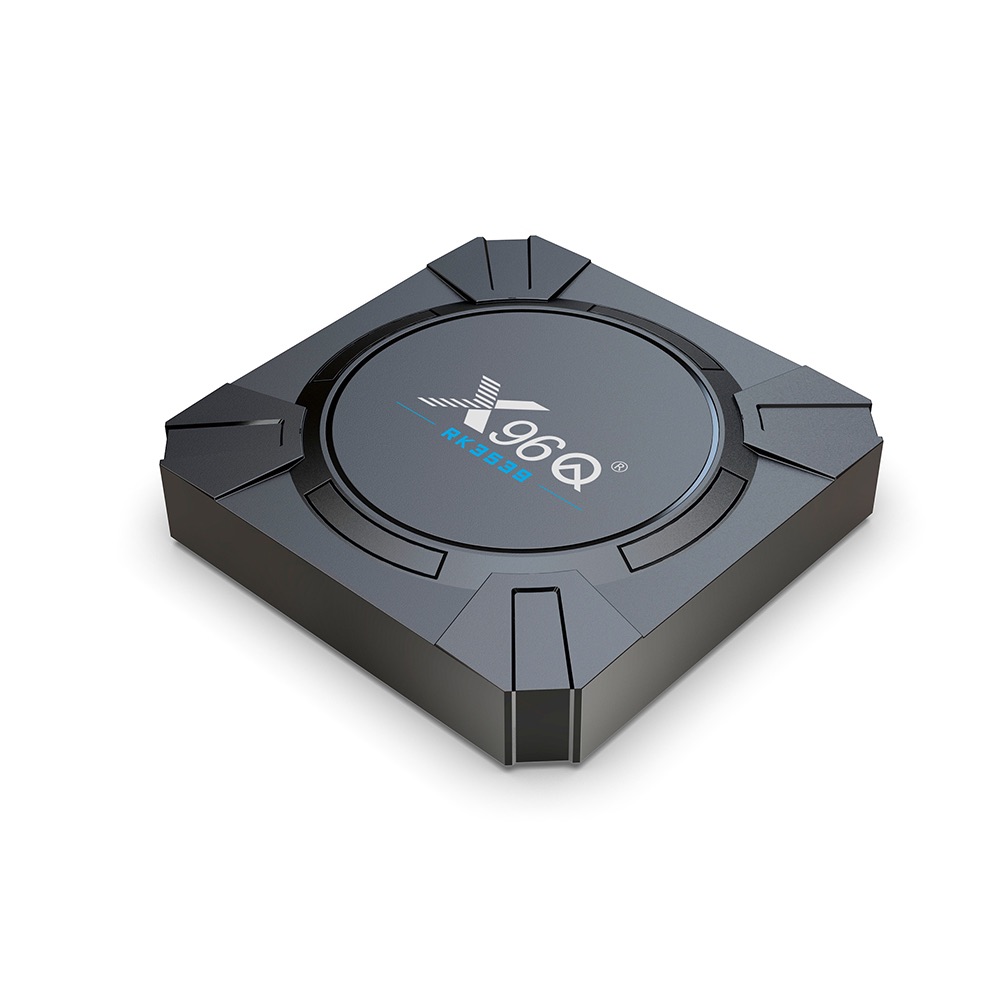

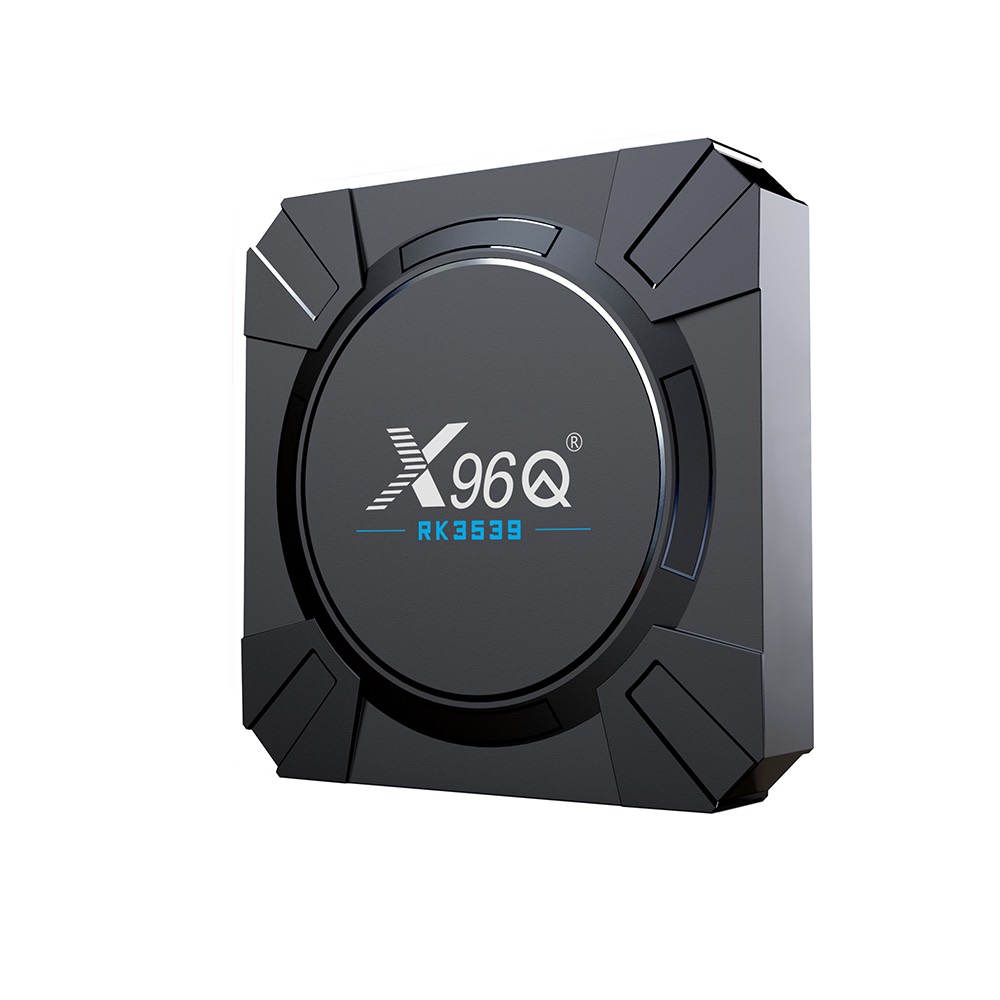

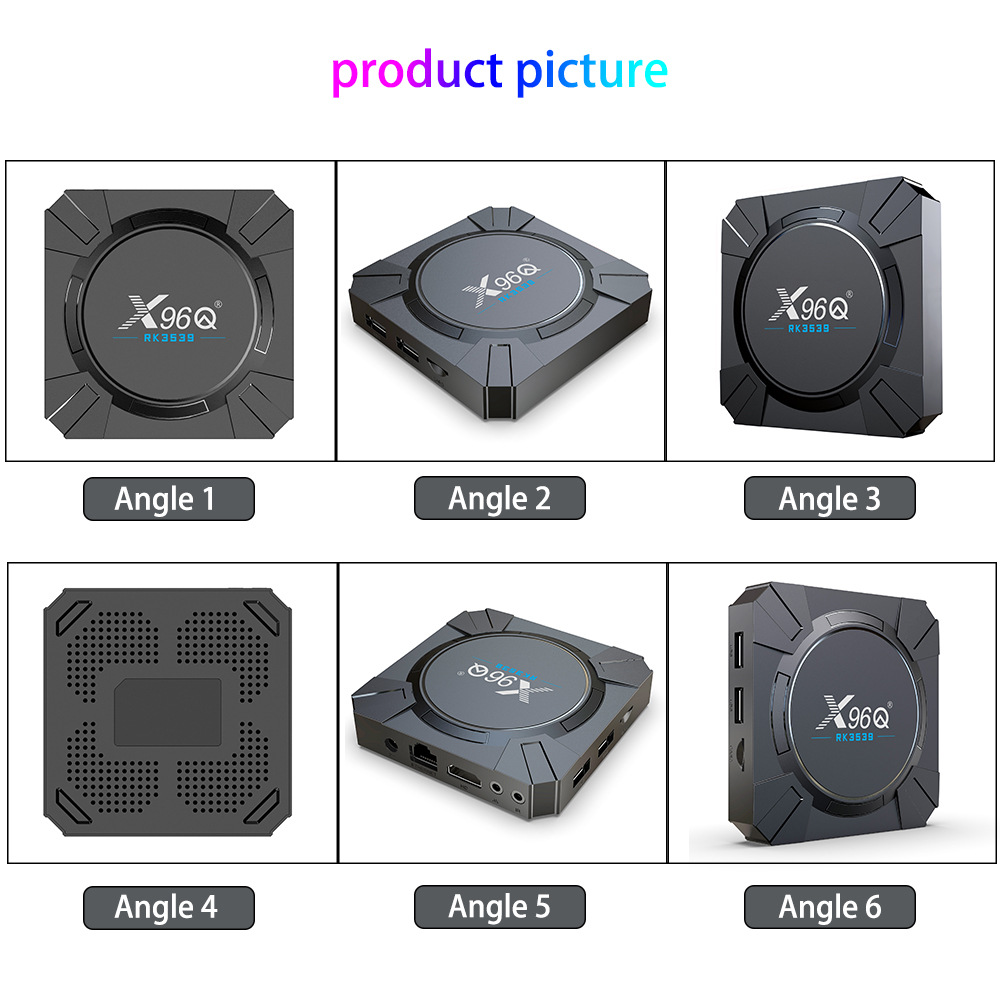

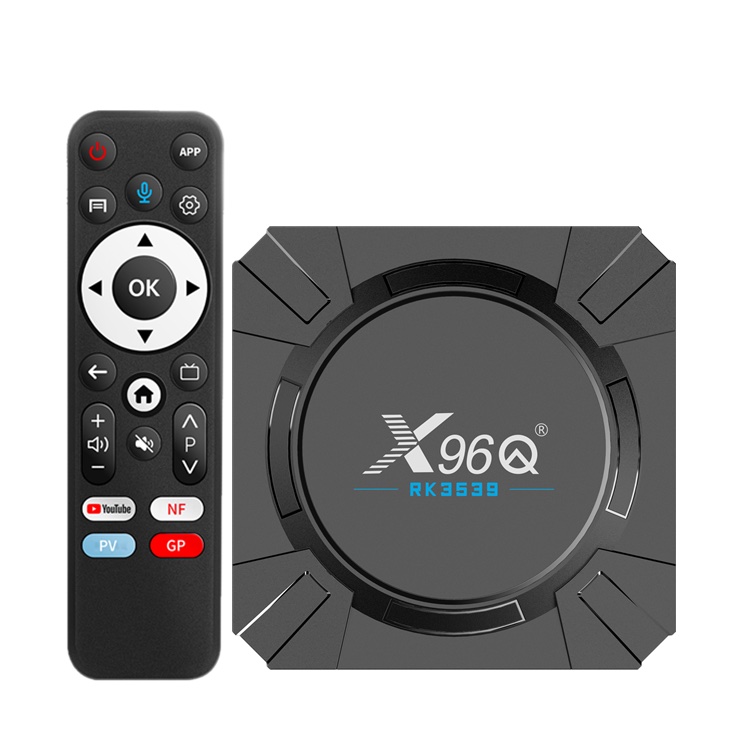

X96Q RK3539 Product Pictures:

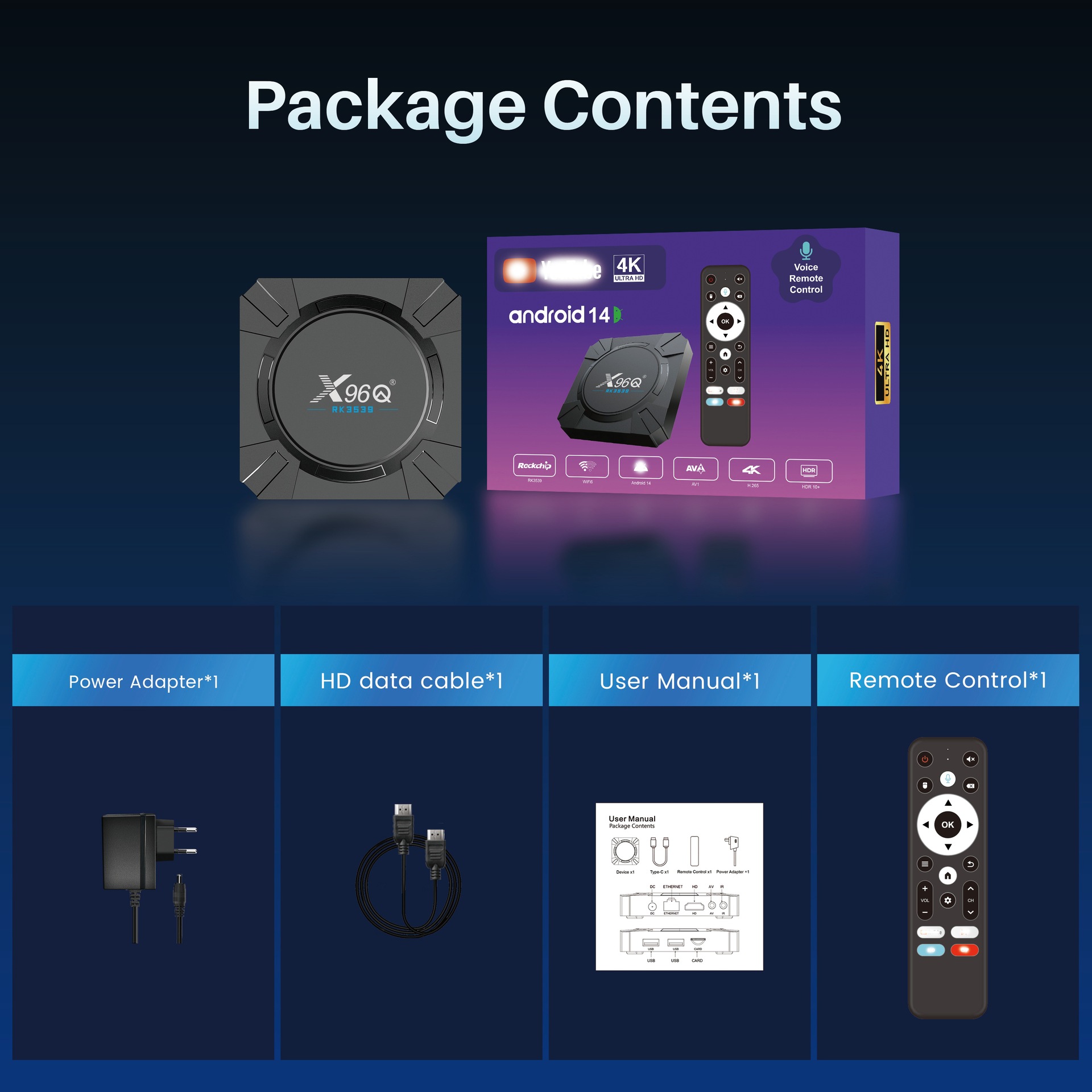

X96Q RK3539 Product Packing List:
