X96 X9

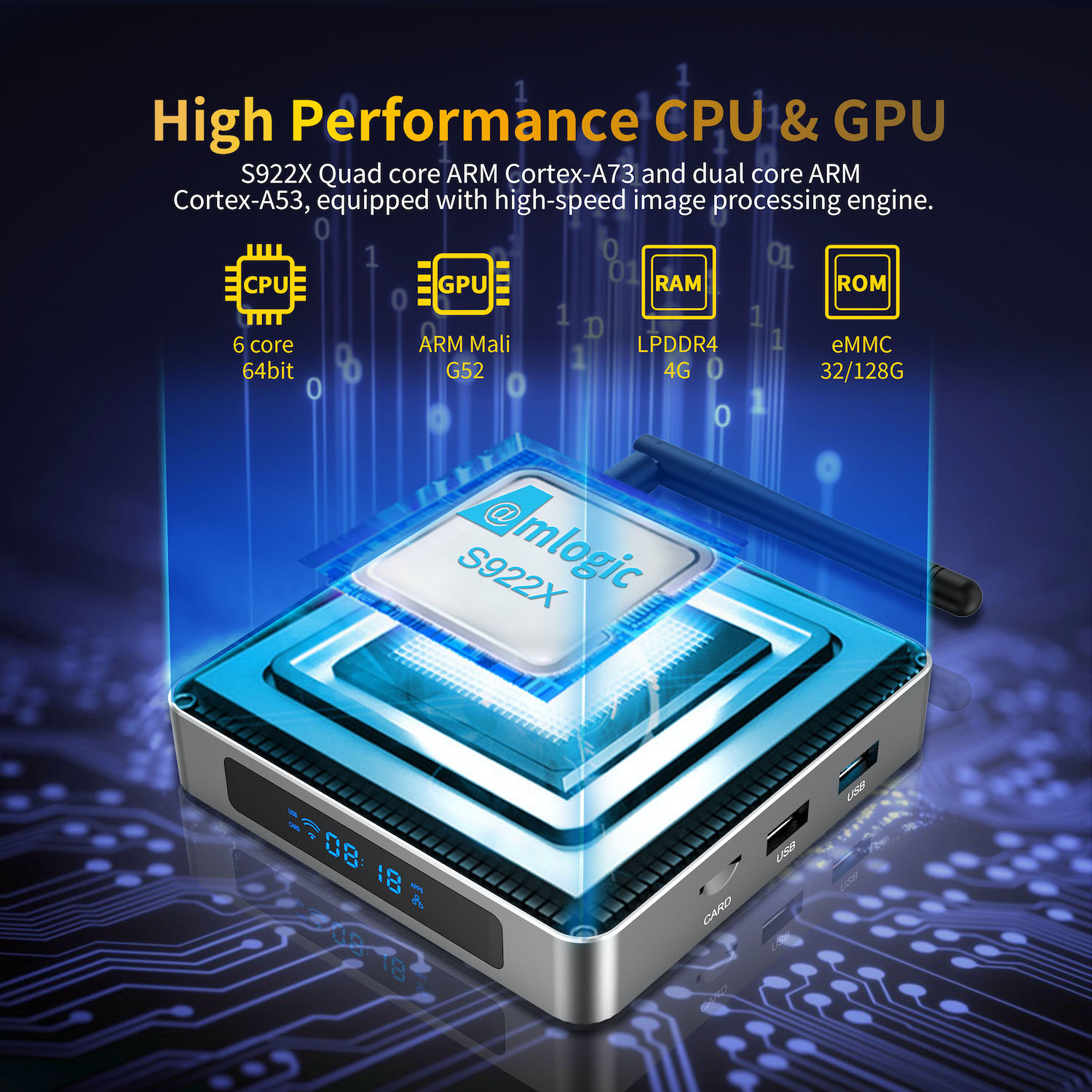

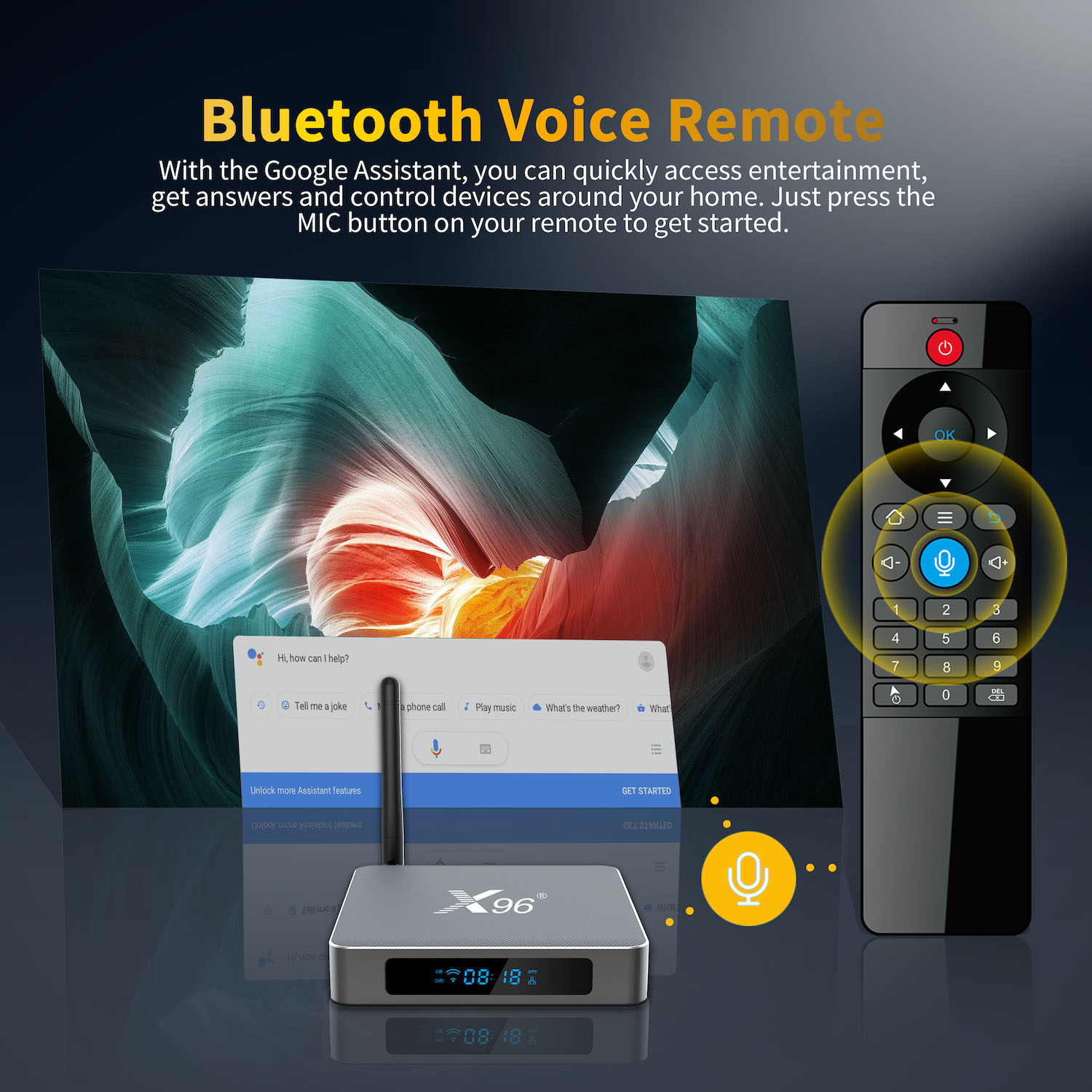

Metal case X96 X9 S922X android TV box with Amlogic S922X Quad Core Cortex A73 and Dual Core Cortex A53 CPU Mali G52 GPU 4GB LPDDR4 32GB eMMC storage 2.4G 5G dual band WiFi HDR10+ 4K@75fps decoding android 9.0 OS bluetooth voice remote external antenna.

Metal case X96 X9 S922X android TV box with Amlogic S922X Quad Core Cortex A73 and Dual Core Cortex A53 CPU Mali G52 GPU 4GB LPDDR4 32GB eMMC storage 2.4G 5G dual band WiFi HDR10+ 4K@75fps decoding android 9.0 OS bluetooth voice remote external antenna.



























X96 X9 Product Specifications:





CPU
Chipset
Amlogic S922X
Architecture
Quad core ARM Cortex-A73 and dual core ARM Cortex-A53 CPU
3D Graphics Processing Unit
GPU
ARM Mali-G52MP6(6EE) GPU
Graphical Program
OpenGL ES 3.2, Vulkan 1.0 and OpenCL 2.0 support
RAM
Capacity
4GB LPDDR4
ROM
Capacity
32GB eMMC
External storage
USB Storage Devices
Supported
Micro SD card
Supported
Software
Operating system
OS Version
Android 9.0
Language
Multi-Language
Multimedia
Video
Support 8K@30fps Video decoding
VP9 Profile-2 up to 4Kx2K@60fps
H.265 HEVC MP-10@L5.1 up to 4Kx2K@60fps AVS2-P2 Profile up to 4Kx2K@60fps
H.264 AVC HP@L5.1 up to 4Kx2K@30fps
H.264 MVC up to 1080P@60fps
MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496)
WMV/VC-1 SP/MP/AP up to 1080P@60fps
AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps MPEG-2 MP/HL up to 1080P@60fps (ISO-13818)
MPEG-1 MP/HL up to 1080P@60fps (ISO-11172)
RealVideo 8/9/10 up to 1080P@60fps
Multiple language and multiple format sub-title video support
MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918)
Supports JPEG thumbnail, scaling, rotation and transition effects
Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso,*.mp4, *.rm and *.jpg file formats
Audio
Supports MP3, AAC, WMA, RM, FLAC, Ogg and programmable with 7.1/5.1 down-mixing
Independent JPEG and H.265/H.264 encoder with configurable performance/bit-rate JPEG image encoding H.265/H.264 video encoding up
to 1080P@60fps with low latency
Network service
Wi-Fi
Type
Support WiFi IEEE 802.11 a/ b / g / n / ac
Frequency
Support 2.4G and 5G WiFi
Support 4.X

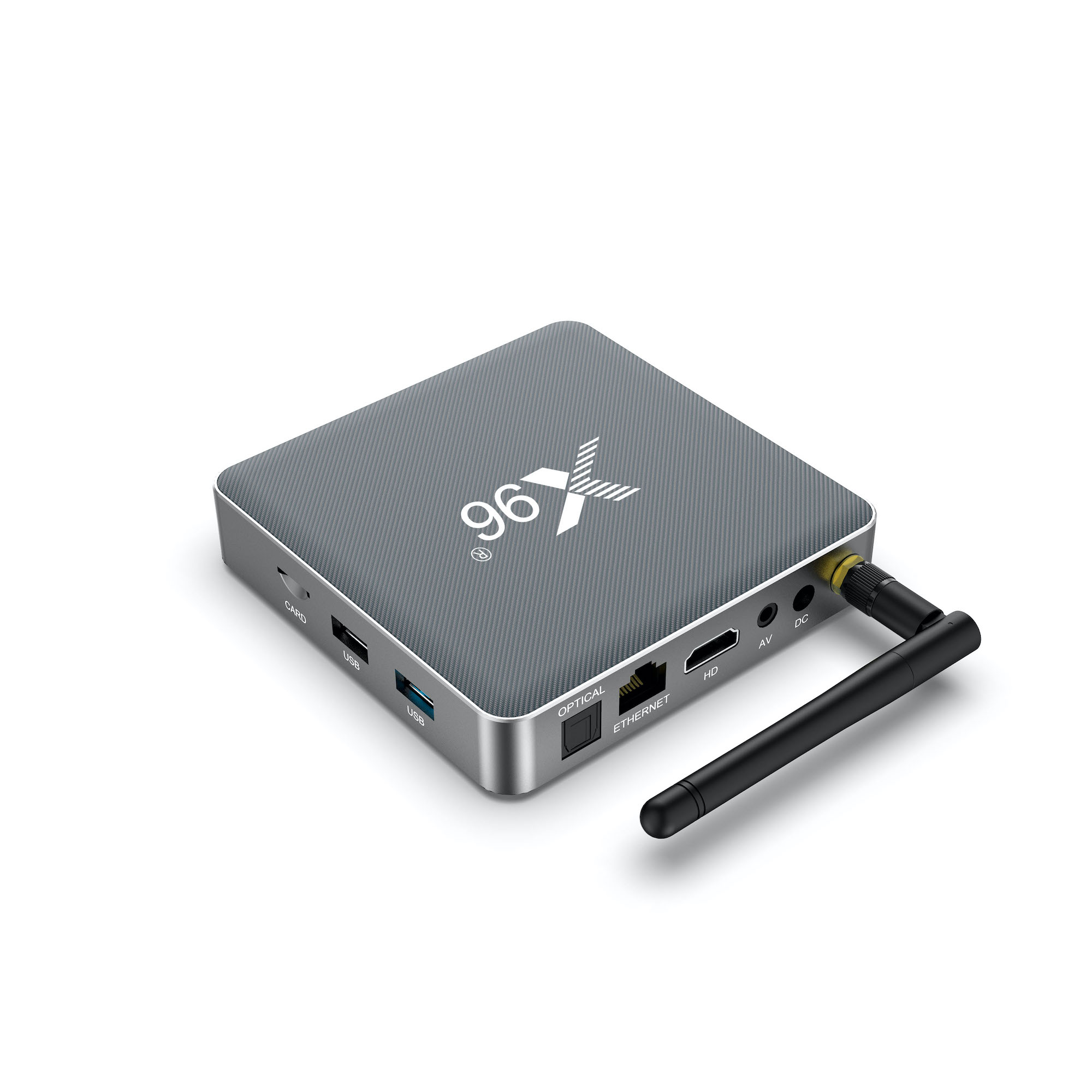

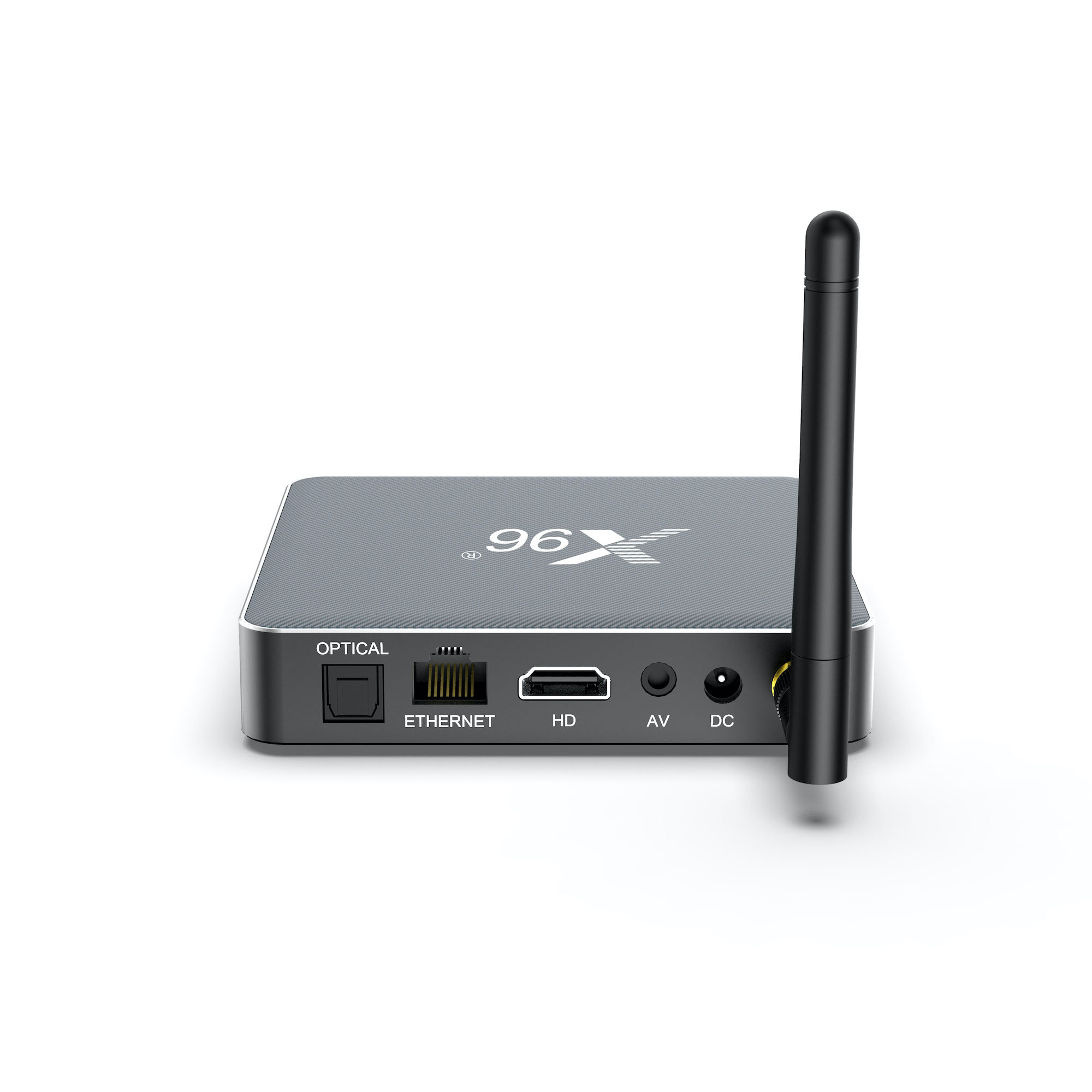

Interface
Charge
DC connector
DC IN(12V/2A)
Video output
 HDMI 2.1; 4K*2K@75fps max resolution output
CVBS
Support PAL/NTSC
Audio
/
1* SPDIF
Micro SD
External memory
1* TF card
USB port
External memory
1* USB3.0
1* USB2.0
Ethernet
Ethernet
1000M LAN

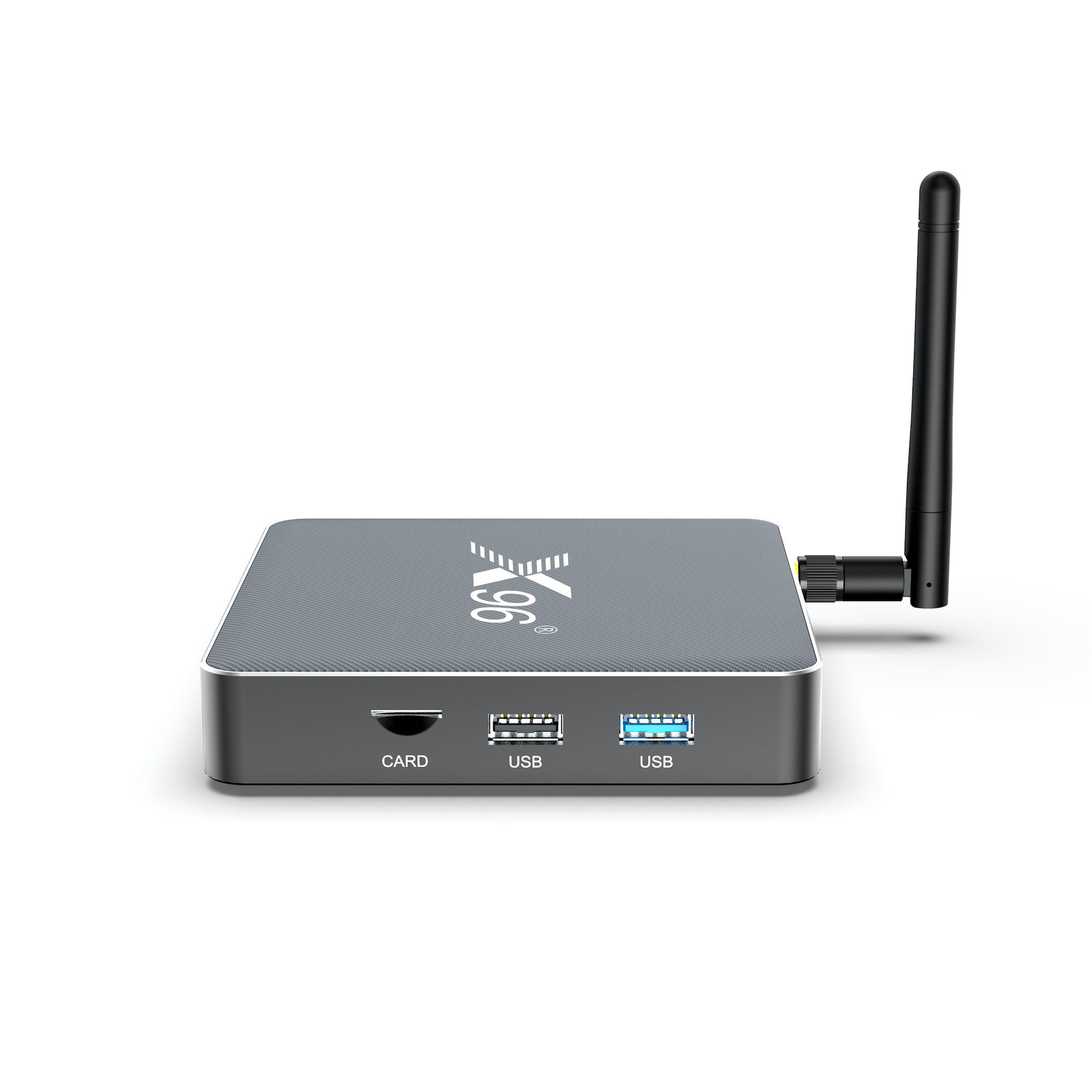

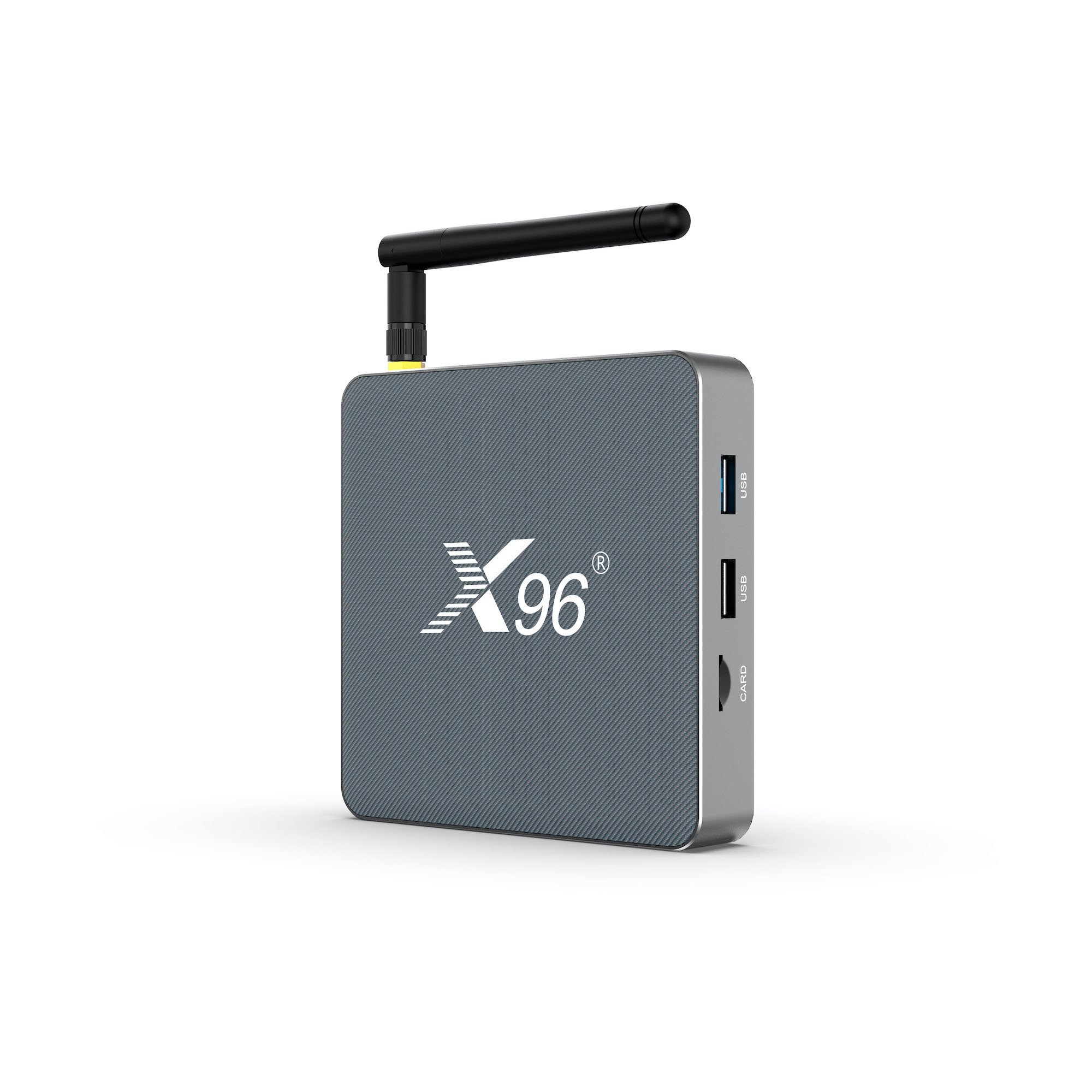

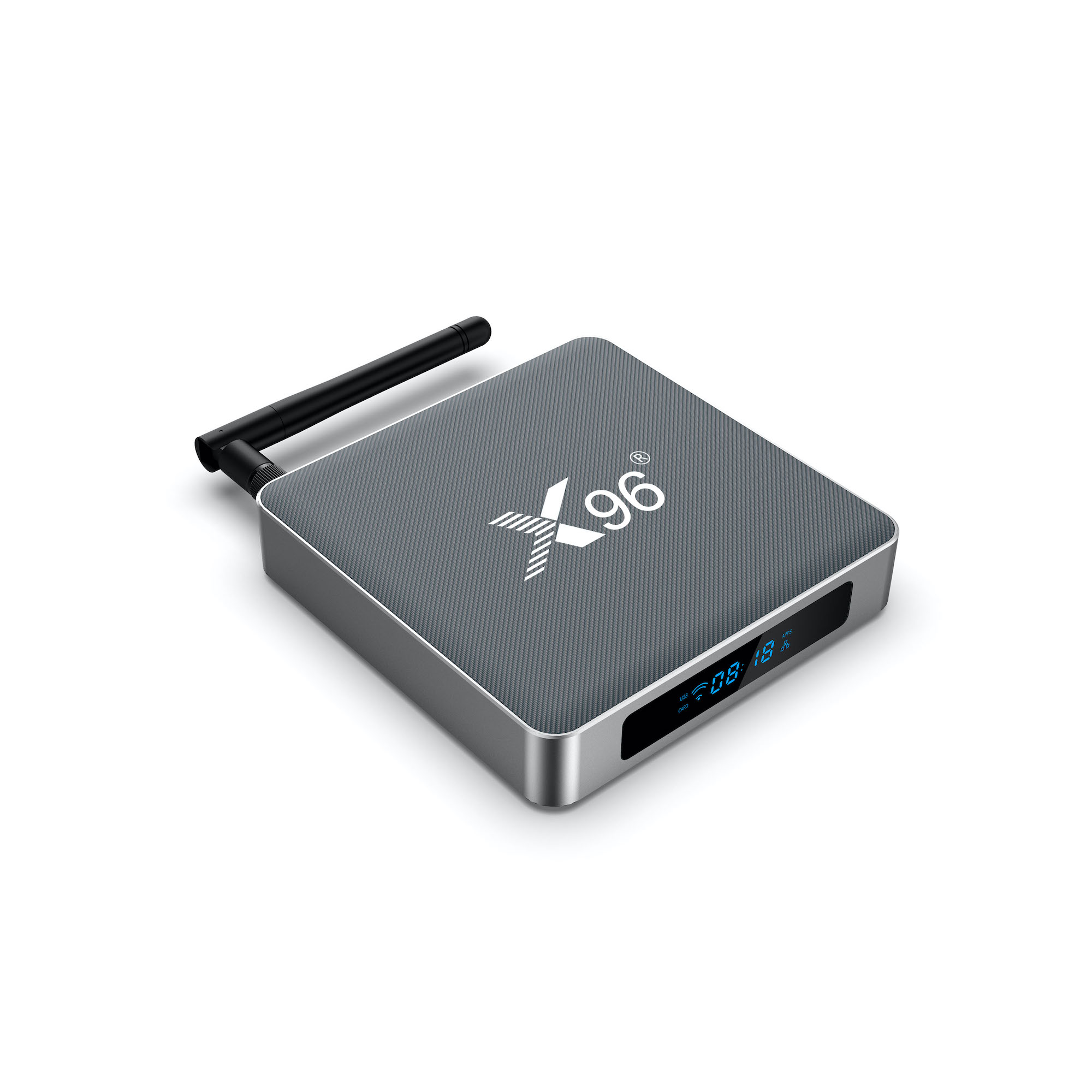

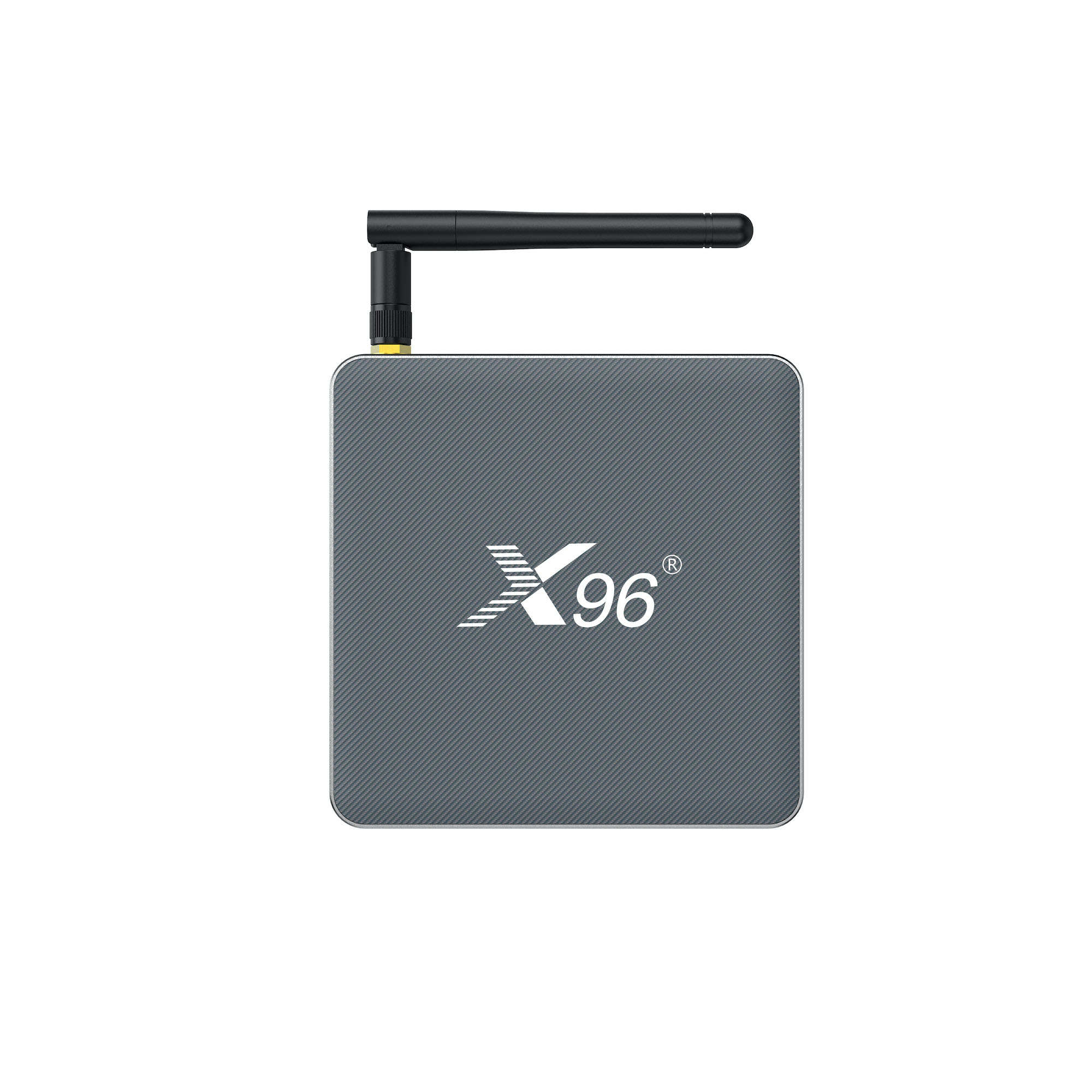

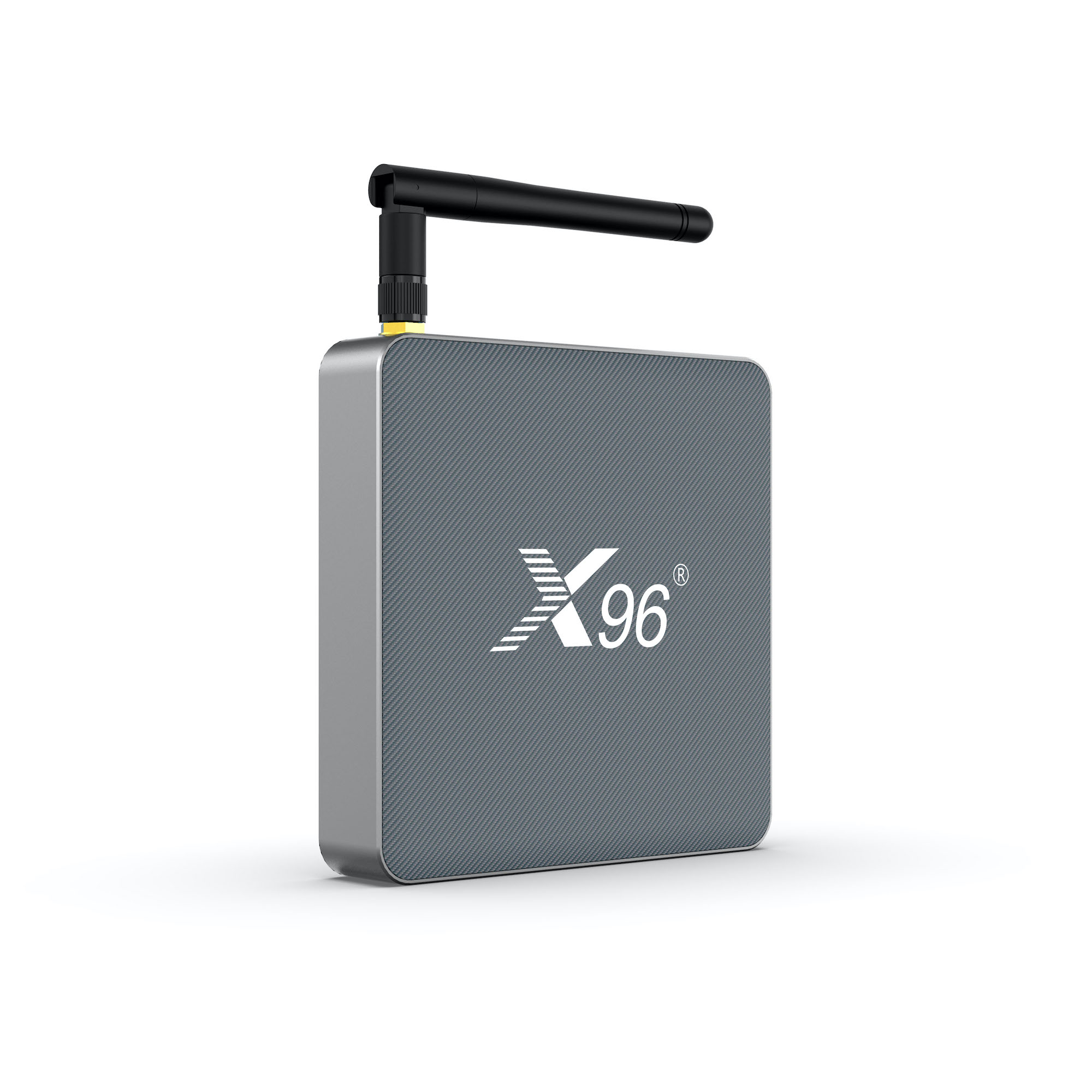

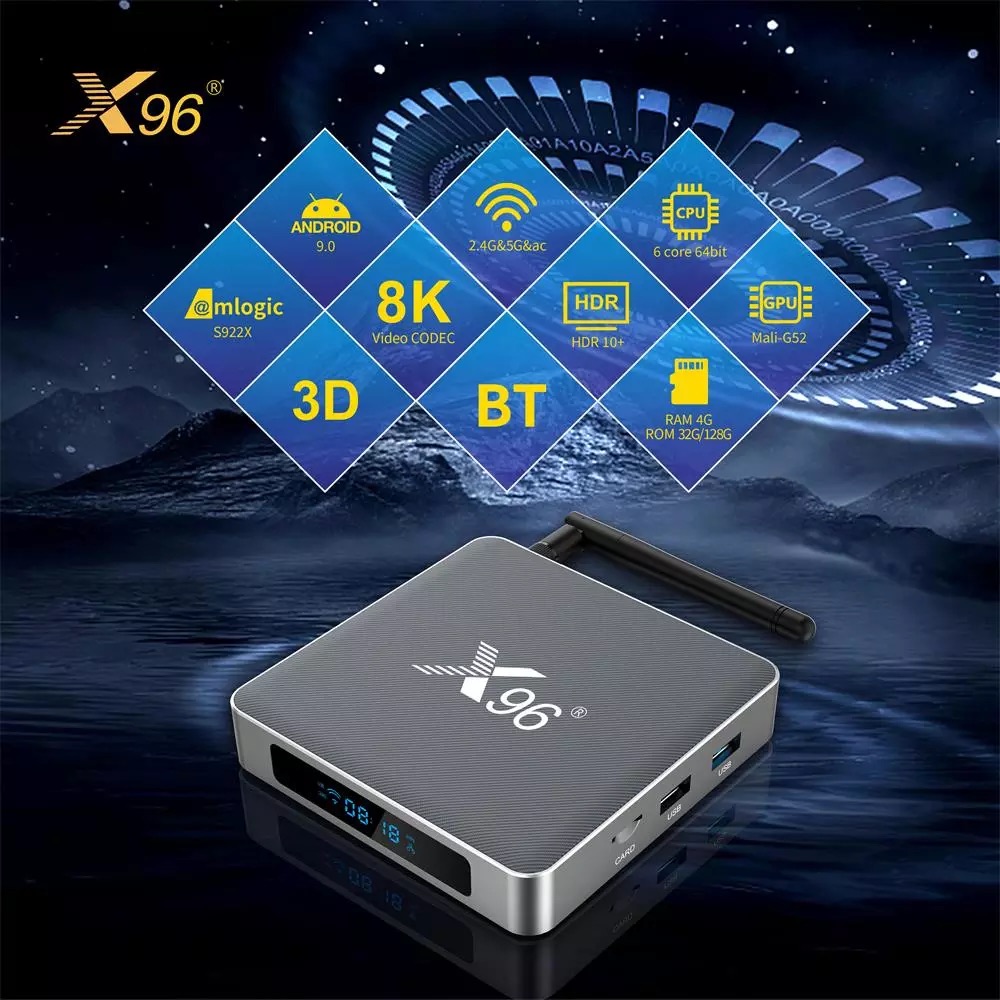

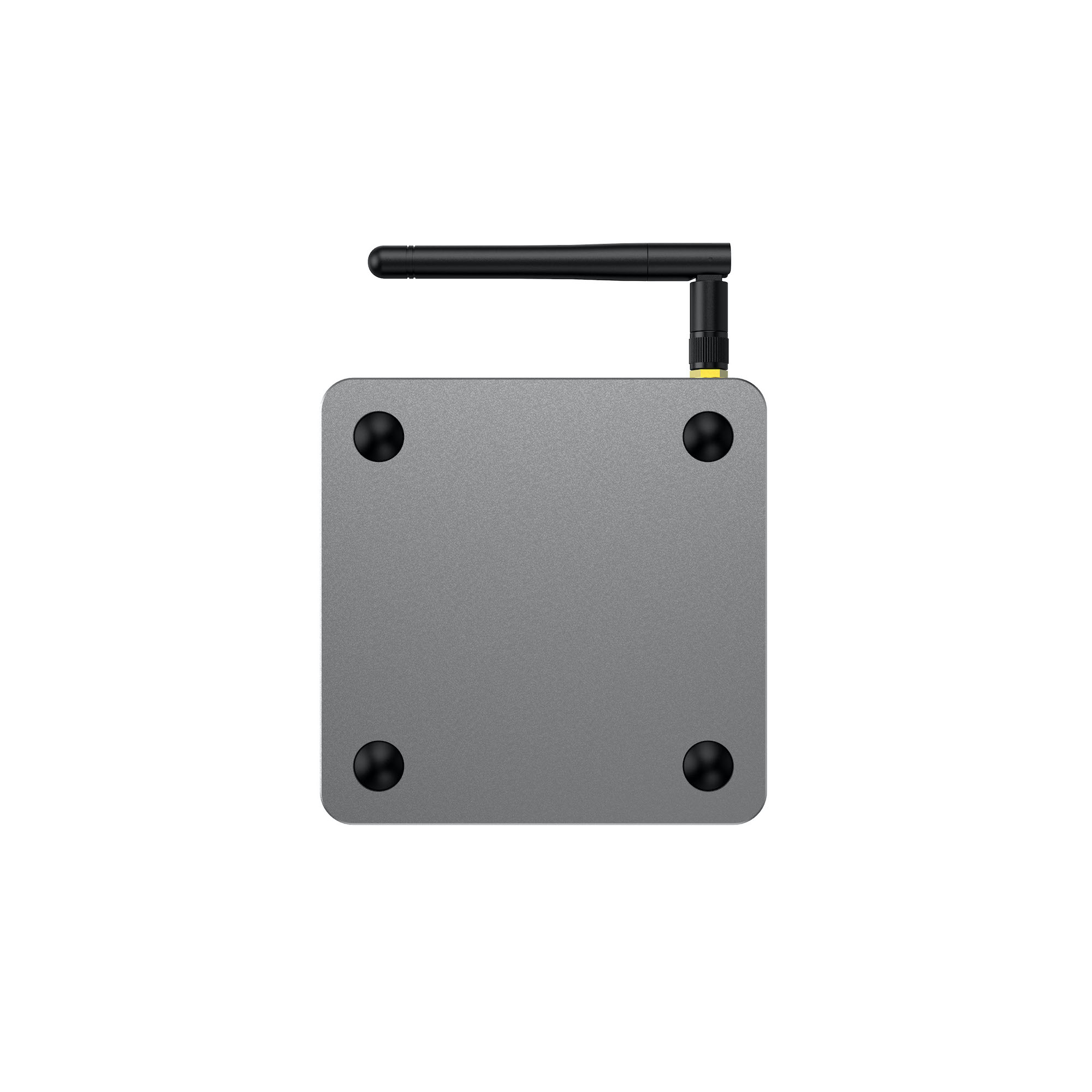

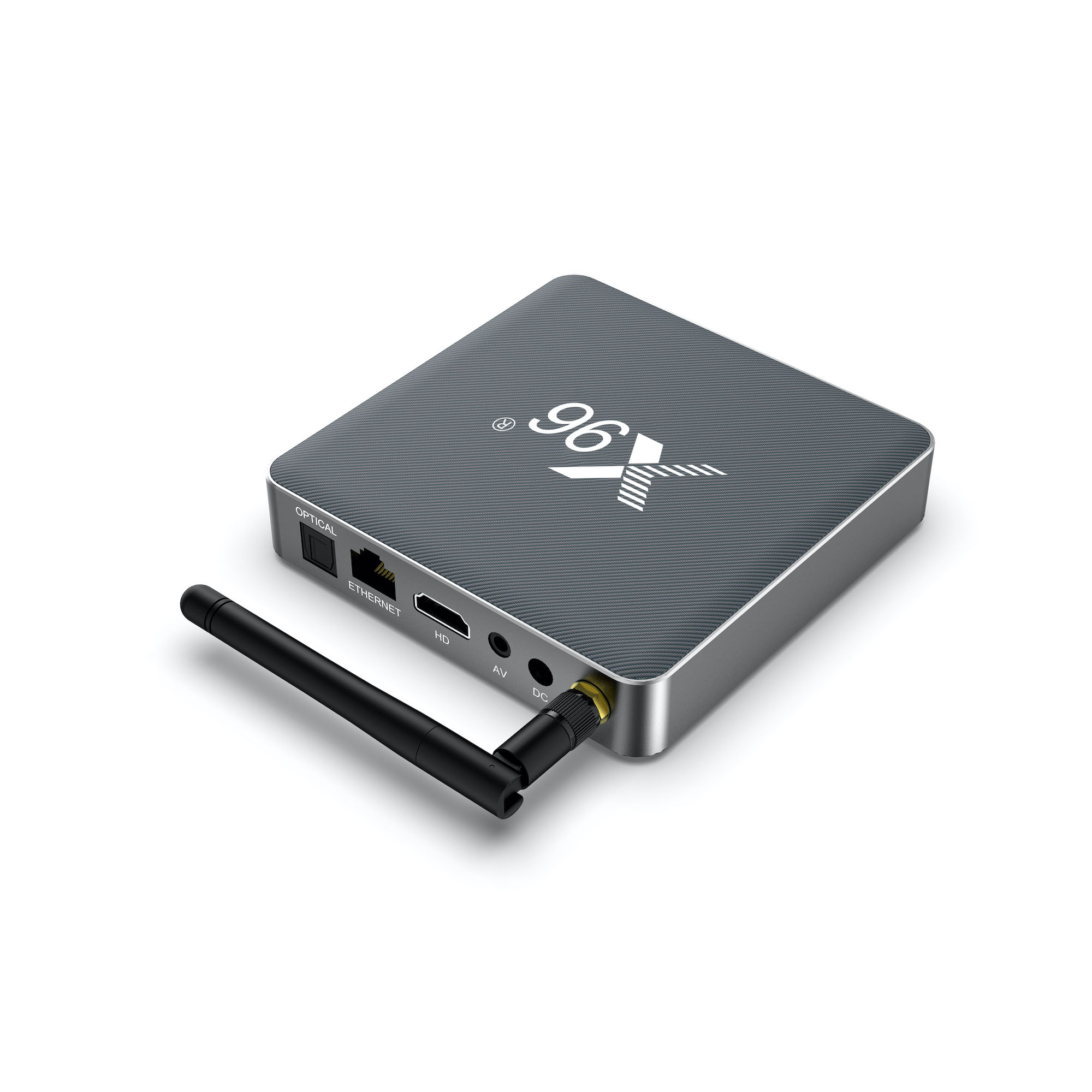

Product Pictures:

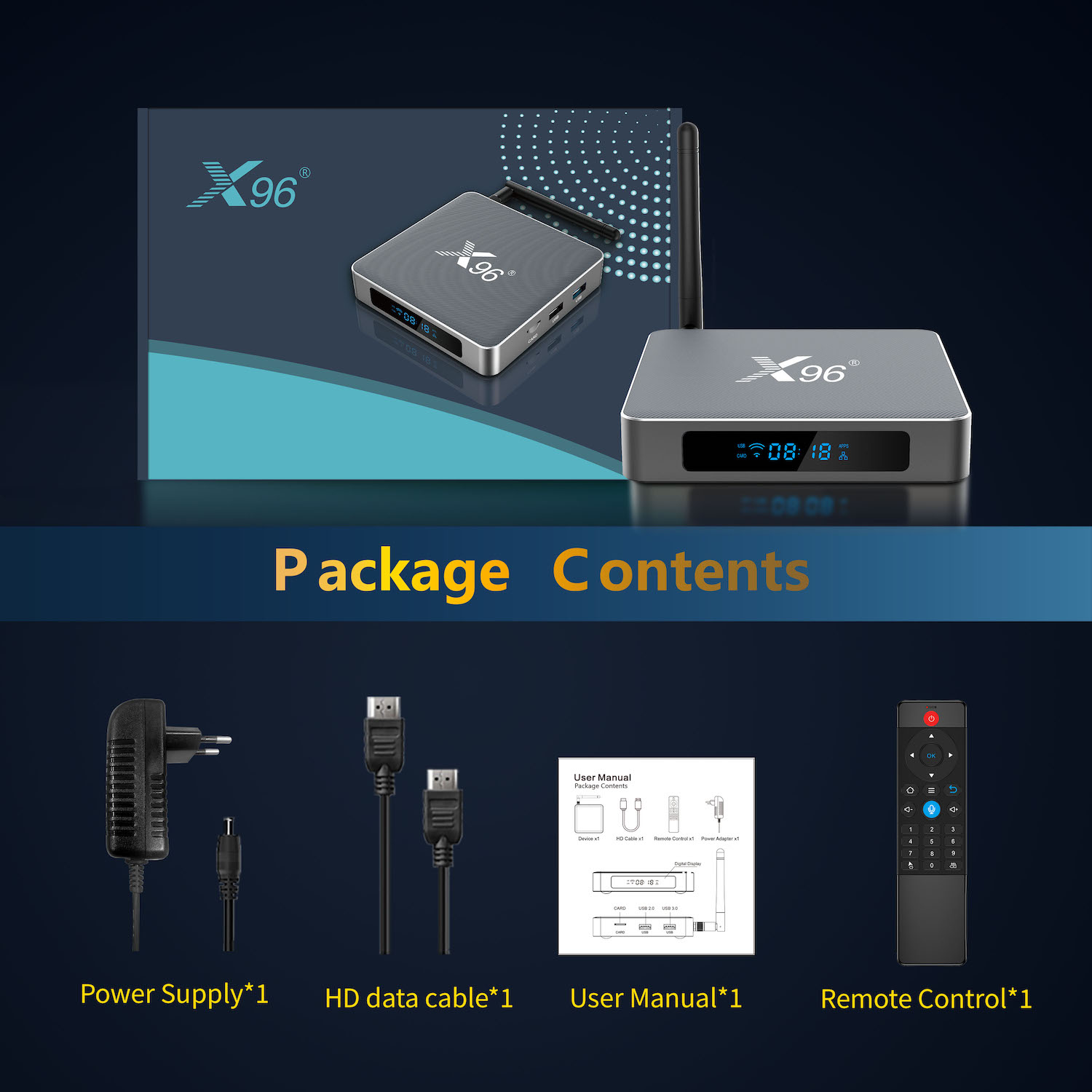

Product Packing List:
