X96 X4 S905X4 android TV box with Amlogic S905X4 Quad Core 64bit chipset 4GB DDR4 32GB 64GB Flash 2.4G 5G 802.11ac WiFi bluetooth 4.1 USB 3.0 android 11 os support 8K HDR 10+ AV1 codecs better than H.264 and VP9.

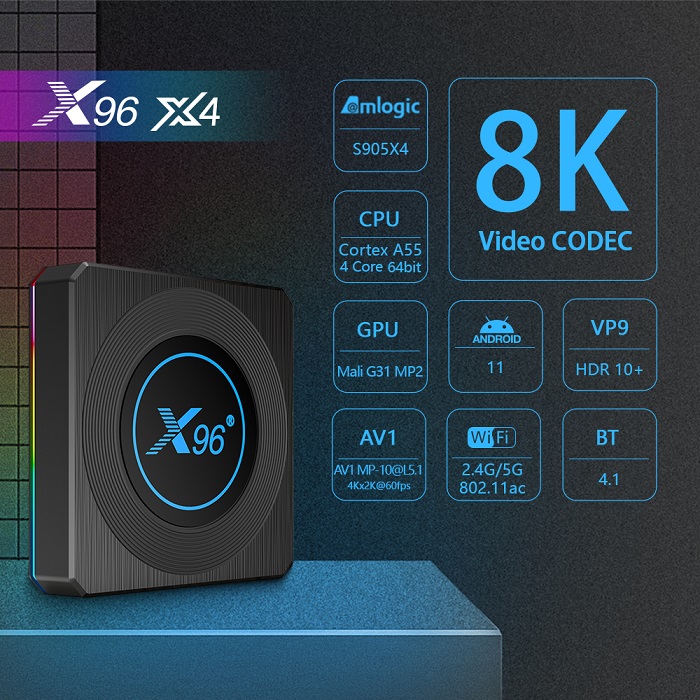

X96 X4 Product Specifications:
| Hardware: | |||||||
| CPU | Amlogic S905X4 64bit quad core ARM® Cortex™ A55 CPU | ||||||
| GPU | G31™ MP2 GPU processor | ||||||
| Memory | DDR4: 2GB/4GB | ||||||
| Flash | eMMC:16GB/32GB/ 64GB/128GB | ||||||
| WiFi | IEEE 802.11 a/b/g/n/ac ; 2.4G + 5G + AC | ||||||
| BT | BT4.1 ; Support Voice Remote | ||||||
| Moudle | Plastic : Black Color | ||||||

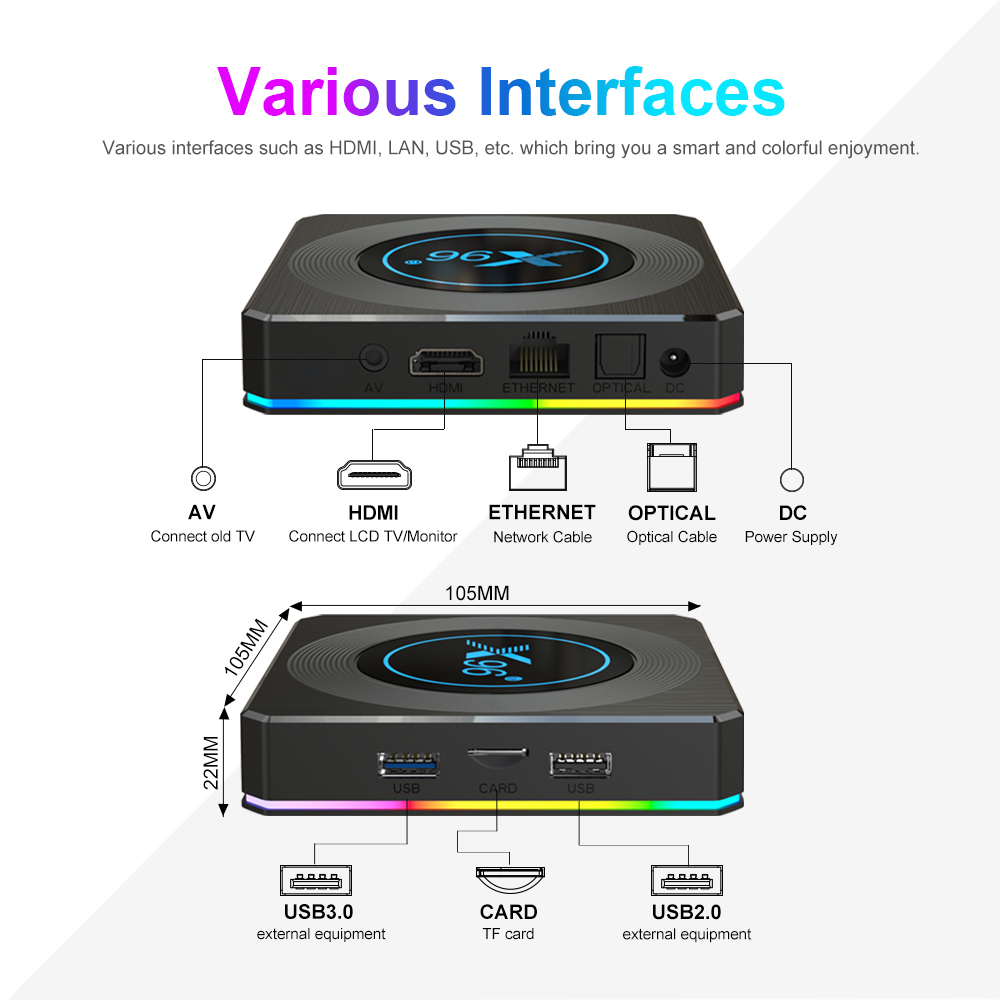

| I/O | 1*HD | HD 2.1 ,Support HD CEC, Dynamic HDR and and 8Kx4K@ 24 max resolution output | |||||
| 1*AV OUT | 480i/576i standard definition output | ||||||
| 3*USB | 1 * USB 3.0 ; 1*USB 2.0 | ||||||
| 1*IR Reciver | Remote Reciver Connect | ||||||
| 1*RJ45 | Ethernet Interface;Support 10/100M/1000M | ||||||
| 1*TF CARD | Support 4GB/8GB/16GB/32GB/64GB | ||||||
| Power | DC 5V/2A; | ||||||
| Software: | |||||||
| OS | Android 11 | ||||||
| Video | Amlogic Video Engine (AVE) with dedicated hardware decoders and encoders Support multivideo decoder up to 4x1080P@ 60fps Supports multiple “secured” video decoding sessions and simultaneous decoding and encoding Video/Picture Decoding VP9 Profile2 up to 8Kx4K@ 24 fps H.265 HEVC MP10@ L5.1 up to 8Kx4K@ 24 fps AVS2P2 Profile up to 8Kx4K@ 24 fps H.264 AVC HP@ L5.1 up to 4Kx2K@ 30fps MPEG4 ASP@ L5 up to 1080P@ 60fps (ISO14496) WMV/VC1 SP/MP/AP up to 1080P@ 60fps AVSP16(AVS+) /AVSP2 JiZhun Profile up to 1080P@ 60fps MPEG2 MP/HL up to 1080P@ 60fps (ISO13818) MPEG1 MP/HL up to 1080P@ 60fps (ISO11172) RealVideo 8/9/10 up to 1080P@ 60fps Multiple language and multiple format subtitle video support MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC10918) Supports JPEG thumbnail, scaling, rotation and transition effects Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file formats |
||||||
| Audio | Supports MP3, AAC, WMA, RM, FLAC, Ogg and programmable with 7.1/5.1 downmixing Lowpower VAD Builtin serial digital audio SPDIF/IEC958 input/output and PCM input/output 3 builtin TDM/PCM/I2S ports with TDM/PCM mode up to 384kHz x 32bits x 16ch or 96kHz x 32bits x 32ch and I2S mode up to 384kHz x 32bits x 16ch Digital microphone PDM input with programmable CIC, LPF & HPF, support up to 8 DMICs Builtin stereo audio DAC Supports concurrent dual audio stereo channel output with combination of analog+PCM or I2S+PCM |
||||||
| Image | HD JPEG,BMP,GIF,PNG,TIF | ||||||
| Language | English French German Spanish Italian etc multilateral languages | ||||||
| S905X4 Android TV Box Appliactions: | |||||||
| Online | Browse all video websites,support Netflix,Hulu,Flixster, Youtube, etc. | ||||||
| Apps | Apps download freely form android market,amazon app store etc. | ||||||
| Medium | Local Media playback,Support HDD, U Disck ,TF Card . | ||||||
| Talk online | Support SKYPE video call ,MSN , facebook ,twitter ,QQ etc | ||||||
| Others | Support Email,office suit etc. Support DLNA function Support 2.4G wireless mouse/keyboard |
||||||
| Product dimension | 105*105*20(MM) | ||||||

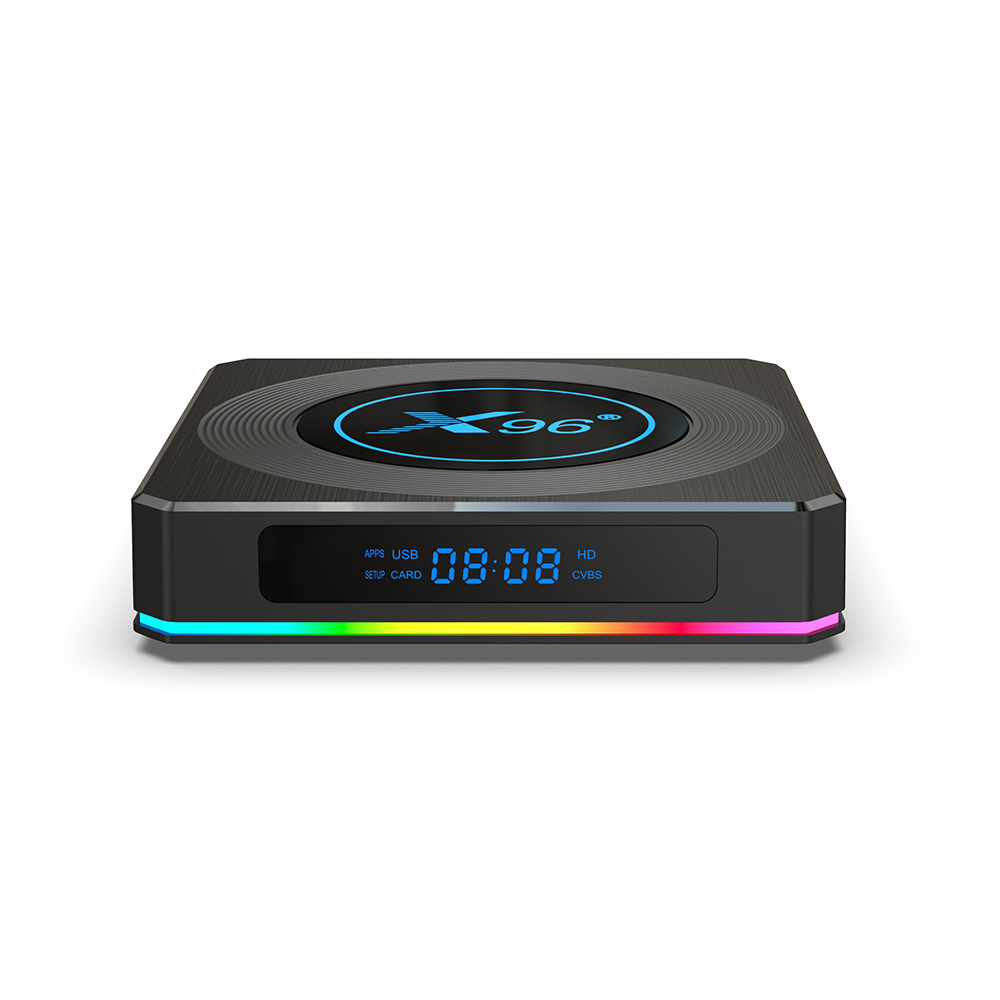

Product Photos:

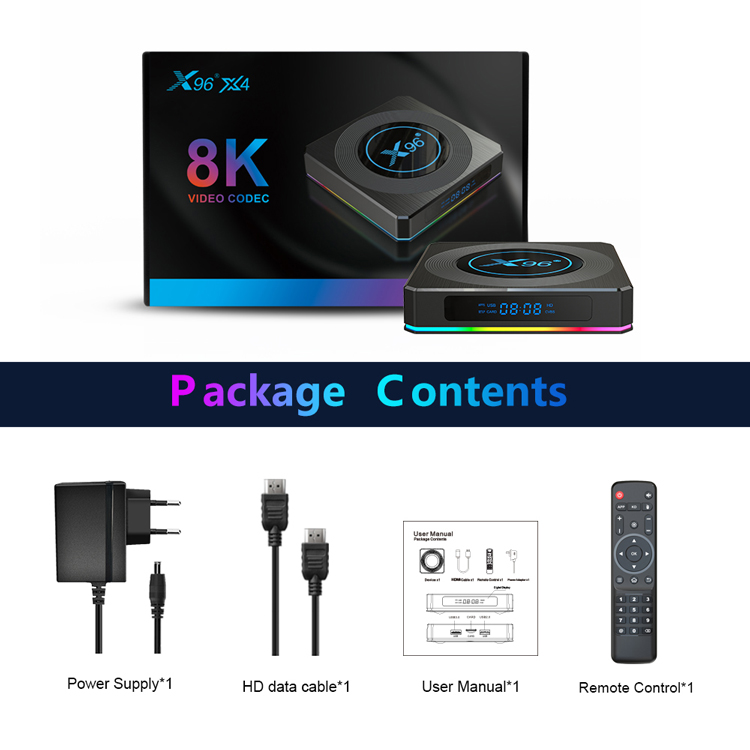

X96 X4 Product Accessory:
| Accessories : | |||||||
| 1. HD cable *1 | |||||||
| 2. IR Remote *1 | |||||||
| 3. User Manual *1 | |||||||
| 4. Package box *1 | |||||||
| 5. Power adapter *1 |
S905X4 Android TV Box Packing List:
