X96 NEX S905Y5 android TV box with Quad Core Amlogic S905Y5 CPU G31 MP2 GPU 2GB 4GB DDR3 16GB 32GB eMMC 2.4G 5G WiFi 6 BT 5.0 AV1 4K 60FPS Video decoding BT voice remote android 14 OS TV box.
X96 NEX Product Specifications:
| Hardware Specs: | ||||
| CPU | Chipset | Amlogic S905Y5 | ||
| Architecture | Quad Core ARM Cortex A55 | |||
| GPU | Chipset | ARM G31 MP2 | ||
| Architecture | OpenGL ES 1.1, 2.0, 3.2, Vulkan 1.2 and OpenCL 2.0 support | |||
| RAM | Capacity | Option:2/4GB | ||
| ROM | Capacity | Option:16/32GB | ||
| Software Specs: | ||||
| Operating system | OS Version | Android 14 | ||
| Language | Multi-Language | |||
| Video/Picture Decoding | AV1 MP-10L5.1 up to 4Kx2K60fps | |||
| VP9 Profile-2 up to 4Kx2K60fps | ||||
| H.265 HEVC MP-10L5.1 up to 4Kx2K60fps | ||||
| H.264 AVC HPL5.1 up to 4Kx2K30fps | ||||
| MPEG-4 ASPL5 up to 1080P60fps (ISO-14496) | ||||
| WMV/VC-1 SP/MP/AP up to 1080P60fps | ||||
| MPEG-2 MP/HL up to 1080P60fps (ISO-13818) | ||||
| MPEG-1 MP/HL up to 1080P60fps (ISO-11172) | ||||
| Multiple language and multiple format sub-title video support | ||||
| MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918) | ||||
| Supports JPEG thumbnail, scaling, rotation and transition effects | ||||
| Image Engine | Supports HDR10+, HDR10, HLG HDR processing | |||
| Audio | Supports MP3, AAC, WMA, FLAC, Ogg. | |||
| Image | HD JPEG,BMP,GIF,PNG,TIF | |||
| Network service | ||||
| Wi-Fi | Type | Support IEEE 802.11 b / g / n /ac /ax(WIFI 6) | ||
| Frequency | Support 2.4G and 5G | |||
| Bluetooth | Bluetooth | Support BT5.X | ||

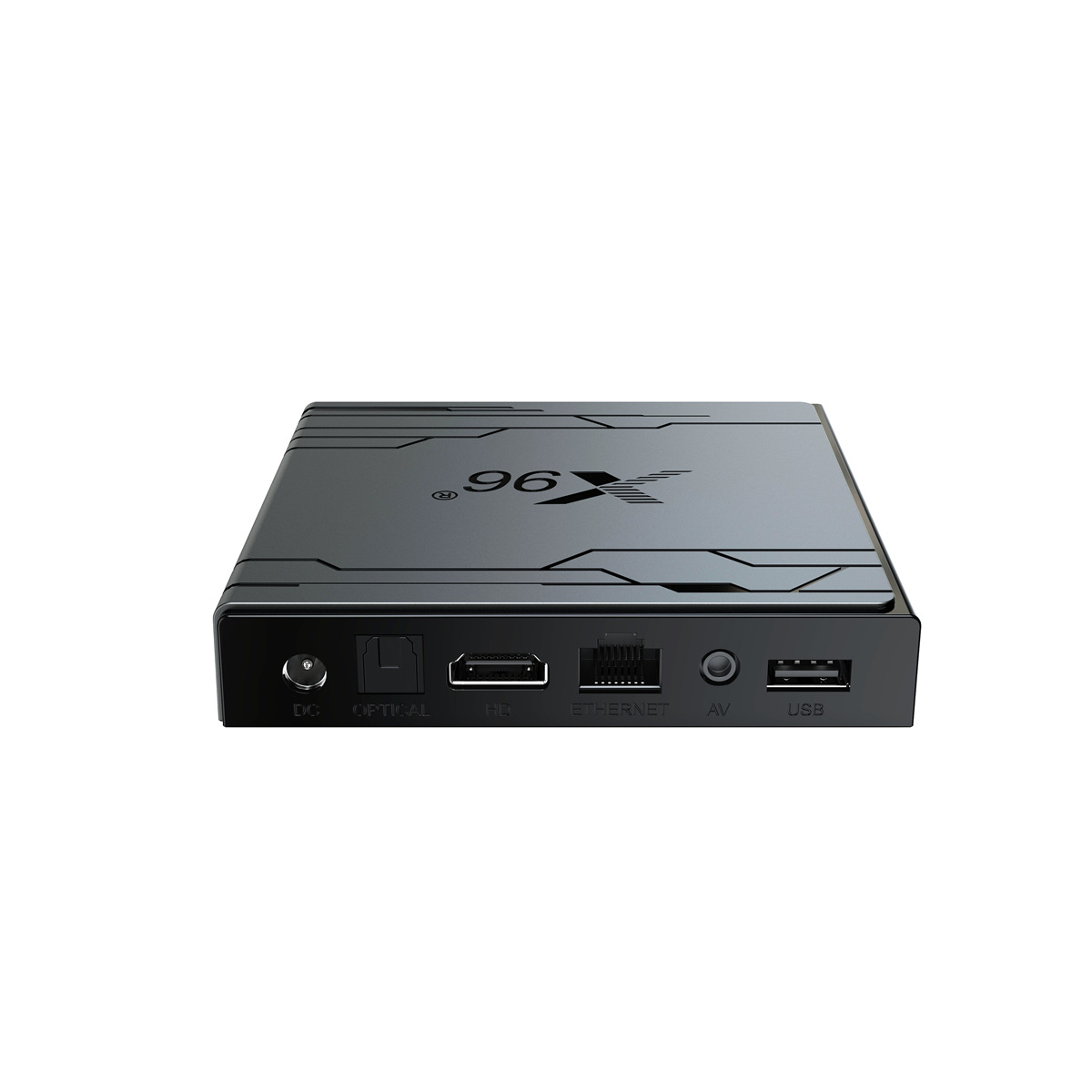

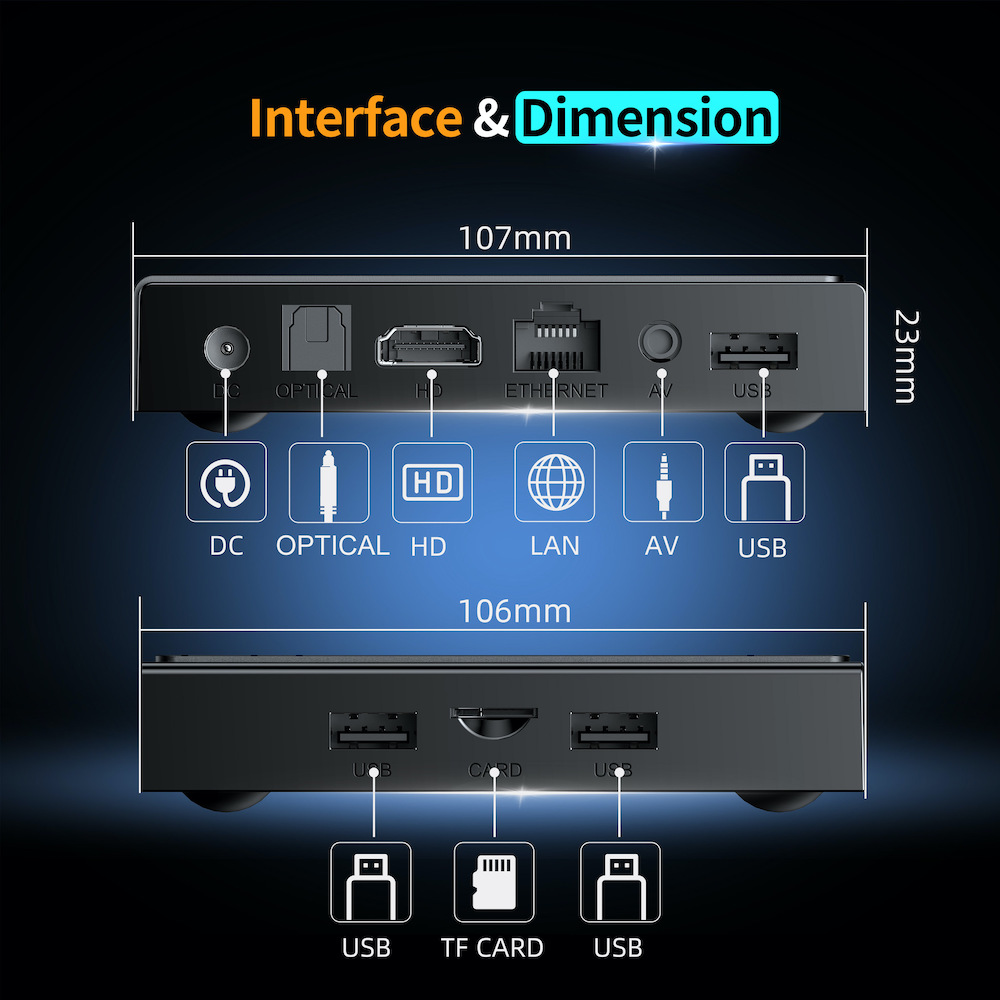

| Interface | ||||
| Micro SD | External memory | Support | ||
| Charge | Charging Port | 5V/2A | ||
| Video output | HDMI OUT | 4K60 Hz | ||
| Audio output | OPTICAL PORT | Support | ||
| Audio Port(3.5mm) | Support | |||
| Key | Key Function | Update | ||
| Ethernet | Ethernet | 100Mbps | ||
| IR Reciver | On board | Remote Reciver Connect | ||
| USB port | Data | 2*USB2.0 Type-A | ||
| USB host | 1*USB2.0 Type-A | |||

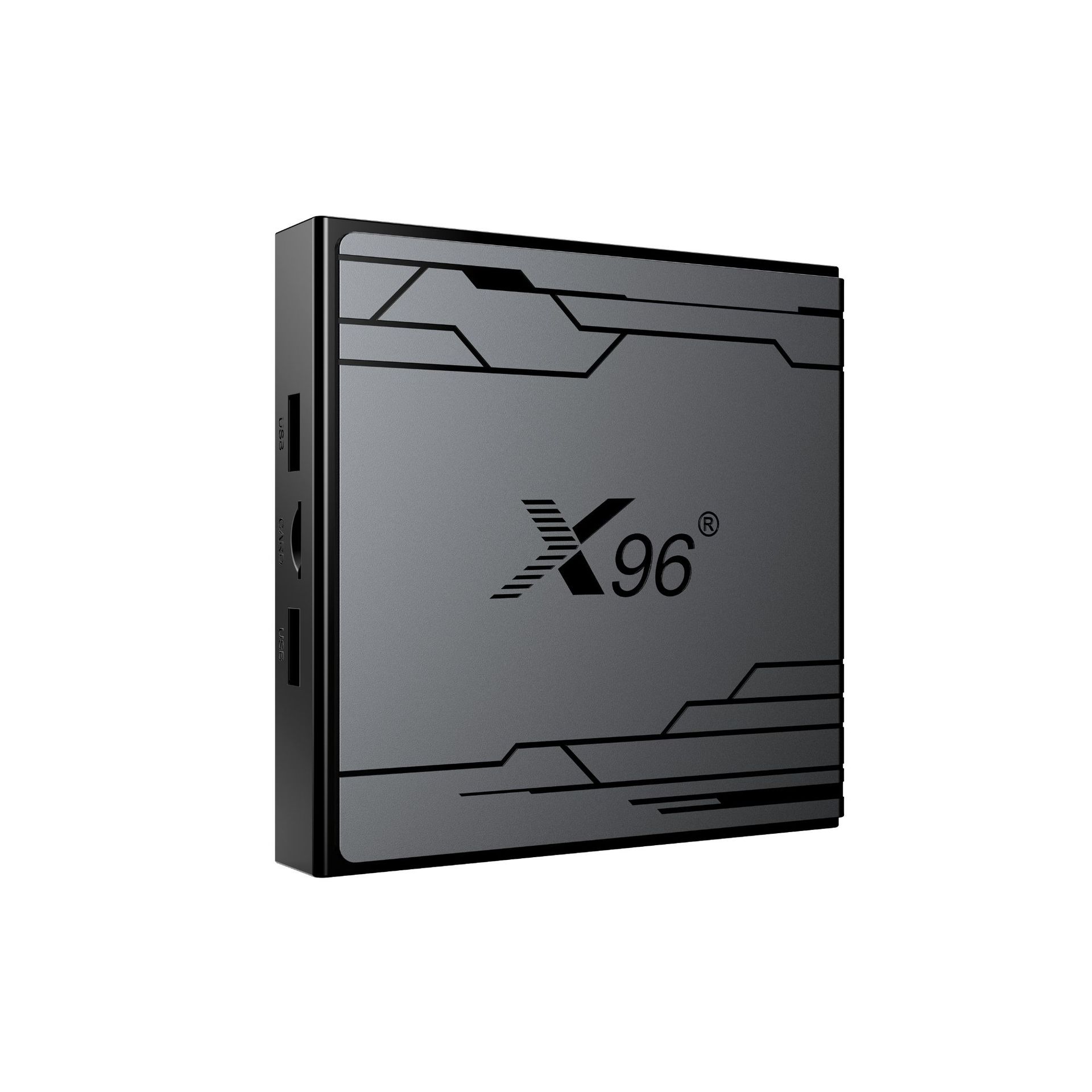

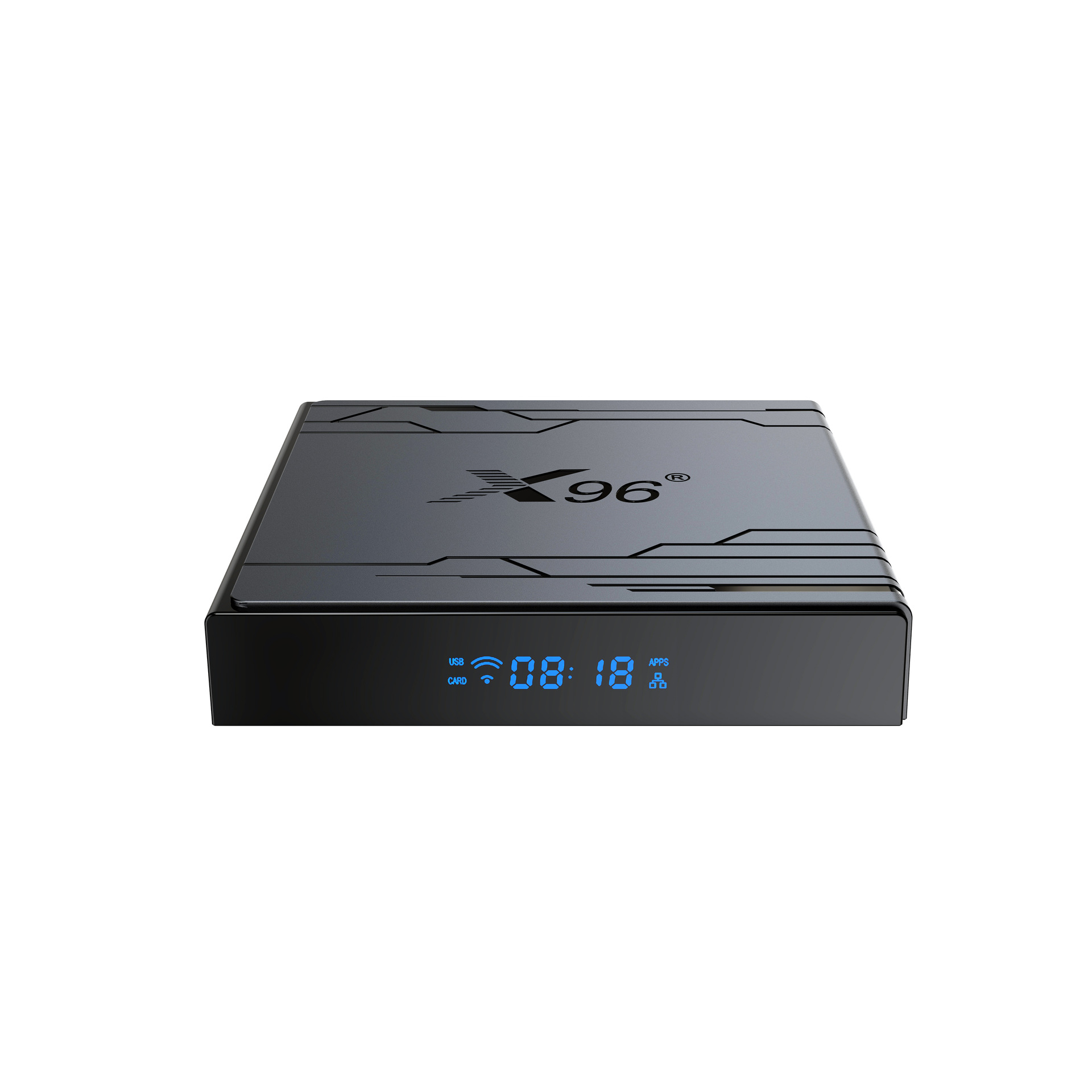

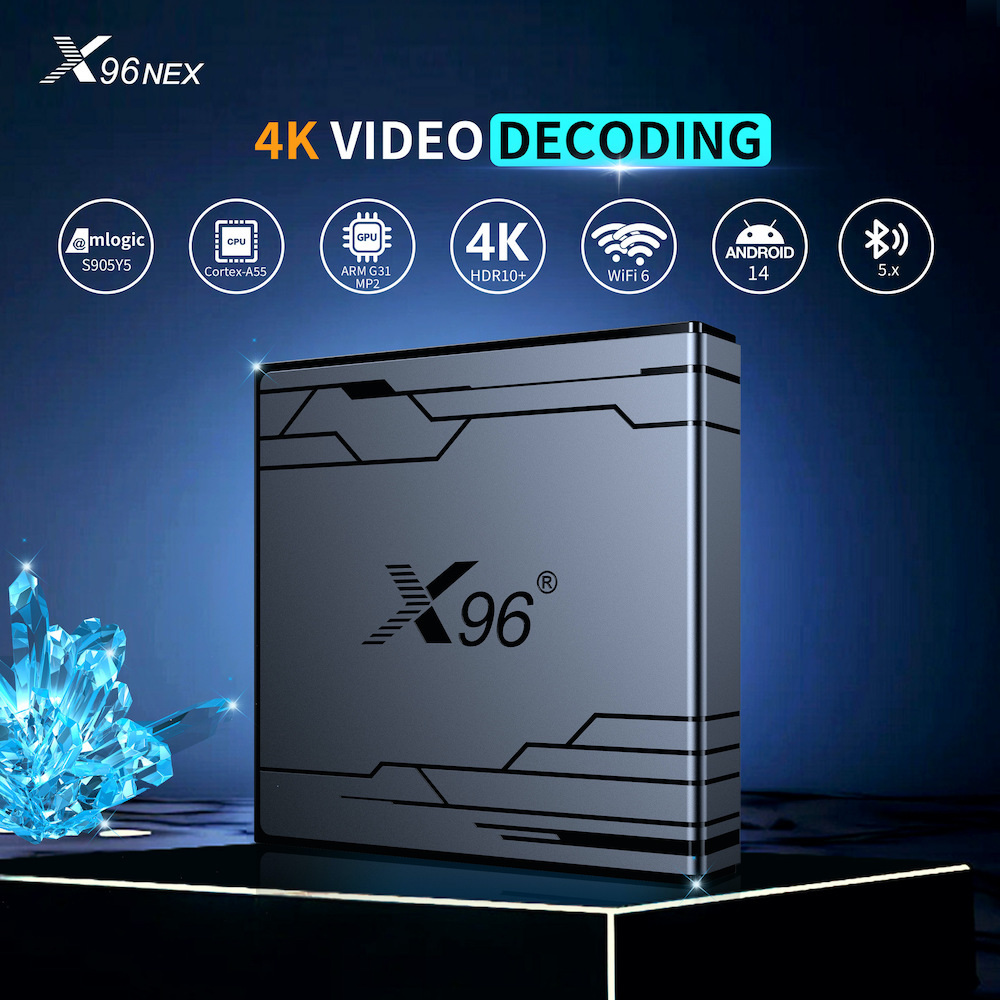

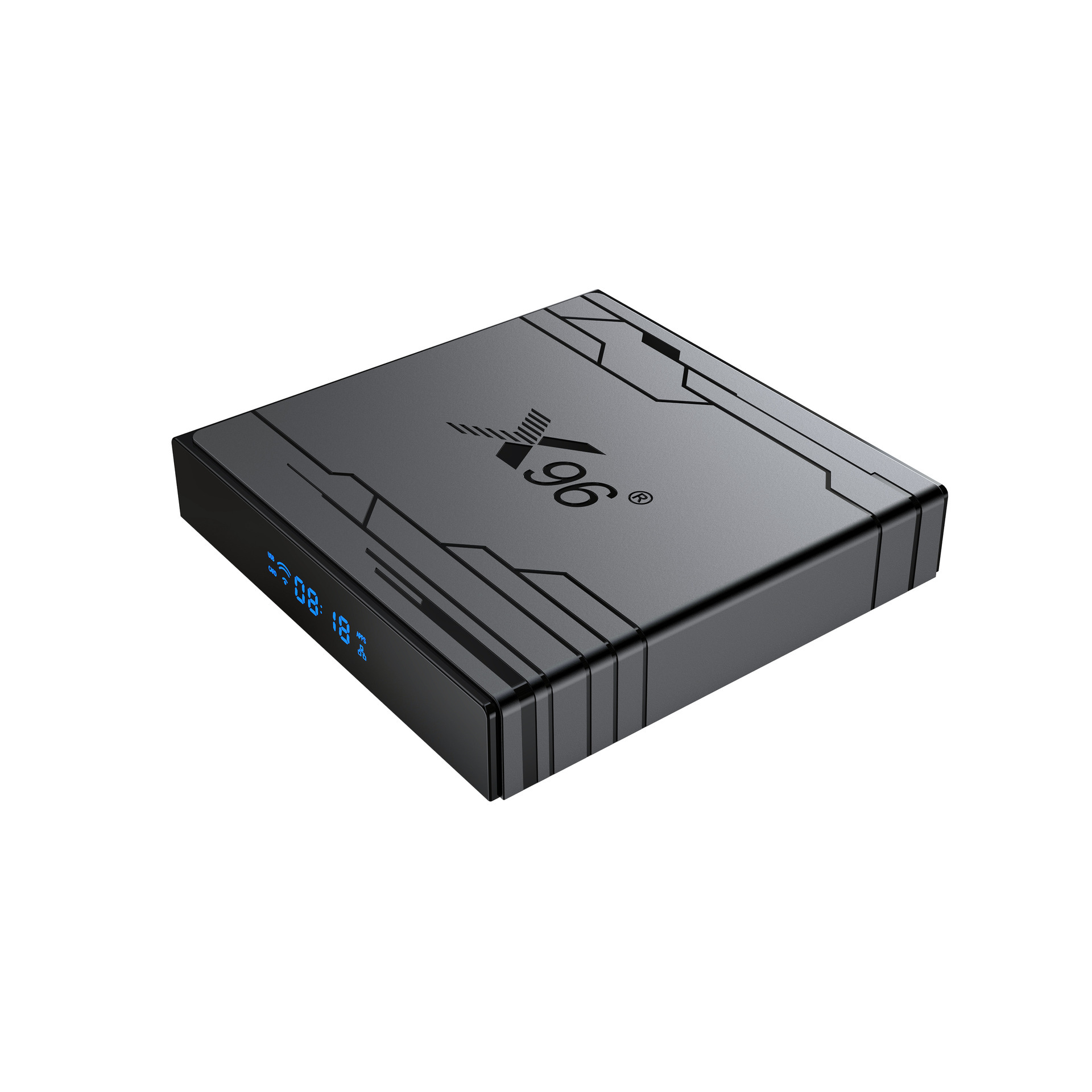

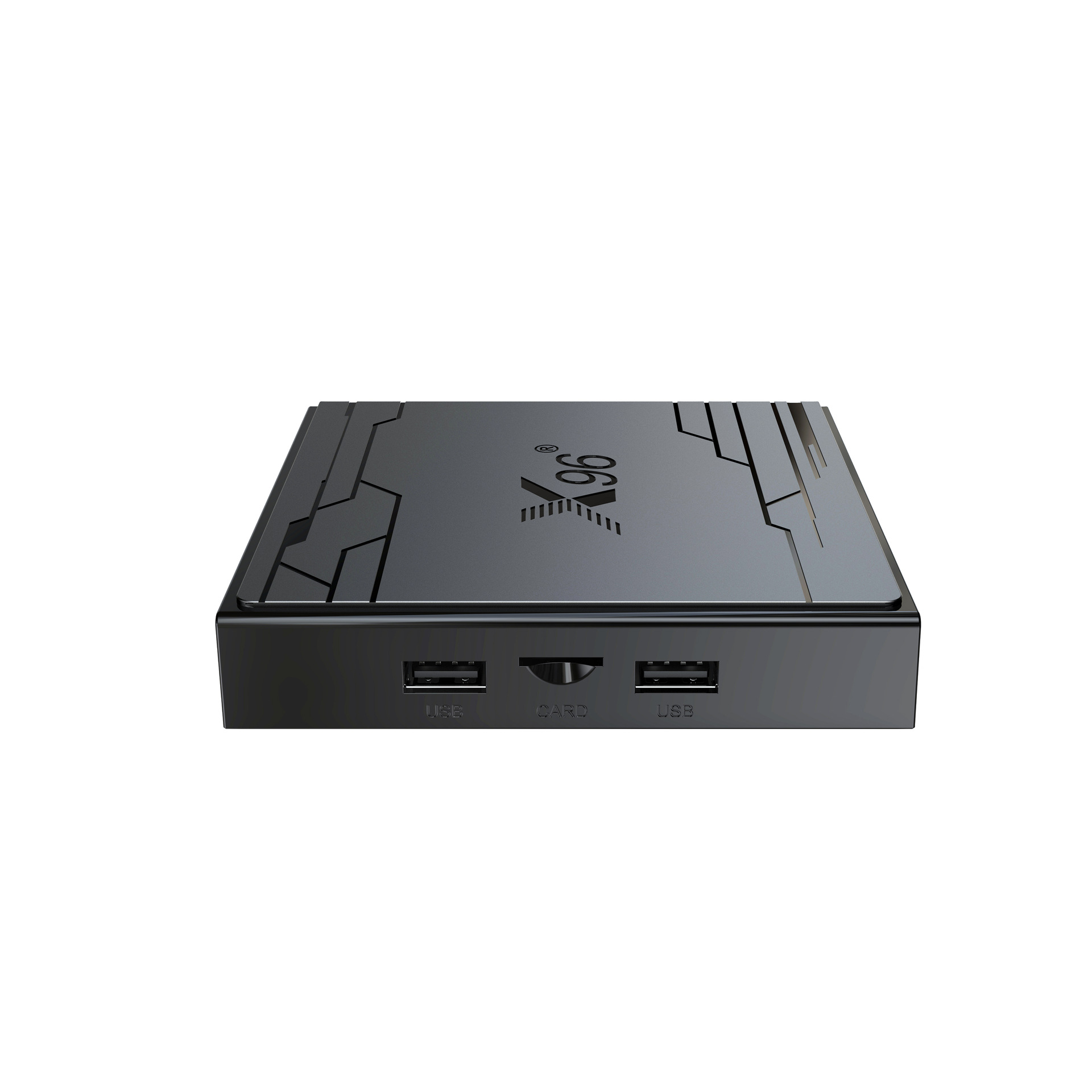

Product Photos:

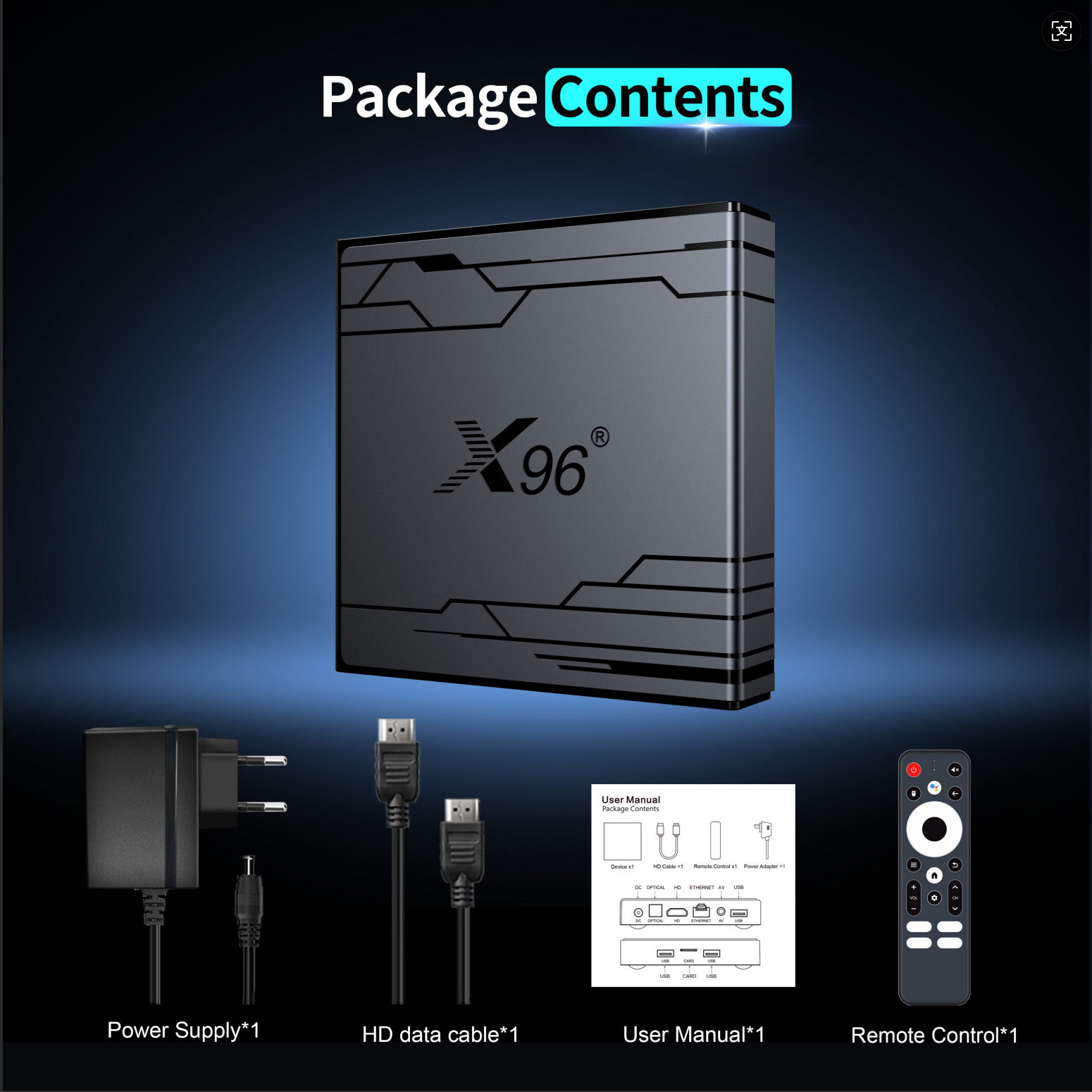

X96 NEX Packing List and Accessories:
