H96 Max M1 PLUS android TV box with Rockchip RK3528 Quad Core CPU 64-bit Cortex A53 Mali 450 MP2 2GB 4GB DDR3 16GB 32GB 128GB Storage 2.4G 5G WiFi 6 BT5.4 BT Voice remote 8K 25fps decoding android 14 androidtv OS TV box.
H96 Max M1 PLUS Product Specifications:
| CPU | RK3528 Quad Core ARM Cortex-A53 | |||||||||
| GPU | Mali-450 MP2 | |||||||||
| RAM | 2GB/4GB | |||||||||
| ROM | 16GB/32GB/128GB | |||||||||
| WiFi | WLAN 802.11a/b/g/n/ax | |||||||||
| Bluetooth | BT 5.4 | |||||||||
| I/O | HD | 2.0b,4K*2K UHD Output | ||||||||
| USB | USB 2.0*2 | |||||||||
| IR Reciver | Remote Reciver Connect | |||||||||
| DC | 5V/2A | |||||||||
| AV | 480i/576i for CVBS | |||||||||
| LAN | Ethernet:100 standard RJ-45 | |||||||||
| Software | ||||||||||
| OS | Android 14.0 | |||||||||
| Video | ·Video Decoder ·Real-time video decoder of MPEG-1, MPEG-2, MPEG-4 H.263, H.264/AVC, H.265/HEVC, MVC VC-1 AVS, AVS+,AVS2 ·MMU Embedded ·Supports frame timeout interrupt, frame finish interrupt and bit stream error interrupt ·Error detection and concealment support for all video formats ·Output data format YUV420 semi-planar, YUV400(monochrome), YUV422 is supported by H.264 ·H.264/AVC BP/MP/HP profile @ level 5.1; H.264/AVC MVC; up to 4Kx2K@60fps and 8K*4K@23fps ·H.265/HEVC Main/Main10 profile @ level 5.1 High-tier; up to 4Kx2K@60fps and 8K*4K@23fps ·AVS2 4KX2K @60fps ·MPEG-1, Main profile, up to 1080P@60fps ·MPEG-2, SP@ML, MP@HL, up to 1080P@60fps ·MPEG-4, ASP profile @ level 5, up to 1080P@60fps ·AVS, Jizhun profile @ level 6.0; up to 1080P@60fps ·AVS-P16 (AVS+), up to 1080P@60fps ·H.263, up to 576P@60fps ·VC-1, SP@ML, MP@HL, AP@L0-3, up to 1080P@60fps·Video Encoder ·Support video encoder for H.264, HP@level4.2 ·H.264 maximum frame rate is up to 1920×1080@60fps ·Capable of encoding HEVC Main Profile @ L4.1 High-tier ·H.265 resolution and frame rate are up to 1920×1080 @60fps ·JPEG encoder included·Video OUT ·Display Interface ·Support HD 2.0b output up to 4K 10bit @60Hz ·HD interface: 24 bit (RGB888 YCbCr444), 30 bit(RGB101010,YCbCr 420, YCbCr 444) Max output resolution 4K for HD, 480i/576i for CVBS ·HD ·Compliant HD 2.0b ·Support YUV420 4k x 2k @ 60fps ·Support for 4k x 2k and 3D video formats ·Support for up to 10.2bps bandwidth ·Support HDR10 |
|||||||||
| Audio | Supports MP3, AAC, WMA, RM, FLAC | |||||||||
| Image | HD JPEG、BMP、GIF、PNG、TIF | |||||||||
| Language | Multi-Language | |||||||||
| Appliactions | ||||||||||
| Online | Browse all video websites,support Netflix,Hulu,Youtube, etc. | |||||||||
| Apps | Apps download freely form Google Play、Apkpure store etc. | |||||||||
| Medium | Local Media playback,Support HDD, U Disck | |||||||||
| Talk online | Support SKYPE ,MSN , facebook ,twitter ,QQ etc | |||||||||
| Others | Support Email,office suit etc. Support DLNA function Support 2.4G wireless mouse/keyboard |
|||||||||

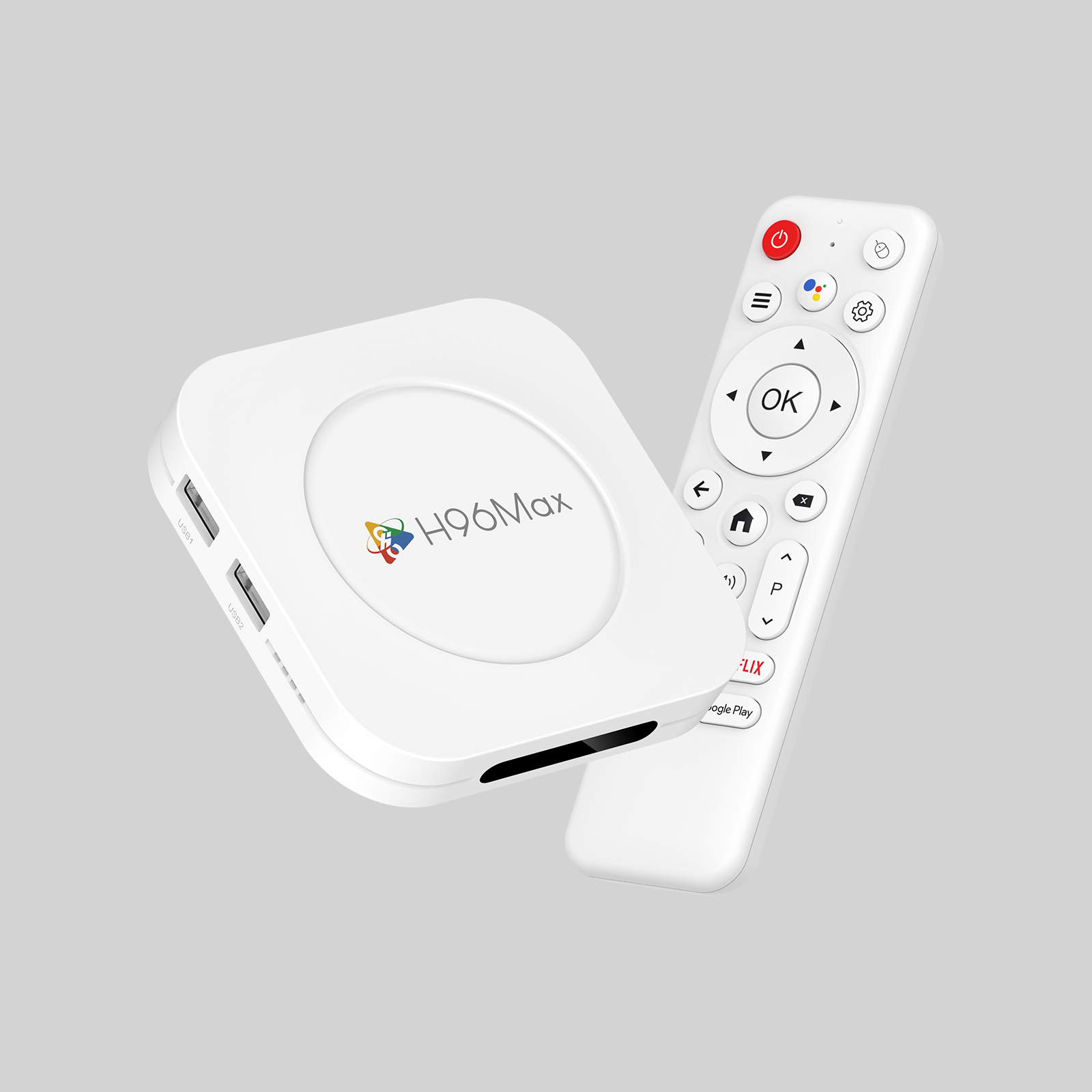

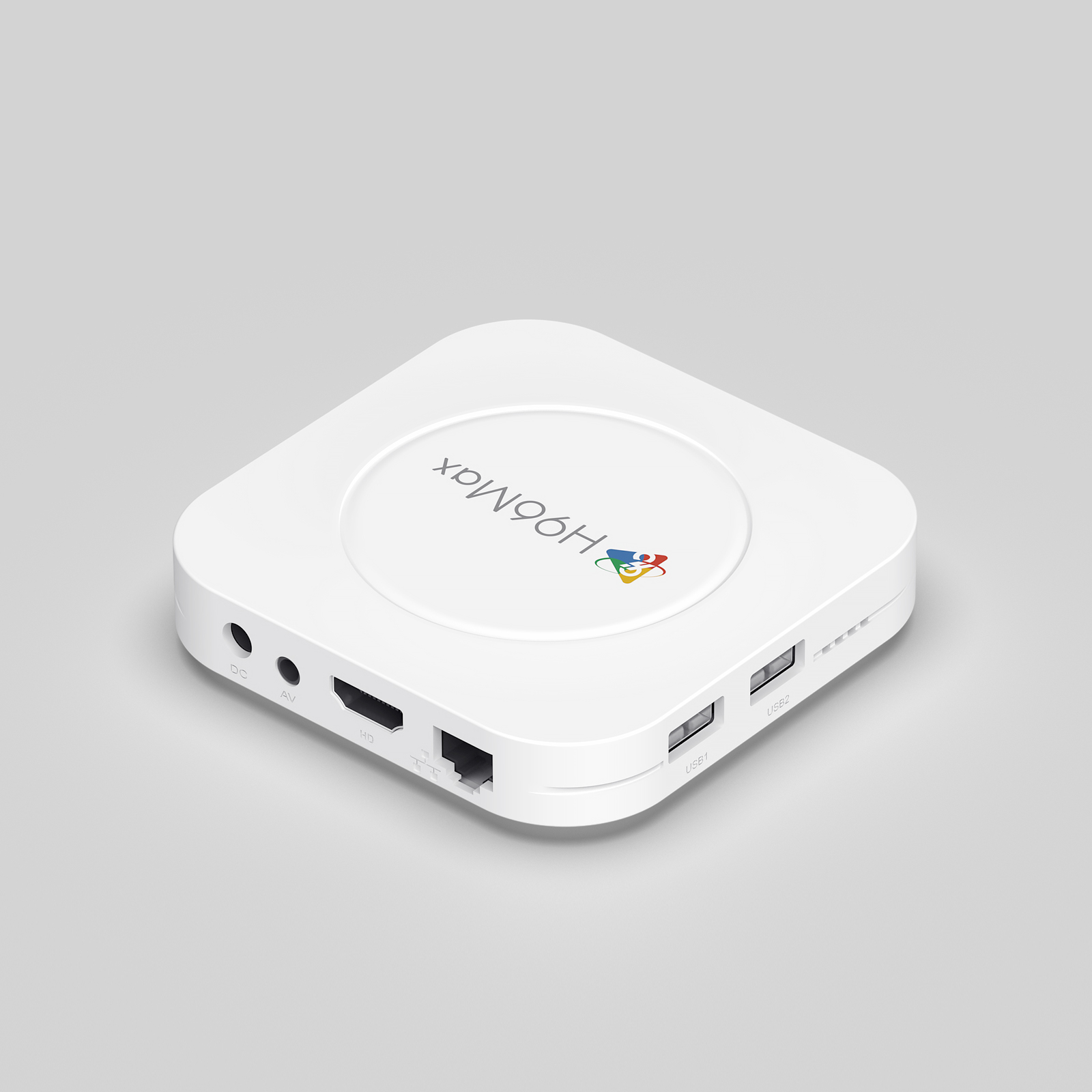

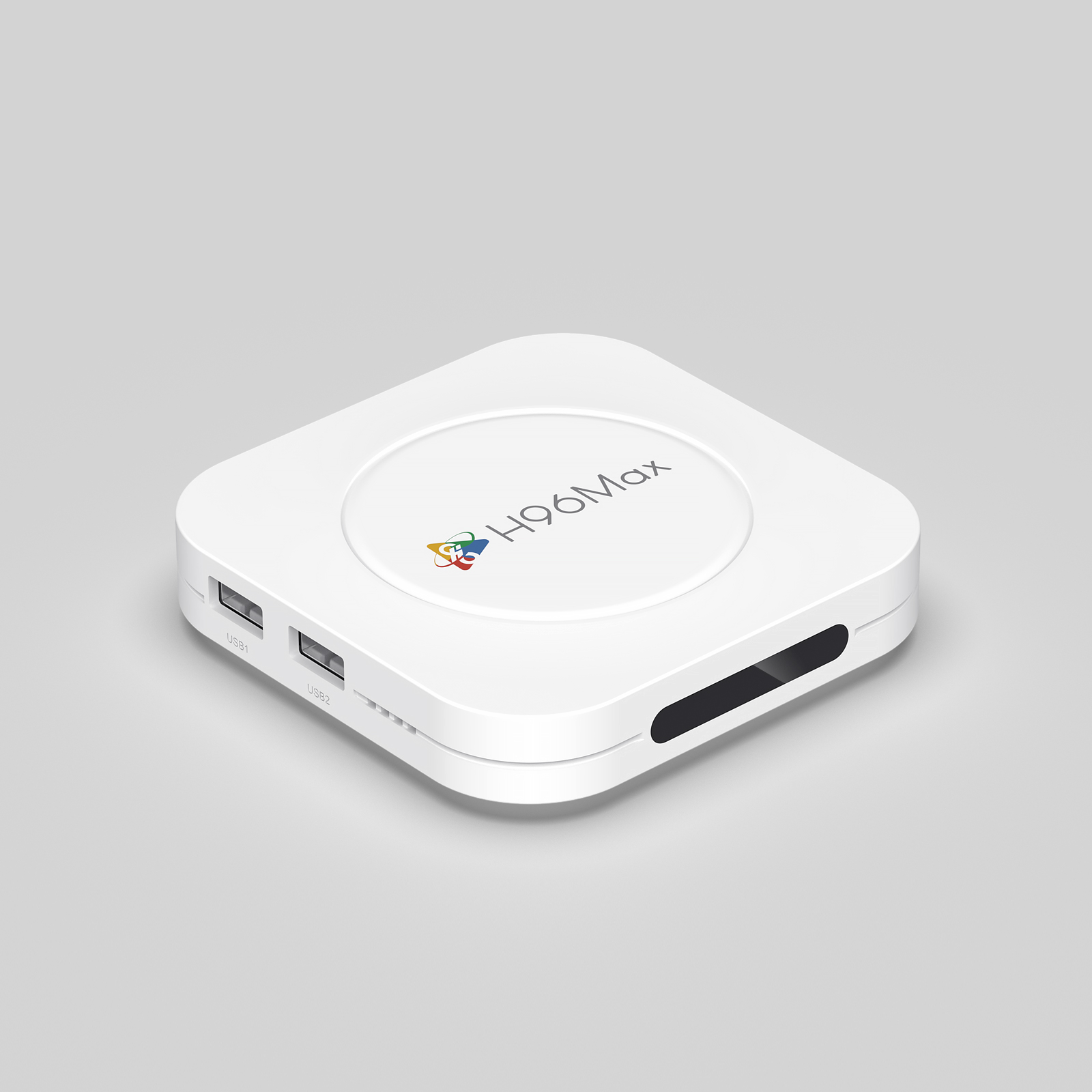

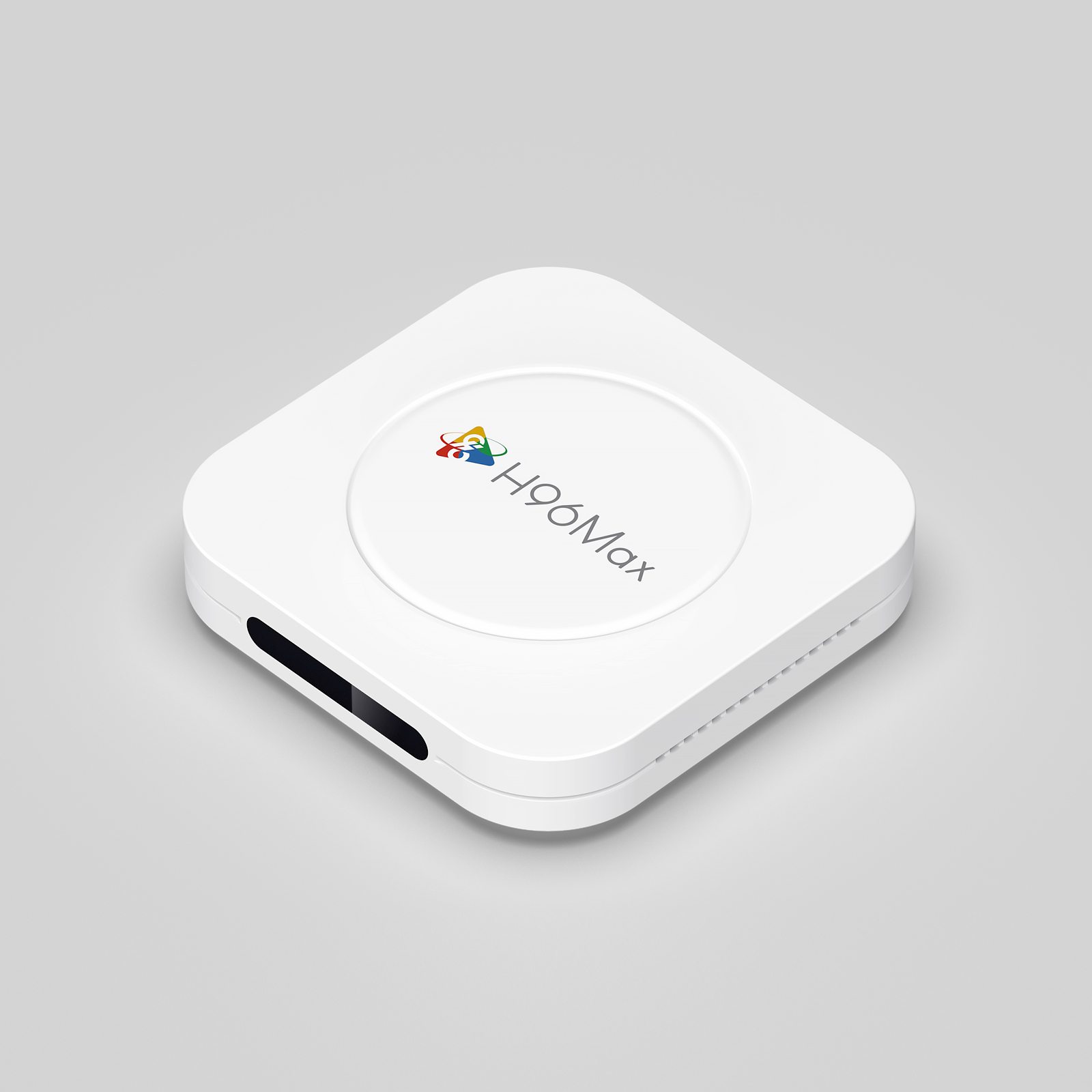

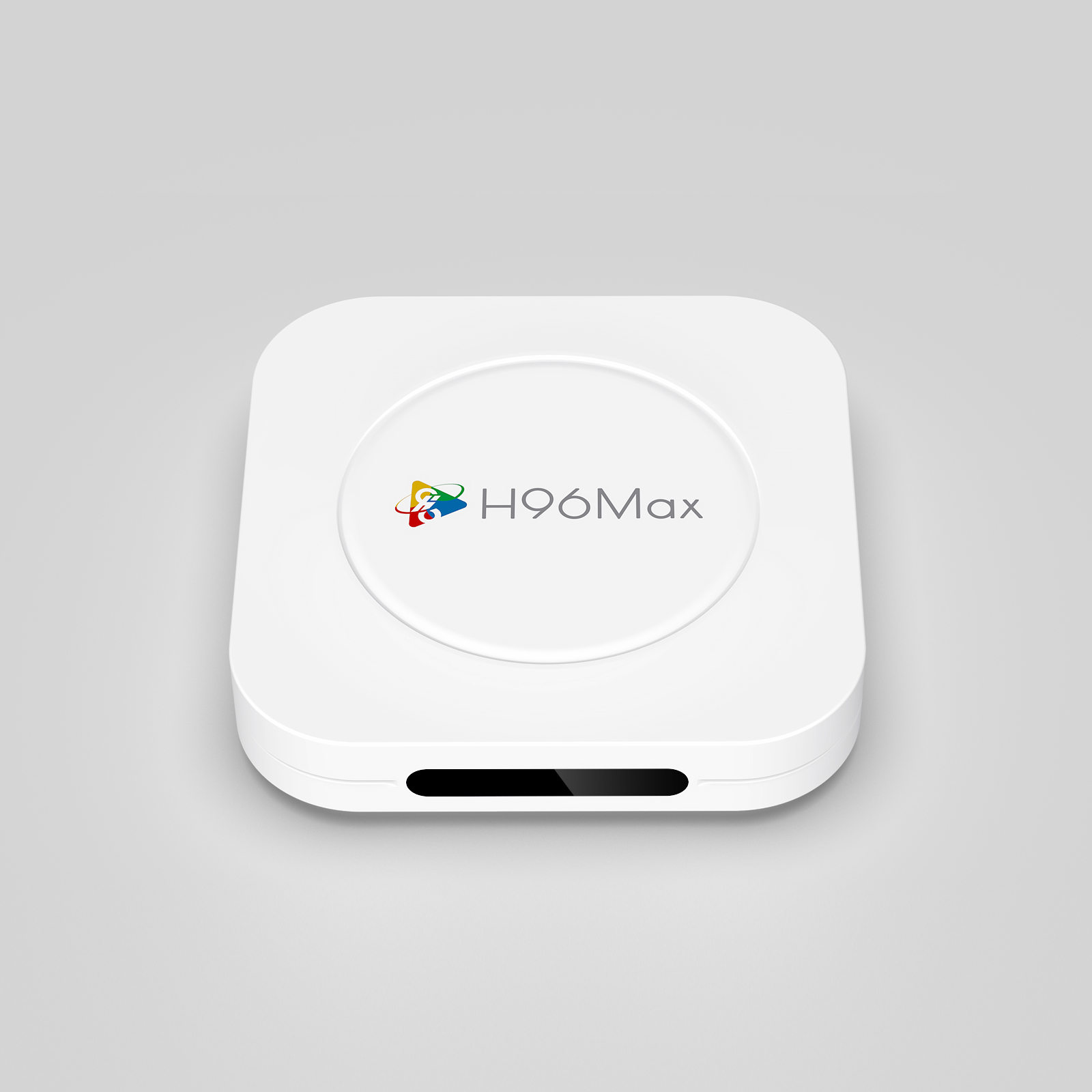

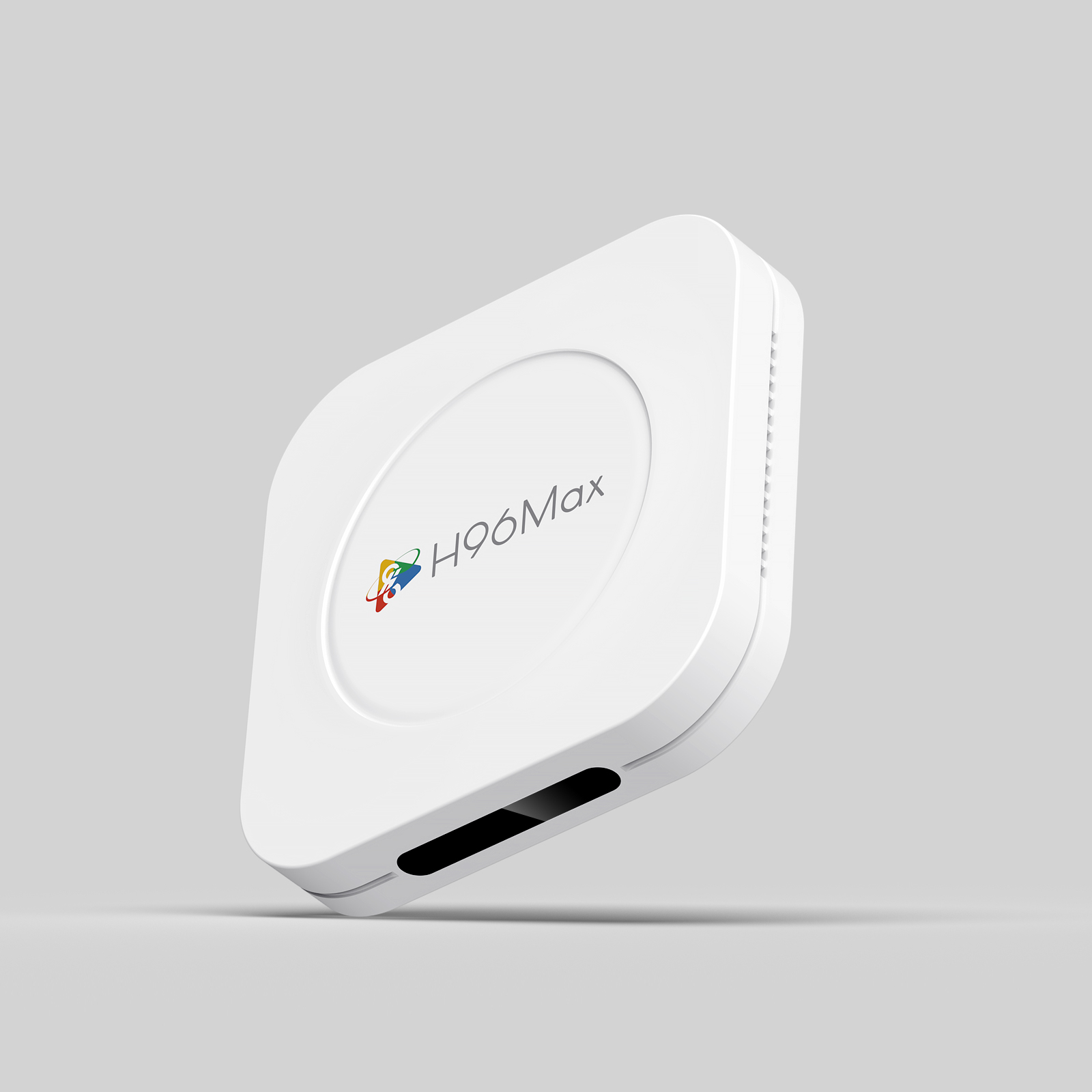

M1 PLUS Product Pictures:

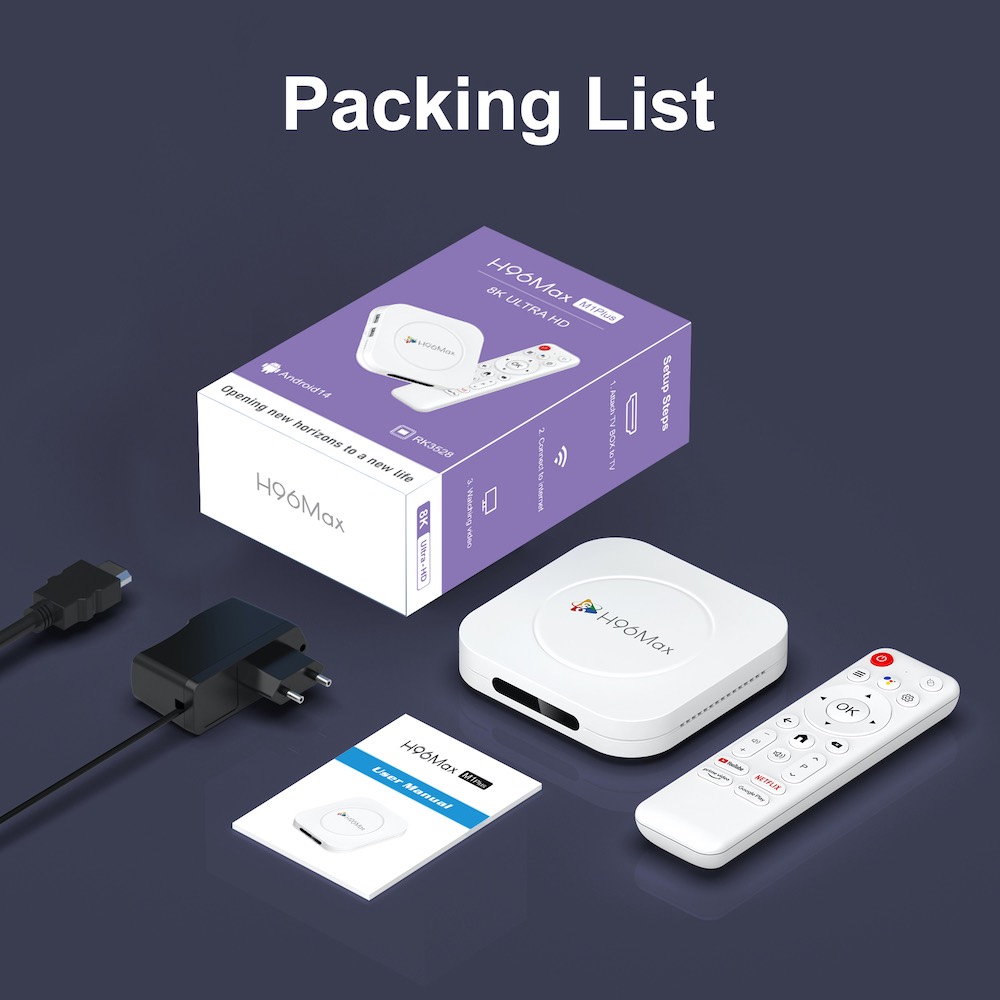

Product Packing Details:
