| CPU |
Amlogic S905Y4 Quad Core |
|
|
| GPU |
ARM G31 MP2 GPU, OpenGL ES 3.2, Vulkan 1.1 and OpenCL 2.0 |
|
|
| SDRAM |
2GB |
|
|
|
| FLASH |
32GB |
|
|
|
| WiFi |
2T2R, 2.4G&5G, 802.11 a/b/g/n/ac |
|
|
| Bluetooth |
BT 5.1 |
|
|
|
| LAN Ethernet |
10/100 M |
|
|
|
| LED Indicator |
1*Power LED:RED-OFF; BLUE-ON |
|
|
| Main Features |
|
|
|
|

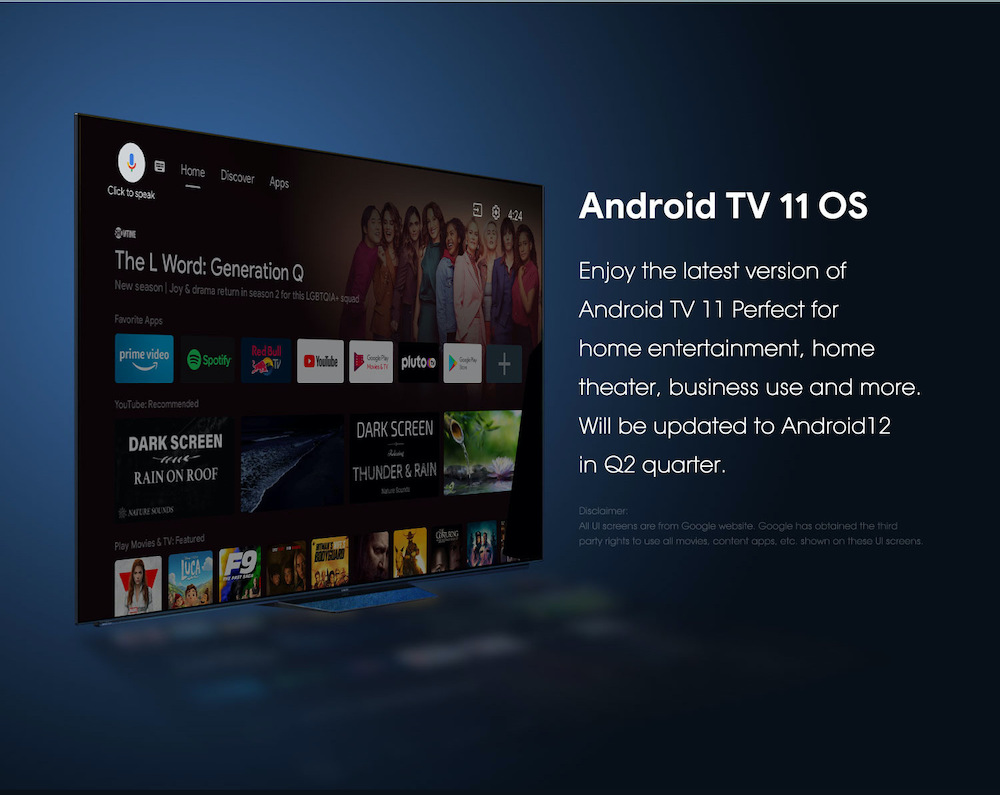

| OS |
Android TV 11.0 ATV OS |
|
|
|
| Video/Picture CODEC |
− Amlogic Video Engine (AVE) with dedicated hardware decoders and SW H.264/ VP8 encoders |
|
| − Support multi-video decoder up to 4x1080P 60fps |
|
|
| − Supports multiple “secured” video decoding sessions and simultaneous decoding and encoding |
|
| − AV1 MP-10 L5.1 up to 4Kx2K 60fps |
|
|
| − VP9 Profile-2 up to 4Kx2K 60fps |
|
|
| − H.265 HEVC MP-10 L5.1 up to 4Kx2K 60fps |
|
|
| − AVS2-P2 Profile up to 4Kx2K 60fps |
|
|
| − H.264 AVC HP L5.1 up to 4Kx2K 30fps |
|
|
| − MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496) |
|
|
| − WMV/VC-1 SP/MP/AP up to 1080P@60fps |
|
|
| − AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps |
|
|
| − MPEG-2 MP/HL up to 1080P@60fps (ISO-13818) |
|
|
| − MPEG-1 MP/HL up to 1080P@60fps (ISO-11172) |
|
|
| − Multiple language and multiple format sub-title video support |
|
|
| − MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918) |
|
|
| − Supports JPEG thumbnail, scaling, rotation and transition effects |
|
|
| HDR |
Supports HDR10+, HDR10, HLG HDR processing |
|
|
| Video format |
DAT, MPEG, MPG, TS,M2V,TP,VOB,AVI,MP4,MOV,3GP,OGM,MKV,M2TS,M4V,FLV,F4V,PMP, ASF, webm, vp9 |
| Audio format |
MP2/MP3,MAV,OGG,FLAC,Ape,M4A,AIF/AIFF/ALAW,DTS CD,alac,WMA |
|
|
| Image format |
JPG, JPEG, BMP, PNG |
|
|
|
| OTA |
Support OTA update |
|
|
|

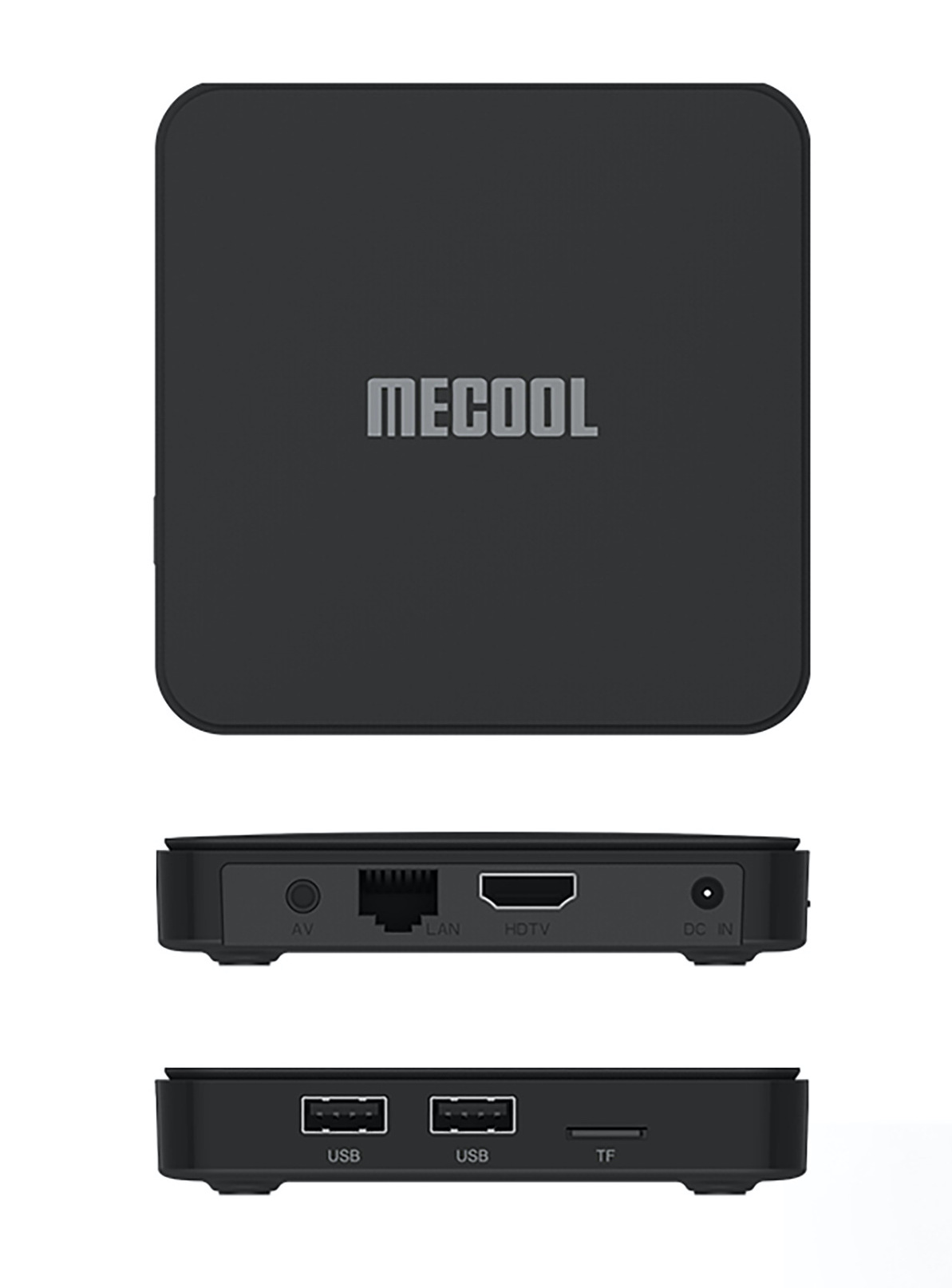

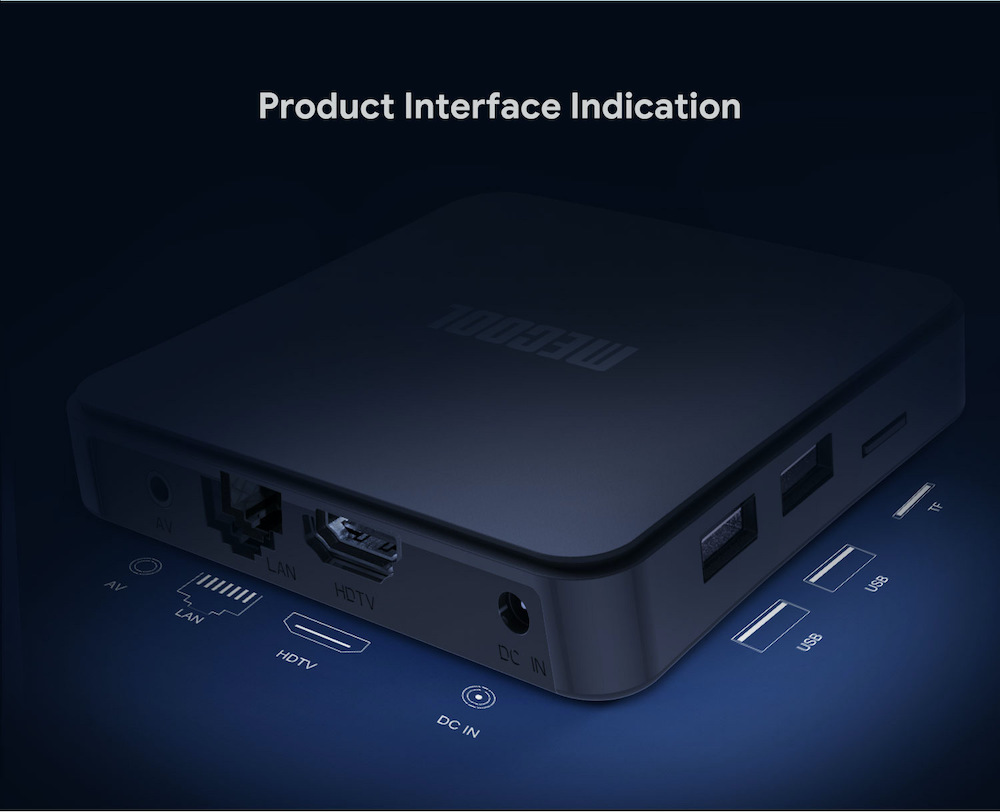

| Port Specifications |
|
|
|
|
| Port |
1* HD 2.1 Dynamic HDR 4Kx2K@60 max resolution output |
|
|
| 1* TF CARD |
|
|
|
|
| 2* USB 2.0 |
|
|
|
|
| 1* AV CVBS&L/R output |
|
|
|
| 1* RJ45 100M LAN |
|
|
|
|
| 1* DC IN |
|
|
|
|

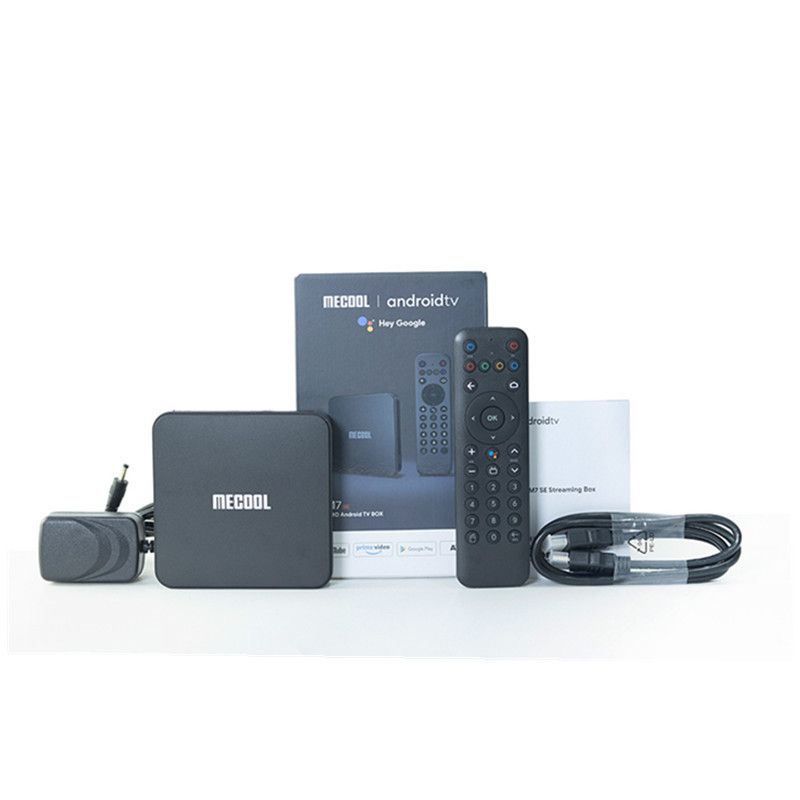

| Accessories |
|
|
|
|
| 1* Power Adapter 5V/2A |
|
|
|
|
| 1* Retail Gift Box |
|
|
|
|

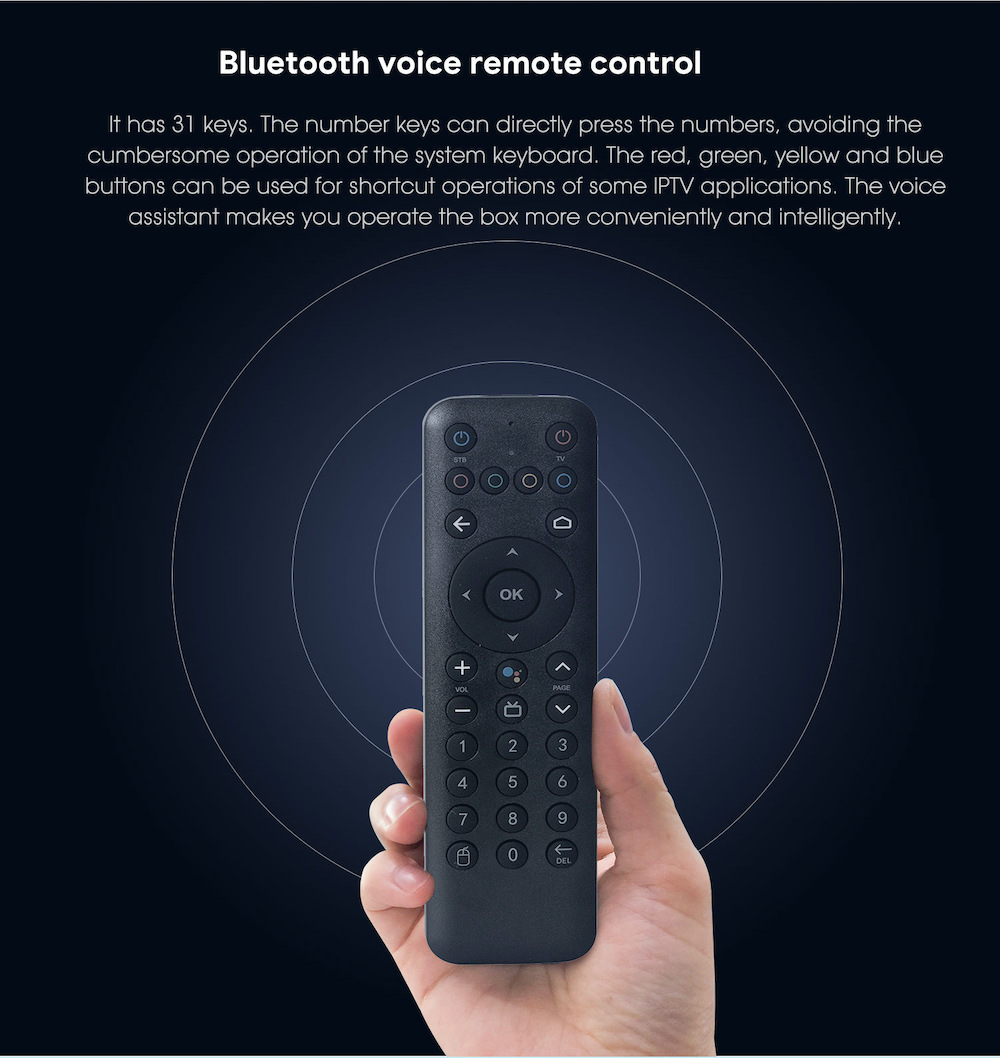

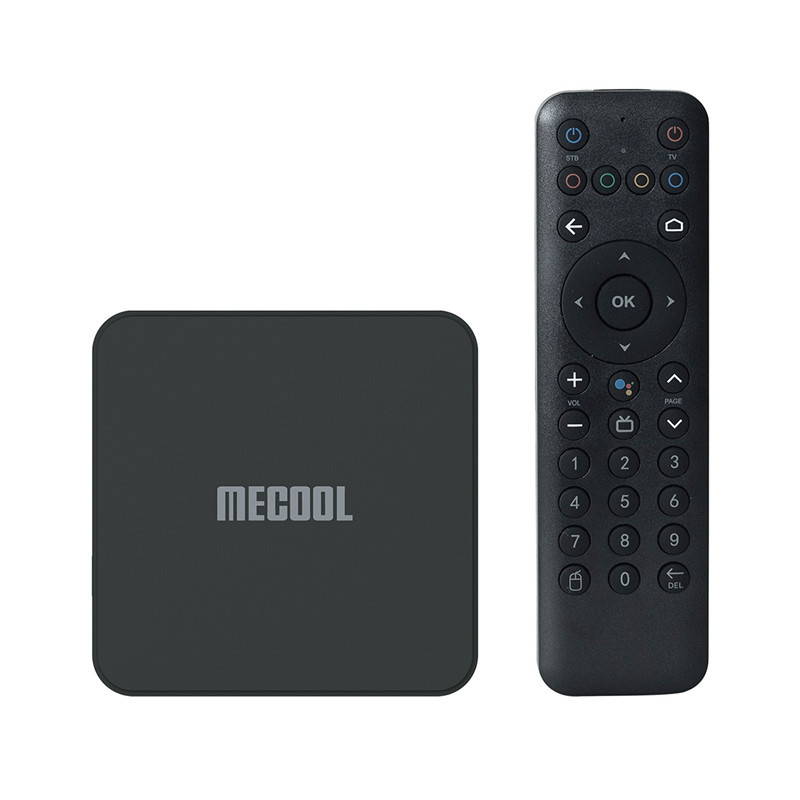

| 1* IR+BT Vioce remote(Support SSU function) with number keys |
|
|
| 1* HDMI Cable |
|
|
|
|
| 1* User Manual |
|
|
|
|
