TX5 Plus S905X5M android TV box with Quad Core Amlogic S905X5M CPU Cortex A55 G310 GPU 4GB DDR4 32GB 64GB eMMC 2.4G and 5G dual WiFi BT5.0 1000M Lan Ethernet Voice remote control AV1 8K 24fps support android 14 OS TV box.
TX5 Plus Product Specifications:
|
Basic parameters
|
||||
|
CPU
|
Chipset
|
Amlogic S905X5M
|
||
|
Architecture
|
Quad Core ARM Cortex A55
|
|||
|
GPU
|
Chipset
|
ARM G310 V2
|
||
|
Architecture
|
OpenGL ES 3.2, Vulkan 1.2 and OpenCL 2.0 support
|
|||
|
RAM
|
Capacity
|
4GB DDR4
|
||
|
ROM
|
Capacity
|
32GB /64GB eMMC
|
||
|
External storage
|
USB Storage Devices
|
USB2.0 Support
|
||
|
Micro SD card
|
Supported
|
|||
|
Software
|
||||
|
Operating system
|
OS Version
|
Android 14
|
||
|
Language
|
Multi-Language
|
|||
|
Video/Picture Decoding
|
AV1 MP-10@L5.1 up to 4Kx2K@60fps
|
|||
|
VP9 Profile-2 up to 4Kx2K@60fps
|
||||
|
H.265 HEVC MP-10@L5.1 up to 4Kx2K@60fps
|
||||
|
MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496)
|
||||
|
WMV/VC-1 SP/MP/AP up to 1080P@60fps
|
||||
|
AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps
|
||||
|
MPEG-2 MP/HL up to 1080P@60fps (ISO-13818)
|
||||
|
MPEG-1 MP/HL up to 1080P@60fps (ISO-11172)
|
||||
|
Multiple language and multiple format sub-title video support
|
||||
|
MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918)
|
||||
|
Supports JPEG thumbnail, scaling, rotation and transition effects
|
||||
|
Image Engine
|
Supports HDR10, HDR10+ processing
|
|||
|
Inline AI-SR,Block noise, mosquito noise, spatial noise, contour noise reduction
|
||||
|
Audio
|
Supports MP3, AAC, WMA, FLAC, Ogg.
|
|||
|
|
HD JPEG, BMP, GIF, PNG, TIF
|
|||
|
Network service
|
||||
|
Wi-Fi
|
Type
|
Support WiFi IEEE 802.11 a/ b / g / n
|
||
|
Frequency
|
Support 2.4G and 5G
|
|||
|
Antenna Type
|
one external antennas
|
|||
|
Bluetooth
|
B T
|
Support BT5.X
|
||
|

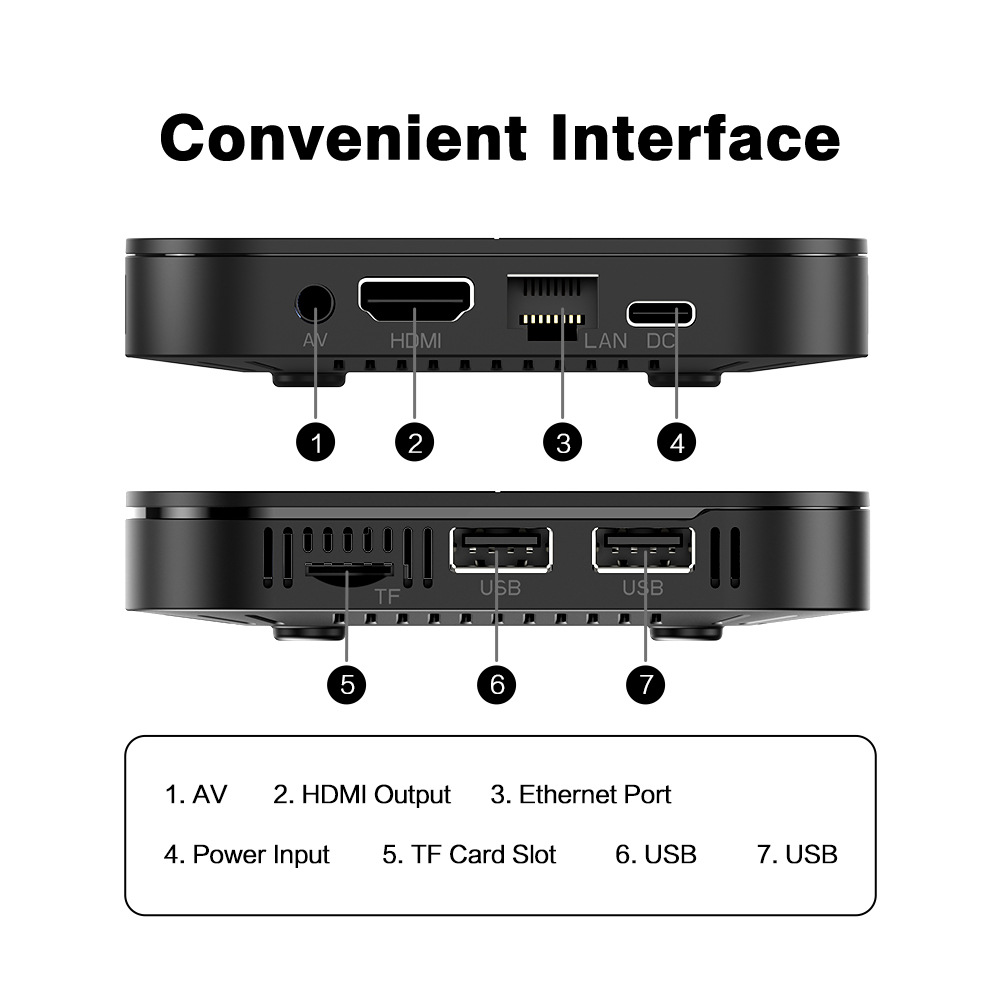

Interface
|
||||
|
Charge
|
DC connector
|
DC IN(5V/2A)
|
||
|
Video output
|
HD
|
4K*2K UHD Output, HD 2.1a
|
||
|
IR Reciver
|
3.5mm Earphone jack
|
Remote Reciver Connect
|
||
|
Micro SD
|
External memory
|
Support
|
||
|
USB port
|
USB host
|
2 High speed USB 2.0,support U DISK and USB HDD
|
||
|
Ethernet
|
Ethernet
|
1000M Ethernet
|
||
|
Appearance of TX5 Plus S905X5M android TV box
|
||||
|
Body Material
|
ABS
|
|||
|
Color
|
Black
|
|||
|
Size
|
106x106x23(mm)
|
|||
|
Weight
|
0.135Kg
|
|||
|
Cerifications(For Unit)
|
||||
|
Standard
|
CE
|
YES
|
||
|
RoHS
|
YES
|
|||
|
Others
|
Optional
|
/
|
||
|
Package contents
|
Shipping Info
|
|||
|
User manual
|
*1
|
Gift Box Dimension(mm)
|
205*140*50(mm)
|
|
|
Gift Box
|
*1
|
Carton Size(mm)
|
420*270*305 (mm）
|
|
|
Remote control
|
*1
|
Qty Per Carton(pcs)
|
20
|
|
|
HD external cable
|
*1
|
Gift Box.G.W(gs)
|
0.388Kg
|
|
|
Power adapter
|
*1
|
Export carton (G.W.)(kgs)
|
8.76Kg
|
|

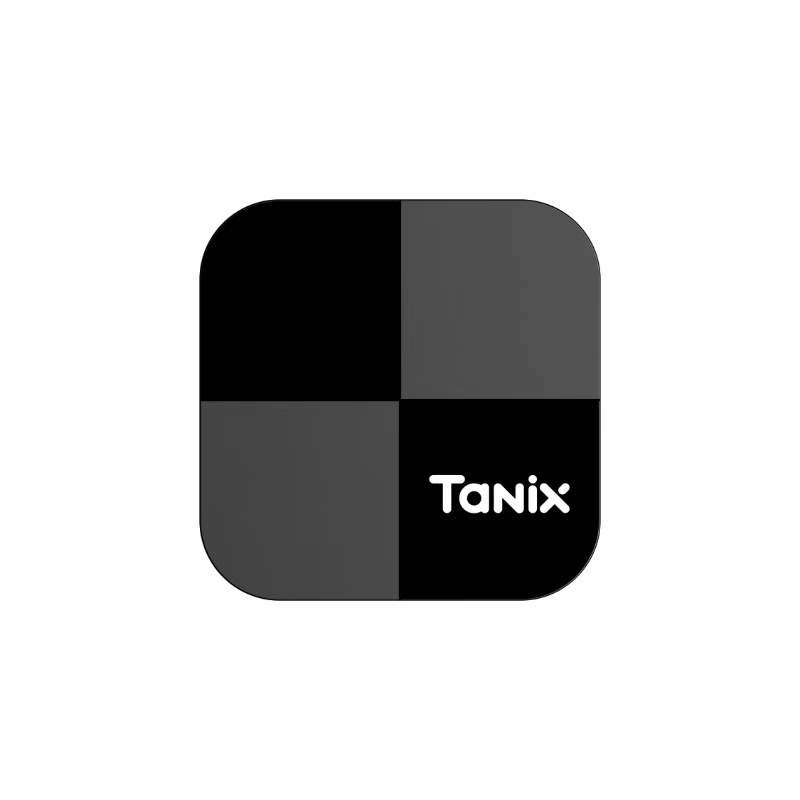

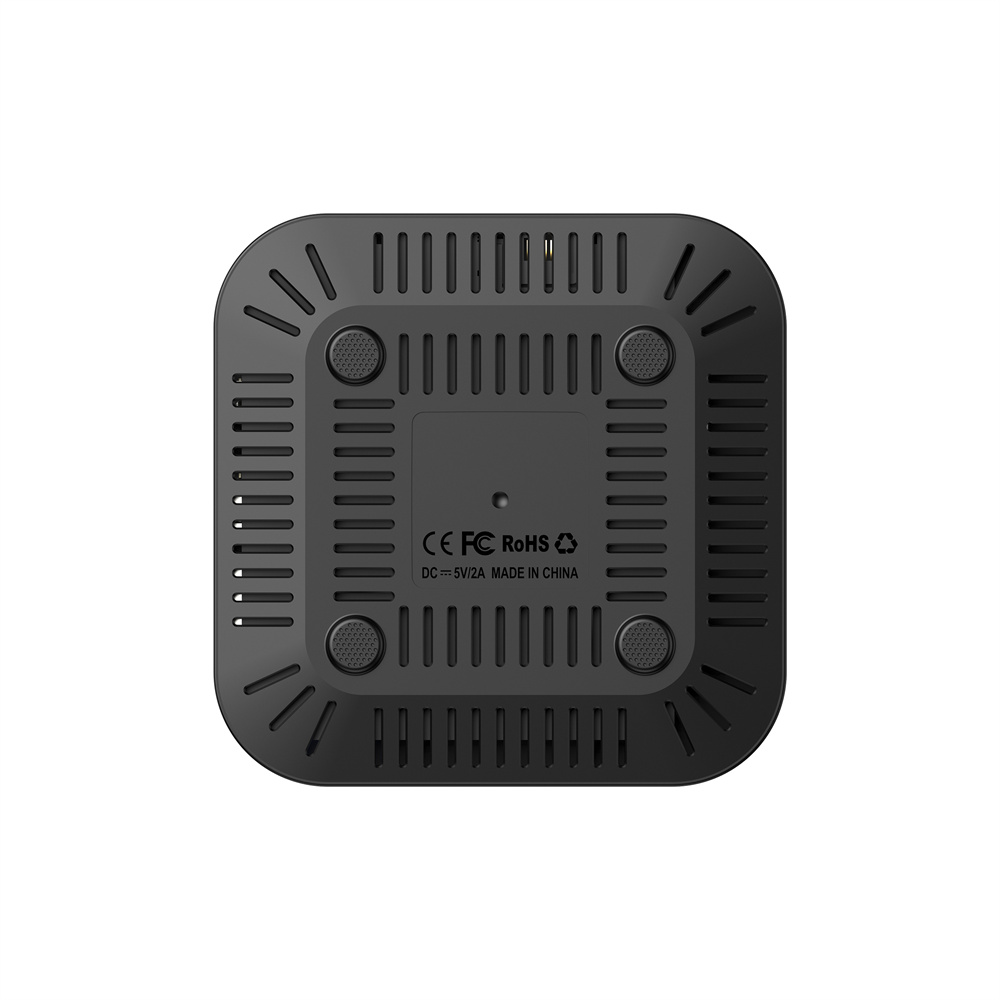

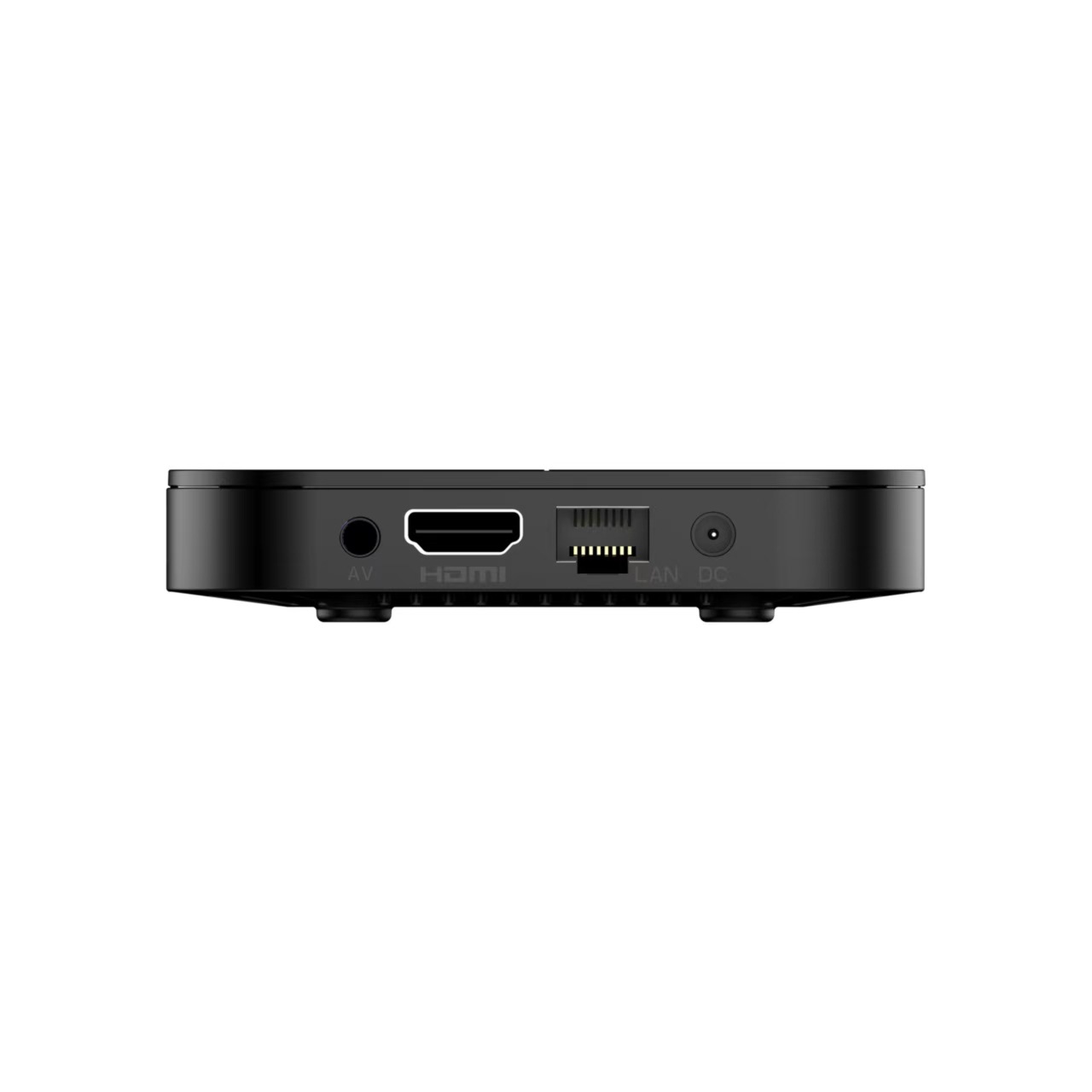

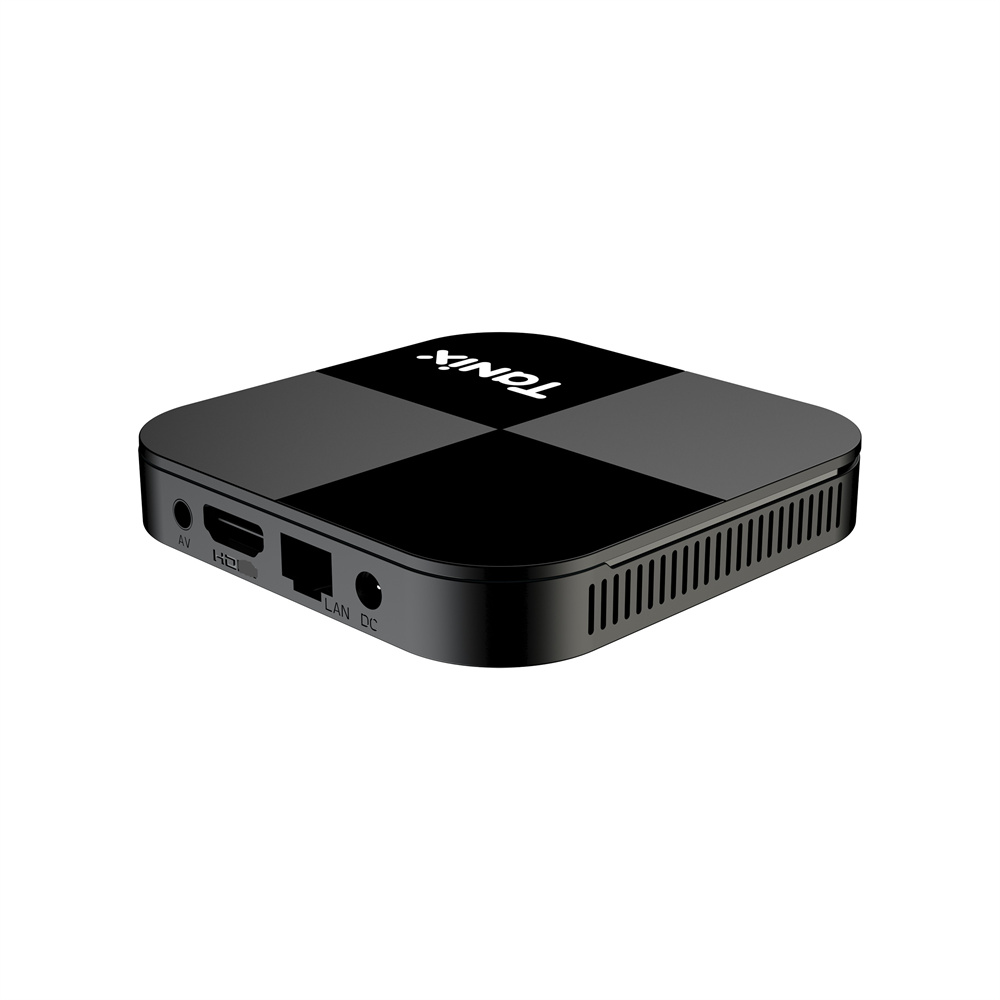

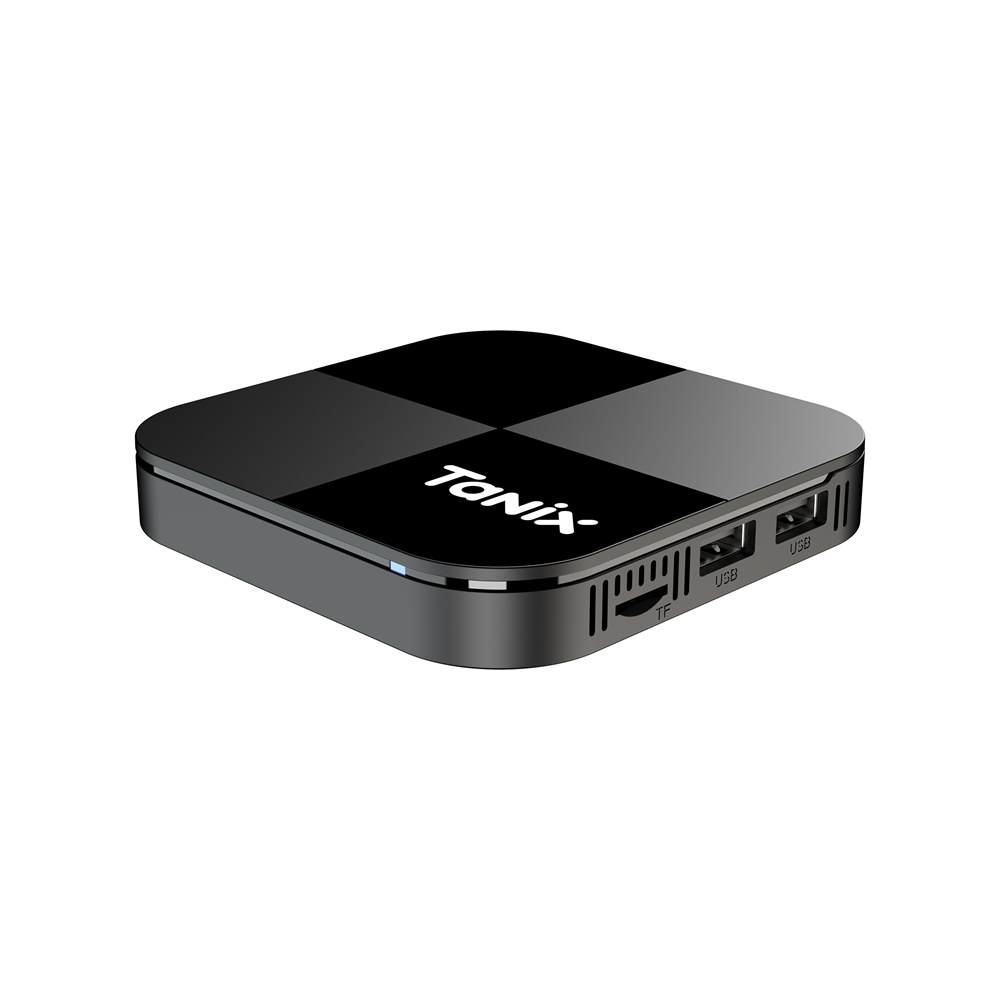

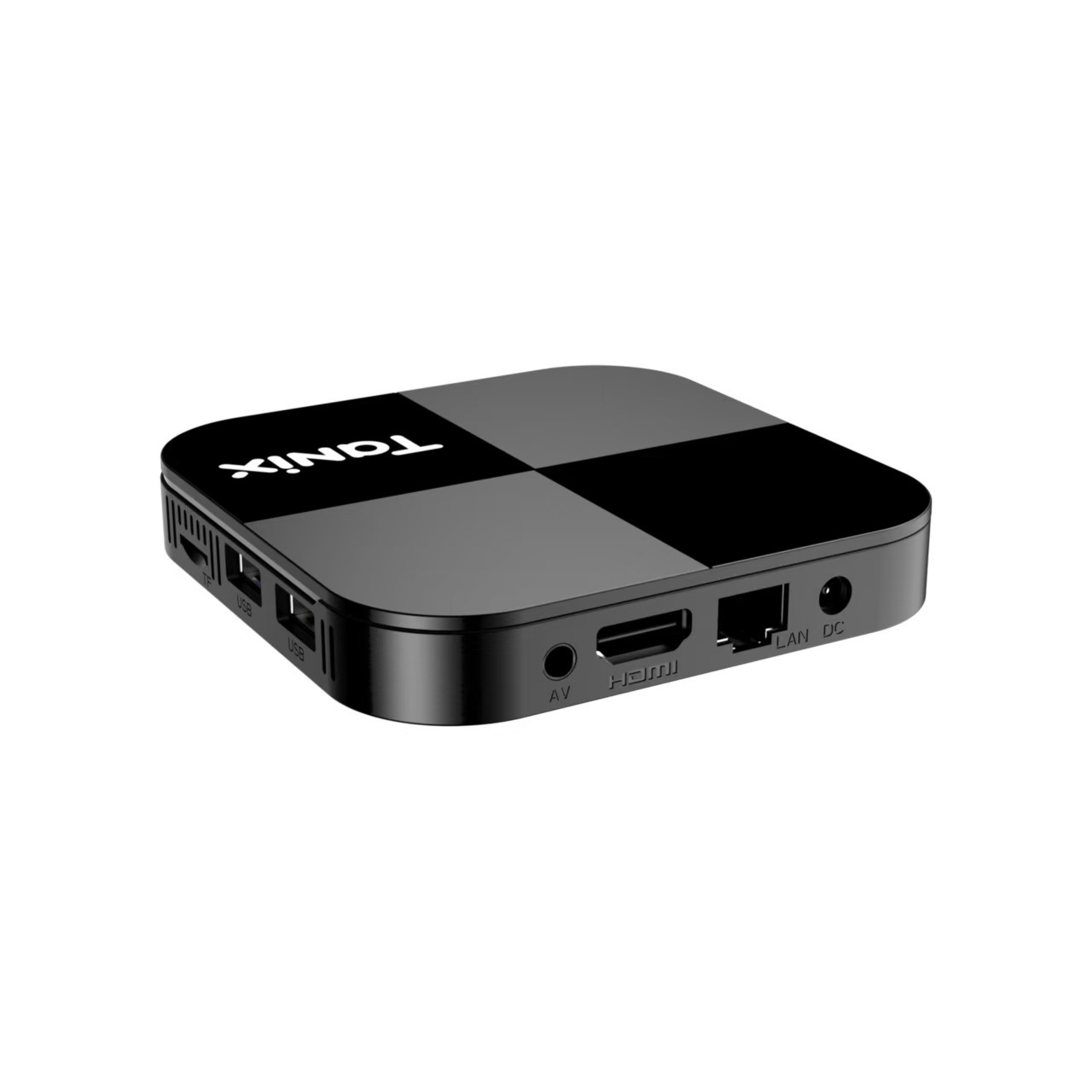

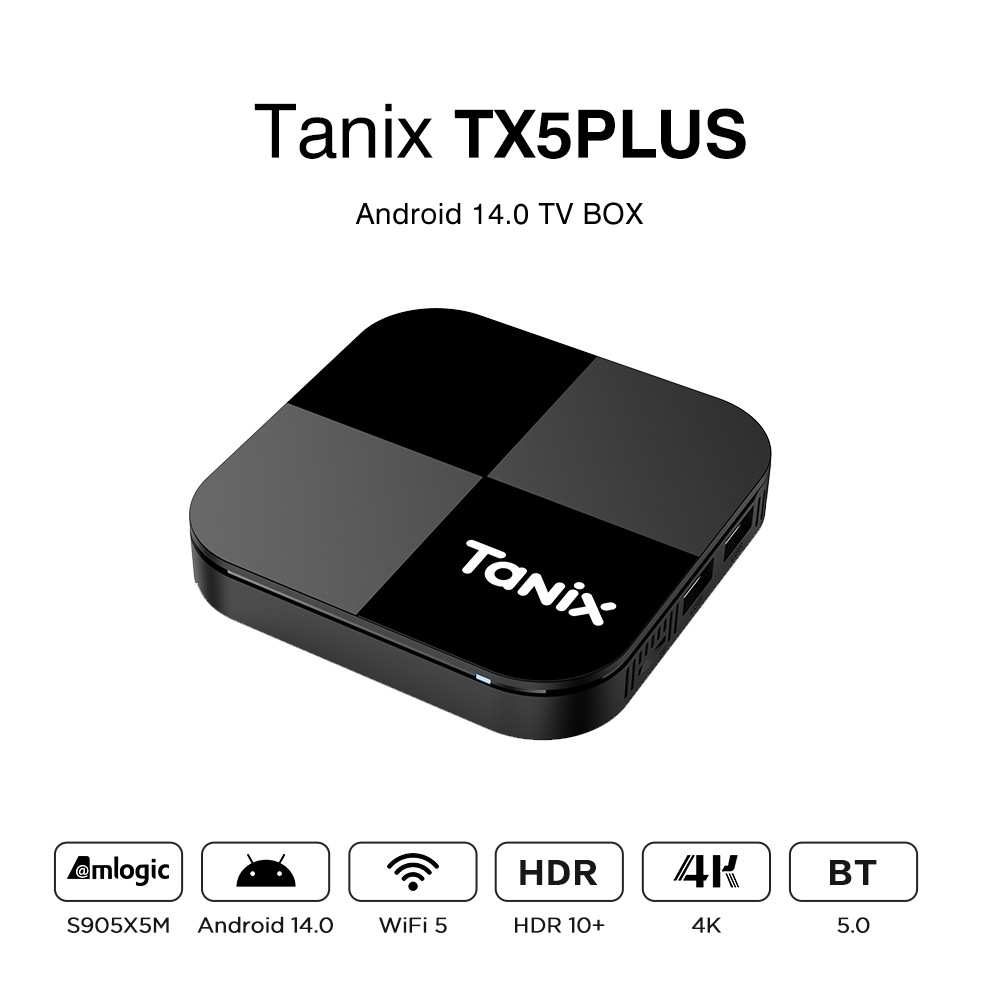

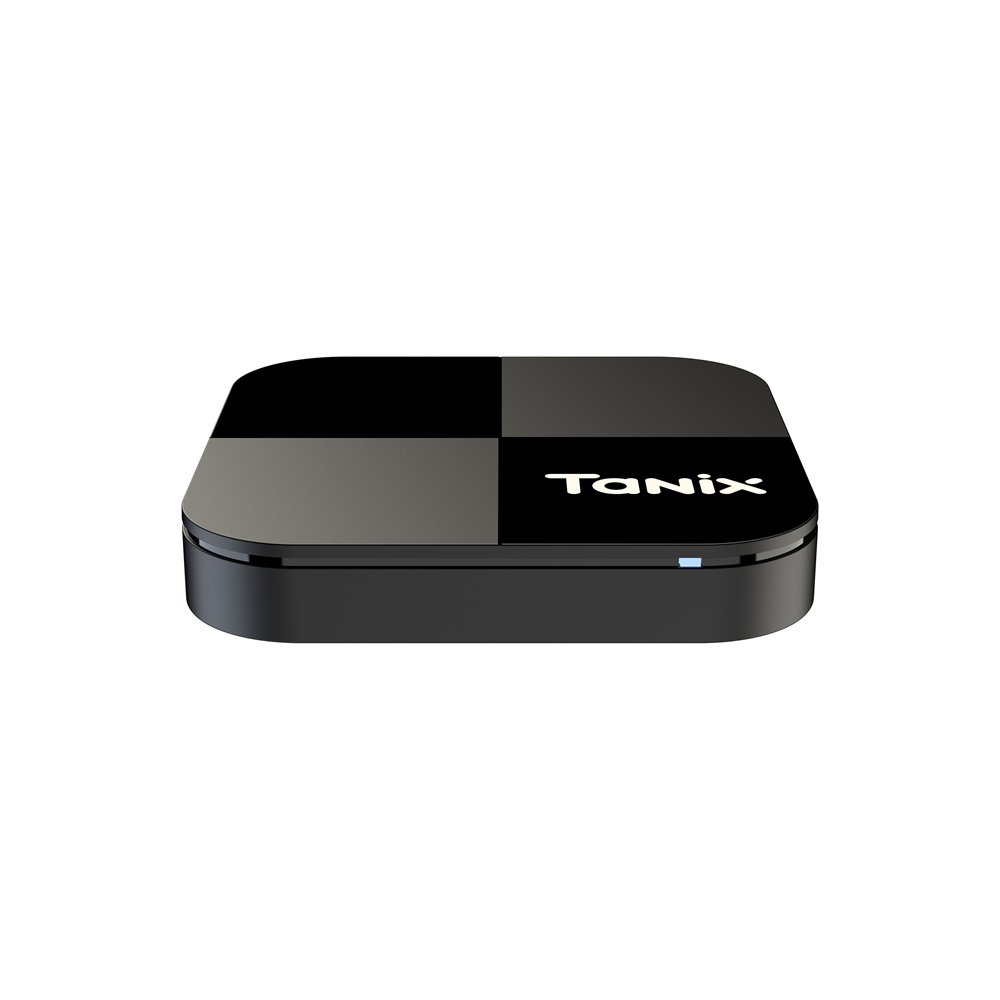

TX5 Plus Android TV Box Pictures:

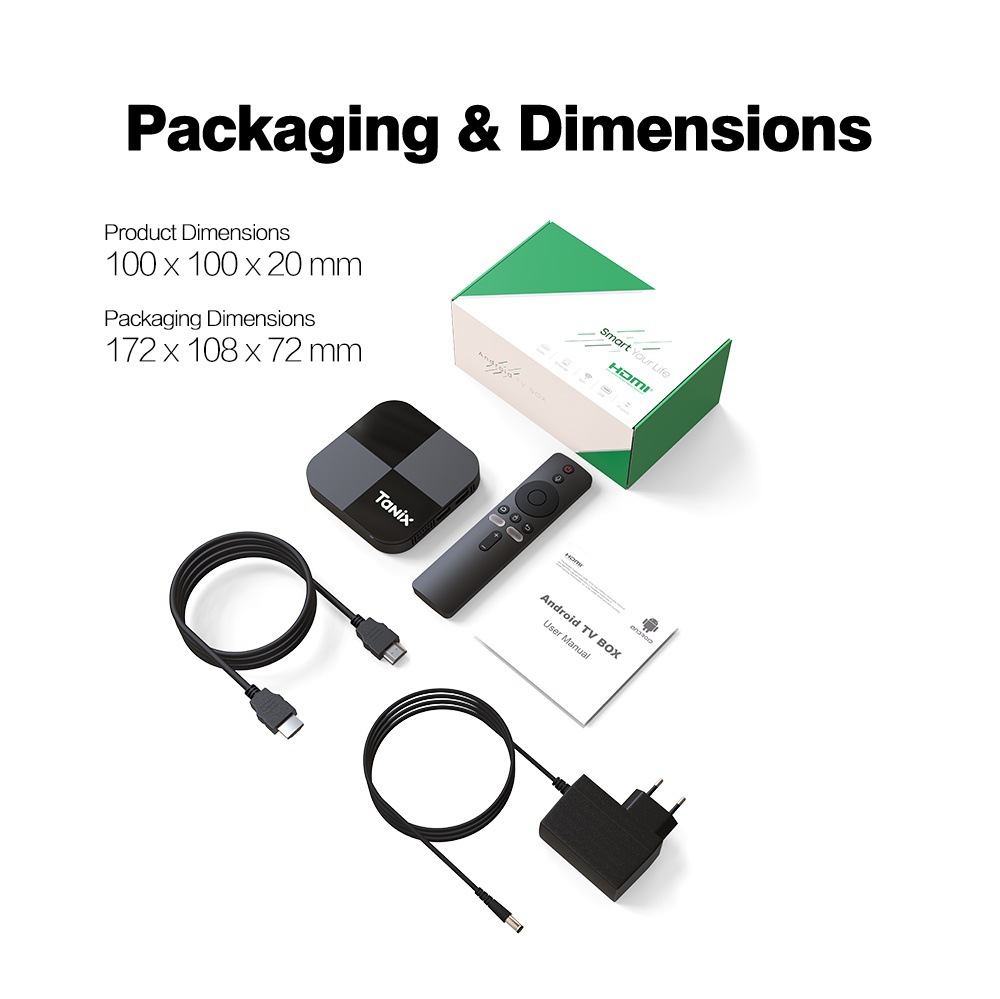

Product Packing List and Accessory:
