M11 max S905X5M android smart box with Quad Core Amlogic S905X5M chipset 4GB DDR 32GB eMMC 2.4G 5G dual band WiFi bluetooth 5.0 support AV1 8K@24fps decoding voice input remote android 14 OS smart box.
M11 Max Product Specifications:
| Basic parameters for M11 max android smart box | ||||
| CPU | Chipset | Amlogic S905X5M | ||
| Architecture | Quad Core ARM Cortex A55 | |||
| GPU | Chipset | ARM G310 V2 | ||
| Architecture | OpenGL ES 3.2, Vulkan 1.2 and OpenCL 2.0 support | |||
| RAM | Capacity | 4GB | ||
| ROM | Capacity | 32GB | ||
| External storage | USB Storage Devices | USB2.0 Support | ||
| Micro SD card | Supported | |||
| Software | ||||
| Operating system | OS Version | Android 14 | ||
| Language | Multi-Language | |||
| Video/Picture Decoding | AV1 MP-10@L5.1 up to 4Kx2K@60fps | |||
| VP9 Profile-2 up to 4Kx2K@60fps | ||||
| H.265 HEVC MP-10@L5.1 up to 4Kx2K@60fps | ||||
| MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496) | ||||
| WMV/VC-1 SP/MP/AP up to 1080P@60fps | ||||
| AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps | ||||
| MPEG-2 MP/HL up to 1080P@60fps (ISO-13818) | ||||
| MPEG-1 MP/HL up to 1080P@60fps (ISO-11172) | ||||
| Multiple language and multiple format sub-title video support | ||||
| MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918) | ||||
| Supports JPEG thumbnail, scaling, rotation and transition effects | ||||
| Image Engine | Supports HDR10, HDR10+ processing | |||
| Inline AI-SR,Block noise, mosquito noise, spatial noise, contour noise reduction | ||||
| Audio | Supports MP3, AAC, WMA, FLAC, Ogg | |||
| Image | HD JPEG, BMP, GIF, PNG, TIF | |||
| Network service | ||||
| Wi-Fi | Type | Support WiFi IEEE 802.11 a/ b / g / n /ac (Realtek 8822CS) | ||
| Frequency | Support 2.4G and 5G | |||
| Antenna Type | one external antennas | |||
| Bluetooth | Bluetooth | Support BT5.X | ||

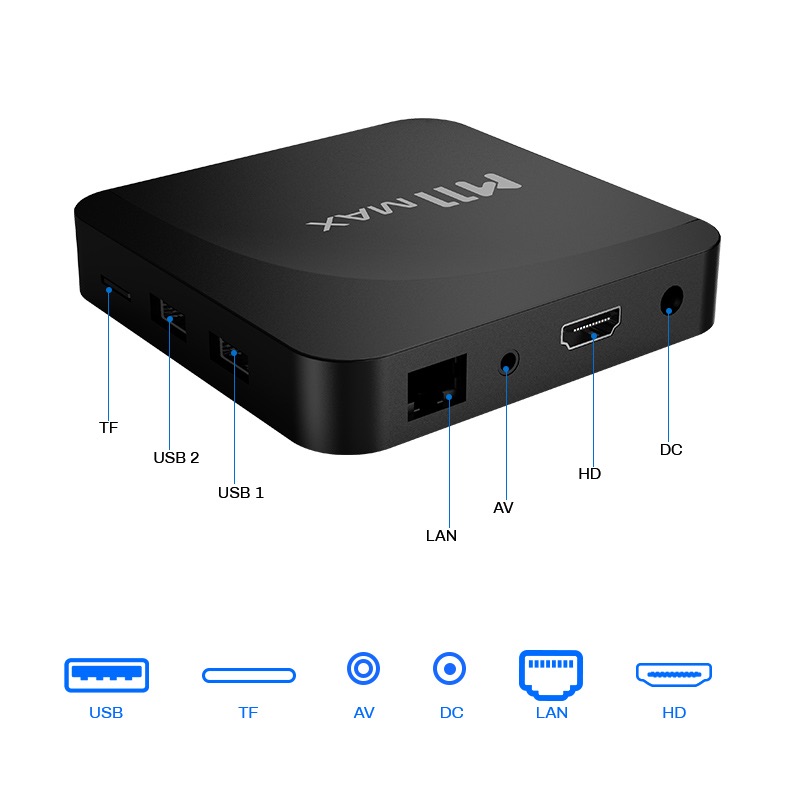

| Interface | ||||
| Charge | DC connector | DC IN(5V/2A) | ||
| Video output | HD | 4K*2K UHD Output, HDMI 2.1a | ||
| IR Reciver | 3.5mm Earphone jack | Remote Reciver Connect | ||
| Micro SD | External memory | Support | ||
| USB port | USB host | 2* USB2.0 normal type | ||
| Ethernet | Ethernet | 100M Ethernet | ||

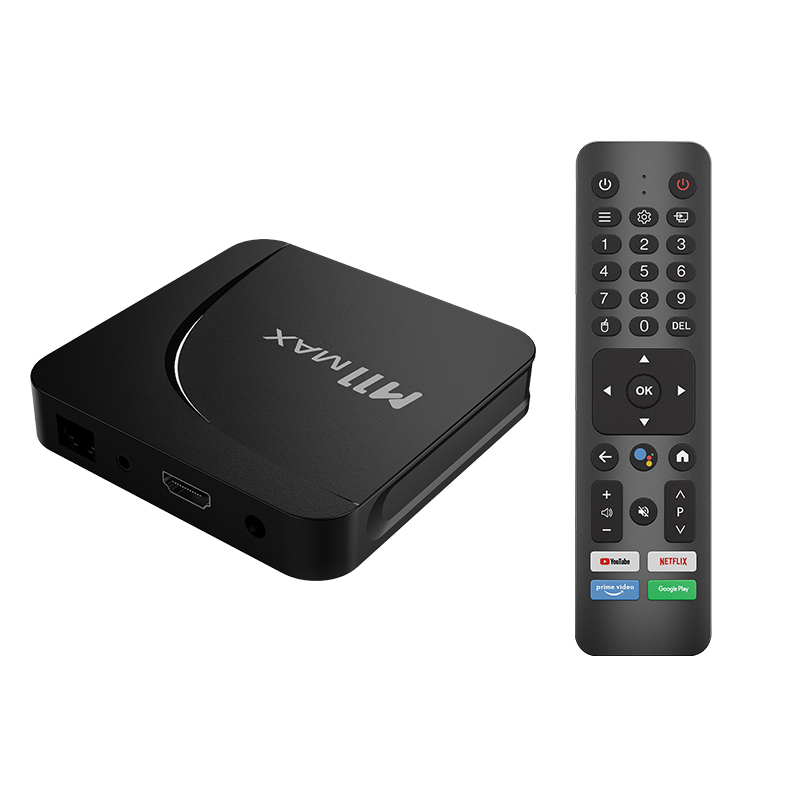

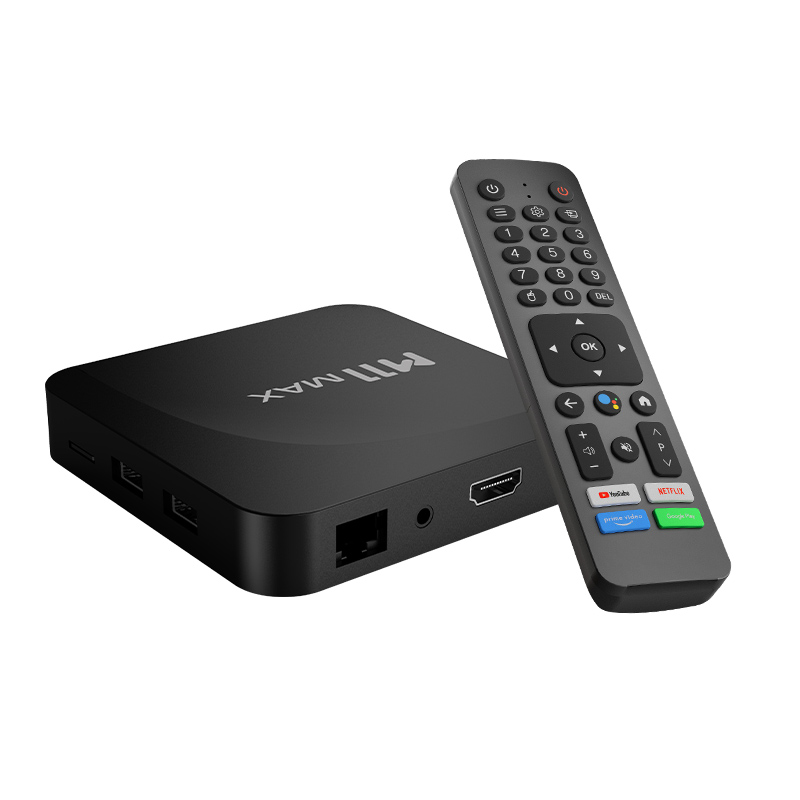

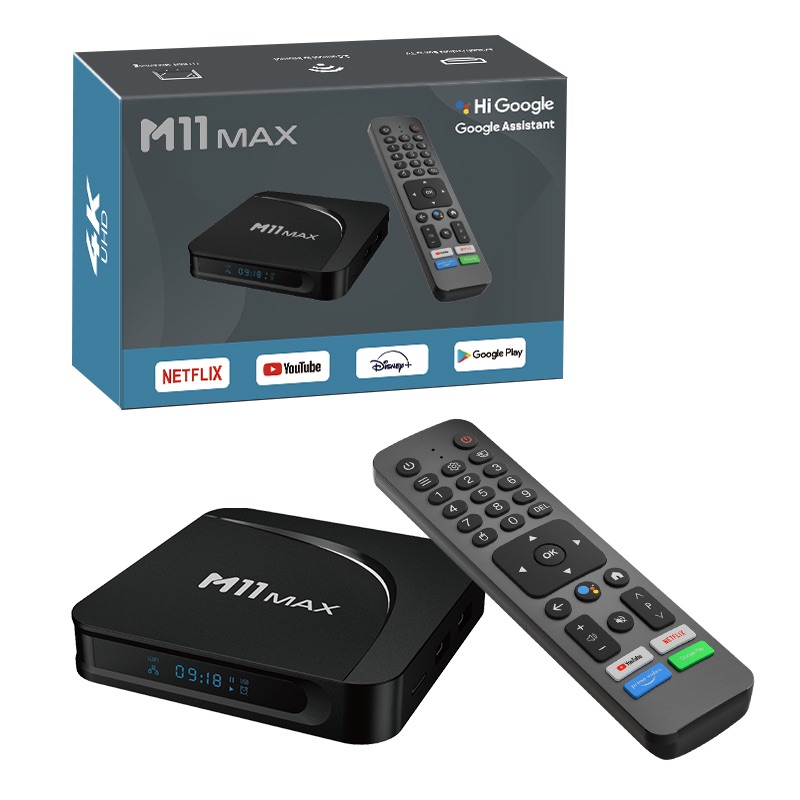

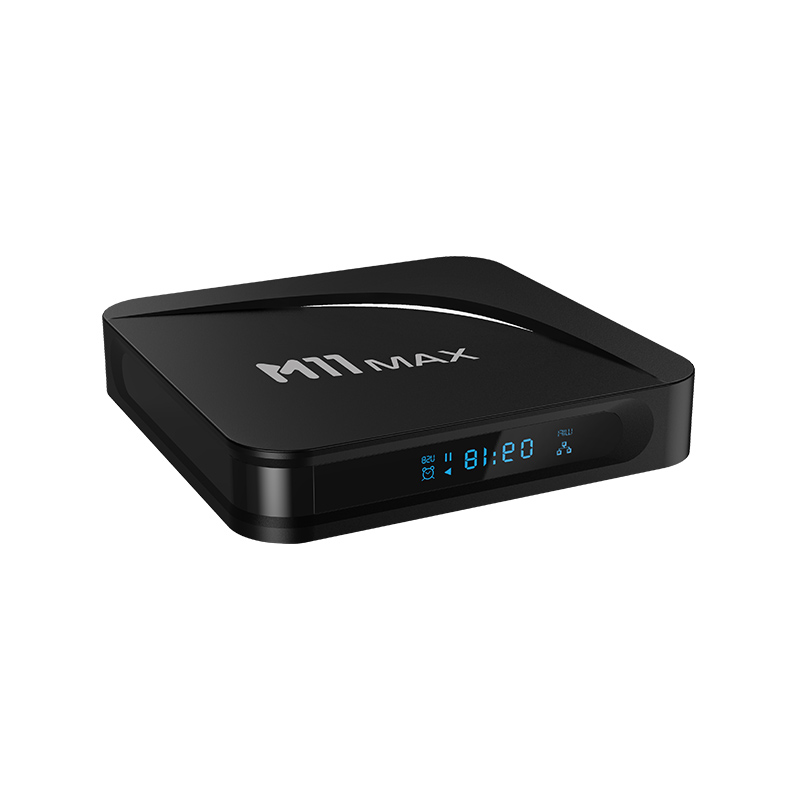

M11 Max Product Pictures:

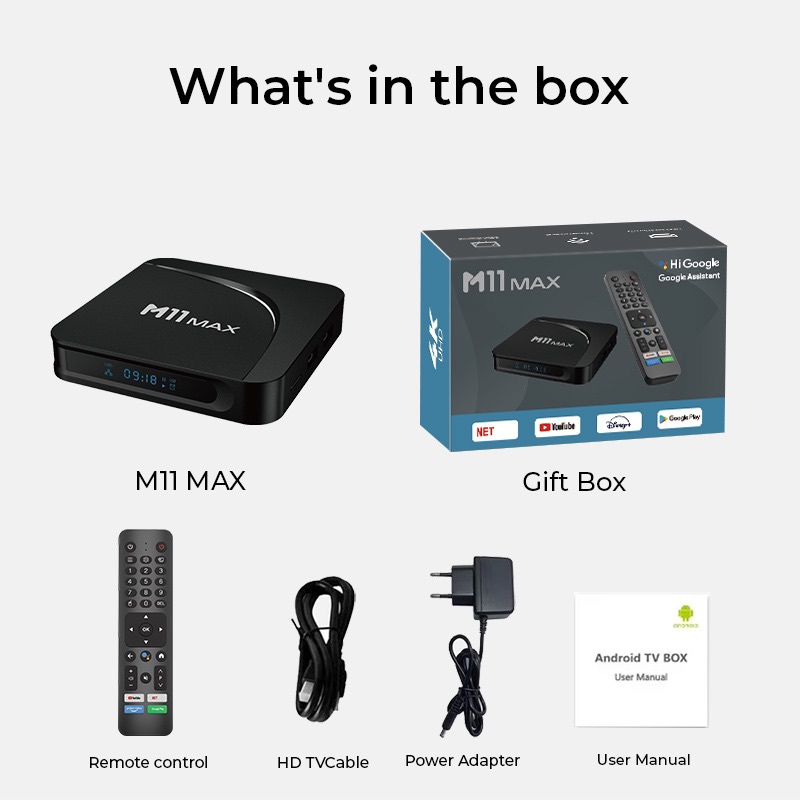

Product Packing List:
