X96 X6

Aluminum alloy metal case X96 X6 RK3566 android TV box Quad core Rockchip 64bit CPU 4GB 8GB RAM 32GB 64GB 128GB ROM 2.4G 5G 2T2R WiFi USB3.0 BT4.X 1000M Ethernet 8K decoding external antenna android 11 os.

Aluminum alloy metal case X96 X6 RK3566 android TV box Quad core Rockchip 64bit CPU 4GB 8GB RAM 32GB 64GB 128GB ROM 2.4G 5G 2T2R WiFi USB3.0 BT4.X 1000M Ethernet 8K decoding external antenna android 11 os.































X96 X6 Product Specifications:





Basic parameters

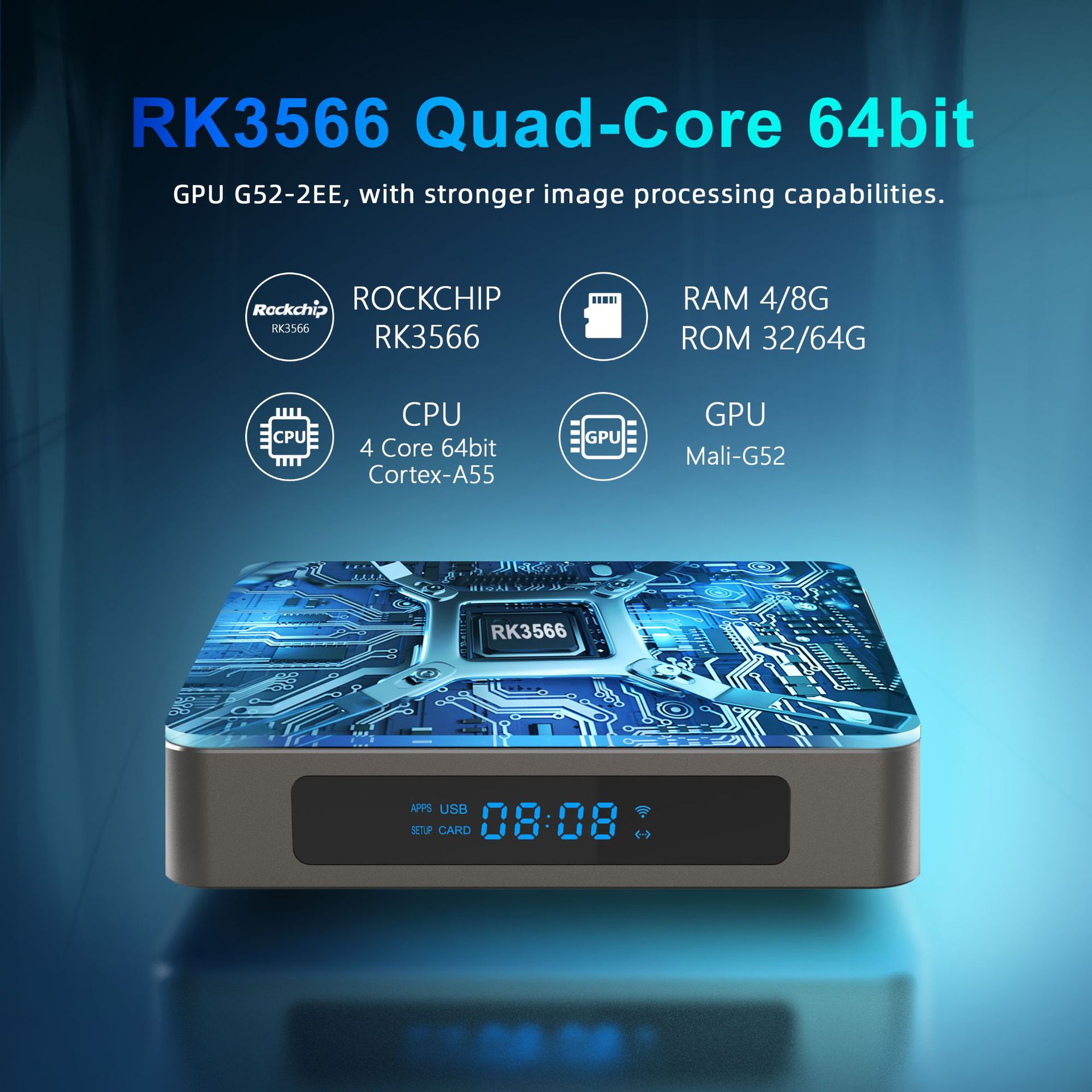

CPU Chipset RK3566
Architecture Quad Core ARM Cortex A55
GPU Chipset Mali-G52 1-Core-2EE
Architecture OpenGL ES 1.1/2.0/3.2,OpenCL 2.0,Vulkan 1.1 support
NPU   Neural network acceleration engine with processing performance up to 0.8 TOPS
RAM Capacity 8GB   (2/4/8GB Optional)
ROM Capacity 64GB  (16/32/64/128GB Optional)
External storage USB Storage Devices Supported
Micro SD card Supported
Software
Operating system OS Version Android 11 OS
Language Multi-Language
Multimedia Video * Video Decoder
H.265 HEVC/MVC Main10 Profile yuv420@ L5.1 up to 4096×2304@ 60fps
H.264 AVC/MVC Main10 Profile yuv400/yuv420/yuv422/@ L5.1 up to 4096×2304@ 60fps
VP9 Profile0/2 yuv420@ L5.1 up to 4096×2304@ 60fps
VP8 verision2,up to 1920×1088@ 60fps
VC1 Simple Profile@ low, medium, high levels, Main Profile@ low, medium, high levels, Advanced Profile@ level0~3,up to 1920×1088@ 60fps
MPEG-4 Simple Profile@ L0~6,Advanced Simple Profile@ L0~5,up to 1920×1088@ 60fps
MPEG-2 Main Profile, low, medium and high levels, up to 1920×1088@ 60fps
MPEG-1 Main Profile, low, medium and high levels, up to 1920×1088@ 60fps
H.263 Profile0,levels 10-70,up to 720×576@ 60fps
* Video Encoder
H.264/AVC BP/MP/HP@ level4.2,up to 1920×1080@ 100fps
H.265/HEVC MP@ level4.1, up to 1920×1080@ 100fps (4096×4096@ 10fps with TILE)
Support YUV/RGB video source with rotation and mirror
Audio Supports MP3, AAC, WMA,  FLAC, Ogg.
Image JPEG,BMP,GIF,PNG,TIF
Network service

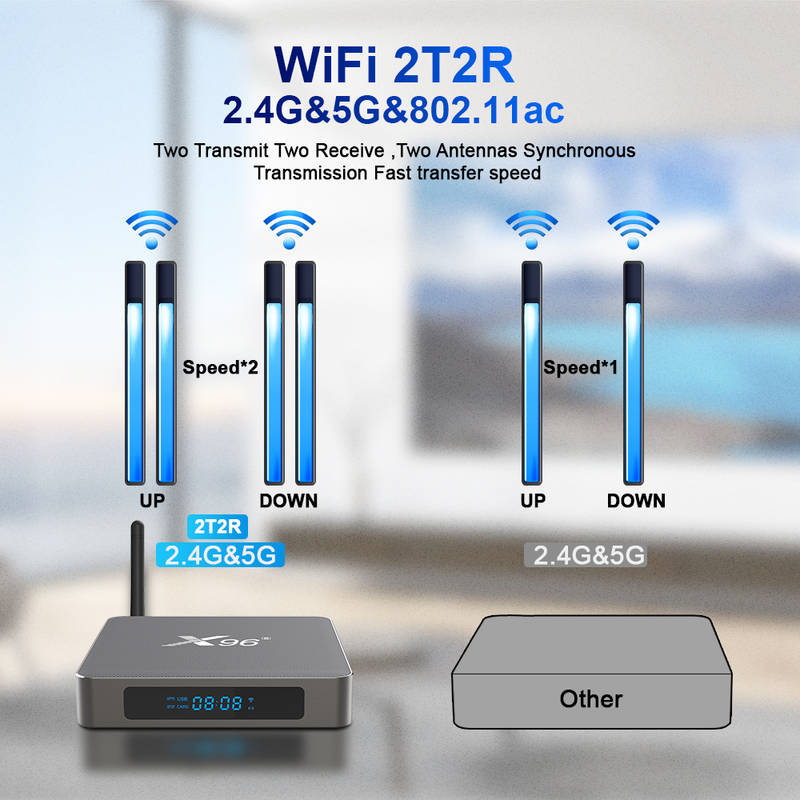

Wi-Fi Type Support WiFi IEEE 802.11 b / g / n / ac
Frequency Support 2.4G and 5G
Antenna Type External antenna
Blue Tooth Blue Tooth Support BT4.X

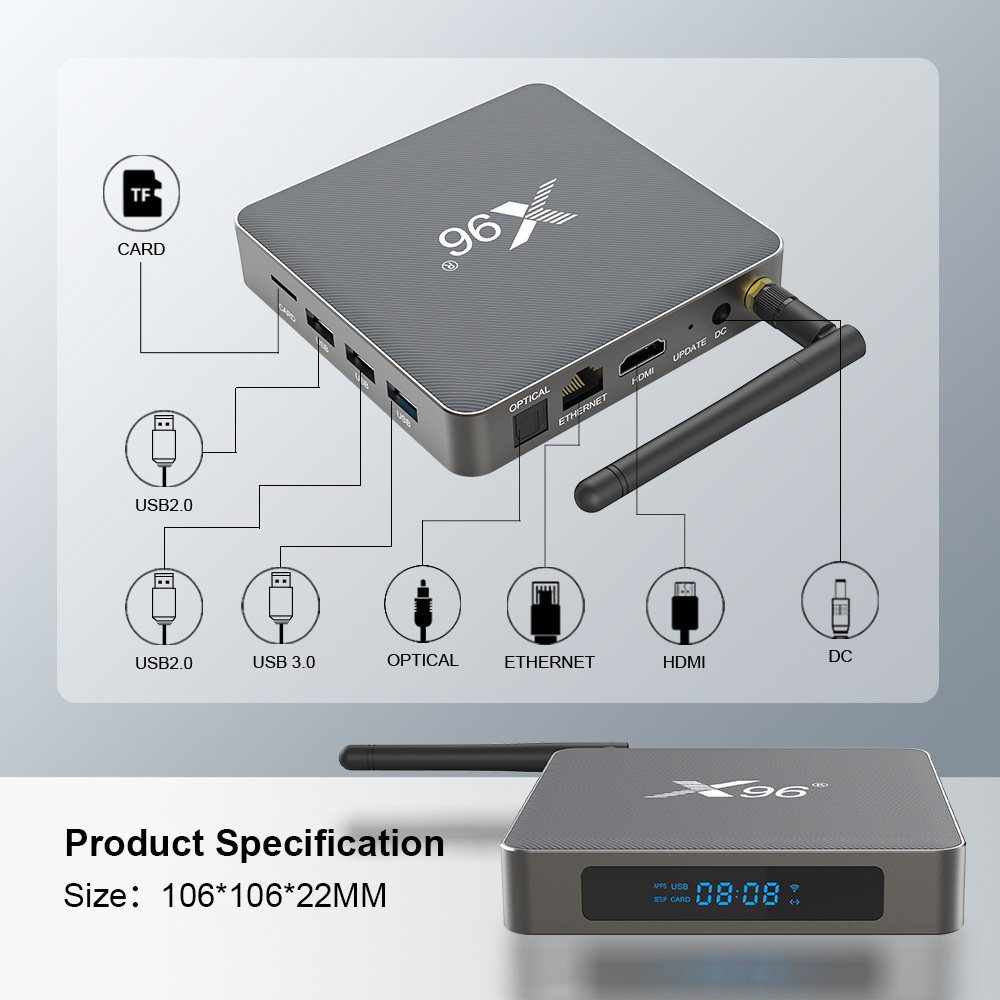

Interface
Charge DC connector DC IN(5V/2A)
Video output HDTV 4K*2K UHD Output, HDTV 1.4/2.0
IR Reciver 3.5mm Earphone jack Remote Reciver Connect
Micro SD External memory Support
USB port USB host 1* USB3.0  2* USB2.0 normal type
Ethernet Ethernet 1000M Ethernet
Appearance

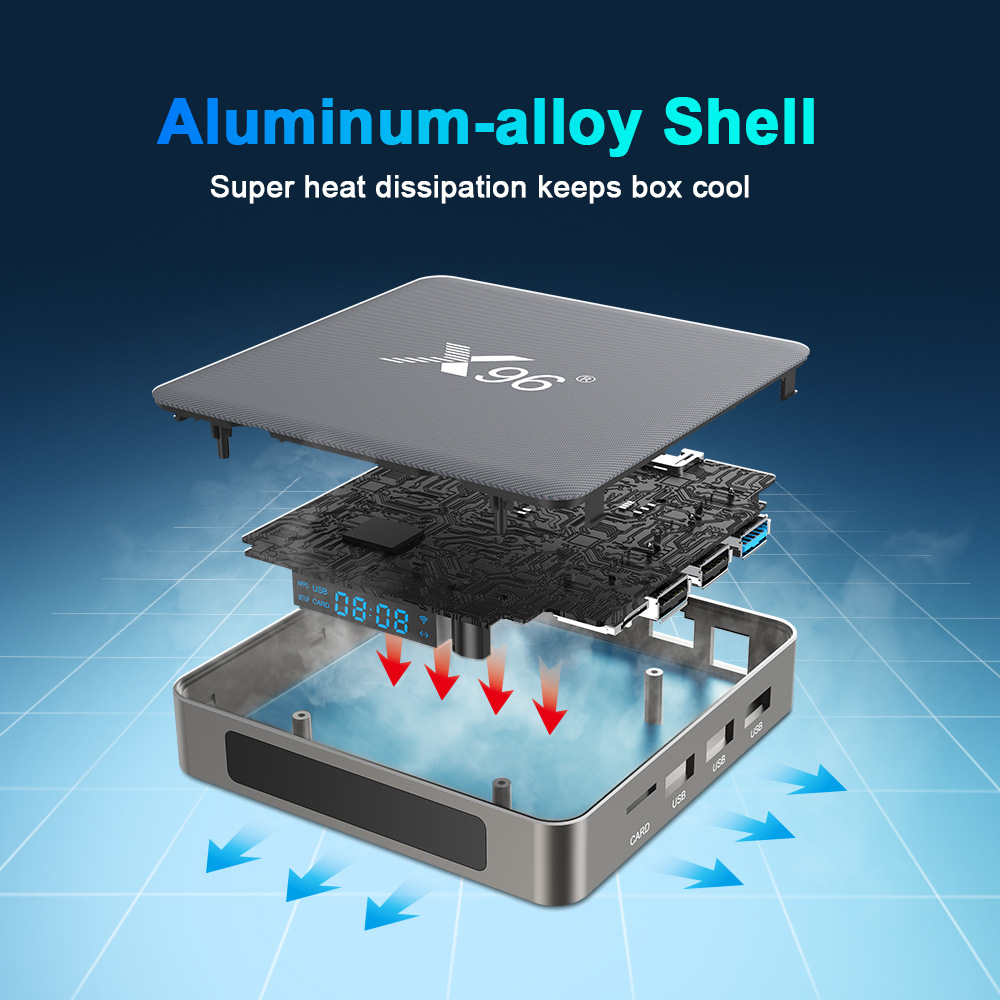

Body Material Metal
Color Grey

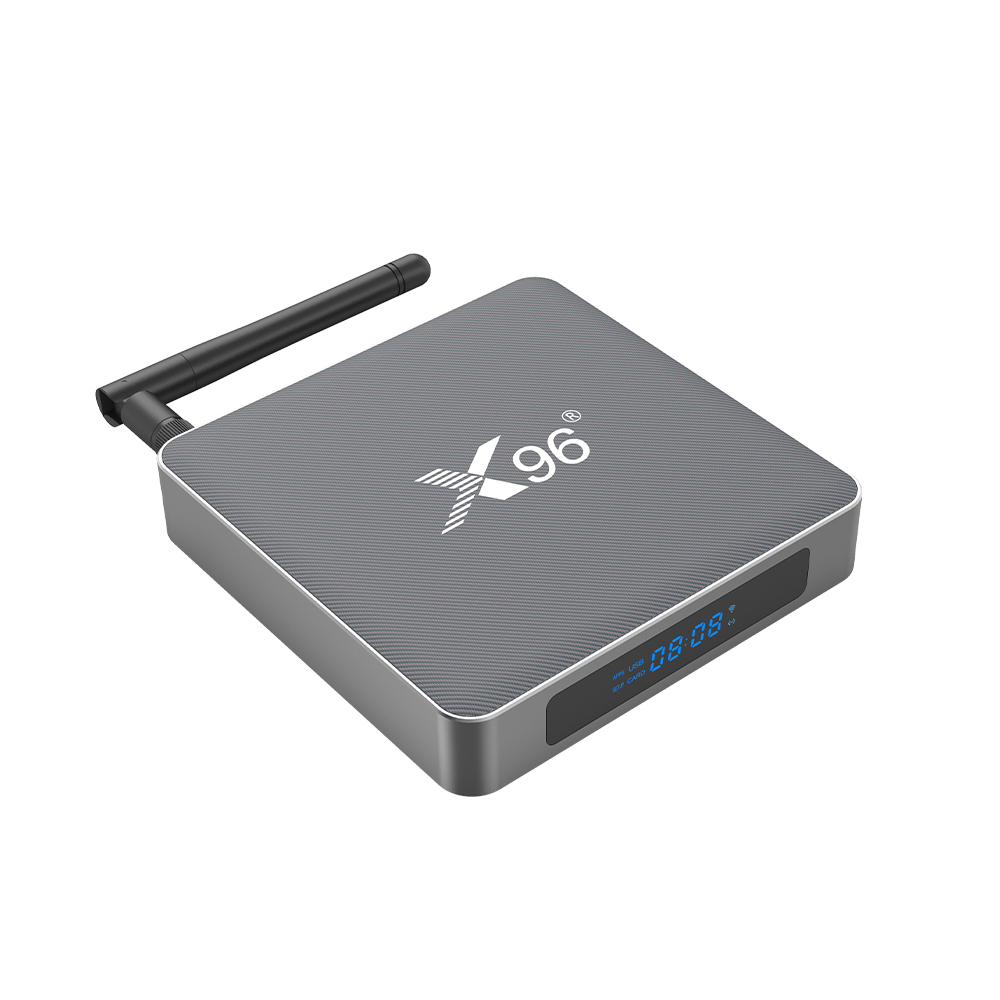

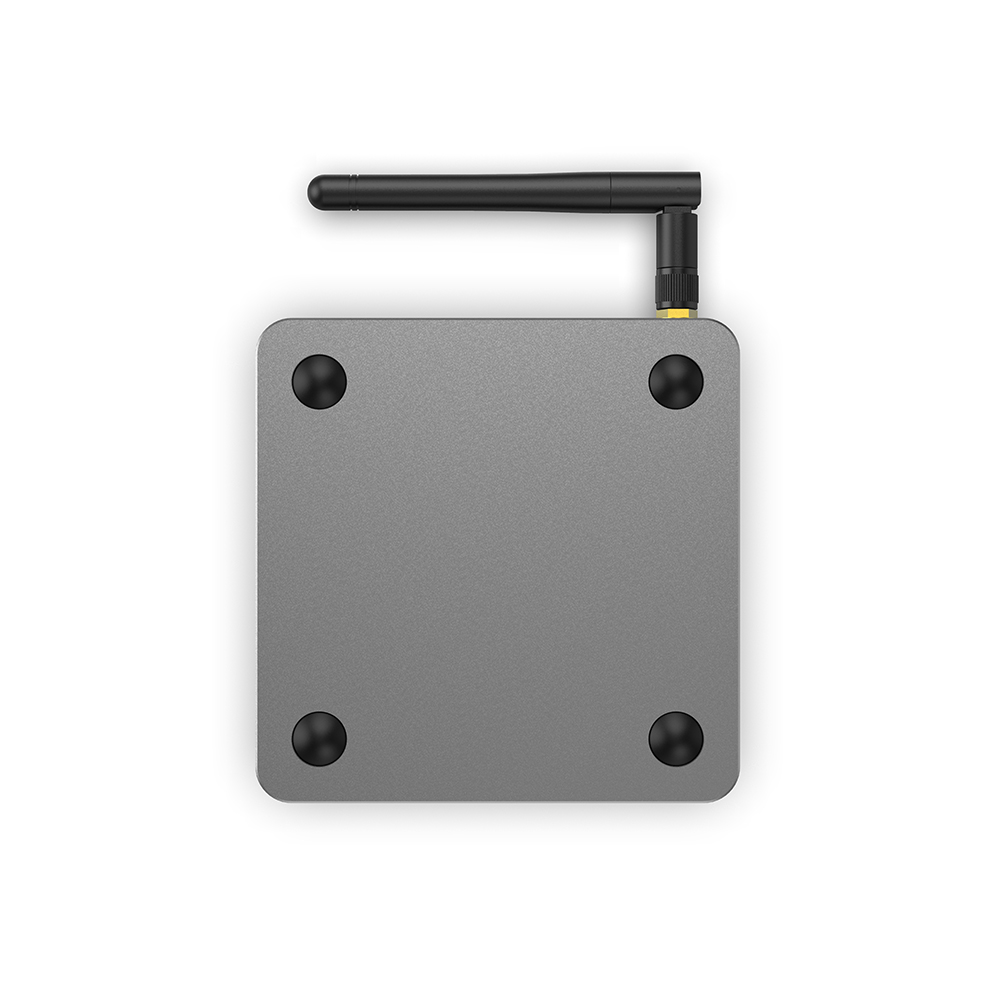

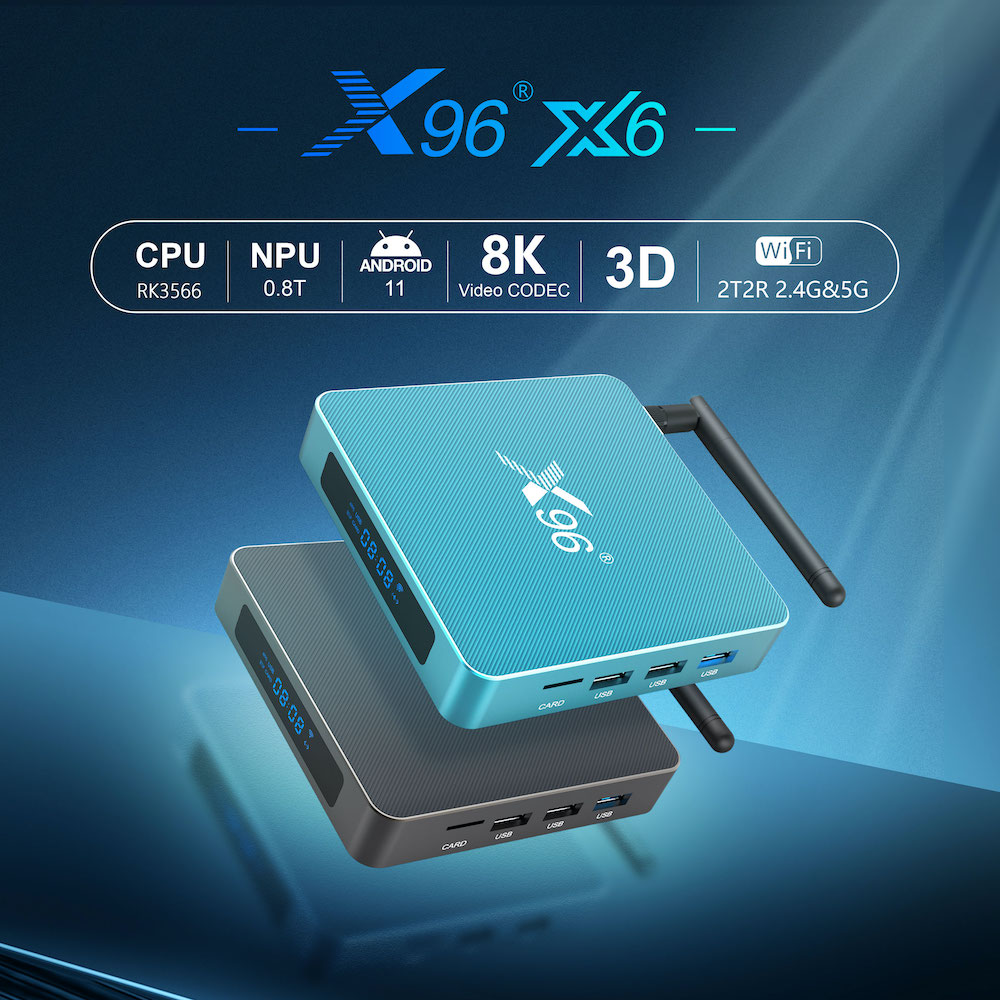

X96 X6 Android TV Box Picture:

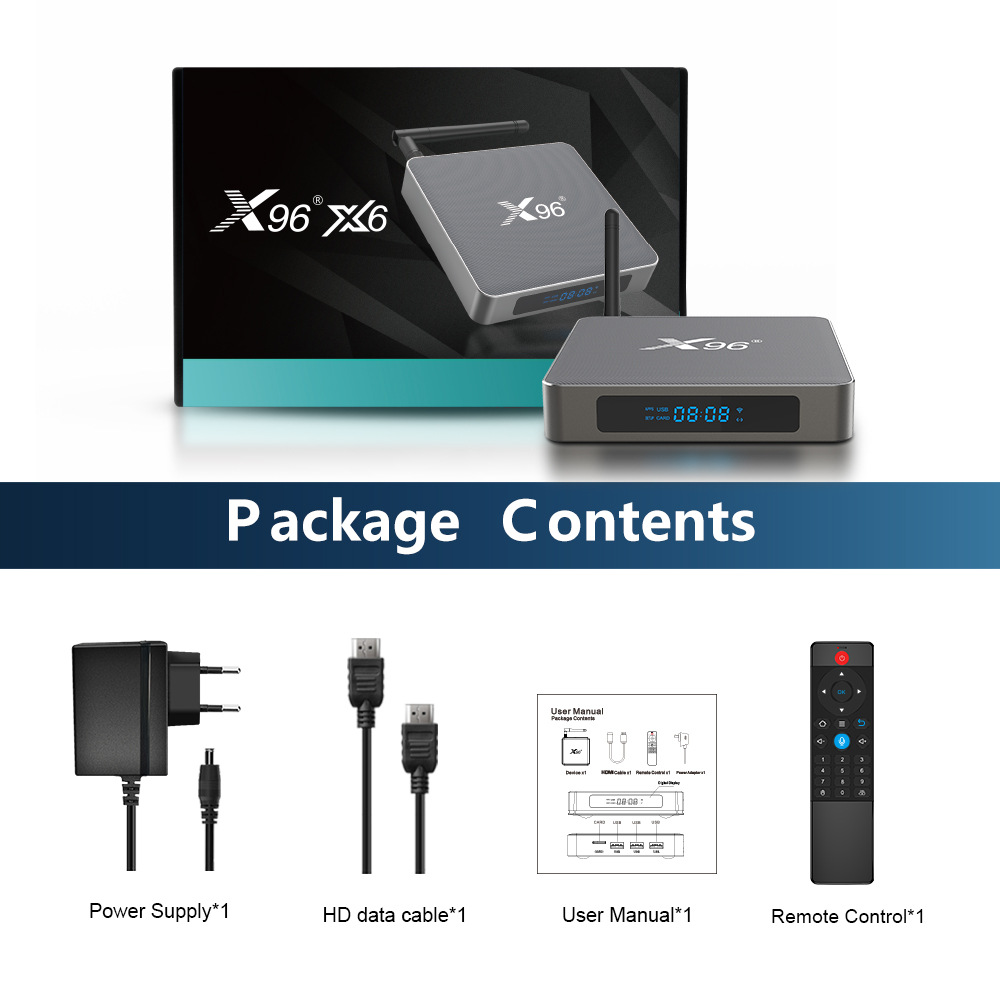

X96 X6 Product Packing Details:





RK3566 android TV box  *1 Shipping Info:
User manual *1 Gift Box Dimension(mm) 205*140*50(mm)
Gift Box *1 Carton Size(mm) 420*270*305 (mm)
Remote control *1 Qty Per Carton(pcs) 20 pcs
HDMI cable *1 Gift Box.G.W(gs) Kg
Power adapter *1 Export carton (G.W.)(kgs) Kg
