Mecool KM6 S905X4 android TV box with Amlogic Quad core S905X4 Cortex A55 CPU Mali G31 MP2 GPU 4GB DDR4 32GB 64GB eMMC 2.4G 5G 2T2R WiFi 6 USB3.0 Blutooth 5.0 1000M LAN HDR 10+ OTA Google Certified android 10 ATV OS.

Mecool KM6 S905X4 android TV box with Amlogic Quad core S905X4 Cortex A55 CPU Mali G31 MP2 GPU 4GB DDR4 32GB 64GB eMMC 2.4G 5G 2T2R WiFi 6 USB3.0 Blutooth 5.0 1000M LAN HDR 10+ OTA Google Certified android 10 ATV OS.



























KM6 Android TV Box Specifications:





OS

Android 10.0 ATV

CPU

Amlogic S905X4 Quad Core ARM Cortex-A55

GPU

Mail-G31 MP2

RAM

2GB/4GB(Optional)

ROM

16GB/32GB/64GB (Optional)

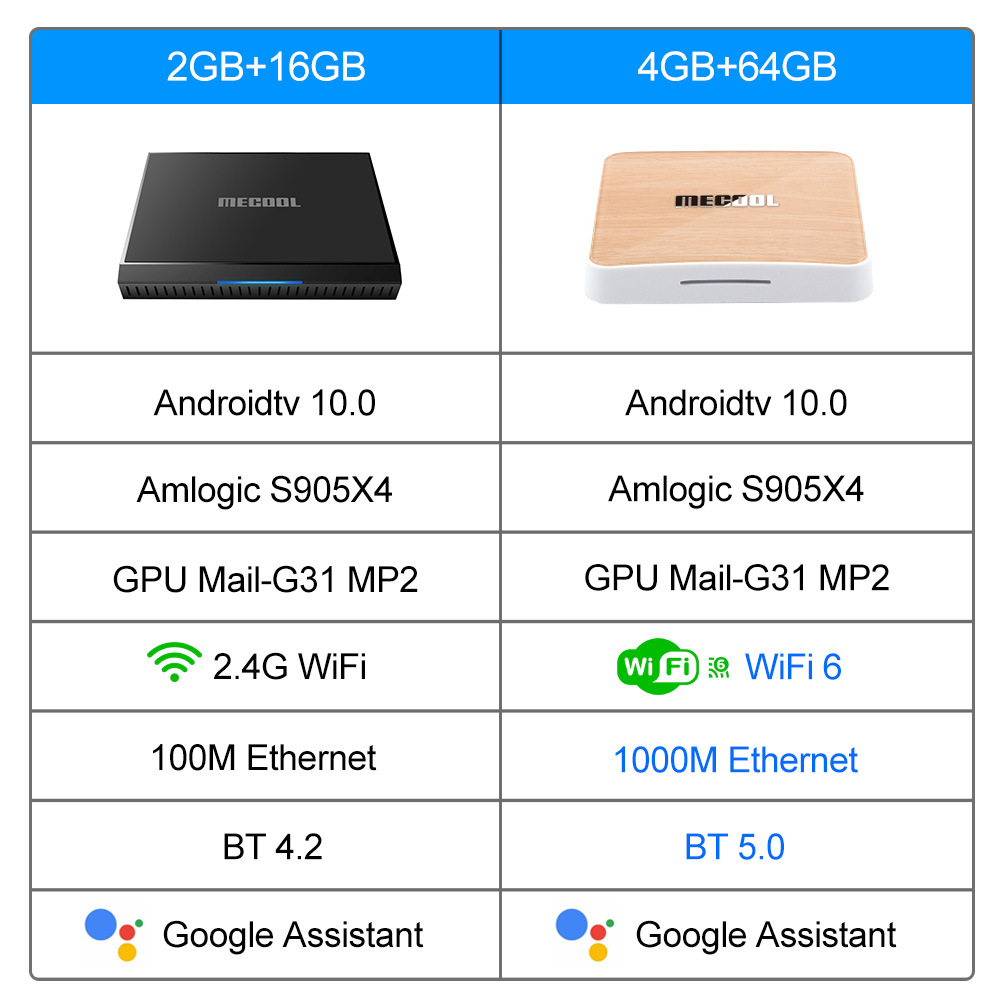

4GB/64GB

Built in 2T2R 2.4G/5GWiFi 6

Support IEEE 802.11a/b/g/n/ac/ax

BT 5.0

2GB/16GB

Built in 2.4G WiFi, Support
IEEE 802.11a/b/g/ ,BT 4.2

2GB/16GB Ethernet

10/100M Ethernet

4GB/64GB Ethernet

1000M Ethernet

LED Indicator

the standby mode is red,the working mode is blue

Certified

Google Certified

DRM

Support microsoft playready, google
widevine L1

HDCP

Support HDCP2.2

HDR

HDR10+, HDR10, HLG and Technicolor HDR processing

Language

English, German, French, Italian, Spanish, Chinese,
Japanese, etc.24 languages

Video decorder

hardware decoders-AV1
MP-10.L5.1 up to 4Kx2K.60fps
– VP9 Profile-2 up to 4Kx2K.60fps
– H.265 HEVC MP-10.L5.1 up to 4Kx2K.75fps
– AVS2-P2 Profile up to 4Kx2K.60fps
– H.264 AVC HP.L5.1 up to 4Kx2K.30fps
– MPEG-4 ASP.L5 up to 1080P.60fps (ISO-14496)
– WMV/VC-1 SP/MP/AP up to 1080P.60fps
– AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P.60fps
– MPEG-2 MP/HL up to 1080P.60fps (ISO-13818)
– MPEG-1 MP/HL up to 1080P.60fps (ISO-11172)
– RealVideo 8/9/10 up to 1080P.60fps

Video encorder

Video/Picture Encoding
– Independent JPEG and H.264 encoder with configurable performance/bit-rate
– JPEG image encoding
– H.265/H.264 video encoding up to 1080P.60fps with low latency

3D Graphics

Mail-G31 MP2 GPU
– 4-wide warps, dual texture pipe, 2x
4-wide execution engines (EE)
– Concurrent multi-core processing
– OpenGL ES 3.2, Vulkan 1.1 and OpenCL
2.0 support

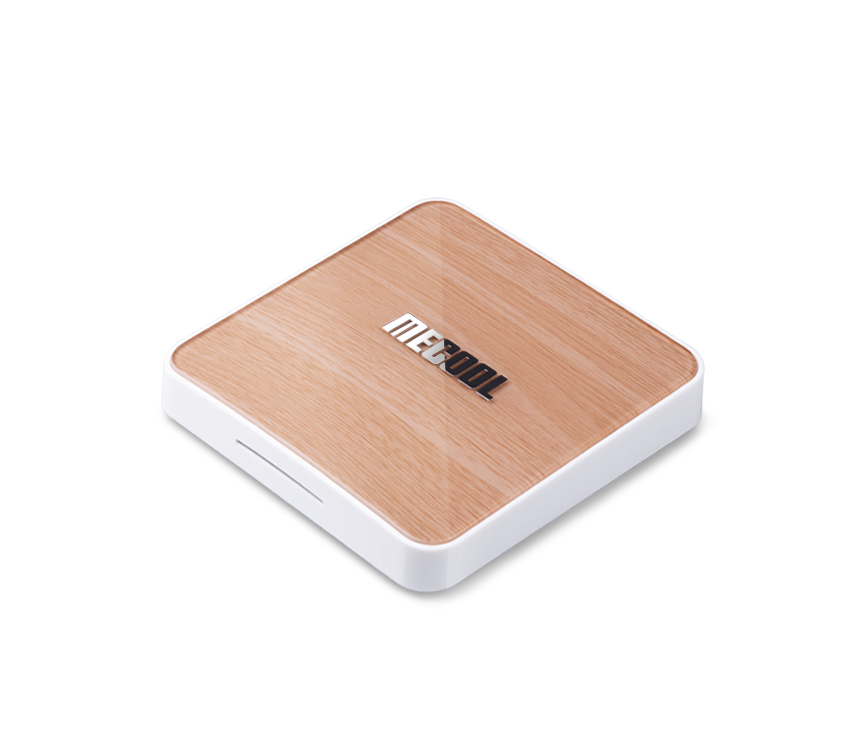

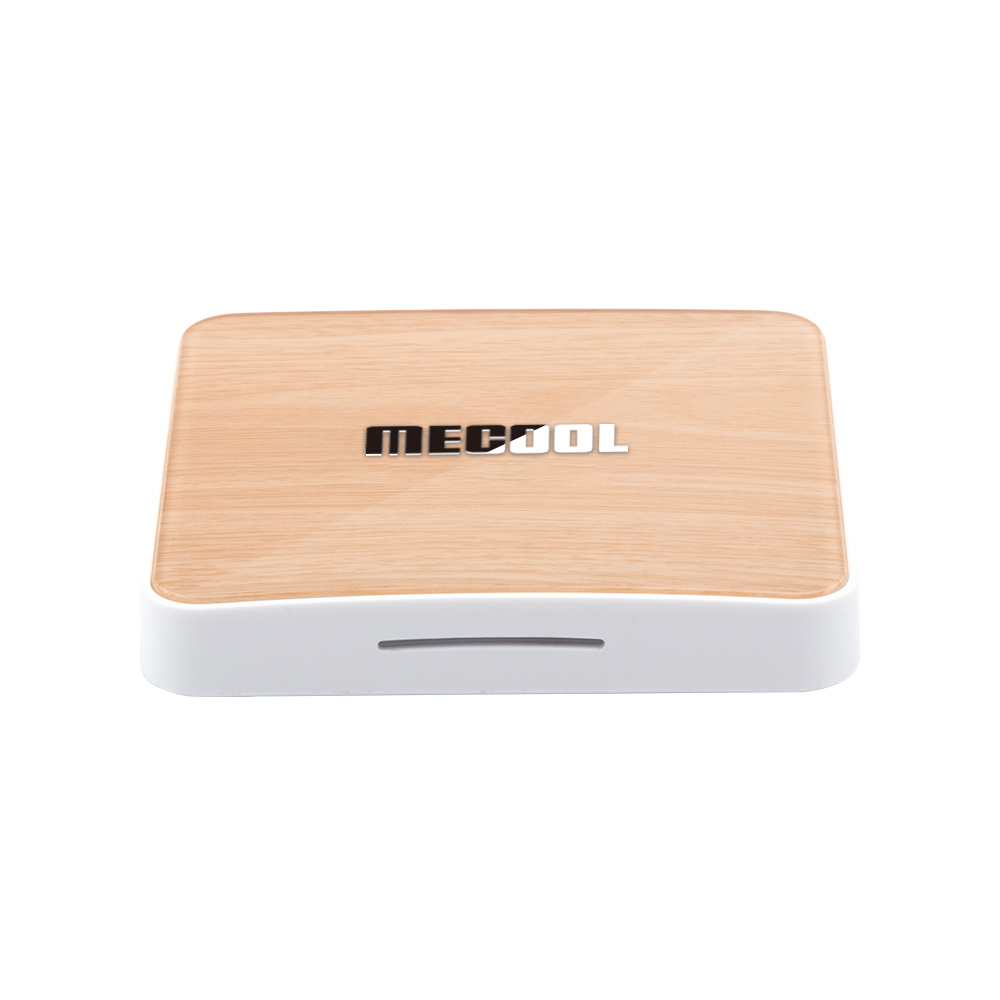

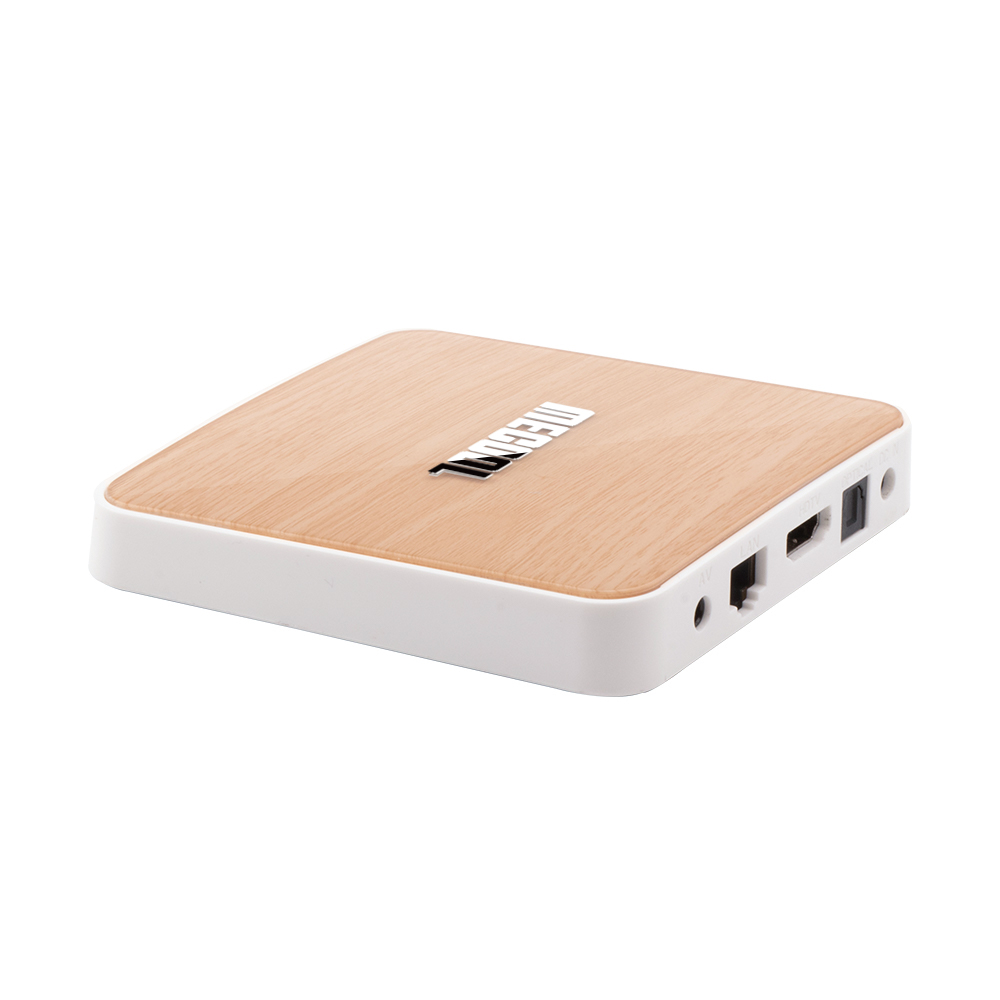

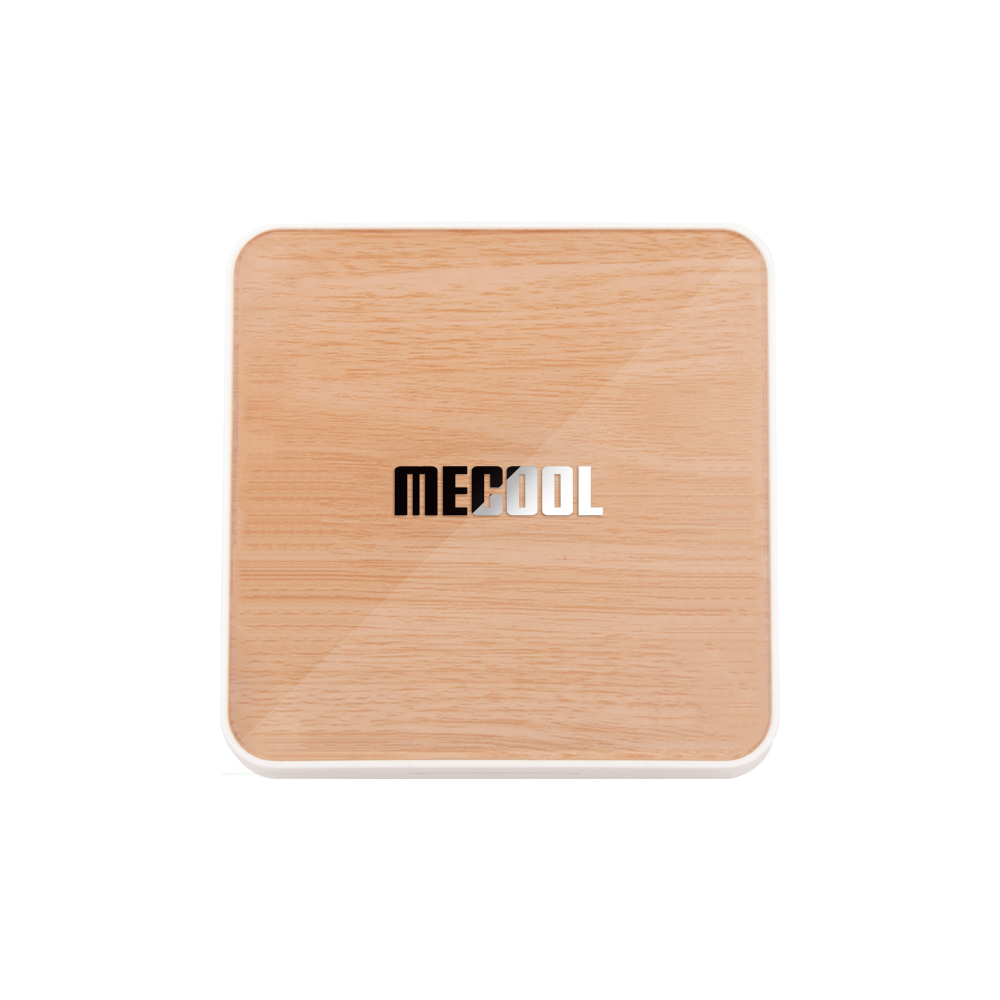

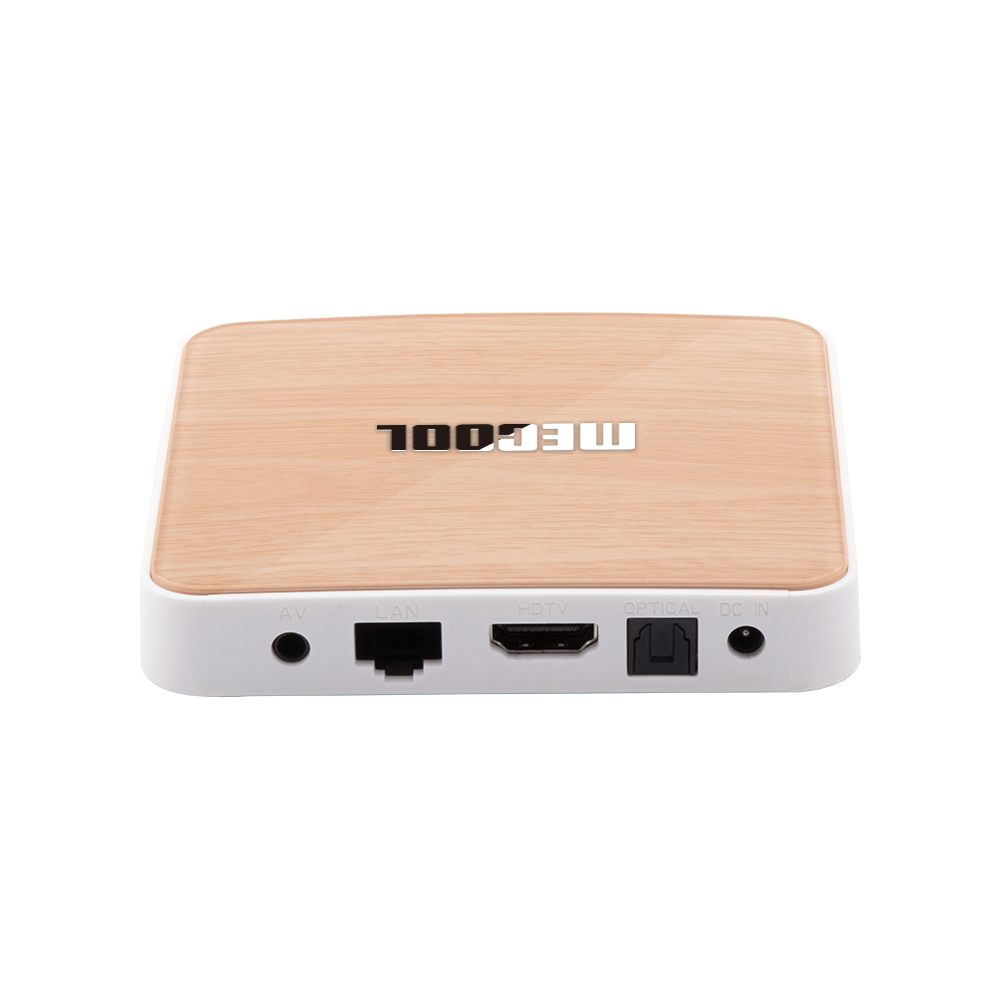

KM6 Product Photo:
