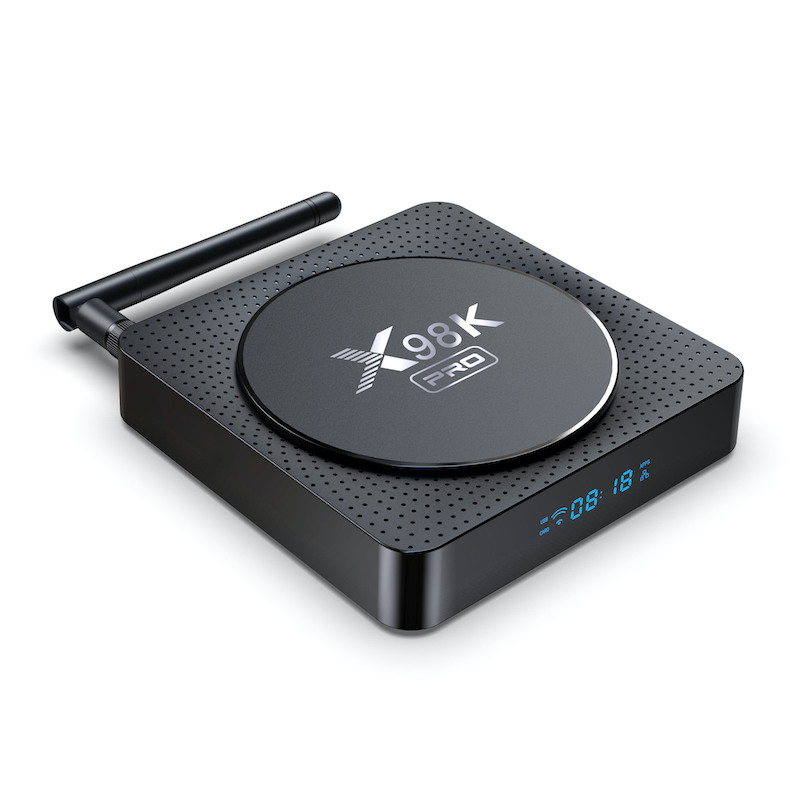

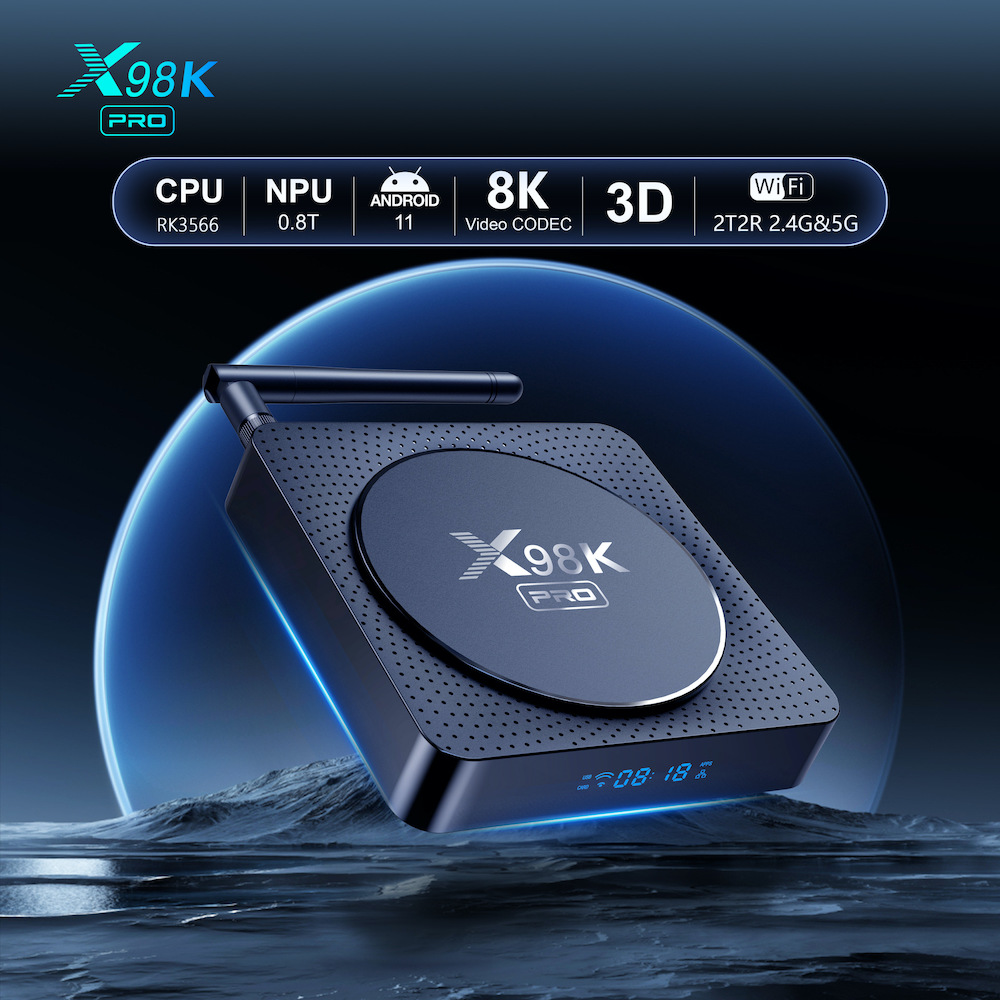

| Product Model |
X98K PRO |
Project Status |
M.P |
| Product Name |
Android Streaming Box |
| Basic parameters |
| CPU |
Chipset |
RK3566 |
| Architecture |
Quad Core ARM Cortex A55 |
| GPU |
Chipset |
Mali-G52 1-Core-2EE |
| Architecture |
OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1 support |
| NPU |
|
Neural network acceleration engine with processing performance up to 0.8 TOPS |
| RAM |
Capacity |
4GB (2GB /4GB Optional) |
| ROM |
Capacity |
32GB (16GB /64GB Optional) |
| External storage |
USB Storage Devices |
Supported |
| Micro SD card |
Supported |
| Software |
| Operating system |
OS Version |
Android 11 |
| Language |
Multi-Language |
| Multimedia |
Video |
Video Decoder |
| H.265 HEVC/MVC Main10 Profile yuv420@L5.1 up to 4096×2304@60fps |
| H.264 AVC/MVC Main10 Profile yuv400/yuv420/yuv422/@L5.1 up to 4096×2304@60fps |
| VP9 Profile0/2 yuv420@L5.1 up to 4096×2304@60fps |
| VP8 verision2,up to 1920×1088@60fps |
| VC1 Simple Profile@low, medium, high levels, Main Profile@low, medium, high levels, Advanced Profile@level0~3, up to 1920×1088@60fps |
| MPEG-4 Simple Profile@L0~6,Advanced Simple Profile@L0~5,up to 1920×1088@60fps |
| MPEG-2 Main Profile, low, medium and high levels, up to 1920×1088@60fps |
| MPEG-1 Main Profile, low, medium and high levels, up to 1920×1088@60fps |
| H.263 Profile0,levels 10-70,up to 720×576@60fps |
| * Video Encoder |
| H.264/AVC BP/MP/HP@level4.2, up to 1920×1080@100fps |
| H.265/HEVC MP@level4.1, up to 1920×1080@100fps (4096×4096@10fps with TILE) |
| Support YUV/RGB video source with rotation and mirror |
| Audio |
Supports MP3, AAC, WMA, FLAC, Ogg. |
| Image |
HD JPEG, BMP, GIF, PNG, TIF |
| Network service |

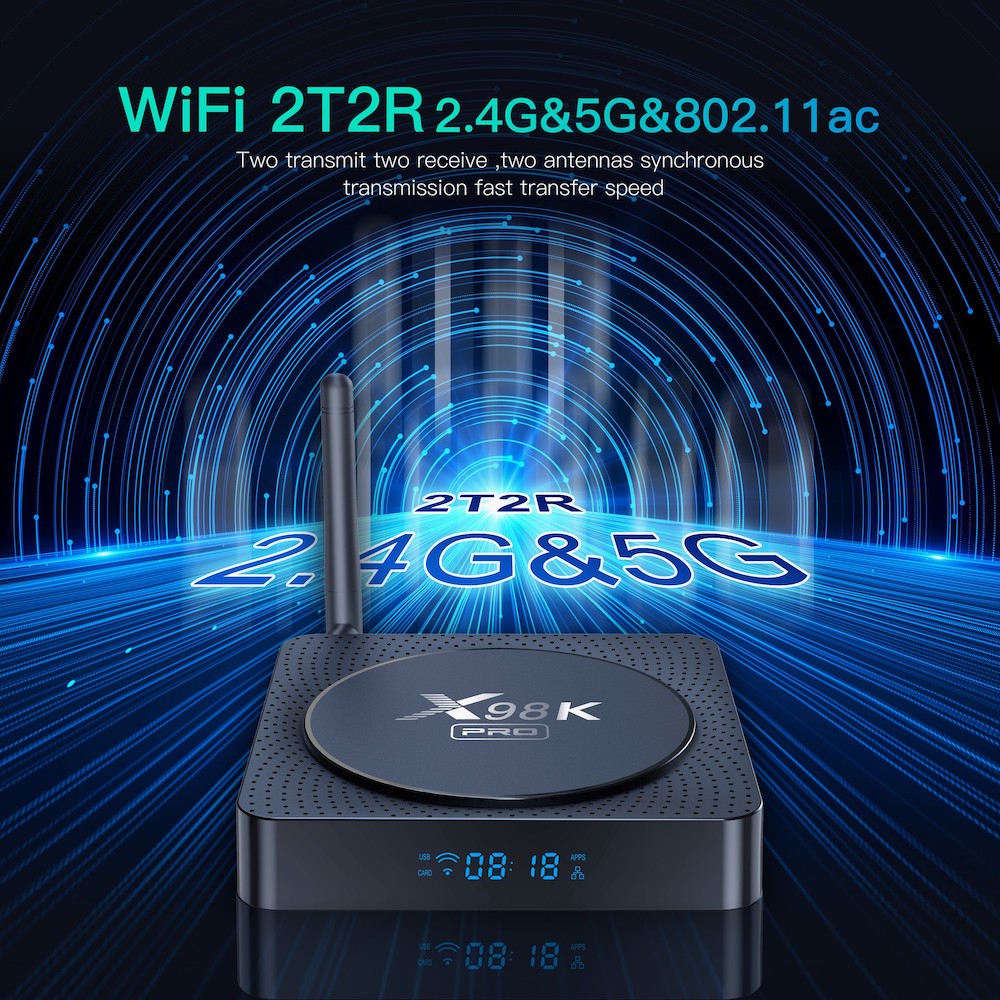

| Wi-Fi |
Type |
Support WiFi IEEE 802.11 b / g / n / ac |
| Frequency |
Support 2.4G and 5G |
| Antenna Type |
Two external antennas |
| Bluetooth |
Bluetooth |
Support BT5.0 |

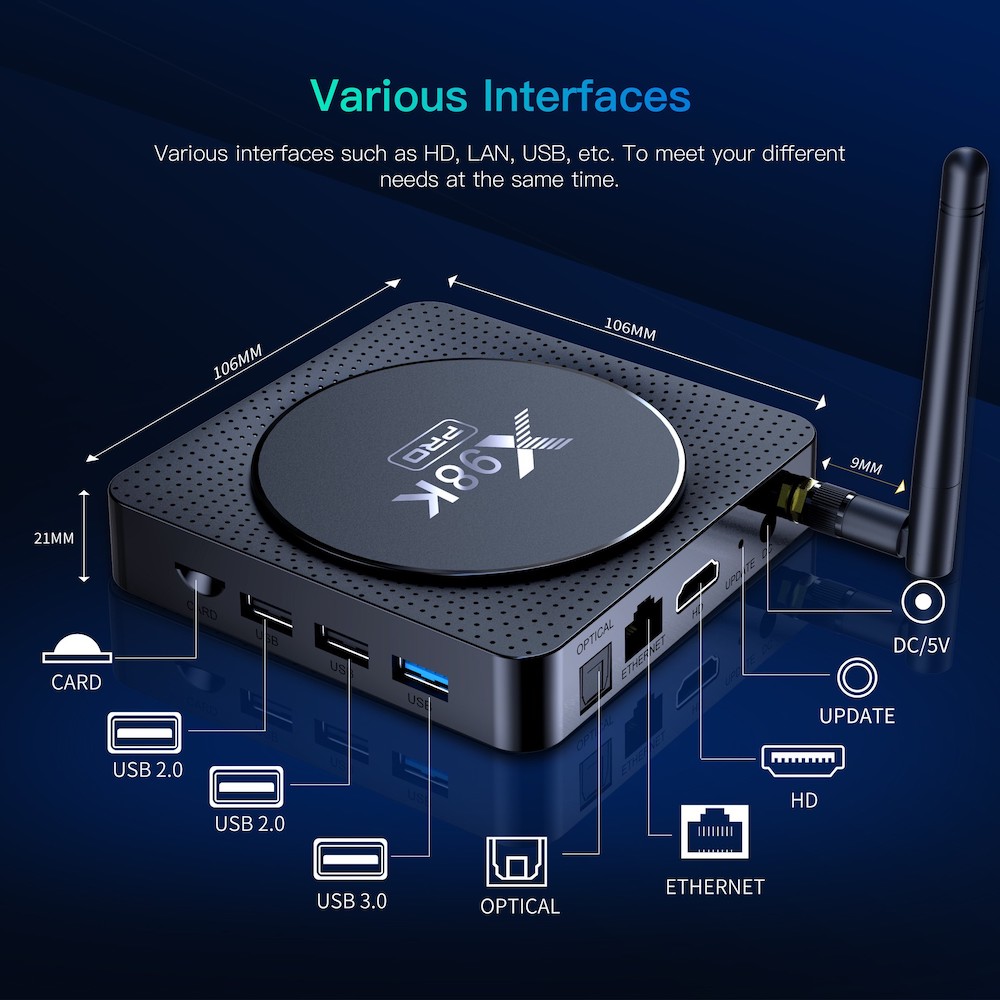

| Interface |
| Charge |
DC connector |
DC IN(5V/2A) |
| Display output |
HDMI |
4K*2K UHD Output, Support HDMI 1.4/2.0 |
| IR Reciver |
3.5mm Earphone jack |
Remote Reciver Connect |
| Micro SD |
External memory |
Support |
| USB port |
USB host |
1* USB3.0, 2* USB2.0 normal type |
| Ethernet |
Ethernet |
1000M Ethernet |
| Appearance |
| Body Material |
ABS Plastic |
| Color |
Black |
| Size |
106*106*20(mm) |
| Weight |
0.152KG |
| Cerifications(For Unit) |
| Standard |
CE |
/ |
| RoHS |
/ |
| Others |
Optional |
/ |

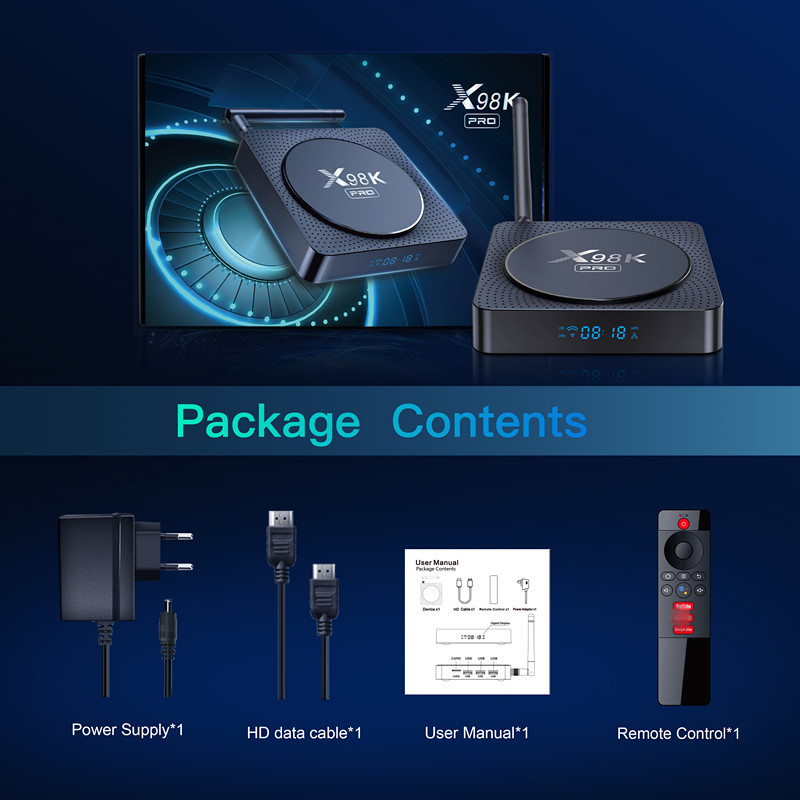

| Package contents |
|
Shipping Info |
|
| User manual |
*1 |
Gift Box Dimension(mm) |
205*140*50(mm) |
| Gift Box |
*1 |
Carton Size(mm) |
420*270*305 (mm） |
| Remote control |
*1 |
Qty Per Carton(pcs) |
20 |
| HDMI external cable |
*1 |
Gift Box.G.W(gs) |
0.406Kg |
| Power adapter |
*1 |
Export carton (G.W.)(kgs) |
8.2Kg |
