Android 12 TV box X98H Pro with Allwinner H618 Quad Core Processor 2GB 4GB DDR 16GB 32GB 64GB eMMC 2.4G 5G dual band WiFi 6 Bluetooth 5.0 6K 30FPS video or TV playing android 12 OS.
X98H Pro Product Specifications:
|
Product Model
|
X98H Pro
|
Project Status
|
M.P
|
|
|
Hardware Specs:
|
||||
|
CPU
|
Chipset
|
Allwinner H618
|
||
|
Architecture
|
Quad core ARM Cortex A53
|
|||
|
GPU
|
Chipset
|
Mali G31 MP2
|
||
|
RAM
|
Capacity
|
2GB /4GB
|
||
|
ROM
|
Capacity
|
16GB /32GB /64GB
|
||
|
External storage
|
USB Storage Devices
|
Supported
|
||
|
Software Specs:
|
||||
|
Operating system
|
OS Version
|
Android 12
|
||
|
Language
|
Multi-Language
|
|||
|
Multimedia
|
Video
|
Video Decoder:
|
||
|
H265 Main10@L5.1 decoder up to 4K@60fps or 6K@30fps
|
||||
|
VP9 Profile 2 decoder up to 4K @ 60fps
|
||||
|
AVS2 Jizhun 10bit decoder up to 4K @ 60fps
|
||||
|
H.264 BP/MP/HP@L4.2 decoder up to 4K@30fps
|
||||
|
Multi-format 1080p @ 60fps video playback formats ,including H.264 BP/MP/HP, H 263 BP , VP8 , MPEG-1 MP/HL ,MPEG-2 MP/HL, MPEG-4
SP/ASP @ L5, AVS +/AVS JizhunWMV9/VC1,etc |
||||
|
Video encoder:
|
||||
|
H.264 BP/MP/ HP encoder up to 4K@25fps or 1080p @ 60fps JPEG snapshot performance of 1080p @ 60fps
|
||||
|
Audio
|
MP3, AAC, WMA, FLAC, Ogg.
|
|||
|
|
HD JPEG; BMP; GIF; PNG; TIF
|
|||
|
Network service
|
||||
|
Wi-Fi
|
Type
|
IEEE802. a/b/g/n/ac/ax (optional)
|
||
|
Frequency
|
2 4GHZ ~ 5.8GHZ WiFi 6
|
|||
|
Antenna Type
|
Inside antennas
|
|||
|
BT
|
BT
|
BT5.0+
|
||
|
Interface
|
||||
|
Charge
|
DC connector
|
DC 5V- 2A
|
||
|
Video output
|
HDMI
|
1* 4K 2K Output, HDMI 2.0A
|
||
|
AV OUT
|
3.5mm Earphone
|
1* 480u576i standard definition output
|
||
|
Video input
|
HDMI IN
|
1* HDMI 1.4 RX input
|
||
|
OPTCAL
|
/
|
1 * SPDIF
|
||
|
Ethernet
|
Ethernet
|
1 *100M LAN
|
||
|
TF Card
|
External memory
|
1* TF Card
|
||
|
USB port
|
USB Host
|
3 * USB 2.0
|
||
|
Switch
|
KEY
|
1* Switch HDMI IN or HDMI OUT
|
||
|
X98H Pro android 12 TV box Appearance:
|
||||
|
Body Material
|
Plastic
|
|||
|
Color
|
Black
|
|||
|
Size
|
135x90x23(mm)
|
|||
|
Weight
|
0.15Kg
|
|||
|
Cerifications(For Unit)
|
||||
|
Standard
|
CE
|
/
|
||
|
RoHS
|
/
|
|||
|
Others
|
Optional
|
/
|
||
|
Package contents
|
Shipping Info
|
|||
|
User manual
|
*1
|
Gift Box Dimension(mm)
|
185*145*54mm
|
|
|
Gift Box
|
*1
|
Carton Size(mm)
|
390*300*290mm
|
|
|
Remote control
|
*1
|
Qty Per Carton(pcs)
|
20pcs
|
|
|
HDMI external cable
|
*1
|
Gift Box.G.W(gs)
|
0.394Kg
|
|
|
Power adapter
|
*1
|
Export carton (G.W.)(kgs)
|
8.88Kg
|
|

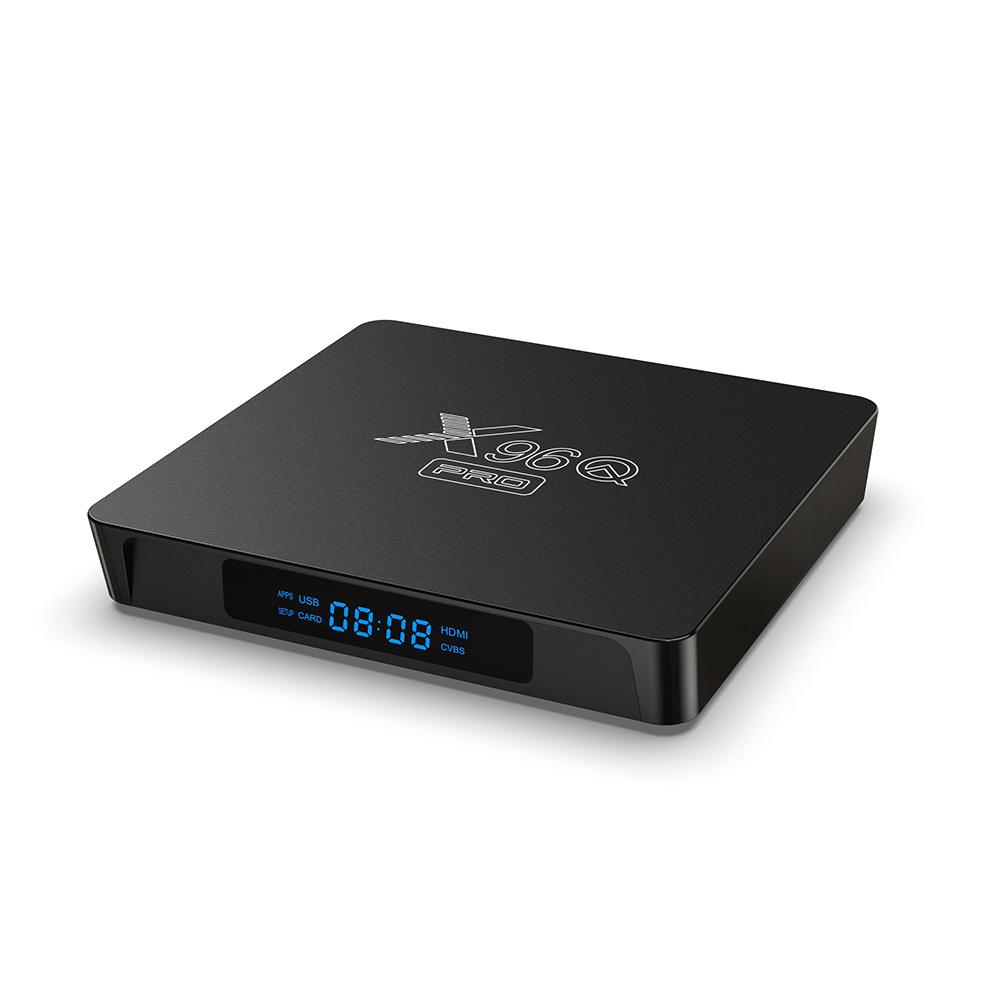

Product Photos:
Product Packing List:
