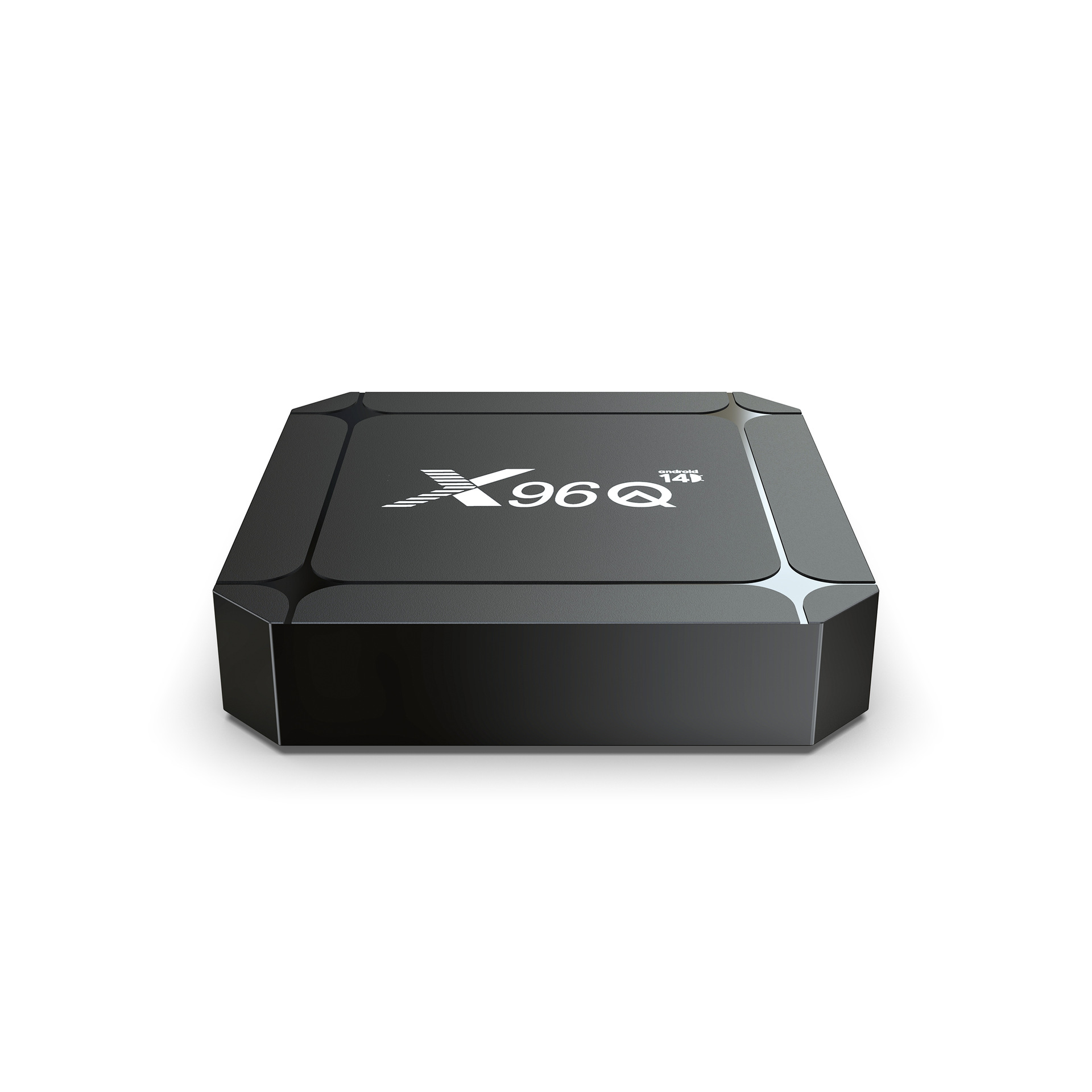

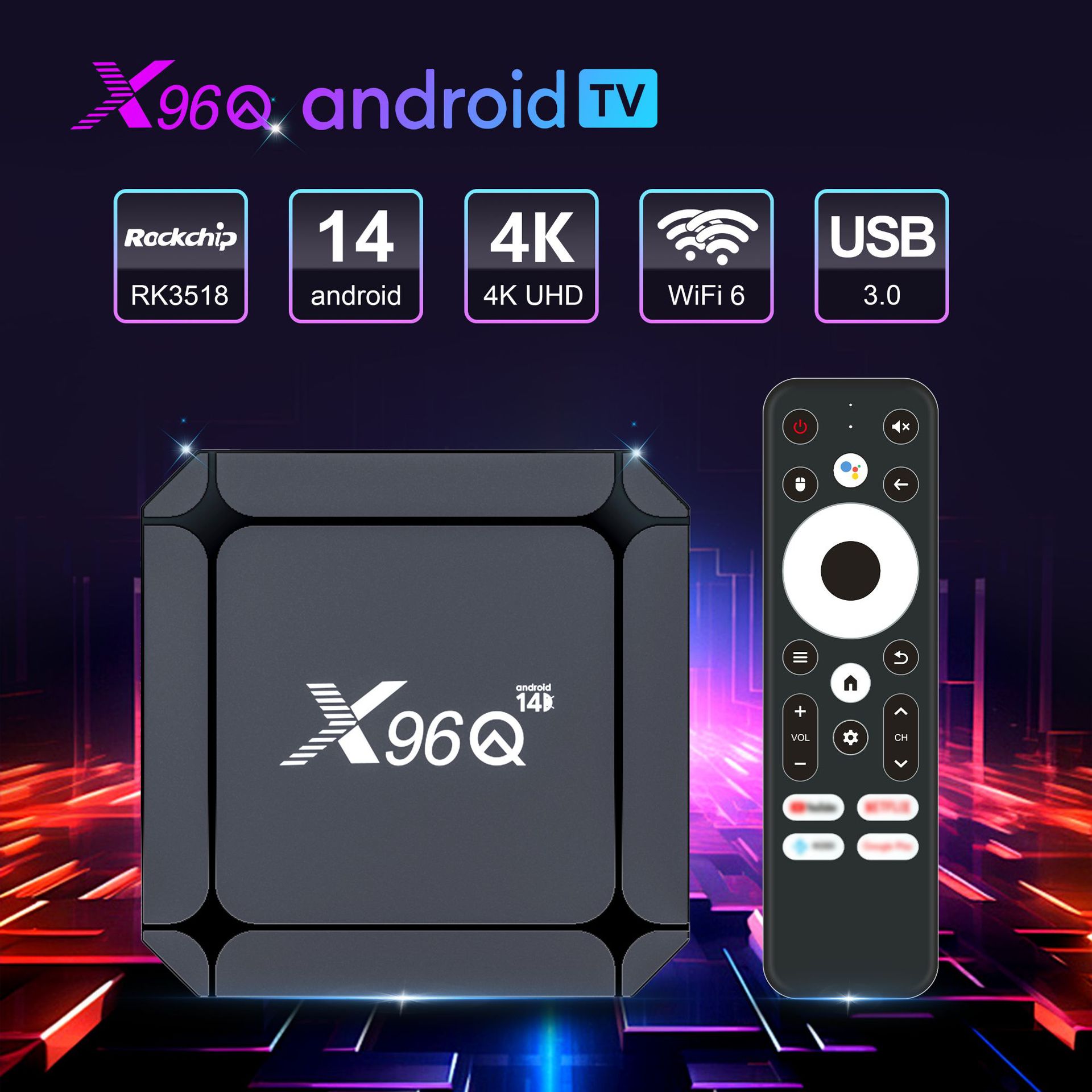

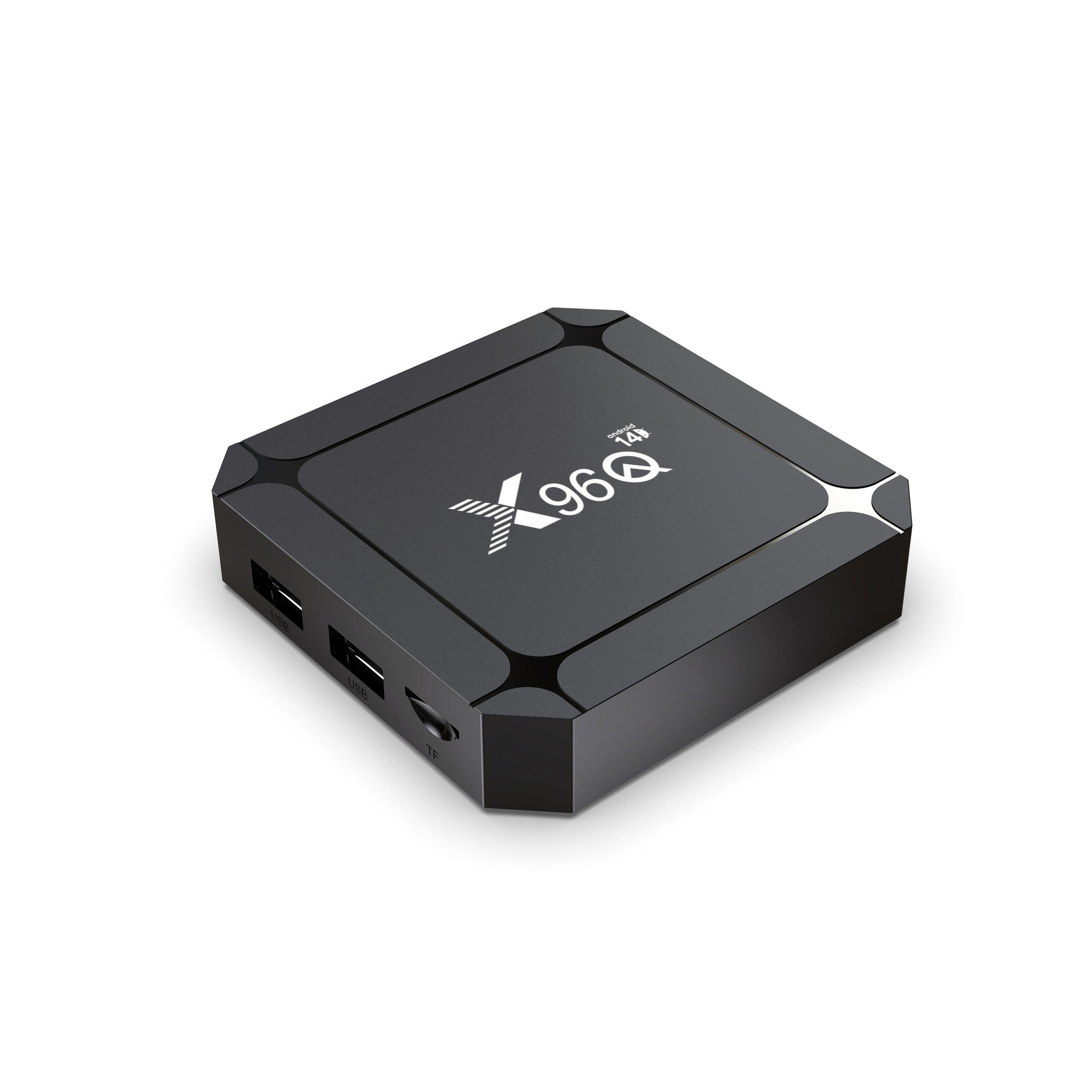

| Basic parameters for X96Q Android 14 |

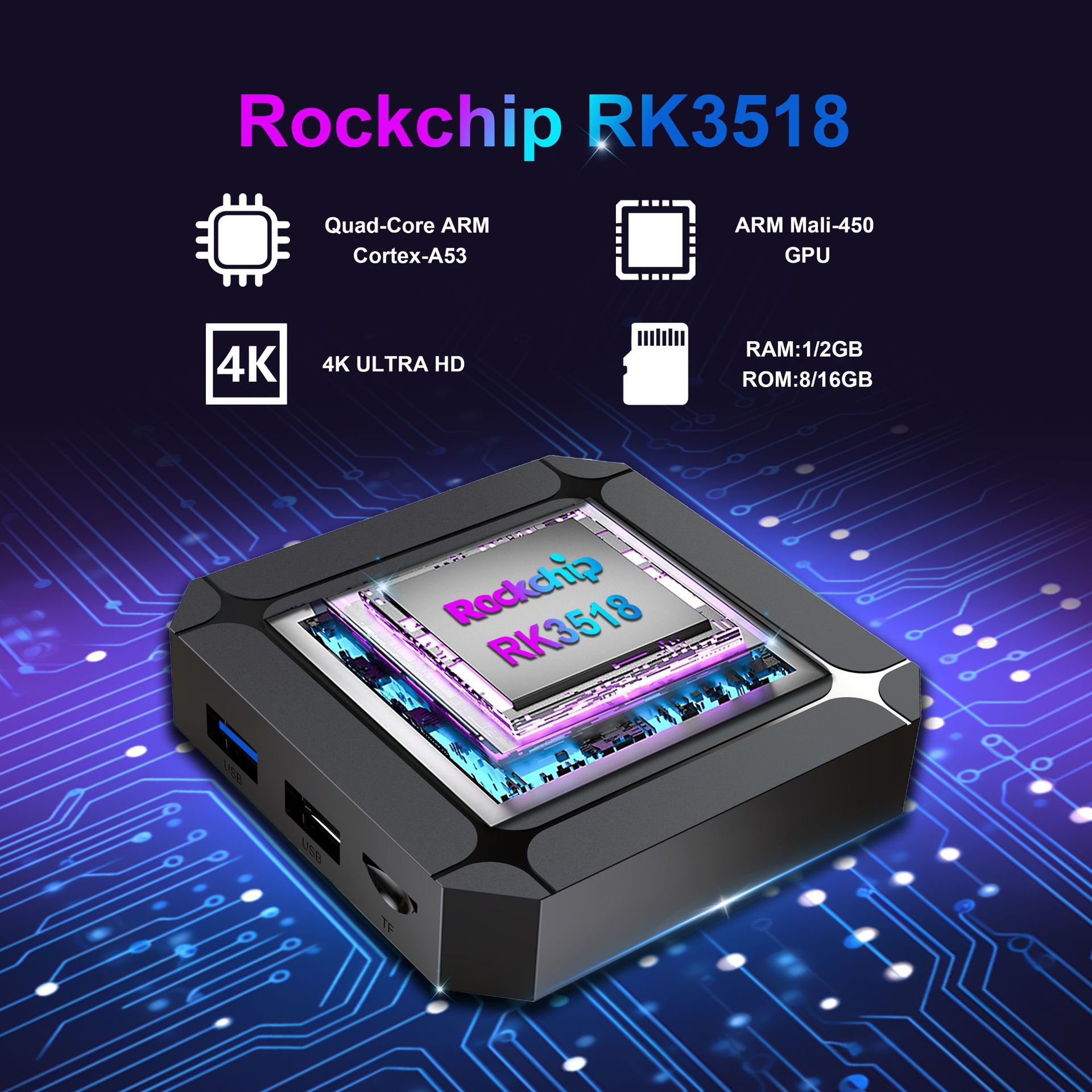

| CPU |
Chipset |
RK3518 |
| Architecture |
Quad-Core Cortex-A53 |
| GPU |
Chipset |
ARM Mali-450 GPU |
| Architecture |
OpenGL ES 1.1/2.0 and OpenVG 1.1 support |
| RAM |
Capacity |
2GB |
| ROM |
Capacity |
16GB |
| External storage |
USB Storage Devices |
Supported |
| Micro SD card |
Supported |
| Software |
| Operating system |
OS Version |
Android 14 ATV OS |
| Language |
Multi-Language |
| Multimedia |
Video |
* Video Decoder |
| H.264/AVC BP/MP/HP profile level 5.1; H.264/AVC MVC; up to 4Kx2K @ 60fps |
| H.265/HEVC Main/Main10 profile level 5.1 High-tier; up to 4Kx2K @ 60fps |
| AVS2 4KX2K @60fps |
| MPEG-1, Main profile, up to 1080P @ 60fps |
| MPEG-2, SP ML, MP@HL, up to 1080P @ 60fps |
| MPEG-4, ASP profile level 5, up to 1080P @ 60fps |
| AVS, Jizhun profile level 6.0; up to 1080P @ 60fps |
| AVS-P16 (AVS+), up to 1080P @ 60fps |
| H.263, up to 576P @ 60fps |
| VC-1, SPML, MP HL, AP L0-3, up to 1080P @ 60fps |
| * Video Encoder |
| Support video encoder for H.264, HP level4.2 |
| H.264 maximum frame rate is up to 1920×1080 @60fps |
| Capable of encoding HEVC Main Profile L4.1 High-tier |
| H.265 resolution and frame rate are up to 1920×1080 @60fps |
| JPEG encoder included |
| Audio |
Serial Audio Interface |
| SPDIF |
| Audio CODEC |
| Image |
HD JPEG, BMP, GIF, PNG, TIF |
| Network service |
| Wi-Fi |
Type |
Support WiFi IEEE 802.11 b / g / n / ac / ax |
| Frequency |
Support 2.4GHz /5GHz WiFi 6 |
| Antenna Type |
Single antennas |
| Bluetoth |
Bluetoth |
Support BLE |

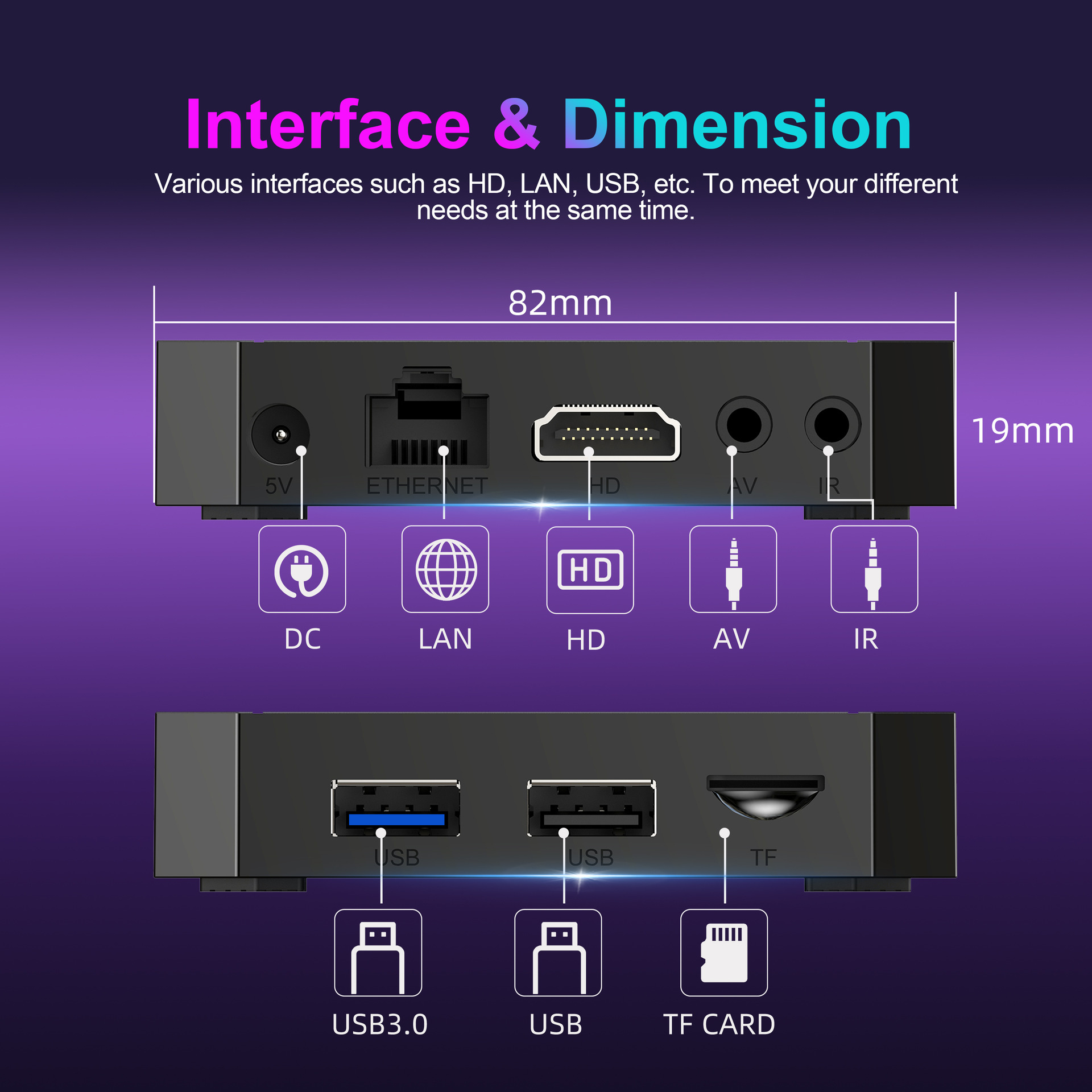

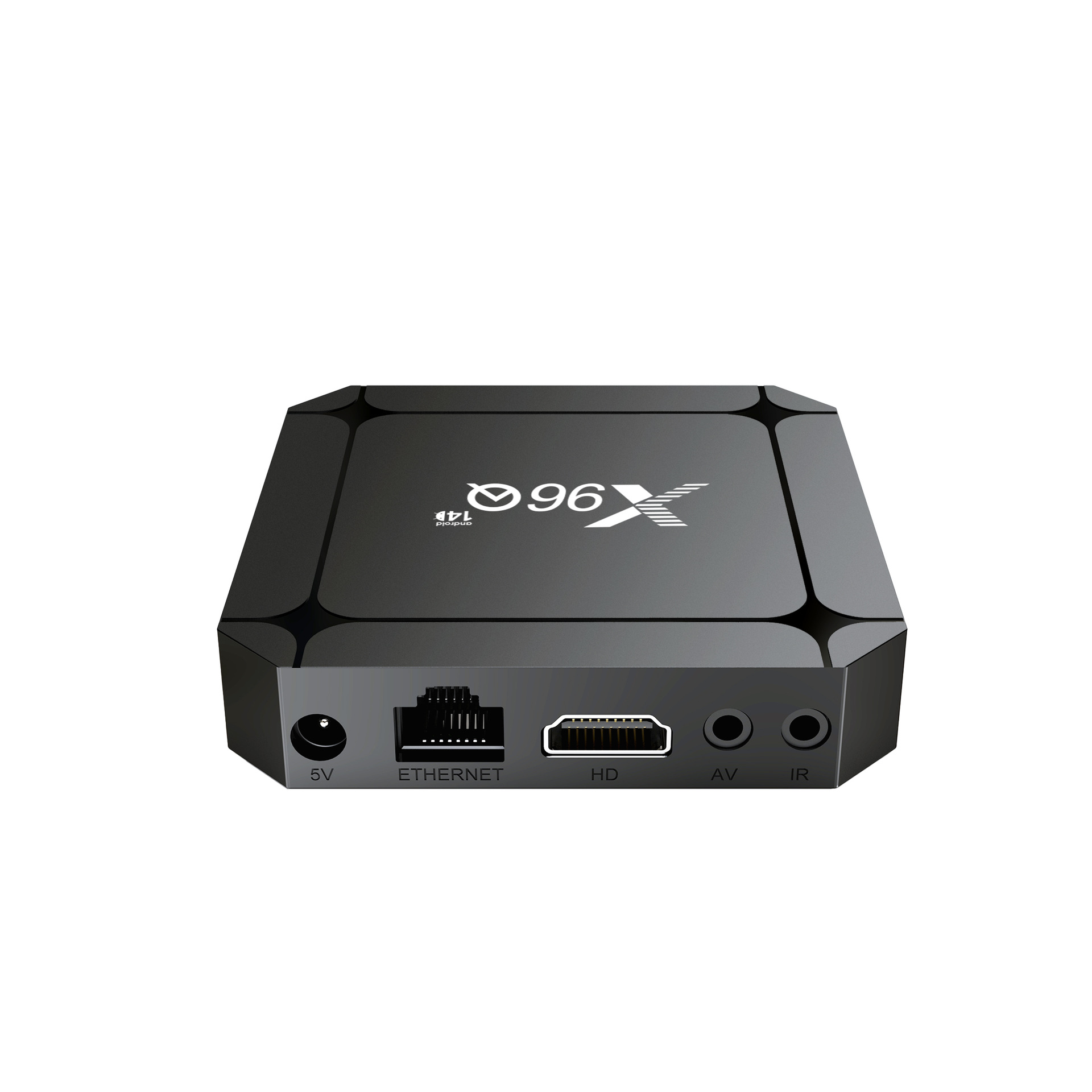

| Interface |
| Charge |
DC connector |
DC IN(5V/2A) |
| Video output |
HD |
4K*2K UHD Output, HDMI 1.4/2.0 |
| IR Reciver |
On board |
Remote Reciver Connect |
| Micro SD |
External memory |
Support |

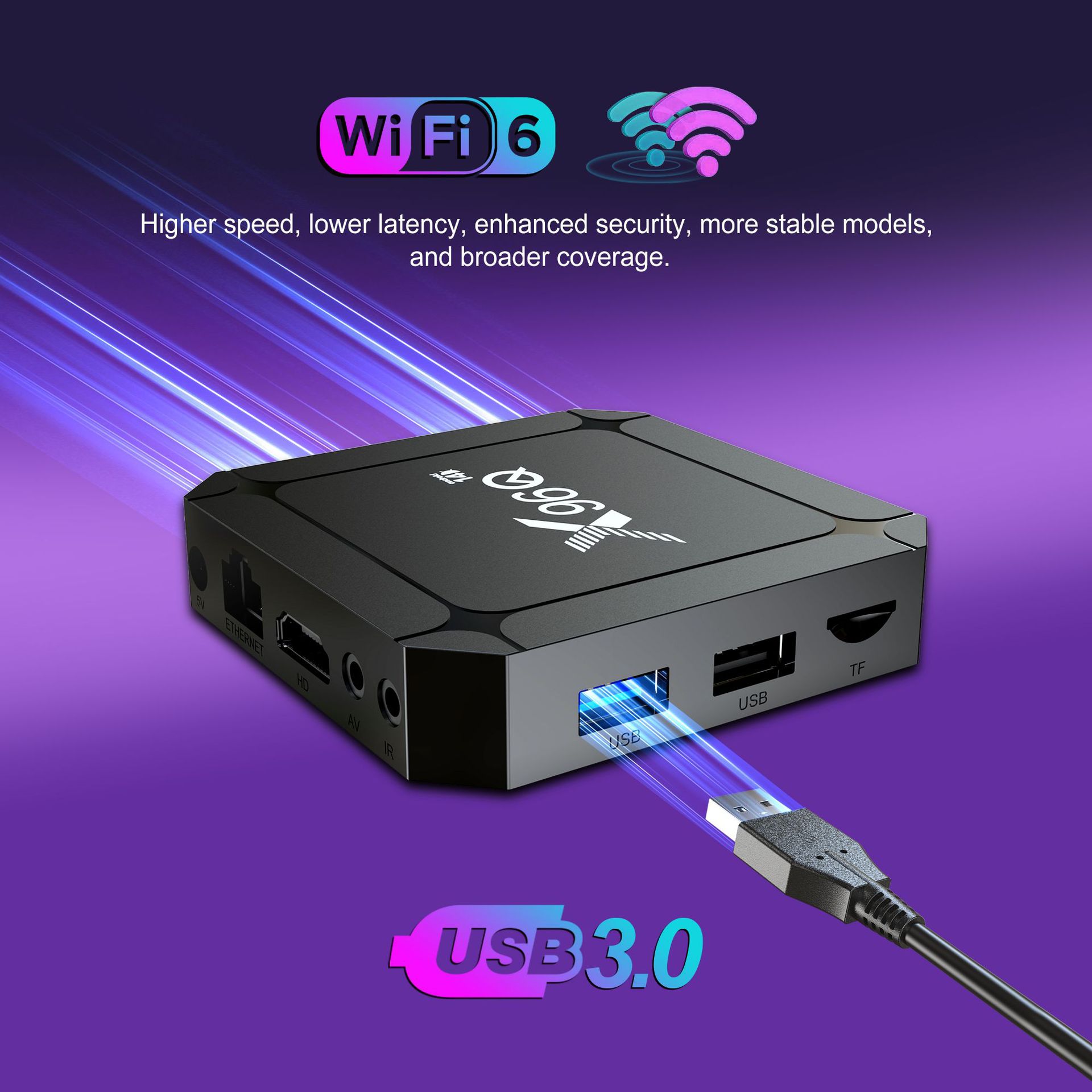

| USB port |
USB host |
USB3.0 *1 |
| USB2.0 *1 |
| Ethernet |
Ethernet |
100M Ethernet |
