X96 M300 S905X5M Android TV box with Quad Core Amlogic S905X5M(S905A) CPU Mali G310 GPU 4GB DDR 32G 64G Flash 2.4G 5G WiFi Bluetooth 5.X 1000M Ethernet AV1 8K 24fps HDR 10+ support android 14 OS.
X96 M300 Product Specifications:
| Product Model | X96 M300 | Project Status | M.P | |
| Product Name | Android TV box | |||
| Basic Parameters | ||||
| CPU | Chipset | Amlogic S905X5M (S905A) | ||
| Architecture | Quad Core ARM Cortex A55 | |||
| GPU | Chipset | ARM G310 V2 | ||
| Architecture | OpenGL ES 3.2, Vulkan 1.2 and OpenCL 2.0 support | |||
| RAM | Capacity | 4GB | ||
| ROM | Capacity | 32GB /64GB | ||
| External storage | USB Storage Devices | USB2.0 Support | ||
| Micro SD card | Supported | |||
| Software | ||||
| Operating system | OS Version | Android 14 | ||
| Language | Multi-Language | |||
| Multimedia | Video | Amlogic Video Engine (AVE) with dedicated hardware decoders and encoders Support multi-video decoder up to 4x1080P@60fps |
||
| Supports multiple “secured” video decoding sessions and simultaneous decoding and encoding | ||||
| Video/Picture Decoding | ||||
| VP9 Profile-2 up to 8Kx4K@24 fps | ||||
| H.265 HEVC MP-10@L5.1 up to 8Kx4K@24 fps | ||||
| AVS2-P2 Profile up to 8Kx4K@24 fps | ||||
| MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496) | ||||
| WMV/VC-1 SP/MP/AP up to 1080P@60fps | ||||
| AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps | ||||
| MPEG-2 MP/HL up to 1080P@60fps (ISO-13818) | ||||
| MPEG-1 MP/HL up to 1080P@60fps (ISO-11172) | ||||
| RealVideo 8/9/10 up to 1080P@60fps | ||||
| Multiple language and multiple format sub-title video support | ||||
| MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918) | ||||
| Supports JPEG thumbnail, scaling, rotation and transition effects | ||||
| Supports *.mkv,*.wmv,*.mpg,*.mpeg,*.dat,*.avi,*.mov,*.iso,*.mp4, *.rm and *.jpg file formats | ||||
| Image Engine | Supports HDR10, HDR10+ processing | |||
| Inline AI-SR, Block noise, mosquito noise, spatial noise, contour noise reduction | ||||
| Audio | Supports MP3, AAC, WMA, FLAC, Ogg | |||
| Image | HD JPEG, BMP, GIF, PNG, TIF | |||
| Network service | ||||
| Wi-Fi | Type | Support WiFi IEEE 802.11 b / g / n /ac | ||
| Frequency | Support 2.4G and 5G | |||
| Antenna Type | Two external antenna | |||
| Bluetooth | Bluetooth | Support BT5.X | ||
| Interface | ||||
| Charge | DC connector | DC IN(5V/2A) | ||
| Video output | HDMI | 4K*2K UHD Output, HDMI 2.1a | ||
| IR Reciver | 3.5mm Earphone jack | Remote Reciver Connect | ||
| Micro SD | External memory | Support | ||
| USB port | USB host | 2* USB2.0 normal type | ||
| Ethernet | Ethernet | 1000M Ethernet | ||
| Appearance | ||||
| Body Material | ABS | |||
| Color | Black | |||

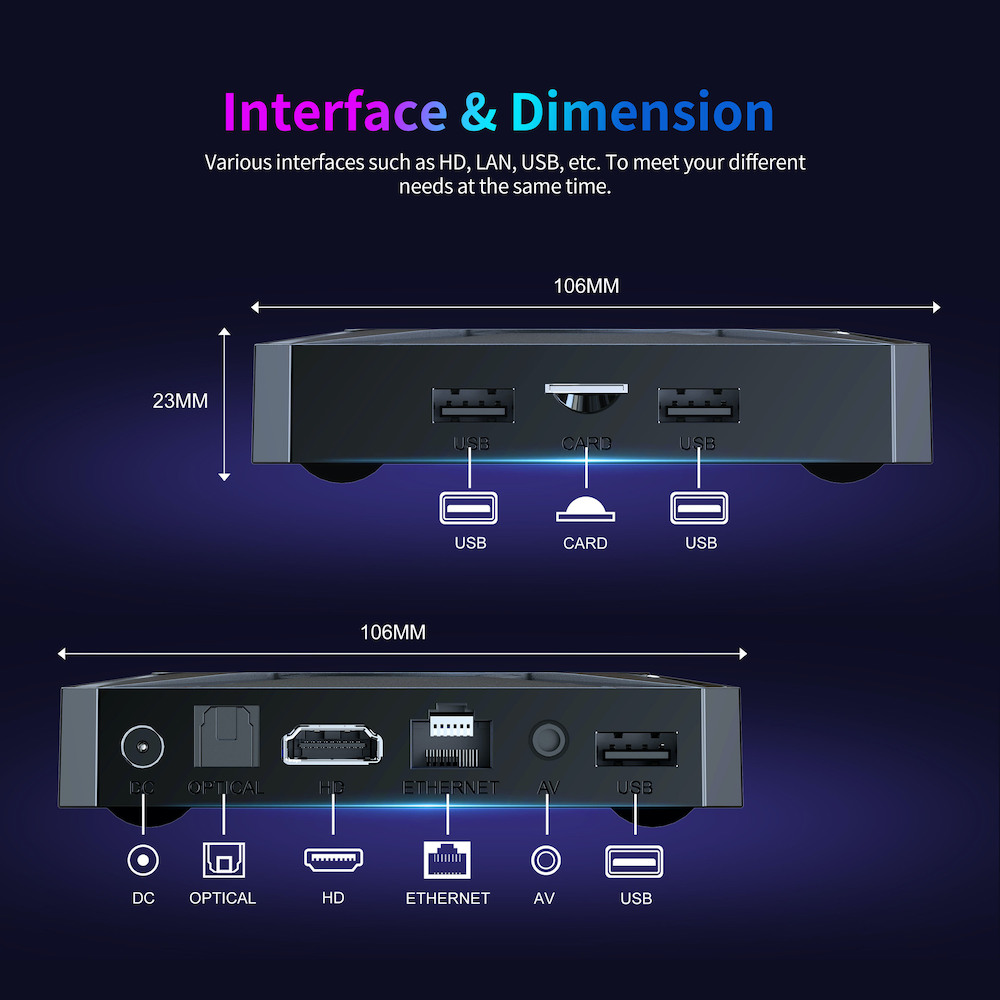

| Size | 106x106x24(mm) | |||
| Weight | 0.141Kg | |||
| Cerifications(For Unit) | ||||
| Standard | CE | / | ||
| RoHS | / | |||
| Others | Optional | / | ||

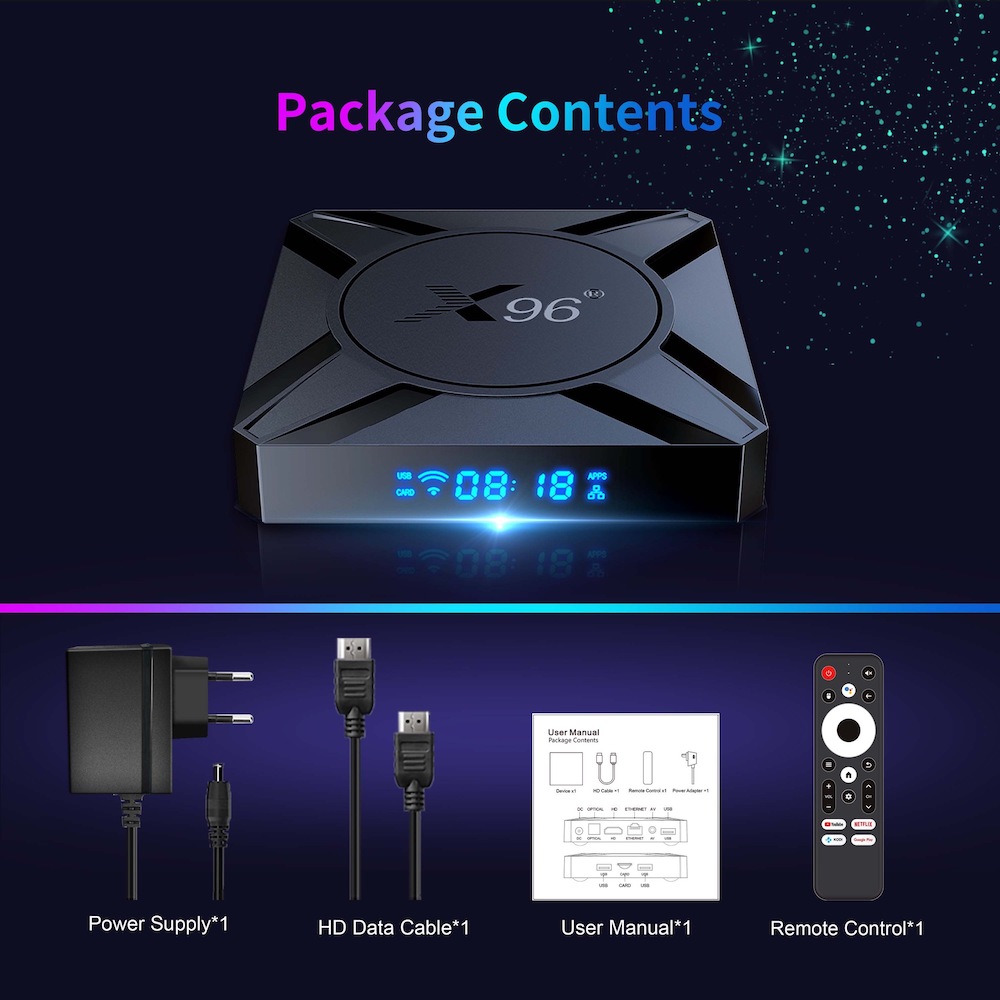

| Package contents | Shipping Info | |||
| User manual | *1 | Gift Box Dimension(mm) | 205*140*50(mm) | |
| Gift Box | *1 | Carton Size(mm) | 420*270*305 (mm） | |

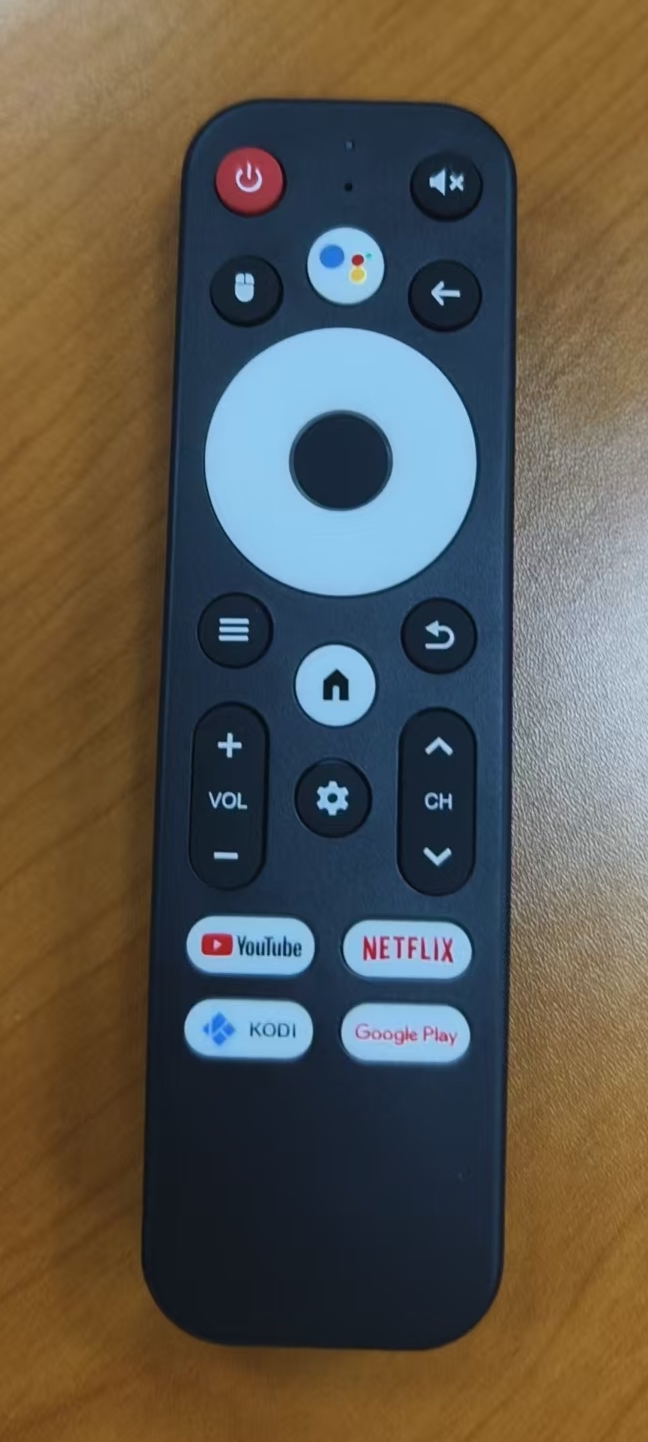

| Remote control | *1 | Qty Per Carton(pcs) | 20 | |
| HDMI external cable | *1 | Gift Box.G.W(gs) | 0.394Kg | |
| Power adapter | *1 | Export carton (G.W.)(kgs) | 8.88Kg | |

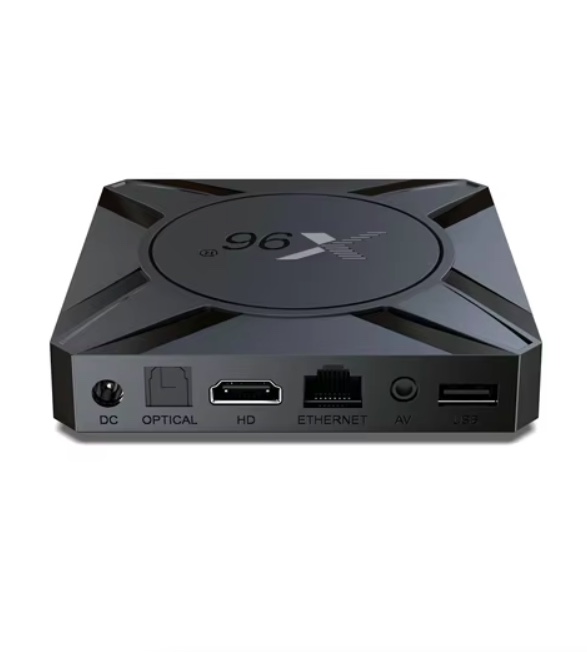

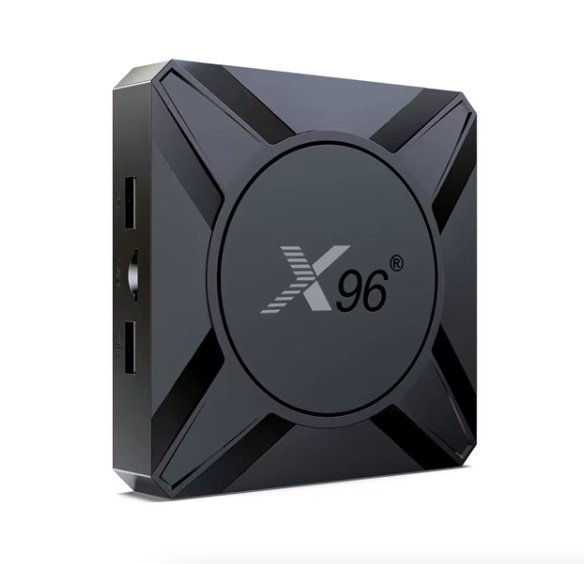

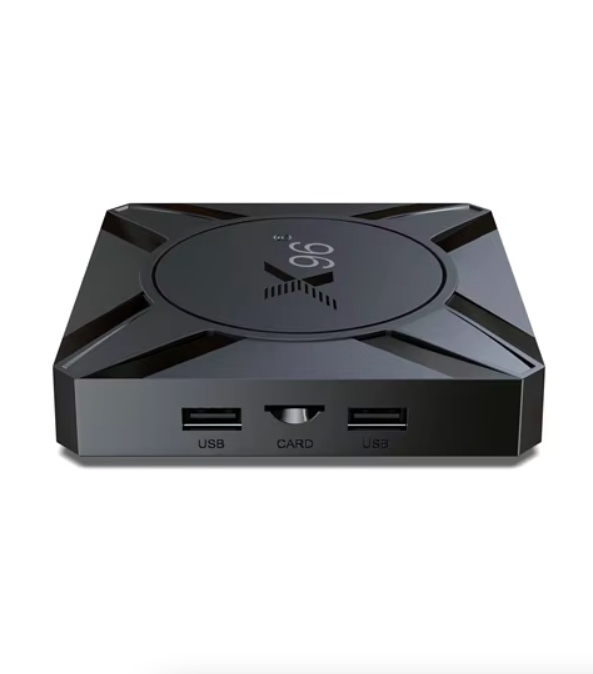

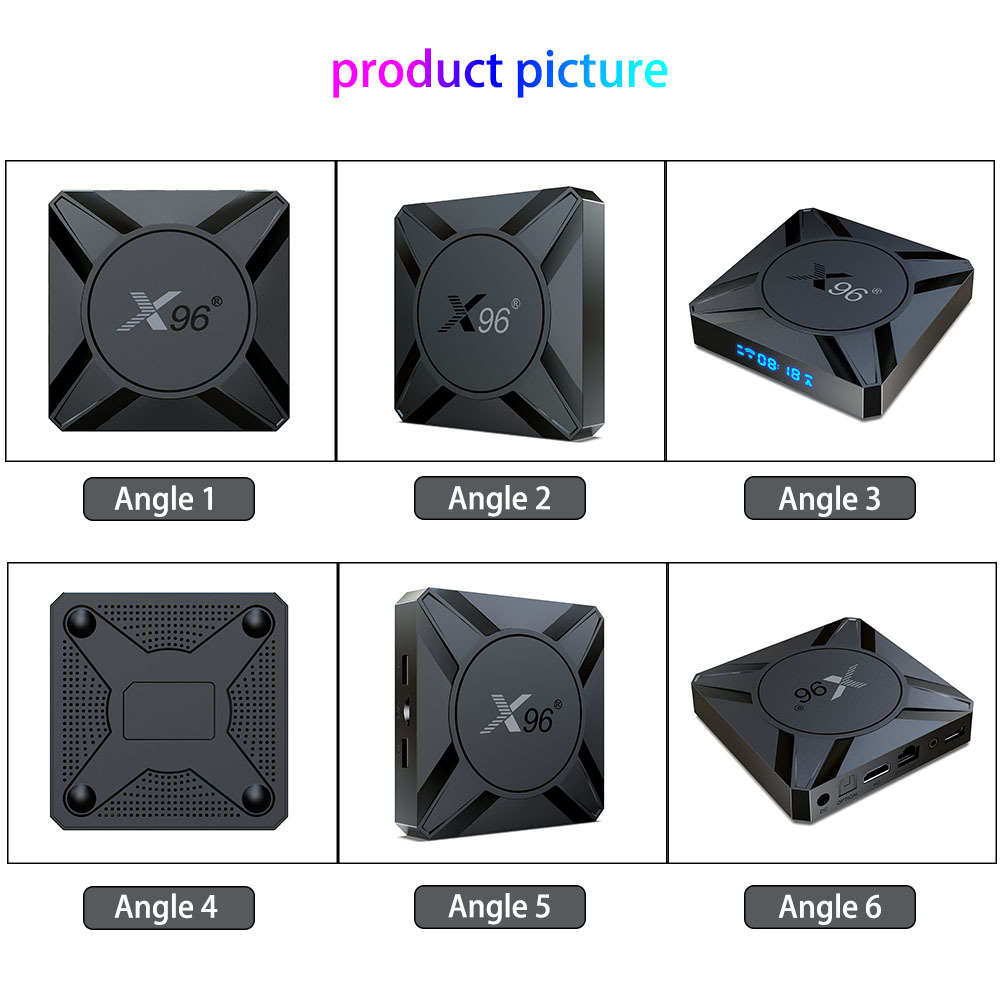

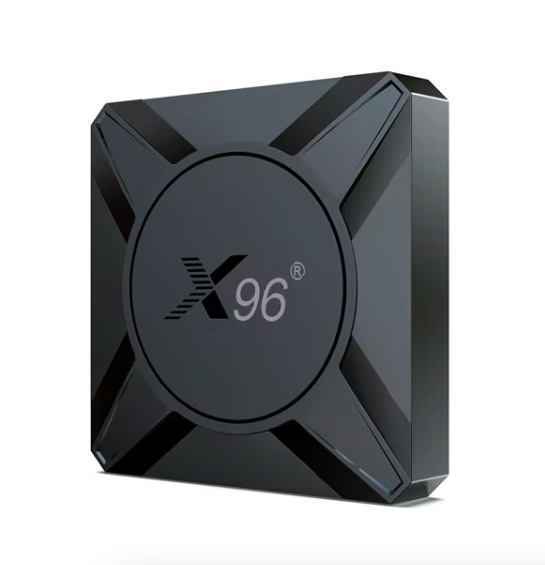

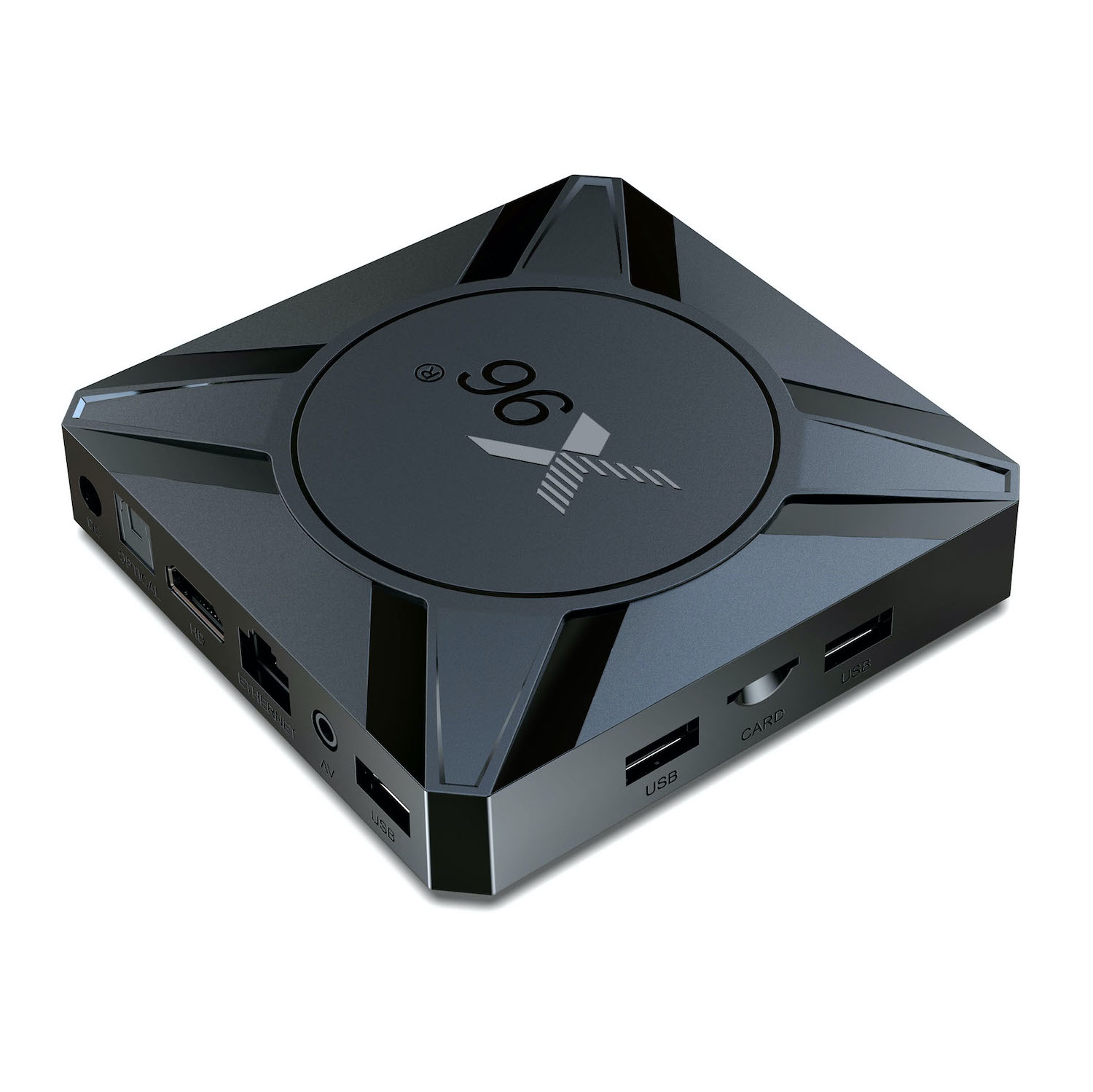

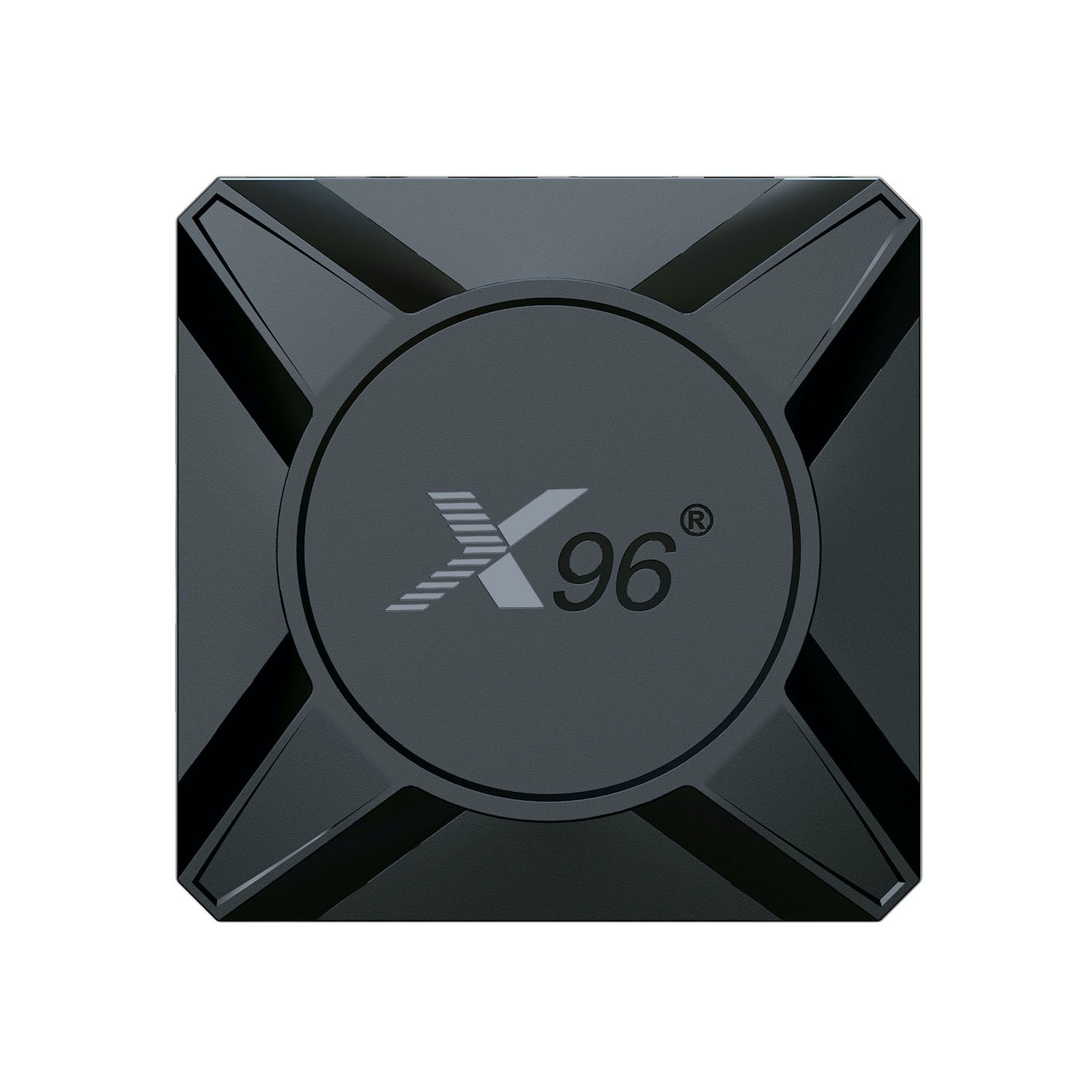

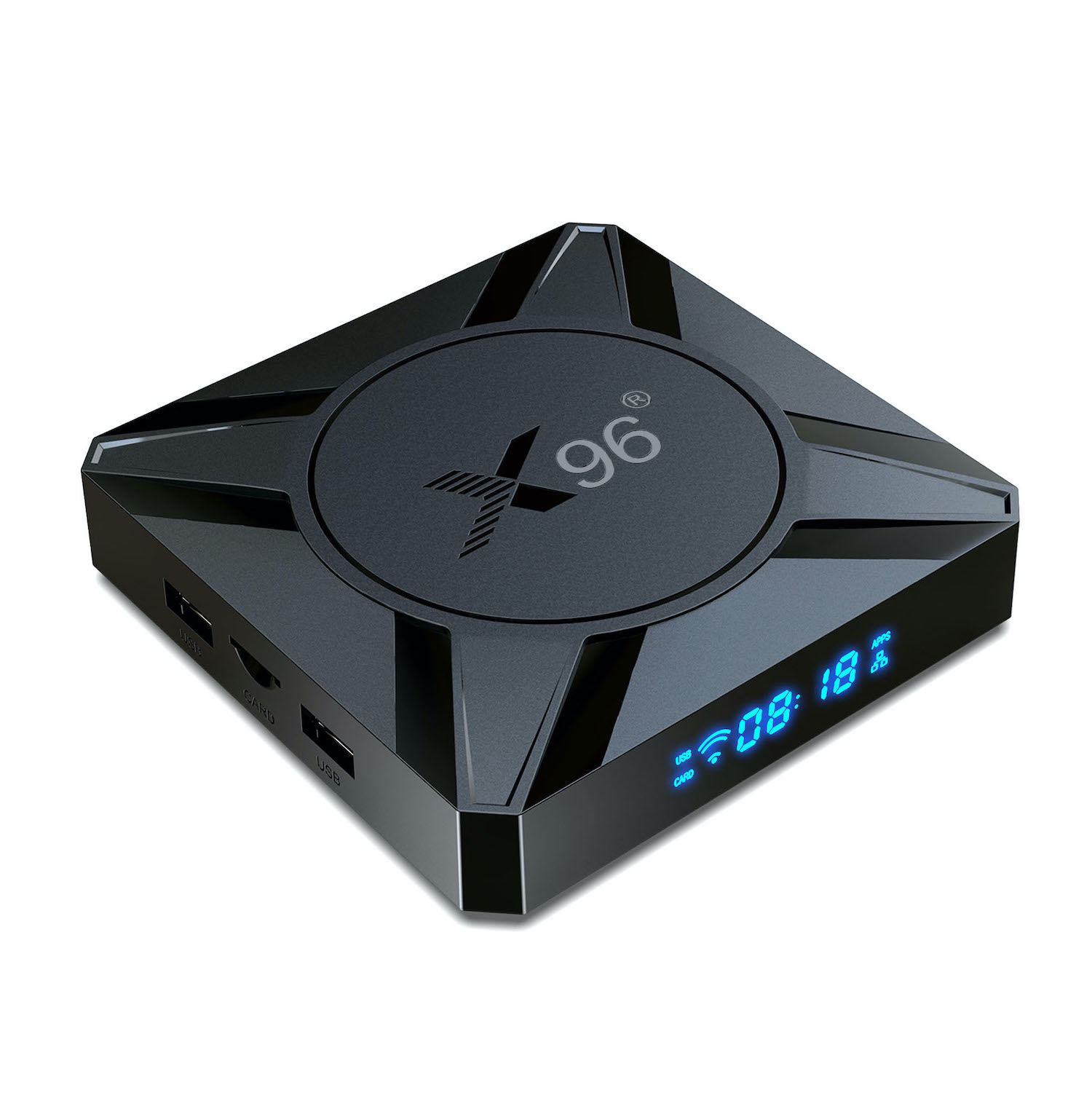

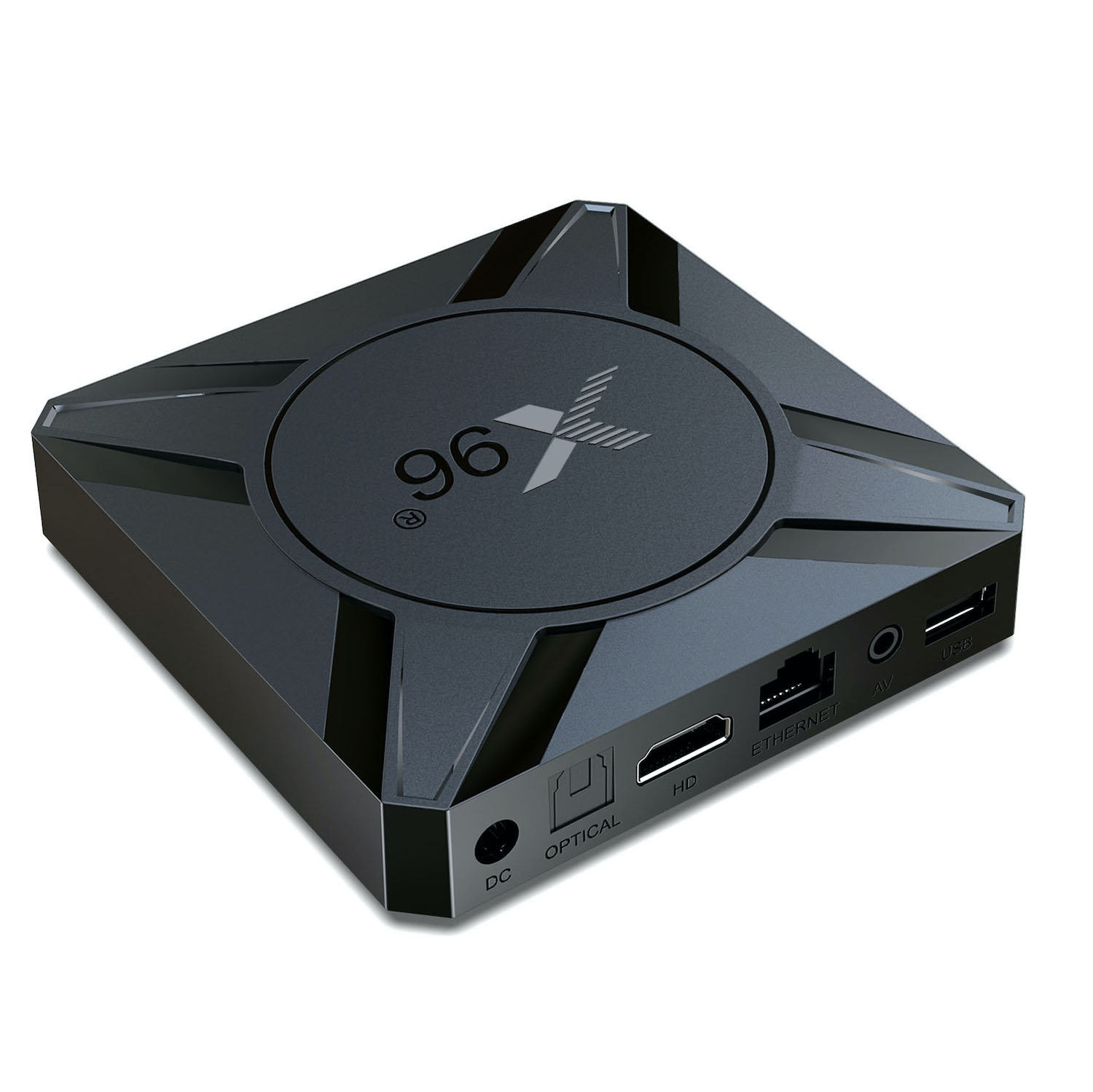

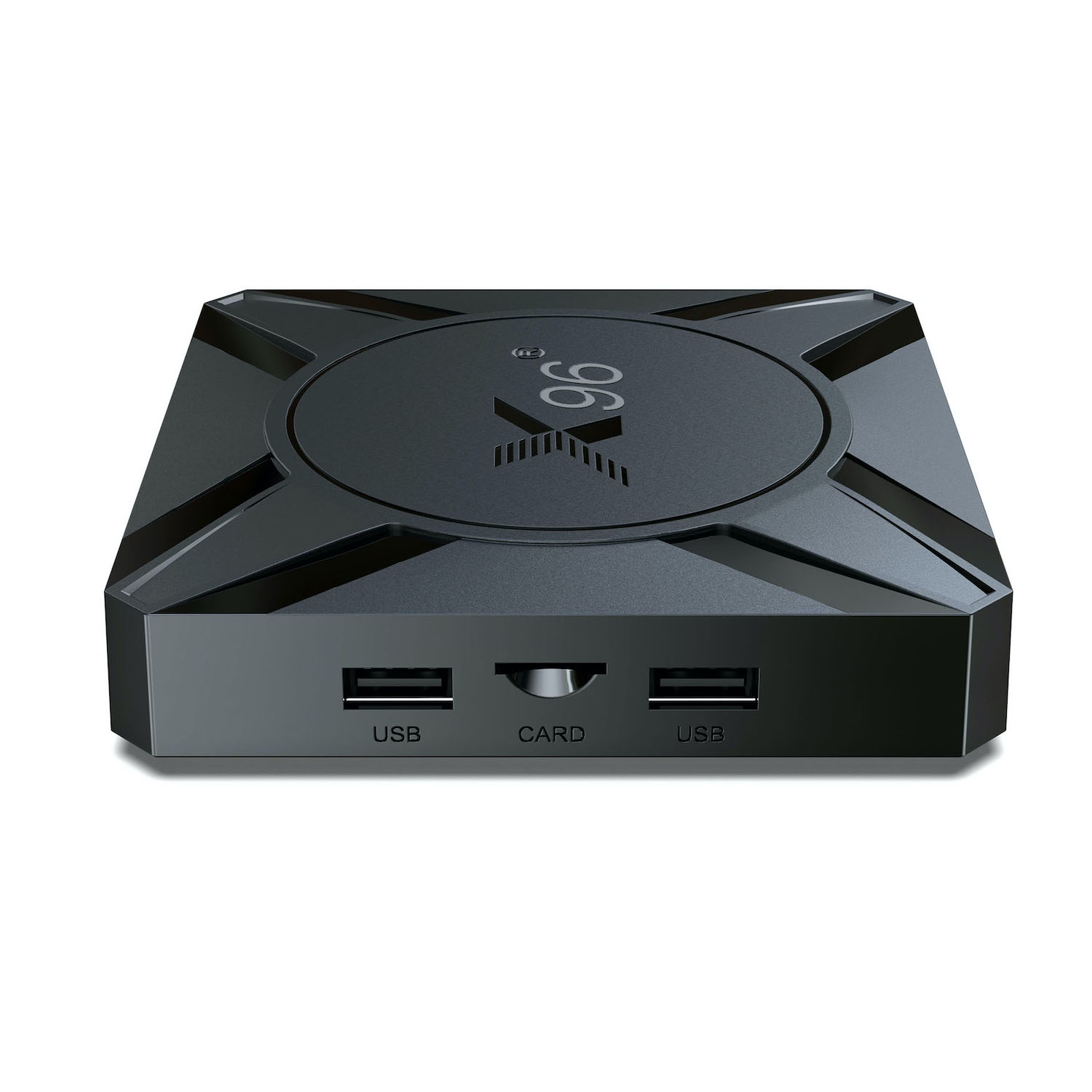

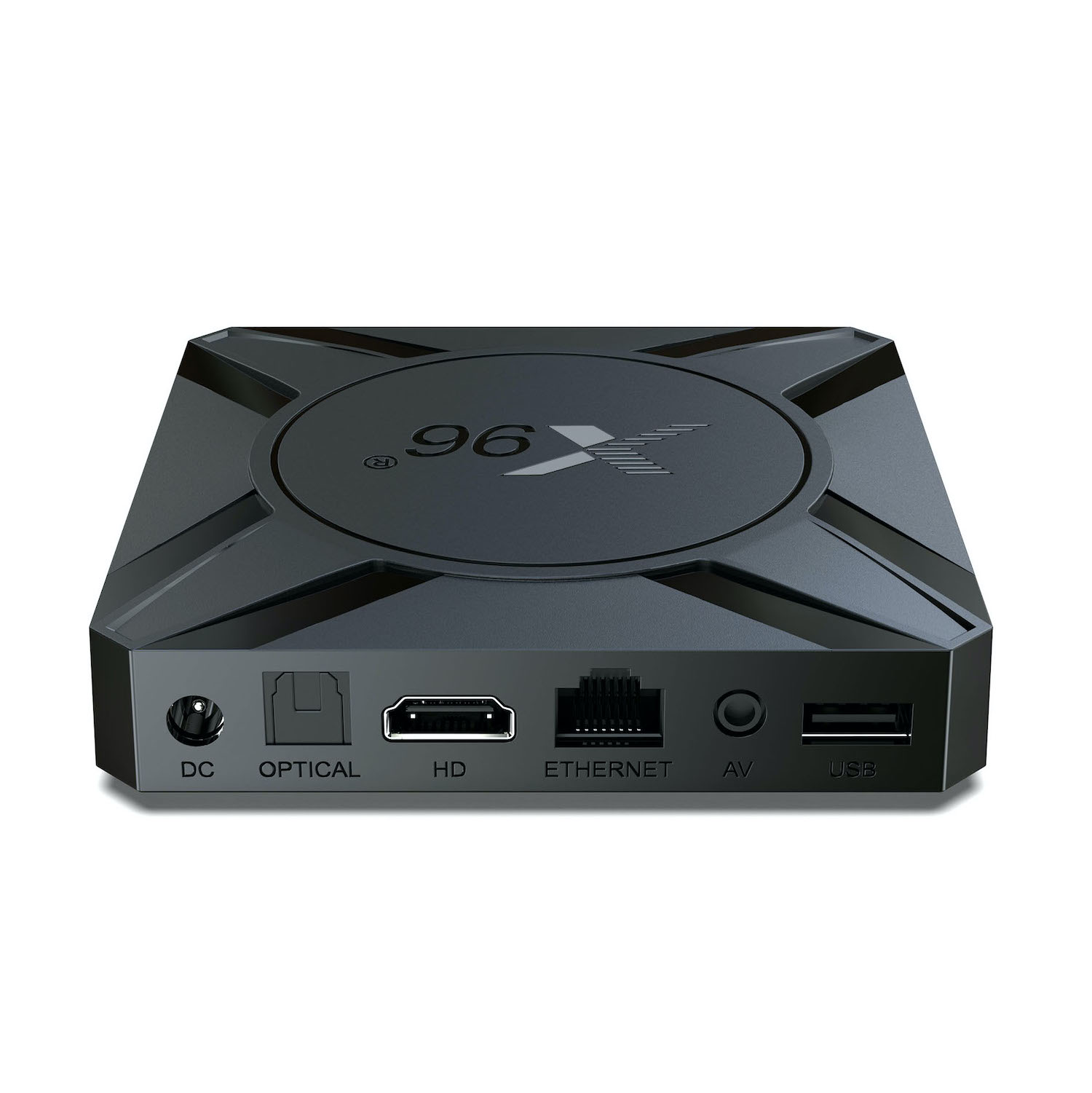

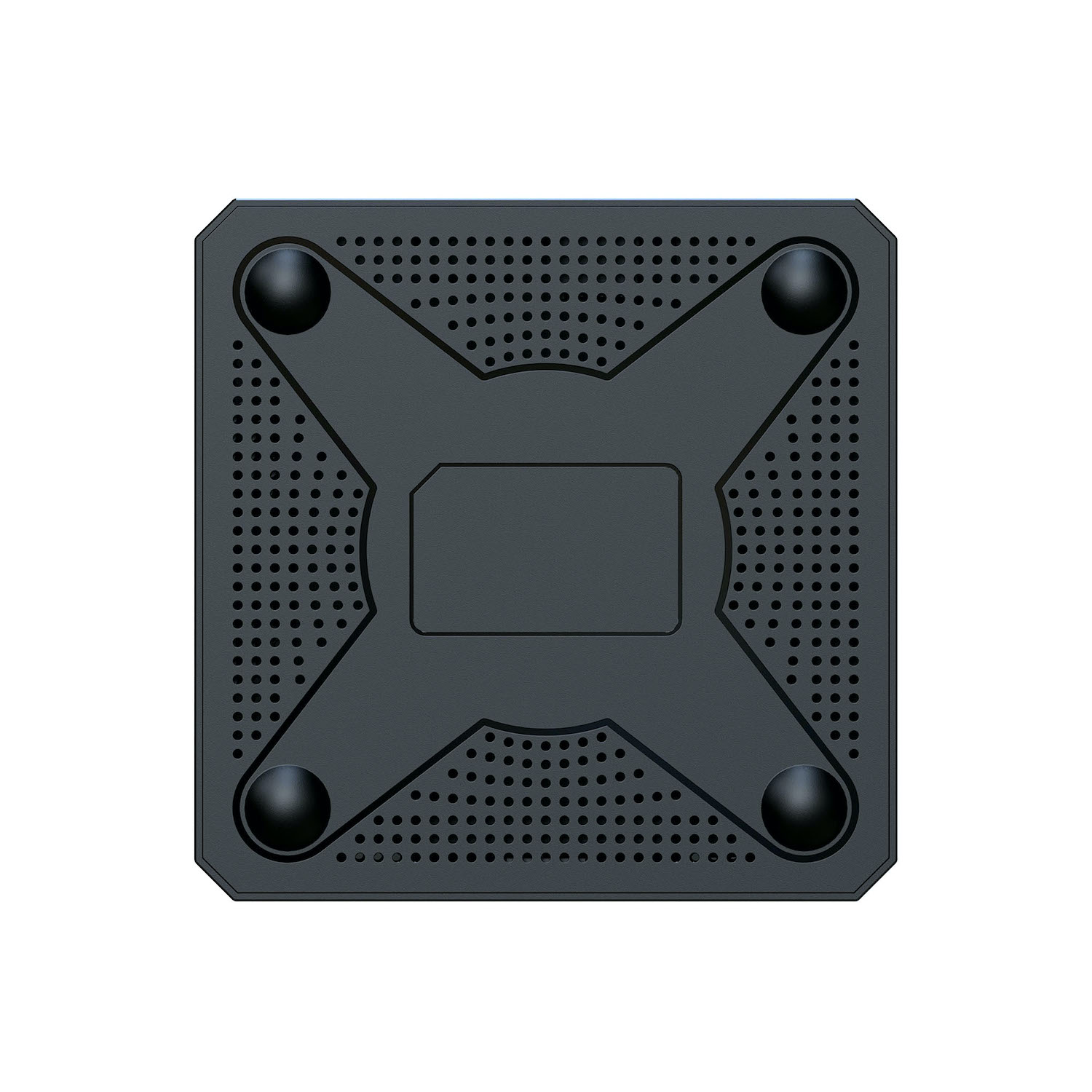

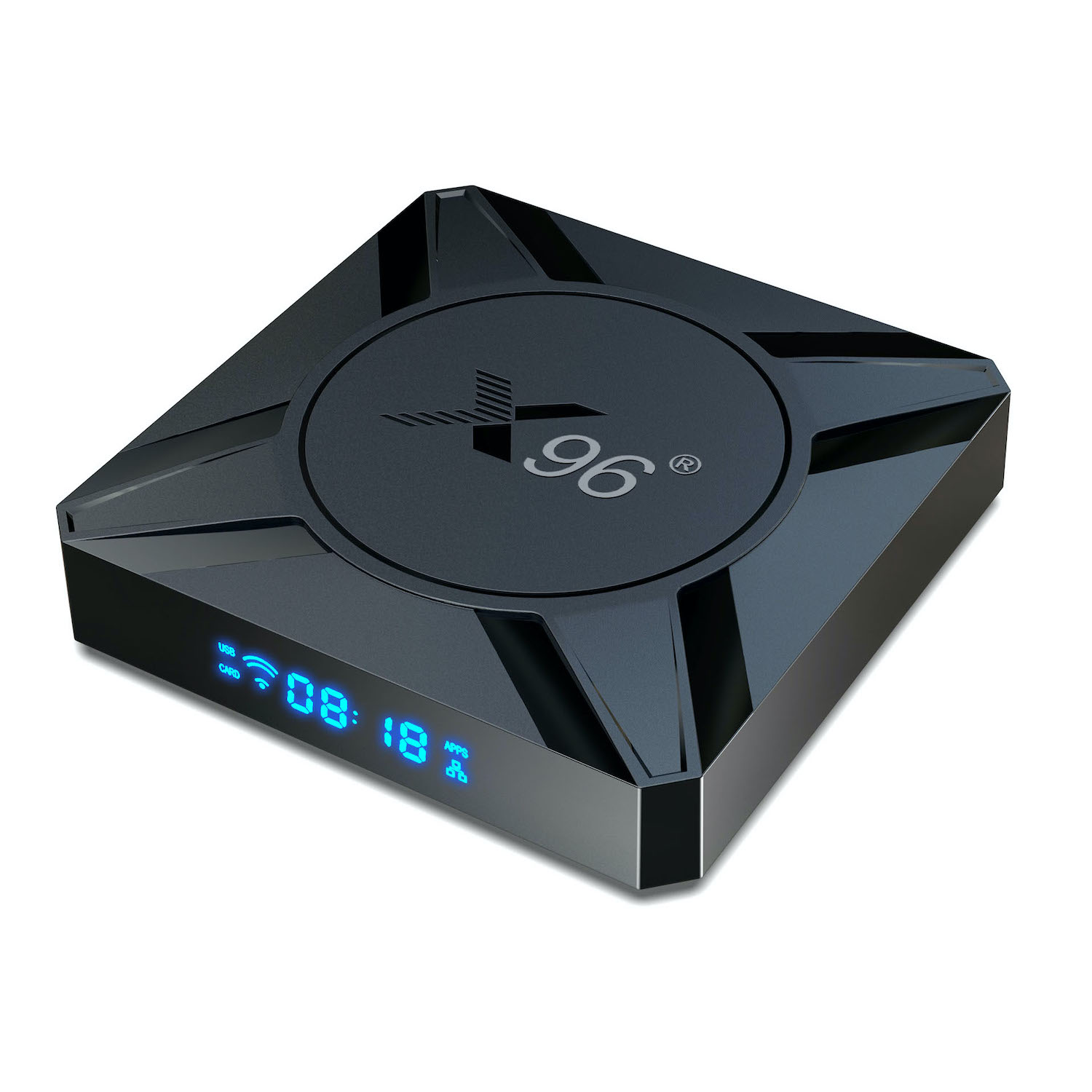

Product Pictures:
X96 M300 S905X5M Packing Details:
