RK3528 R69 Max android TV box with Rockchip RK3528 Cortex A53 Quad Core CPU Mali 450 GPU 4GB DDR 32GB 64GB eMMC 2.4G 5G dual band WiFi 6 BT 5.0 USB 3.0 100M Lan H.265 8K decoding supported android 14 OS TV box.
R69 Max Product Specifications:
| CPU | ROCKCHIP RK3528 Quad Core A53 | |||||||
| GPU | Mali-450 | |||||||
| Memory | 4GB | |||||||
| Flash | 32GB/ 64GB | |||||||
| WiFi | IEEE 802.11 a/b/g/n/ac/ax 2.4G/5G | |||||||
| Bt | BT 5.0 | |||||||

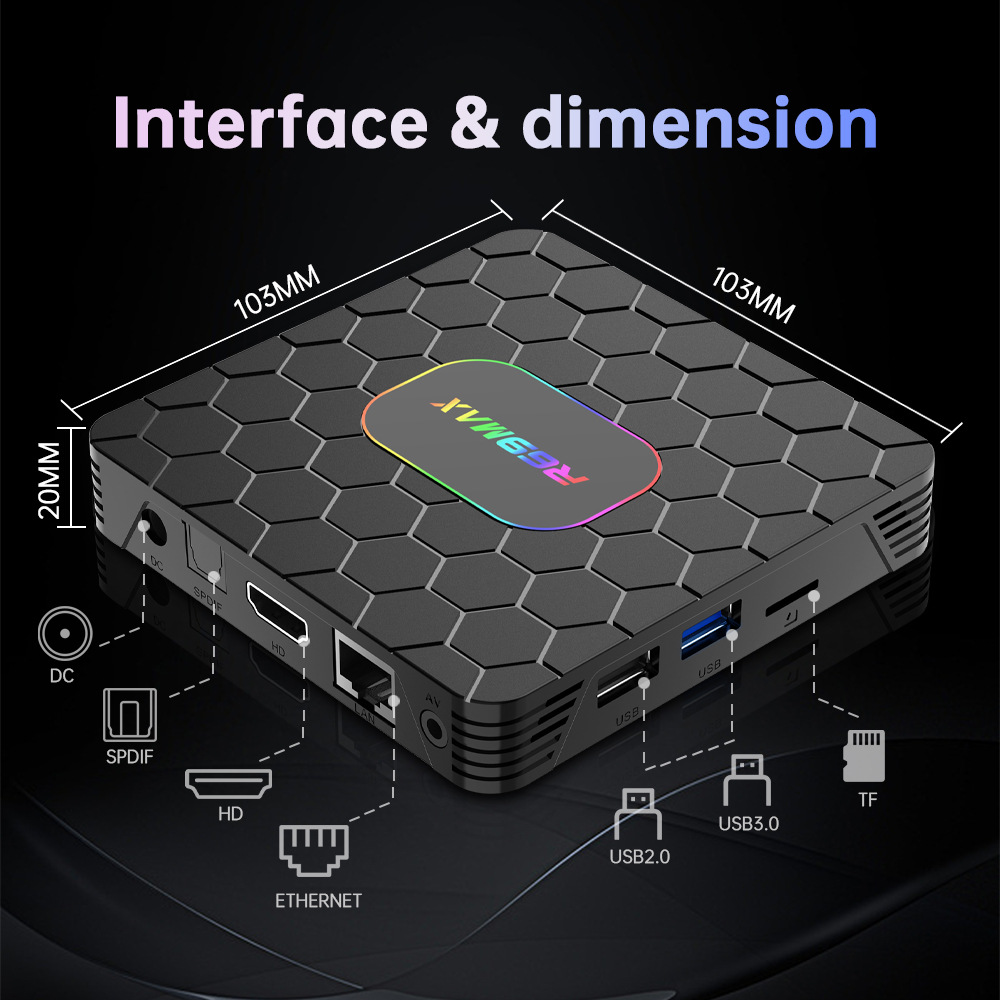

| I/O | 1*HD | 4K*2K UHD Output | ||||||
| 1*AV | Support | |||||||
| 1*SPDIF | Support | |||||||
| 2*USB | 1*USB 2.0,1*USB 3.0 | |||||||
| 1*IR Reciver | Remote Reciver Connect | |||||||
| 1*RJ45 | Ethernet Interface;Support 100M(Optional 1000M) | |||||||
| 1*TF CARD | Support 4GB/8GB/16GB/32GB/64GB/128GB/256GB | |||||||
| 1*DC | 5V/2A | |||||||
| Software | ||||||||
| OS | Android 14.0 | |||||||
| Video | Video Decoder Real-time video decoder of MPEG-1, MPEG-2, MPEG-4 H.263, H.264/AVC, H.265/HEVC, MVC VC-1 AVS, AVS+,AVS2 H.265 HEVC/MVC Main10 L6.1 : 8K@25fps (7680×4320) H.264/AVC BP/MP/HP profile @ level 5.1; H.264/AVC MVC; up to 4Kx2K @ 60fps H.265/HEVC Main/Main10 profile @ level 5.1 High-tier; up to 4Kx2K @ 60fps AVS2 4KX2K @60fps MPEG-1, Main profile, up to 1080P @ 60fps MPEG-2, SP@ML, MP@HL, up to 1080P @ 60fps MPEG-4, ASP profile @ level 5, up to 1080P @ 60fps AVS, Jizhun profile @ level 6.0; up to 1080P @ 60fps AVS-P16 (AVS+), up to 1080P @ 60fps H.263, up to 576P @ 60fps VC-1, SP@ML, MP@HL, AP@L0-3, up to 1080P @ 60fps Display Interface Support HD 2.0b output up to 4K 10bit @60Hz TV interface: TV encoder 10bit out for DAC HD interface: 24 bit (RGB888 YCbCr444), 30 bit(RGB101010,YCbCr 420, YCbCr 444) Max output resolution 4K for HDMI, 480i/576i for CVBS Support 1 cluster layer, 4 smart layer Support HDR10, HLG HDR, Vivid HDR |
|||||||
| Audio | Supports MP3, AAC, WMA, RM, FLAC | |||||||
| Image | HD JPEG,BMP,GIF,PNG,TIF | |||||||
| Language | Multi-Language | |||||||
| Appliactions | ||||||||
| Online | Browse all video websites,support | |||||||
| Apps | Apps download freely form go gel market,apkpure, Aptoidetv,am on app store etc. | |||||||
| Medium | Local Media playback,Support HDD, U Disck ,TF Card . | |||||||
| Talk online | Support SKYPE video call ,MSN , facebook ,twitter ,QQ etc | |||||||
| Others | Support Email,office suit etc. Support DLNA function Support 2.4G wireless mouse/keyboard |
|||||||

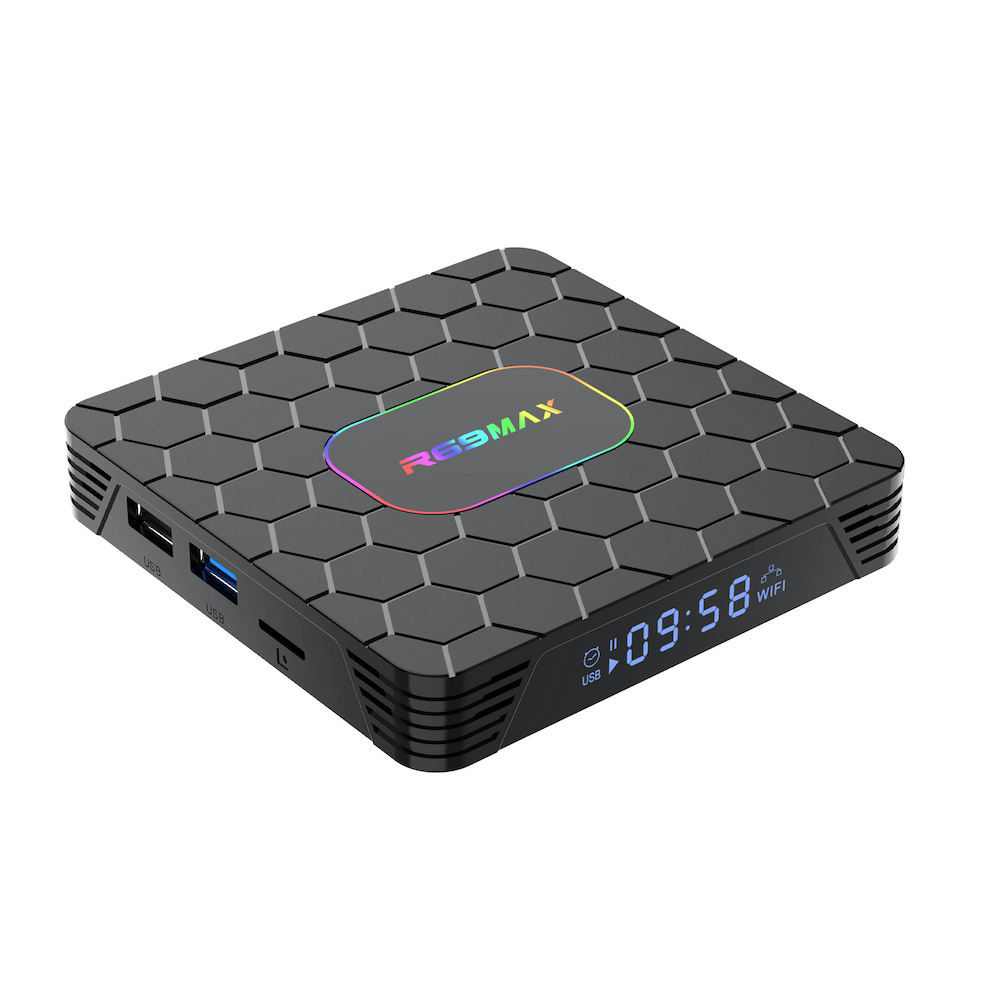

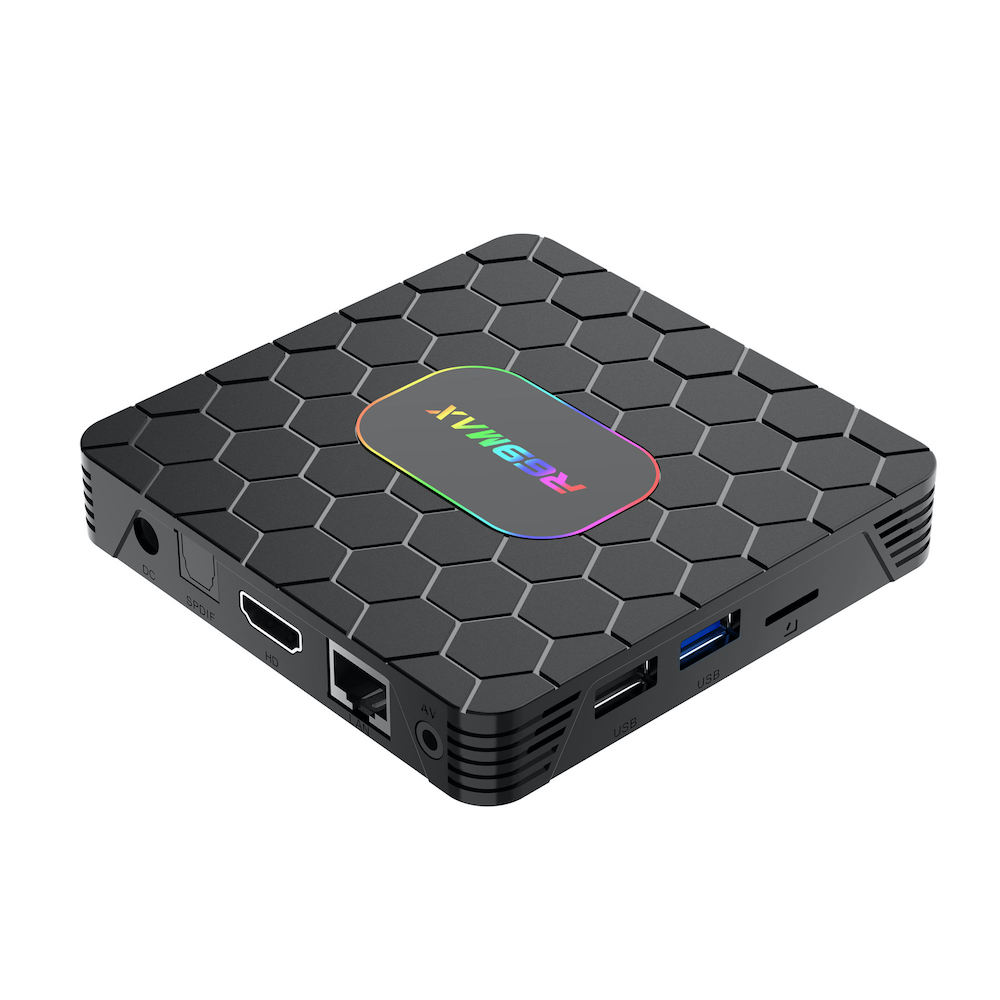

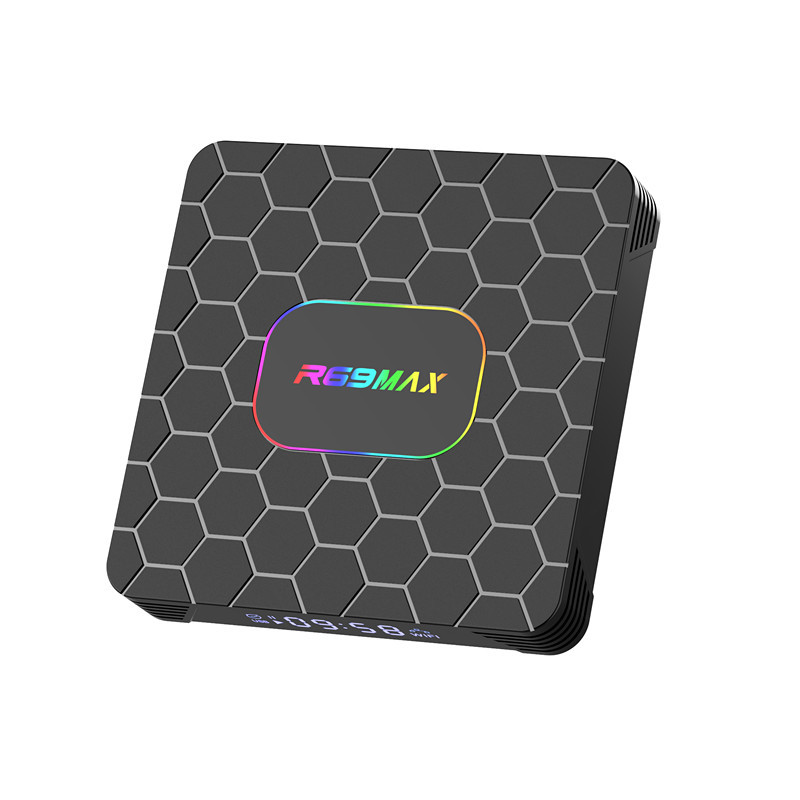

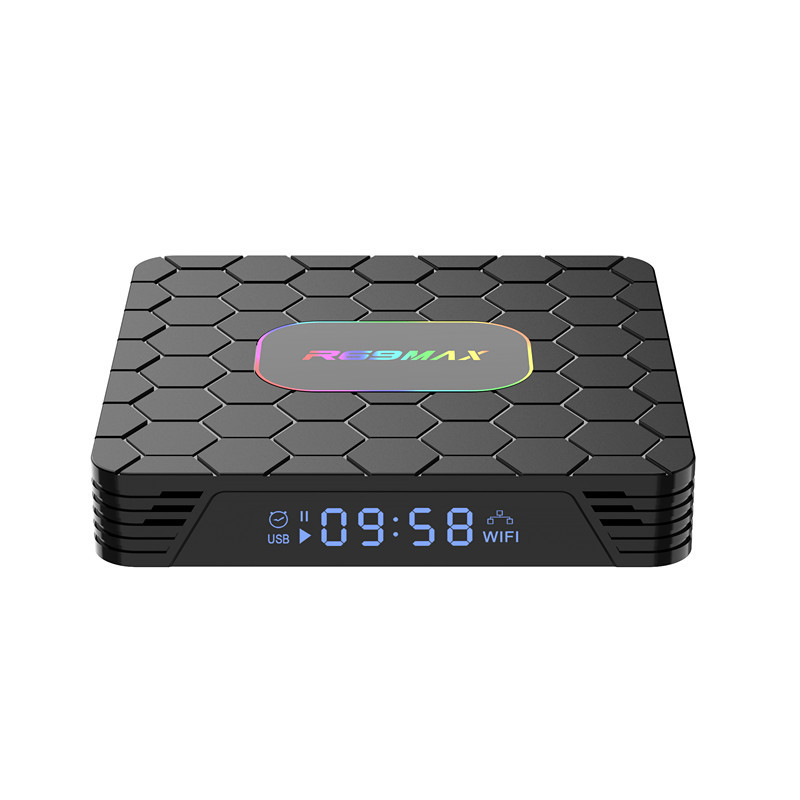

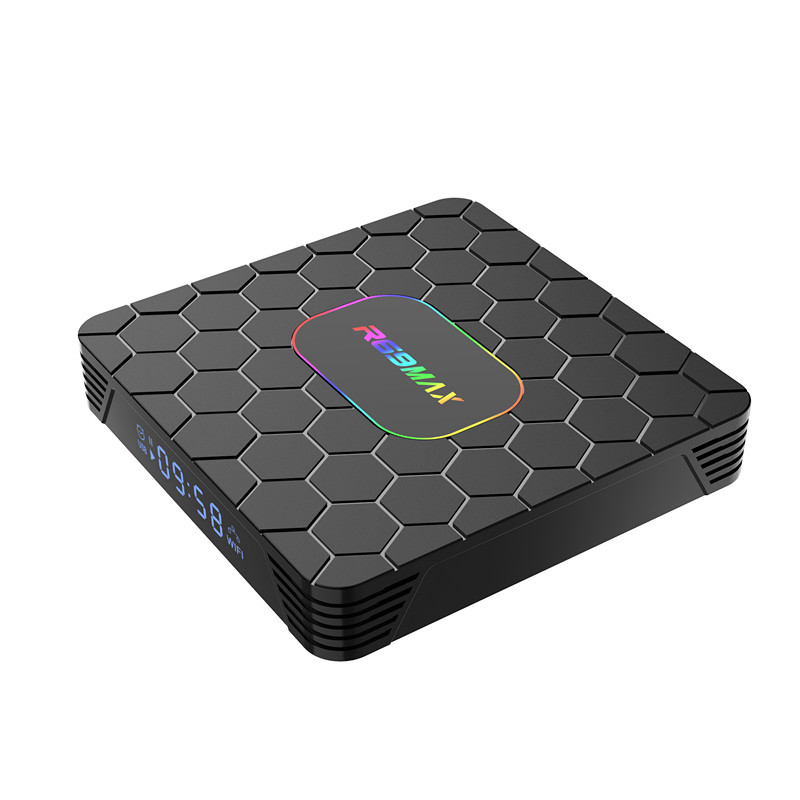

RK3528 R69 Max Pictures:

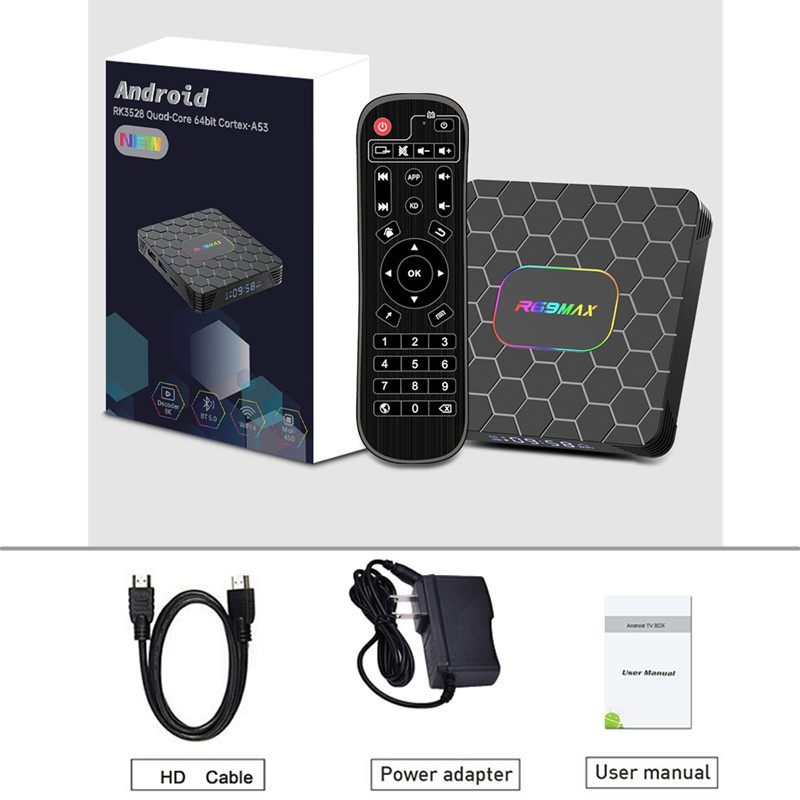

Product Packing List and Accessory:
