X96 M200 S905X5M Android box with Amlogic S905X5M Quad Core CPU Mali G310 GPU 2GB 4GB DDR4 16GB 32GB 64GB eMMC 2.4G 5G WiFi Bluetooth 5.X 1000M Ethernet AV1 8K 24fps HDR 10+ video support android 14 OS box.
X96 M200 Product Specifications:
| Product Model | X96 M200 | Product Name | Android Box | |
| Hardware | ||||
| CPU | Chipset | Amlogic S905X5M (S905A) | ||
| Architecture | Quad Core ARM Cortex A55 | |||
| GPU | Chipset | ARM G310 V2 | ||
| Architecture | OpenGL ES 3.2, Vulkan 1.2 and OpenCL 2.0 support | |||
| RAM | Capacity | 4GB (2G /4GB Optional) | ||
| ROM | Capacity | 32GB (16GB /64GB /128GB Optional) | ||
| External storage | USB Storage Devices | USB2.0 Support | ||
| Micro SD card | Supported | |||
| Software | ||||
| Operating system | OS Version | Android 14 | ||
| Language | Multi-Language | |||
| Multimedia | Video | Amlogic Video Engine (AVE) with dedicated hardware decoders and encoders Support multi-video decoder up to 4x1080P@60fps |
||
| Supports multiple “secured” video decoding sessions and simultaneous decoding and encoding | ||||
| Video/Picture Decoding | ||||
| VP9 Profile-2 up to 8Kx4K@24 fps | ||||
| H.265 HEVC MP-10@L5.1 up to 8Kx4K@24 fps | ||||
| AVS2-P2 Profile up to 8Kx4K@24 fps | ||||
| MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496) | ||||
| WMV/VC-1 SP/MP/AP up to 1080P@60fps | ||||
| AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps | ||||
| MPEG-2 MP/HL up to 1080P@60fps (ISO-13818) | ||||
| MPEG-1 MP/HL up to 1080P@60fps (ISO-11172 | ||||
| RealVideo 8/9/10 up to 1080P@60fps | ||||
| Multiple language and multiple format sub-title video support | ||||
| MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918 | ||||
| Supports JPEG thumbnail, scaling, rotation and transition effects | ||||
| Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file formats | ||||
| Image Engine | Supports HDR10, HDR10+ processing | |||
| Inline AI-SR,Block noise, mosquito noise, spatial noise, contour noise reduction | ||||
| Audio | Supports MP3, AAC, WMA, FLAC, Ogg. | |||
| Image | HD JPEG, BMP, GIF, PNG, TIF | |||
| Network service | ||||
| Wi-Fi | Type | Support WiFi IEEE 802.11 a/ b / g / n | ||
| Frequency | Support 2.4G and 5G | |||
| Antenna Type | one external antennas | |||
| Bluetooth | Bluetooth | Support BT5.X | ||
| Interface | ||||
| Charge | DC connector | DC IN(5V/2A) | ||
| Video output | HDMI | 4K*2K UHD Output, HDMI 2.1a | ||
| IR Reciver | 3.5mm Earphone jack | Remote Reciver Connect | ||
| Micro SD | External memory | Support | ||
| USB port | USB host | 2* USB2.0 | ||
| Ethernet | Ethernet | 1000M Ethernet | ||
| Appearance | ||||
| Body Material | ABS | |||
| Color | Black | |||

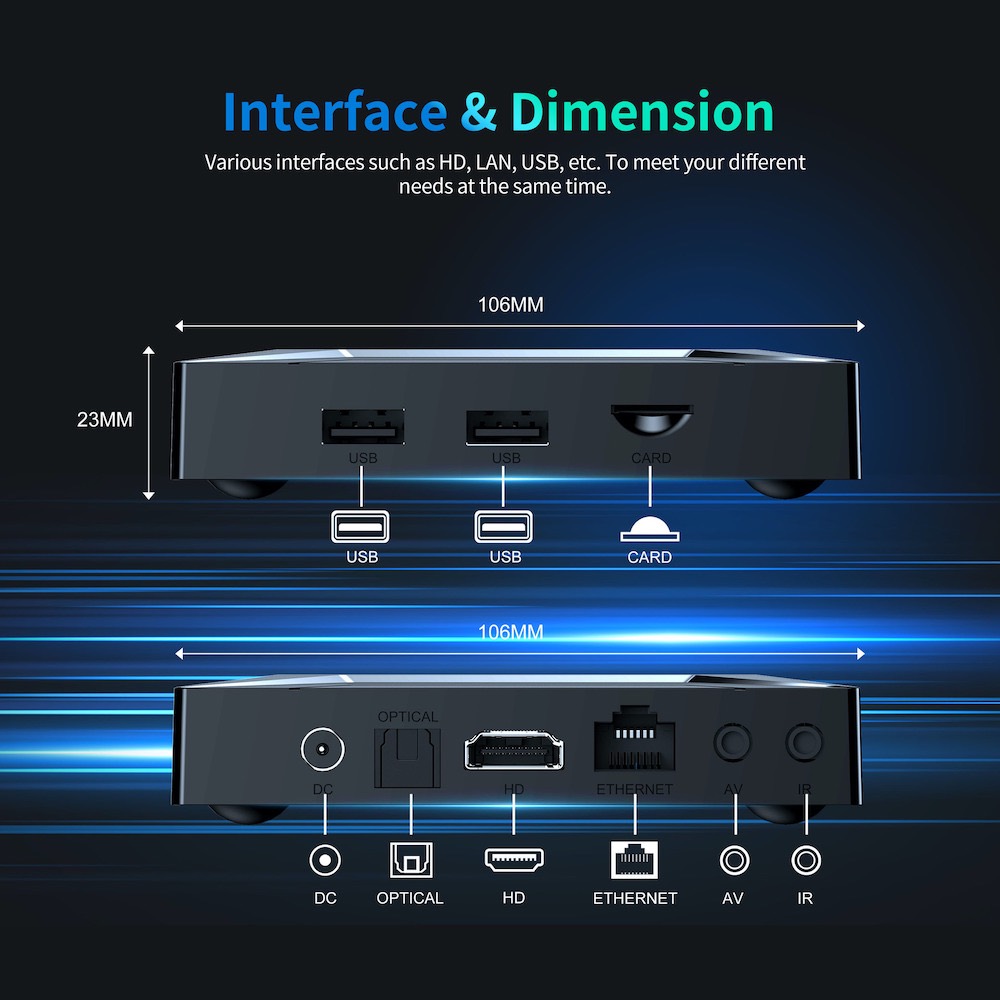

| Size | 106x106x23(mm) | |||
| Weight | 0.135Kg | |||
| Cerifications(For Unit) | ||||
| Standard | CE | / | ||
| RoHS | / | |||
| Others | Optional | / | ||
| Package contents | Shipping Info | |||
| User manual | *1 | Gift Box Dimension(mm) | 205*140*50(mm) | |
| Gift Box | *1 | Carton Size(mm) | 420*270*305 (mm） | |
| Remote control | *1 | Qty Per Carton(pcs) | 20 | |
| HDMI external cable | *1 | Gift Box.G.W(gs) | 0.388Kg | |
| Power adapter | *1 | Export carton (G.W.)(kgs) | 8.76Kg | |

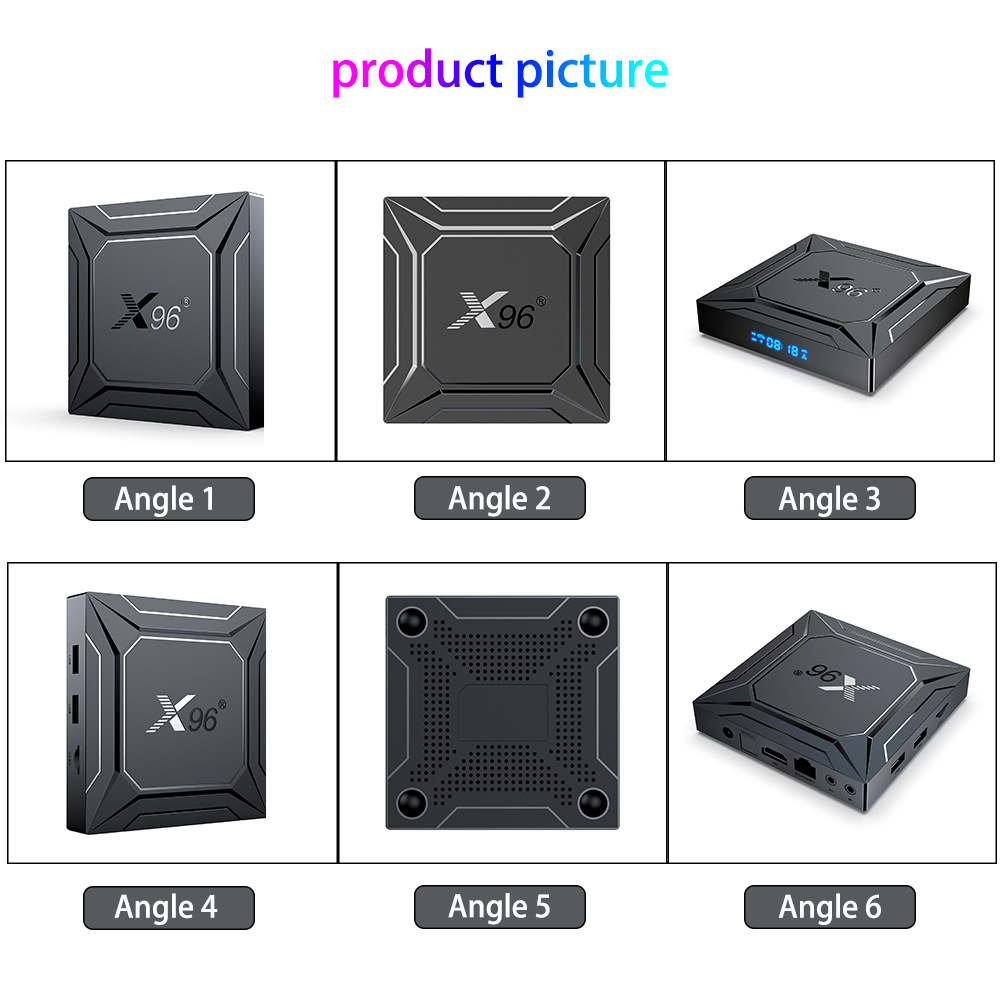

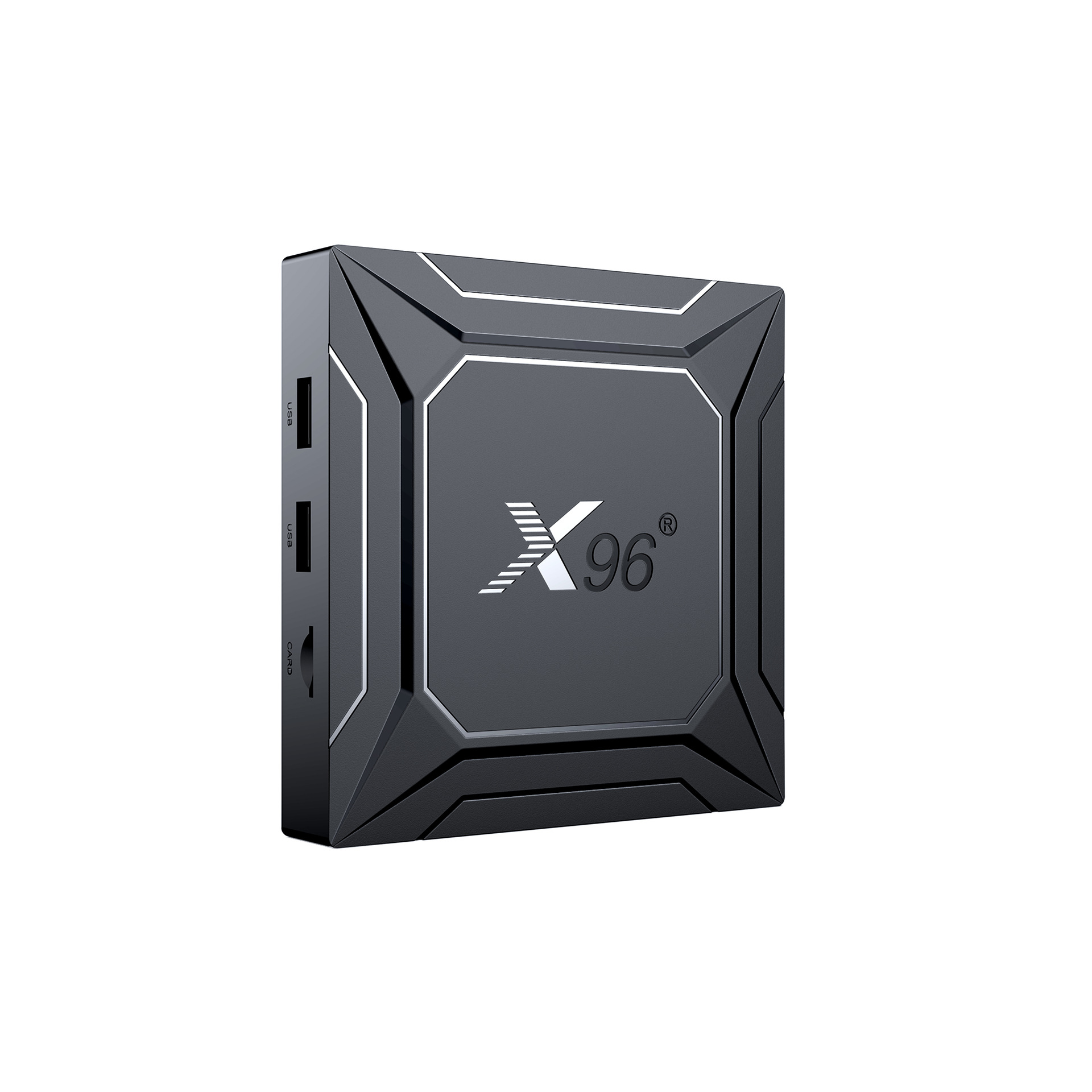

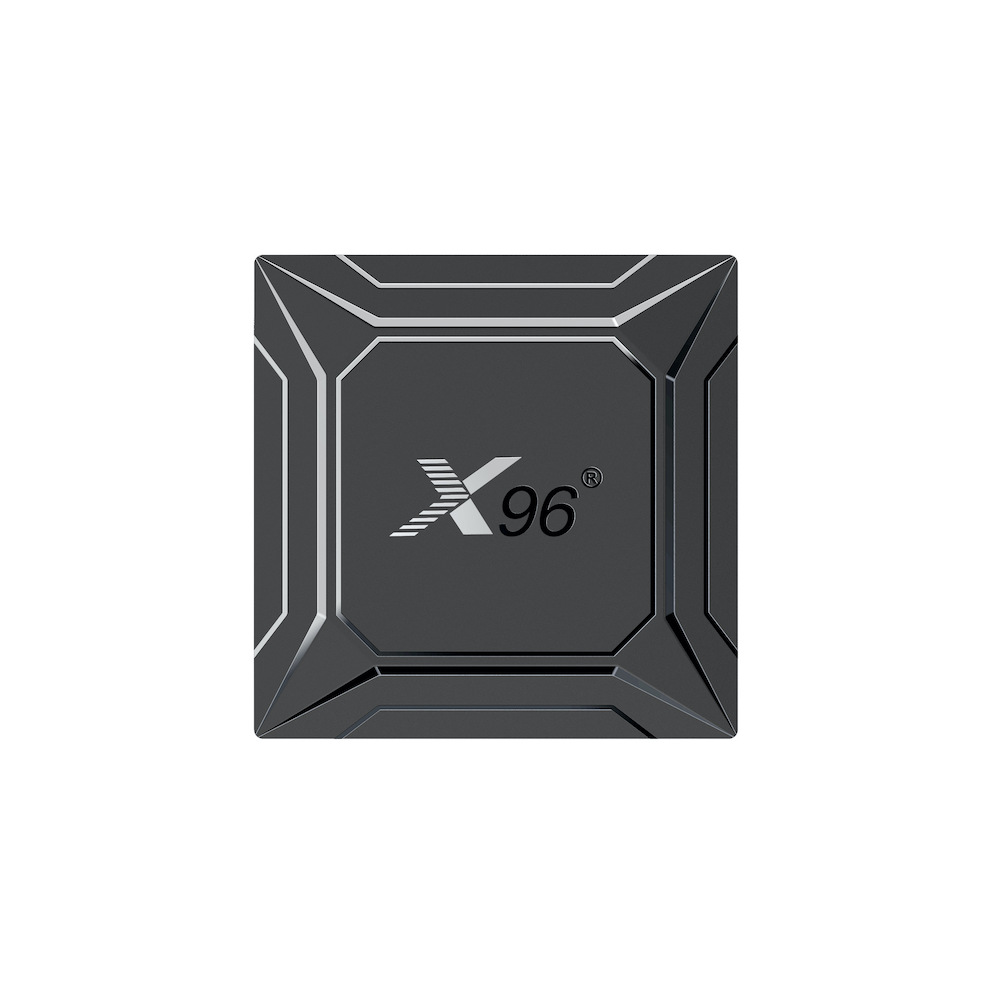

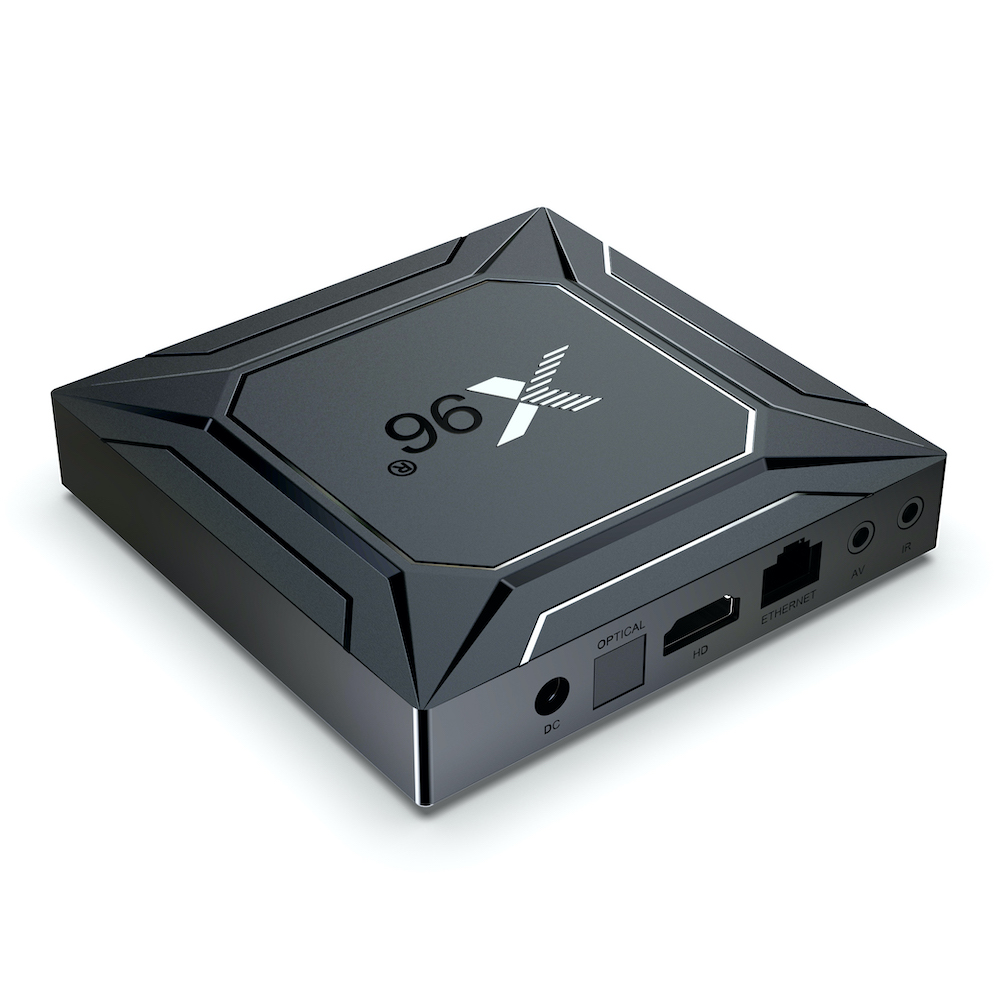

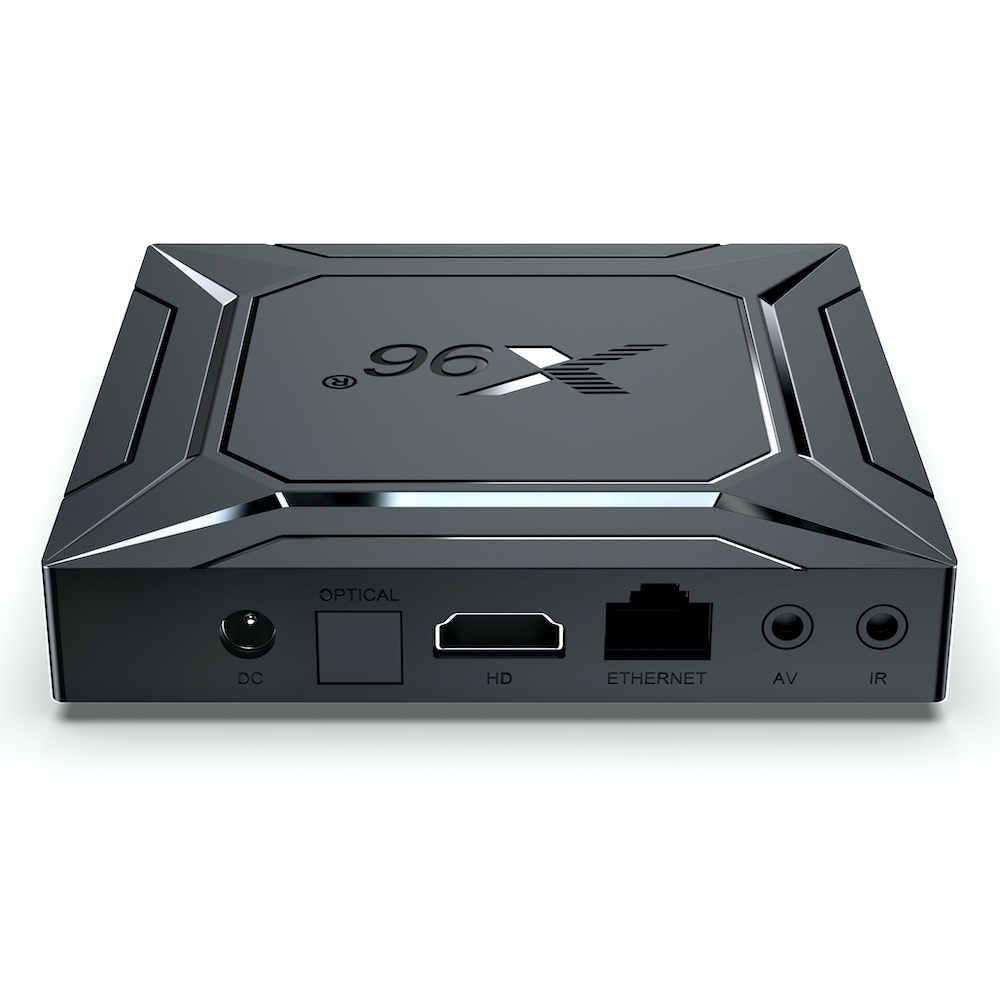

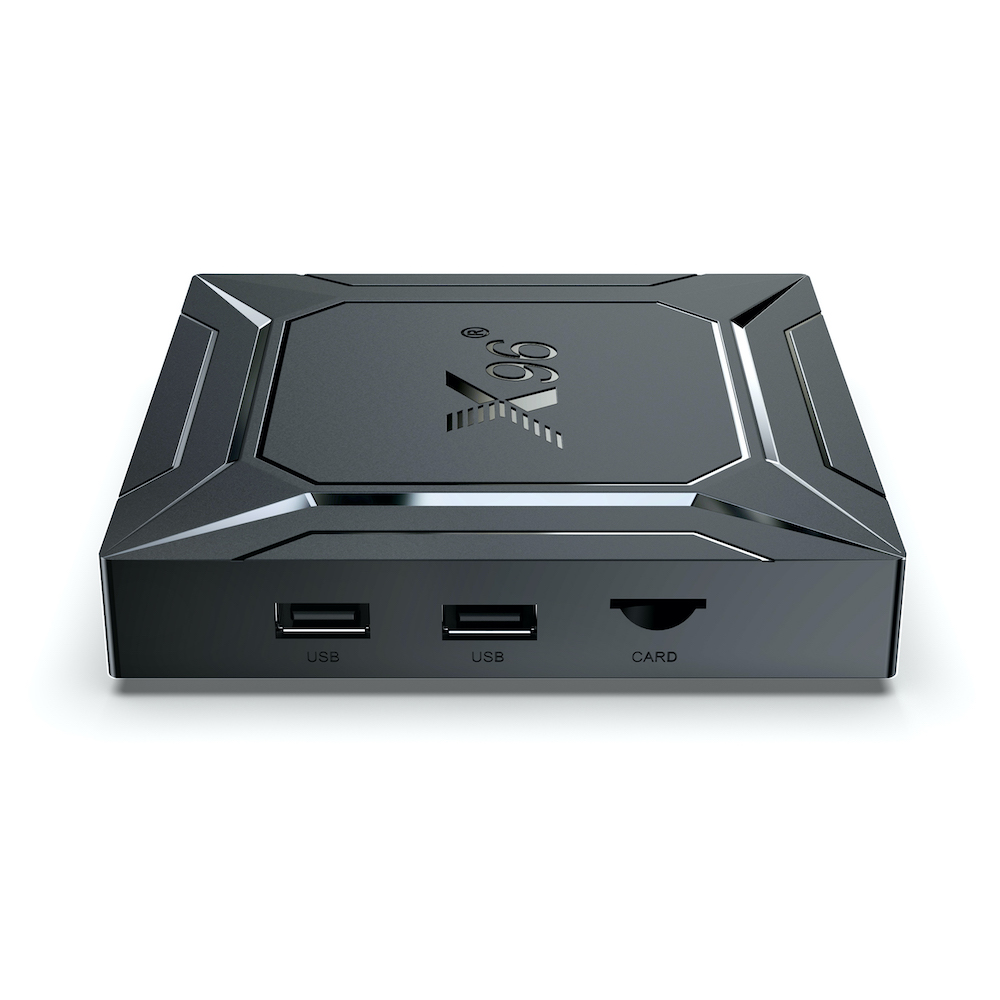

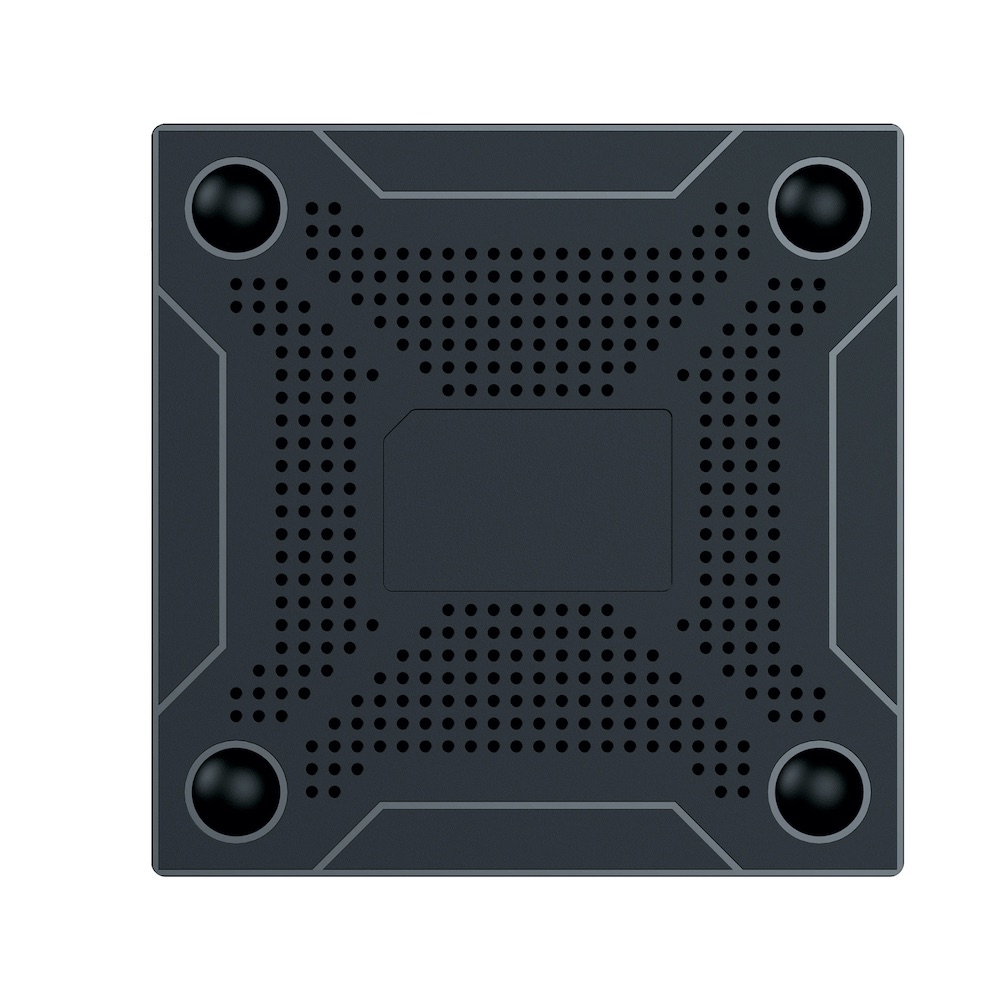

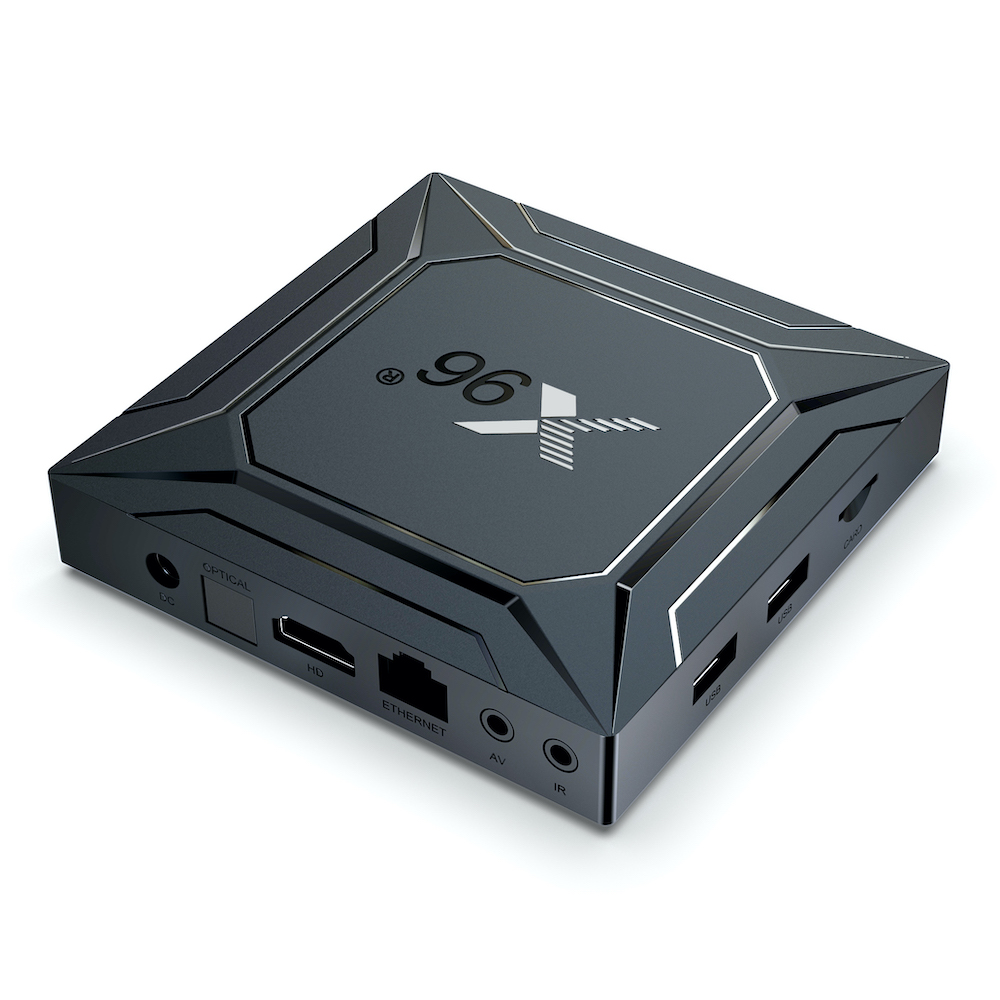

M200 Product Photos:

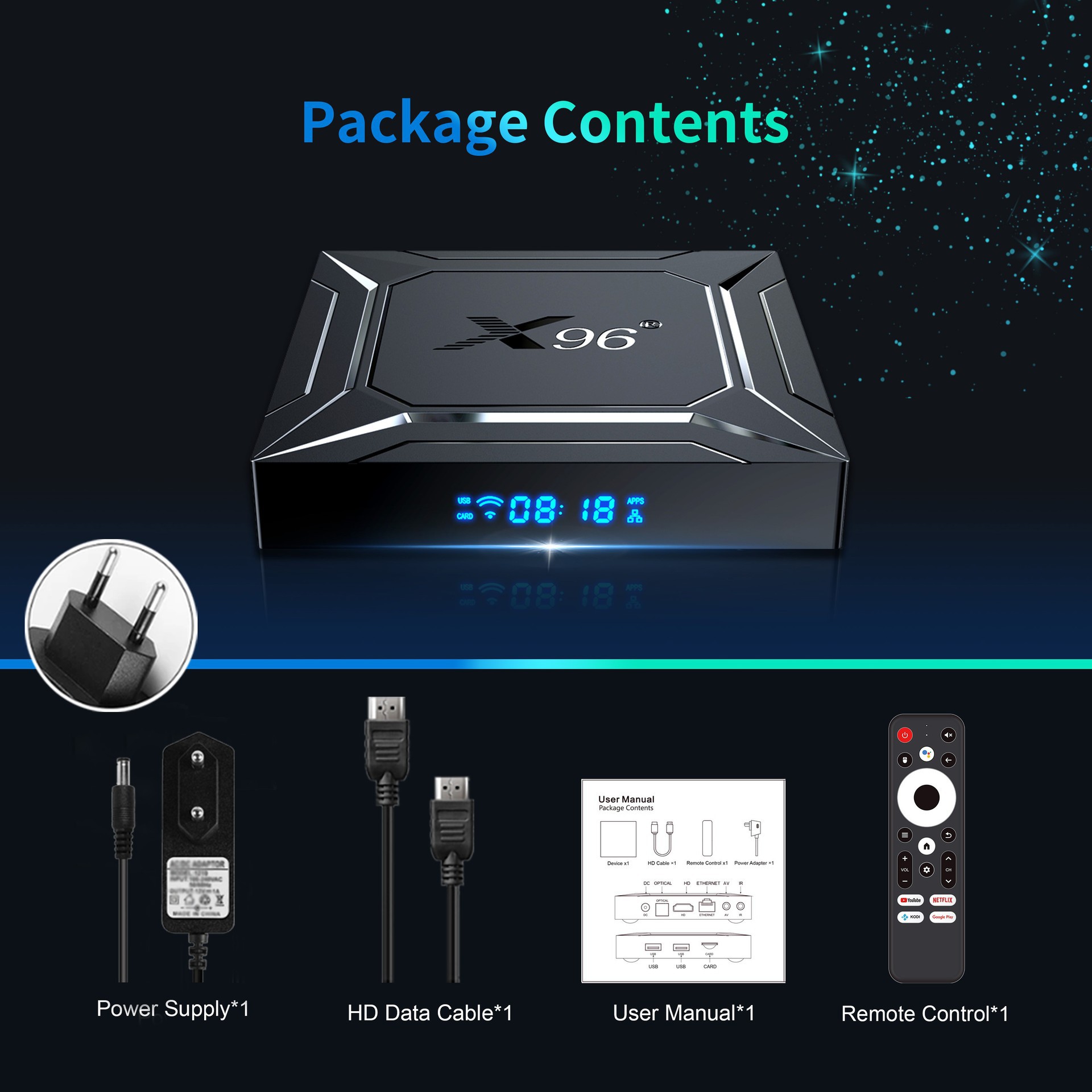

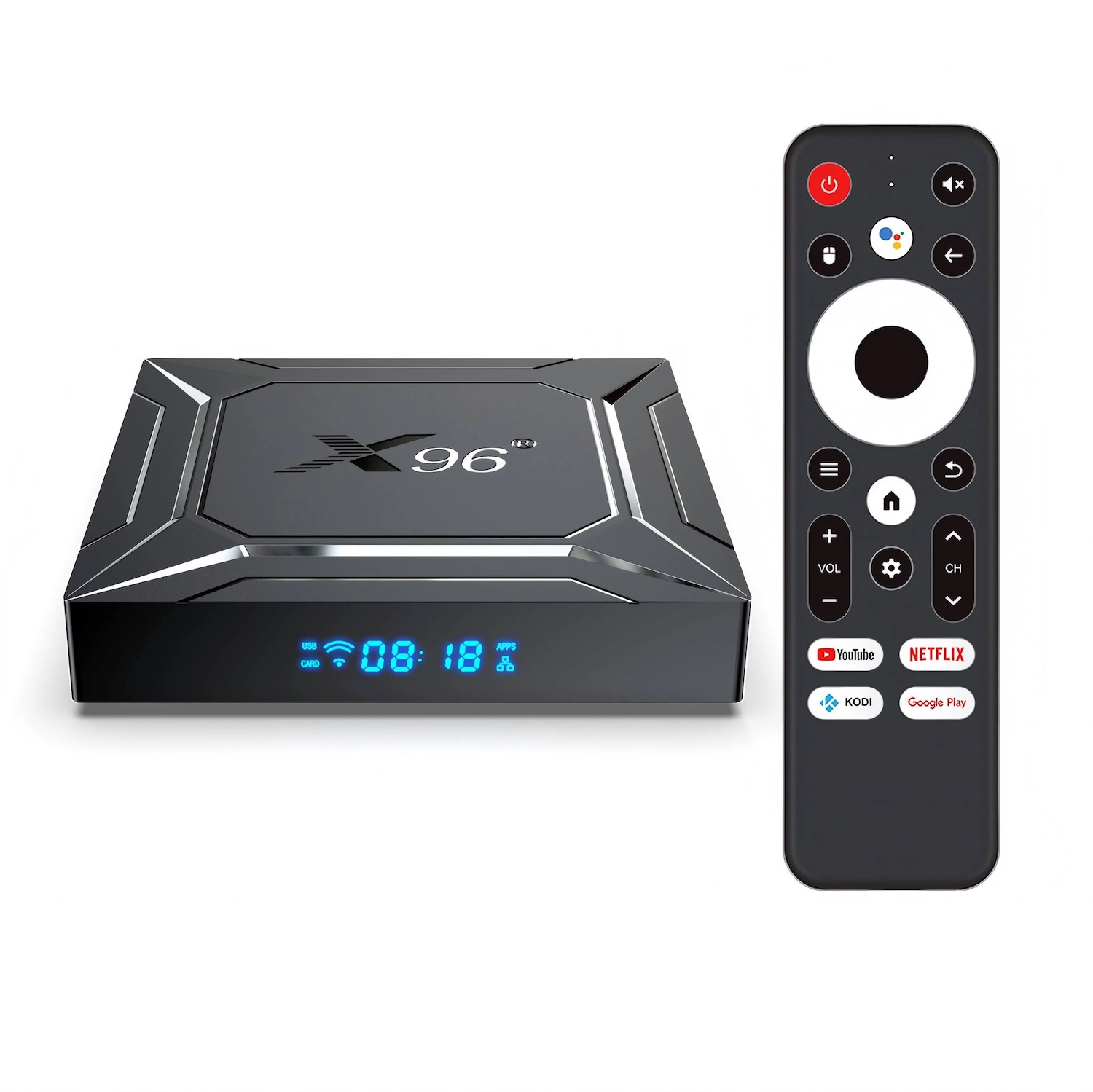

Product Packing and Accessory:
