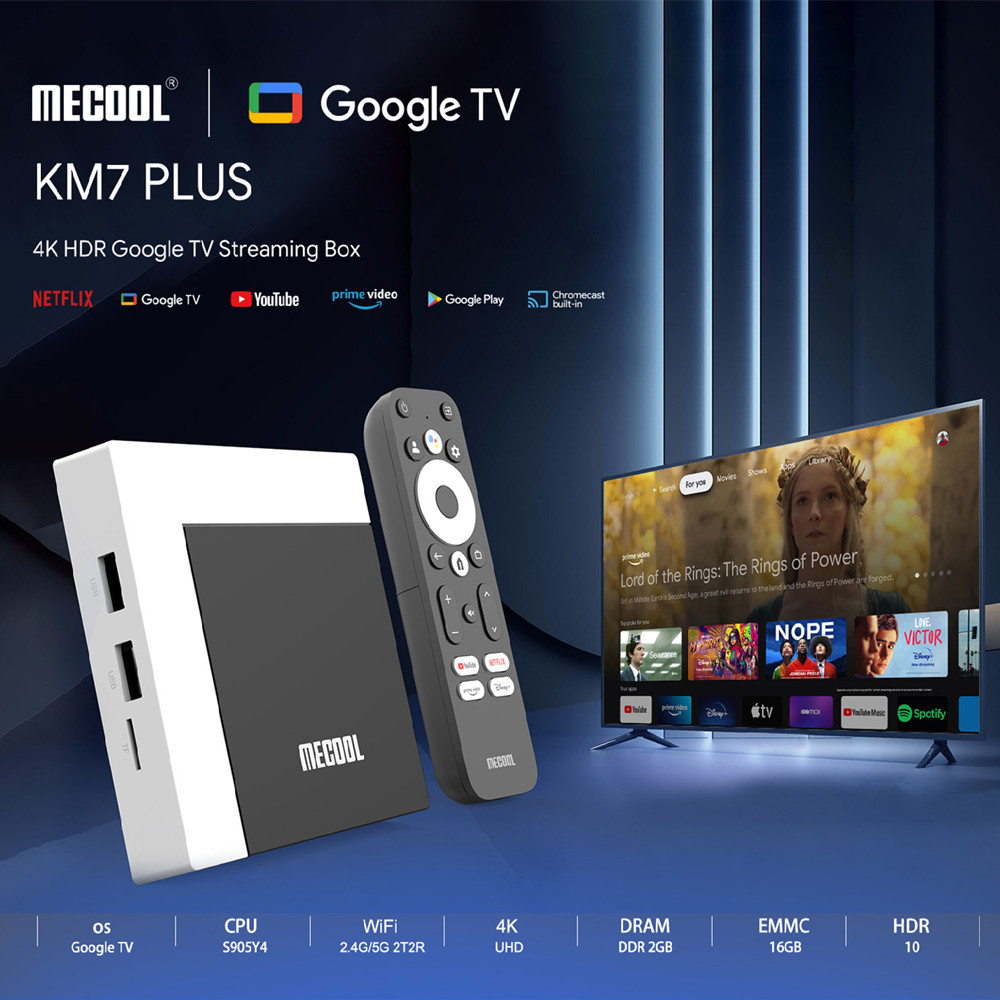

KM7 Plus

ATV Android Box Specifications

CPU

Amlogic S905Y4 Quad Core 64-bit ARM Cortex A35 CPU

GPU

ARM G31™ MP2 GPU processor

SDRAM

2GB DDR4

FLASH

16GB eMMC

WiFi

Built in 802.11 a/b/g/n/ac 2.4G /5G WiFi + BT 5.0

BT

Bluetooth 5.0

LAN Ethernet

10/100M Ethernet

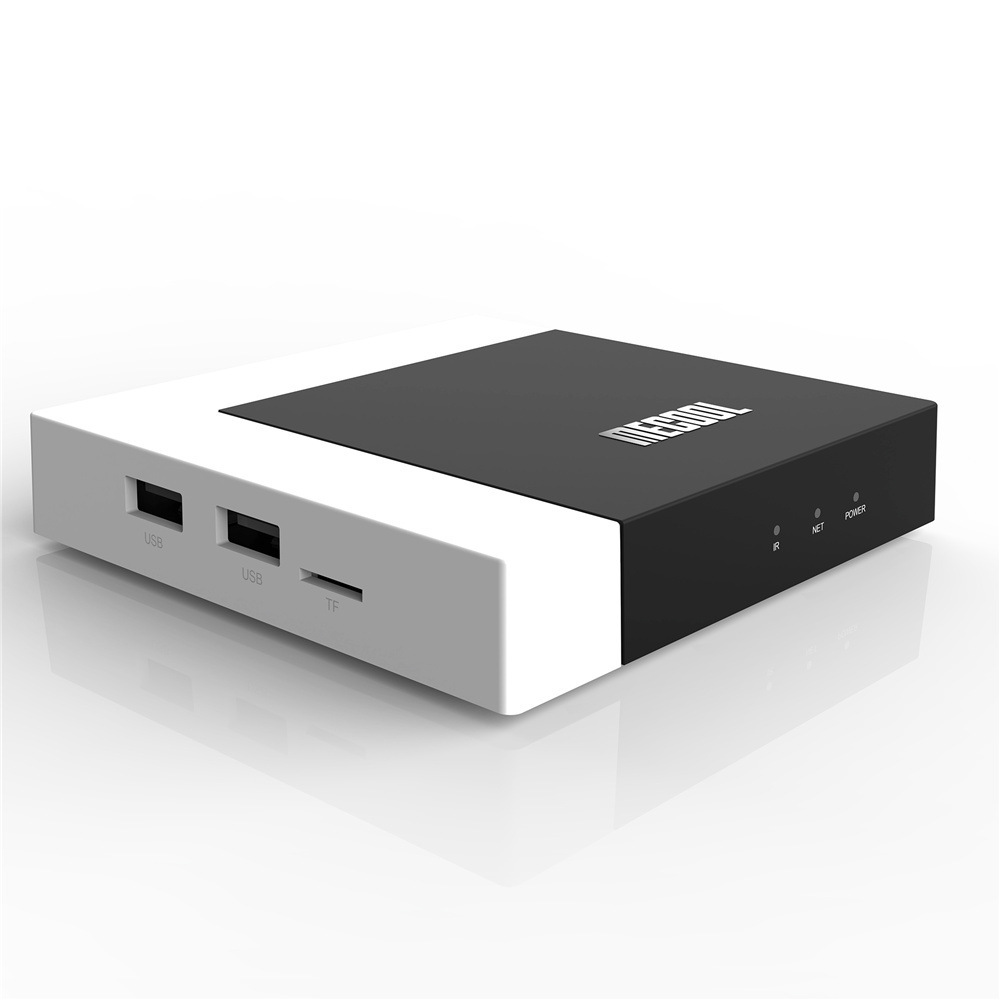

LED Indicator

3 leds, Power, NET, IR

Main Features

OS

Android 11 ATV Google TV system

Video decorder

– AV1 MP-10@L5.1 up to 4Kx2K@60fps
• – VP9 Profile-2 up to 4Kx2K@60fps
• – H.265 HEVC MP-10@L5.1 up to 4Kx2K@60fps
• – AVS2-P2 Profile up to 4Kx2K@60fps
• – H.264 AVC HP@L5.1 up to 4Kx2K@30fps
• – MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496)
• – WMV/VC-1 SP/MP/AP up to 1080P@60fps
• – AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to
1080P@60fps
• – MPEG-2 MP/HL up to 1080P@60fps (ISO-13818)
• – MPEG-1 MP/HL up to 1080P@60fps (ISO-11172)
• – RealVideo 8/9/10 up to 1080P@60fps
• – Supports JPEG thumbnail, scaling, rotation and transition
effects

Video encorder

Video/Picture Encoding
• Amlogic Video Engine (AVE) with dedicated hardware
decoders and SW H.264/VP8 encoders
• – Support multi-video decoder up to 4x1080P@60fps
• – Supports multiple “secured” video decoding sessions
and simultaneous decoding and encoding

Decoder format

HD MPEG1/2/4,H.265/H.264/HEVC ,
VC-1/WMV , AVS, AVS +, AVS2
RealVideo,AV1 ,MP-10,VP9
Profile,RM,RealVideo8/9/10

Media format

Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file formats

Music format

Supports MP3, AAC, WMA, RM, FLAC, programmable with 7.1/5.1 down-mixing

Photo format

MJPEG/JPEG

Language

Chinese, English, Germany, Japanese, Korea etc. 24 languages

OTA

Support OTA update

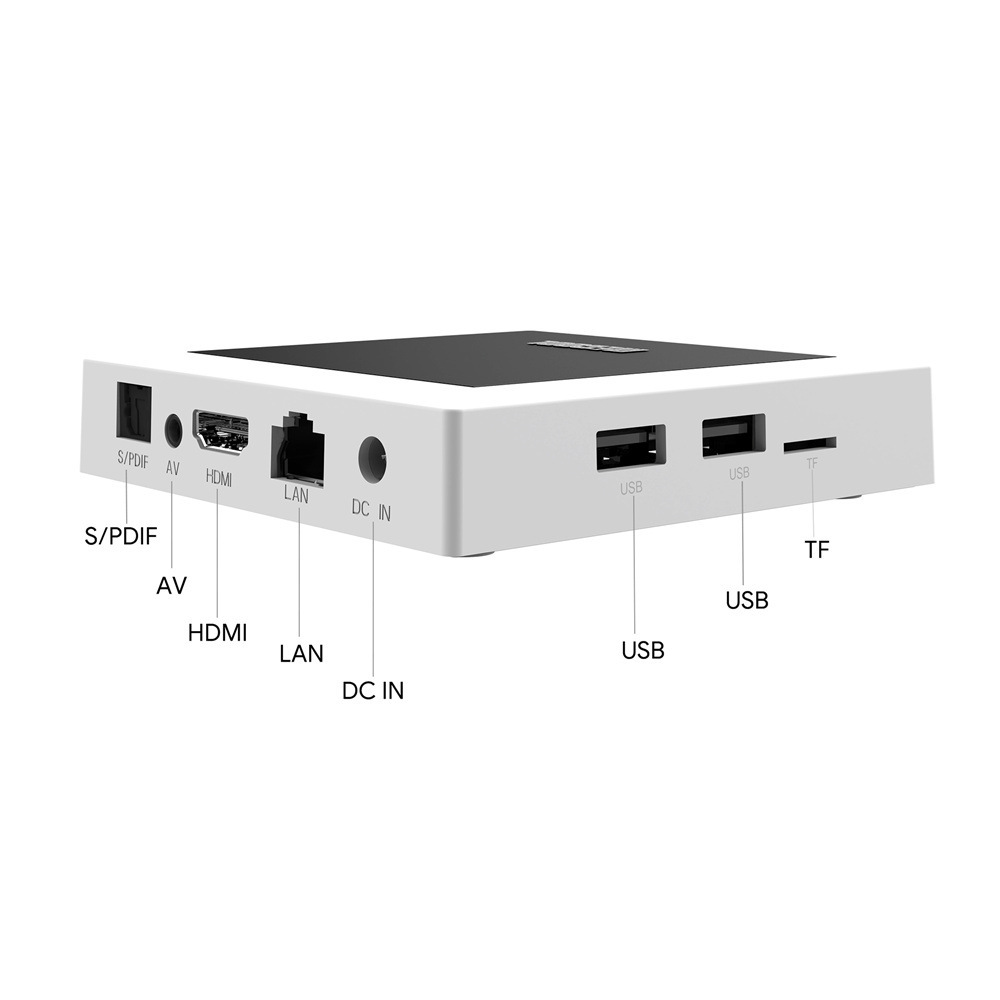

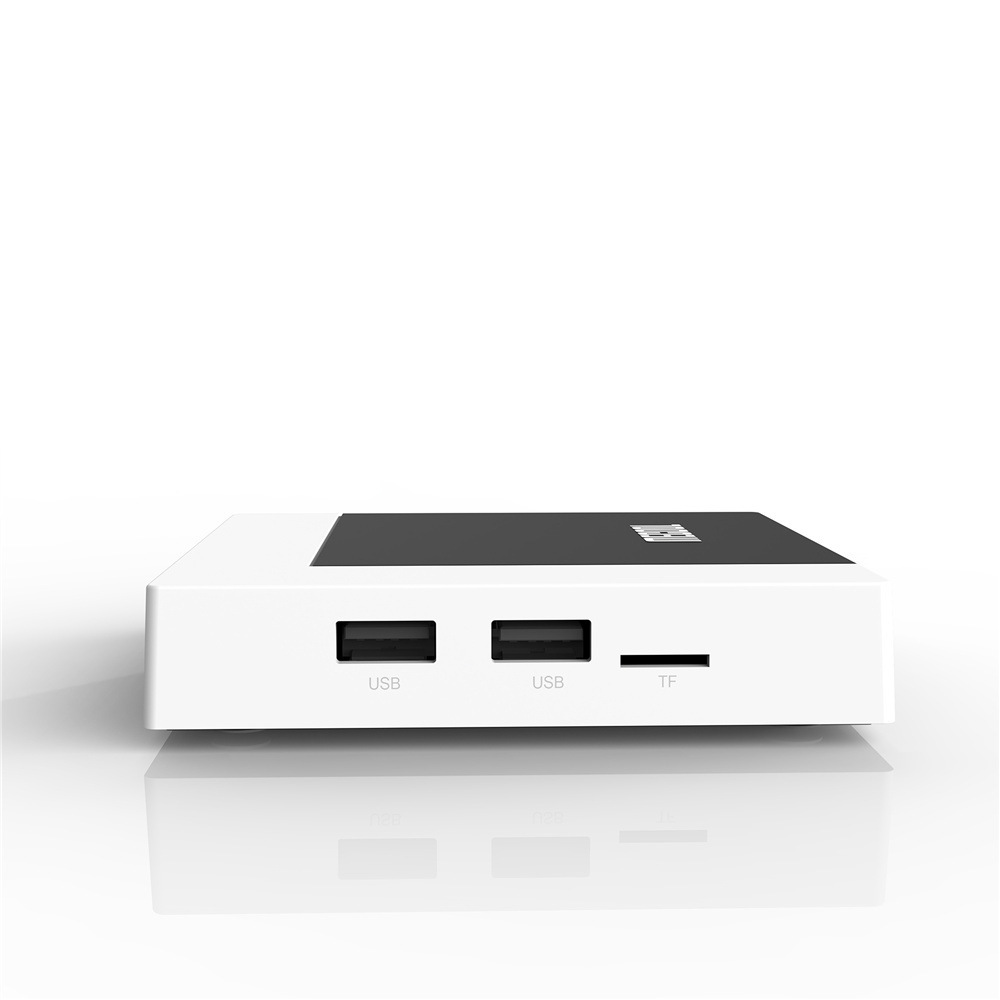

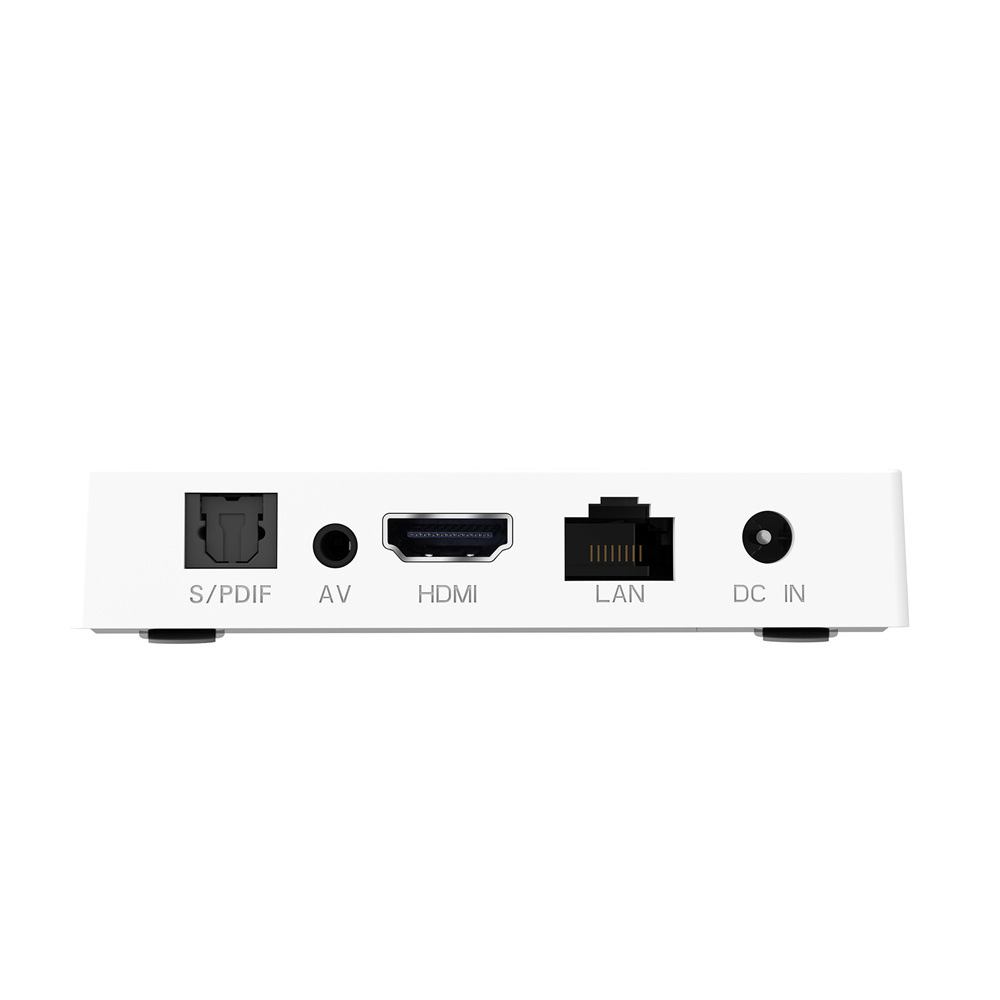

Port Specifications

Port

1* HDTV 2.1 Dynamic HDR 4Kx2K@60 max resolution output

1* USB 2.0

1* USB 2.0

1* TF CARD Support 1~128GB

1* 3.5 Phone out CVBS&L/R output

1* RJ45 LAN

1* DC 5V/2A
